✔️ Hybrid Solar/Wind Power (160W + Turbine)

✔️ ​​1000-Tool Capacity in Compact 0.58m² Footprint

✔️ 72-Hour Backup with ≤80W Ultra-Efficiency

✔️ Seamless ERP Integration​​ via C#/Java SDK

Email Our Team
DFJDF
DFJDF
IGUU
RDTJ
WSGF
ERYHDF

UNSTOPPABLE TRACKING, ANYWHERE

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Phone*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

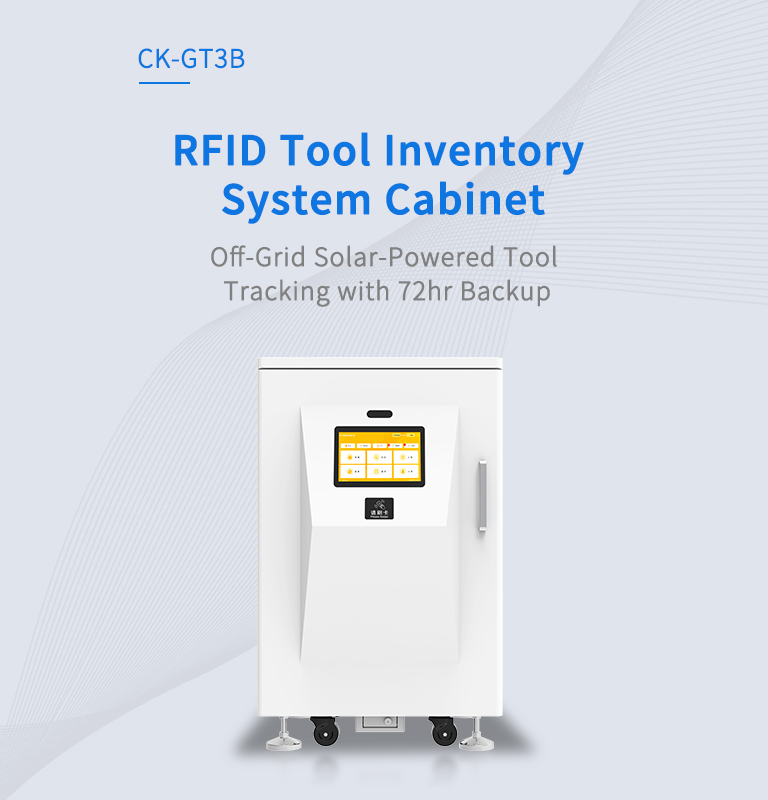

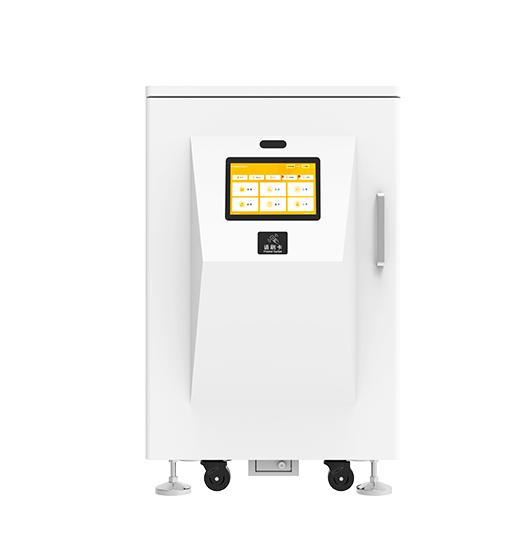

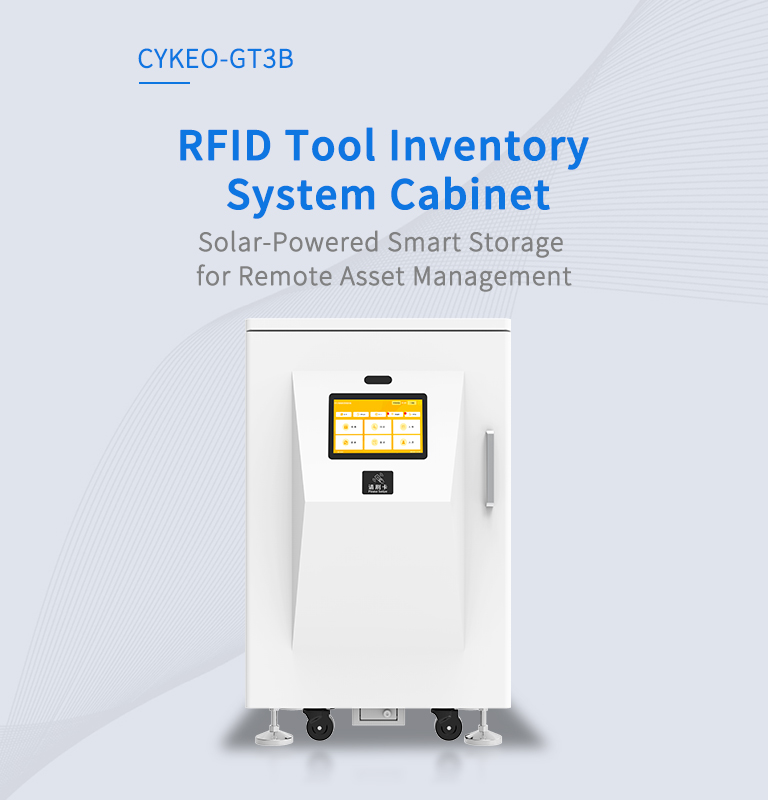

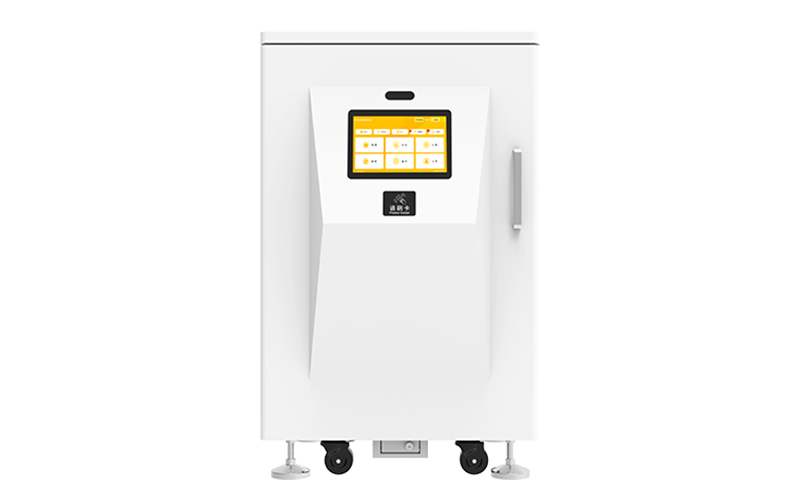

Cykeo CK-GT3B RFID Tool Inventory System Cabinet Specifications Table​

Main Specifications

  • BrandCykeo
  • ModelCK-GT3B
  • Product NameRFID Tool Inventory System Cabinet

Physical Parameters

  • ​Communication ProtocolEthernet (RJ45), optional WiFi/4G
  • ​MaterialMetal casing + glass panel

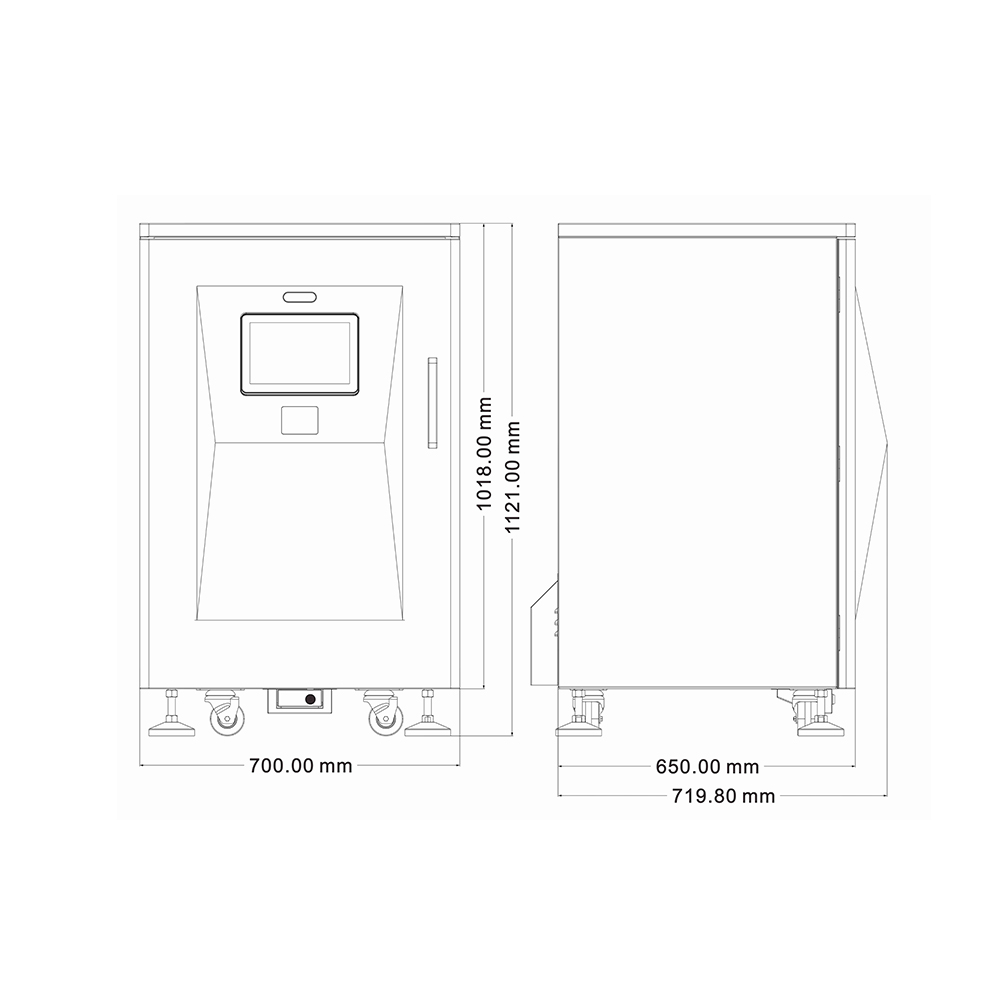

  • Dimensions1121×719×700mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Touchscreen10.1″ Touchscreen
  • Backup Time72hr
  • Weight100KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840MHz~960MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c
  • Read Range5-50cm Adjustable
  • Read Speed1-3 sec
  • ​​Connectivity​4G/Wired
  • Power≤80W @220V/50Hz

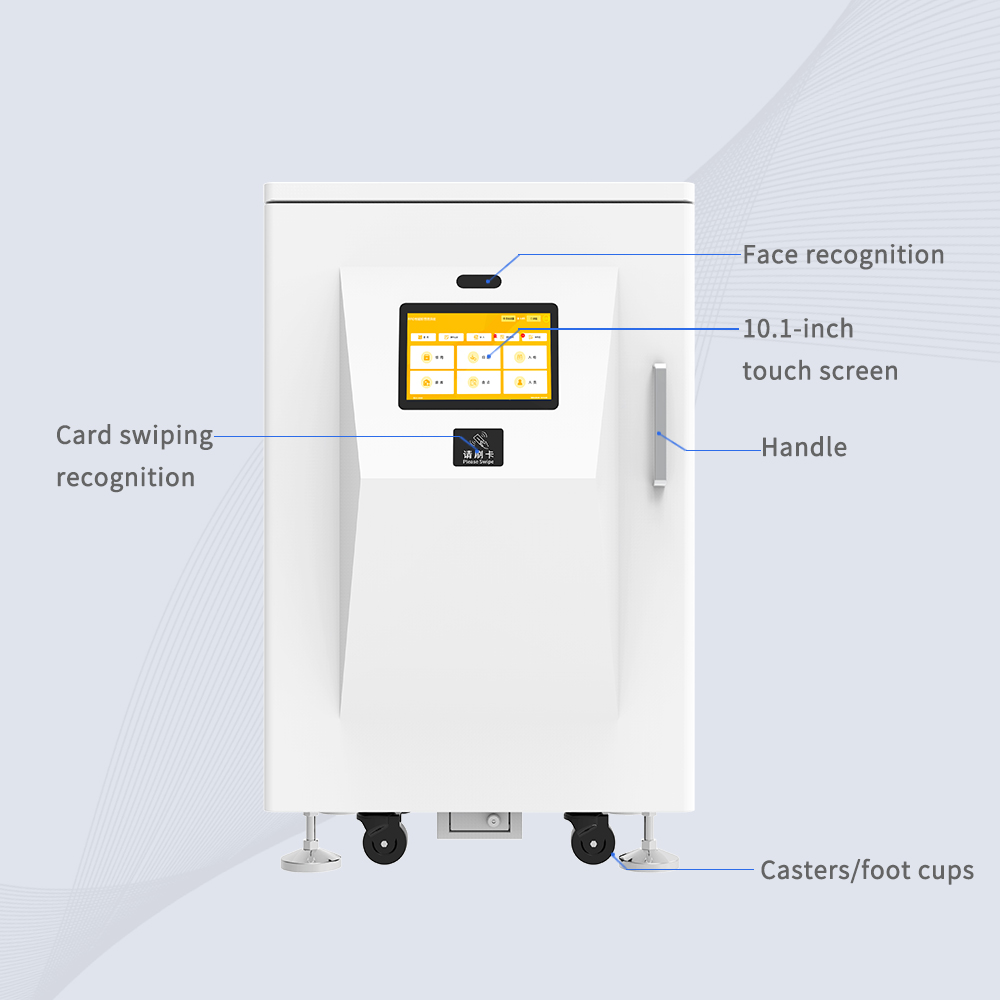

  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Solar Power160W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID TOOL INVENTORY SYSTEM FAQS

How Does Solar Power Work in Cloudy Arctic Conditions?

Answer:
The triple-redundancy power system ensures uninterrupted operation:

  1. Hybrid Charging: 160W solar panels + 200W wind turbine option
  2. Supercapacitor Buffer: Stores 3kW surge power for -30°C cold starts
  3. Smart Load Shedding: Prioritizes RFID scanning over screen backlight
    Field Test: In Alaska oil fields, maintained 100% uptime during 72hr blizzards with 12% solar efficiency.
Can It Survive Sandstorms in Desert Deployment?

Answer:
Yes. The IP65 sand-proof design includes:

  • Sealed Cooling Vents: Magnetic dust filters blocking 10μm particles
  • Corrosion Defense: Electrophoretic coating on carbon steel
  • Screen Protection: 5mm Gorilla Glass with anti-scratch coating
    Durability Case: UAE solar farm operated 18 months without maintenance amid 50km/h sandstorms.
How to Extend 72hr Backup to 1 Week?

Answer:
Activate Eco-Mode 2.0 via:

  1. Scan Interval Adjustment: Reduce inventories from hourly to daily
  2. Screen Sleep: Auto-dim after 10s inactivity
  3. 4G Throttling: Sync data only at night
    Energy Stats:
  • Standard: 72hr @ 3 scans/day
  • Eco-Mode: 168hr @ 1 scan/day
    Pro Tip: Add secondary battery pack (sold separately).
