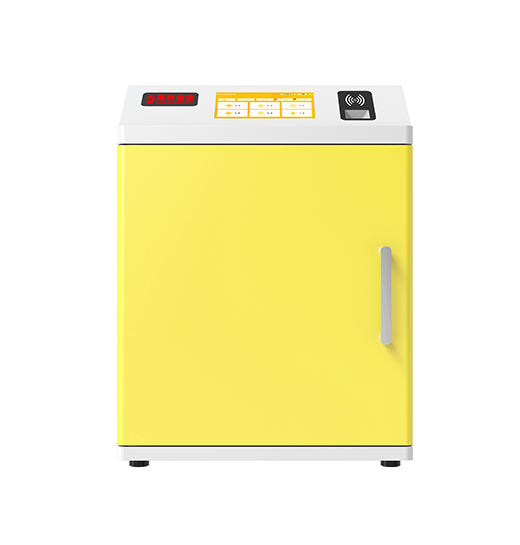

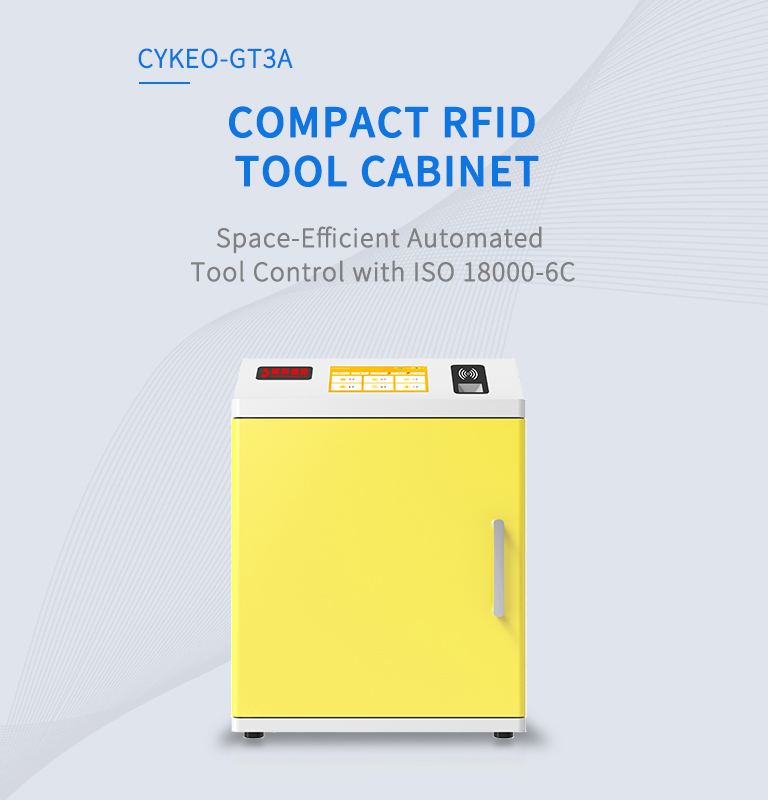

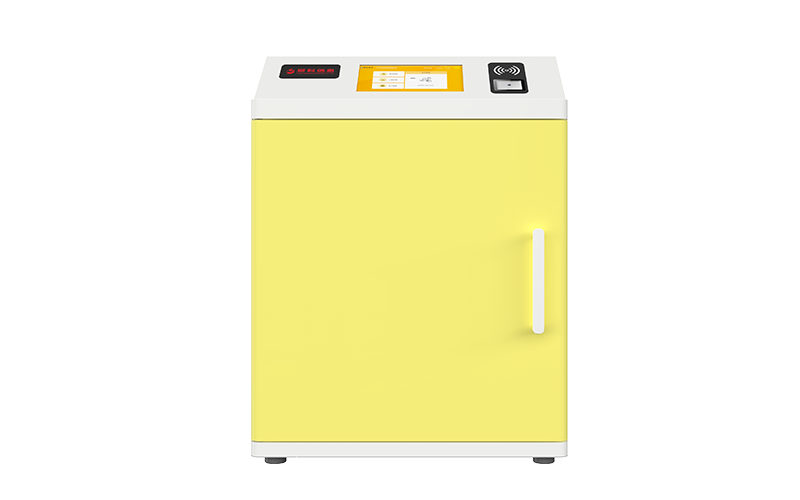

CK-GT3A

RFID Tool Management Cabinet

Space-Saving Industrial Cabinet with 5-Second Tool Visibility

✔️ ≤5s/200pcs Ultra-Fast RFID Scanning

✔️ 1000-Tool Capacity in Compact 0.58m² Footprint

✔️ 24/7 Unmanned Operation with Auto-Calibration

✔️ Seamless ERP Integration via C#/Java SDK

Talk to an Expert

Email Our Team

COMPACT CONTROL, ZERO LOSS

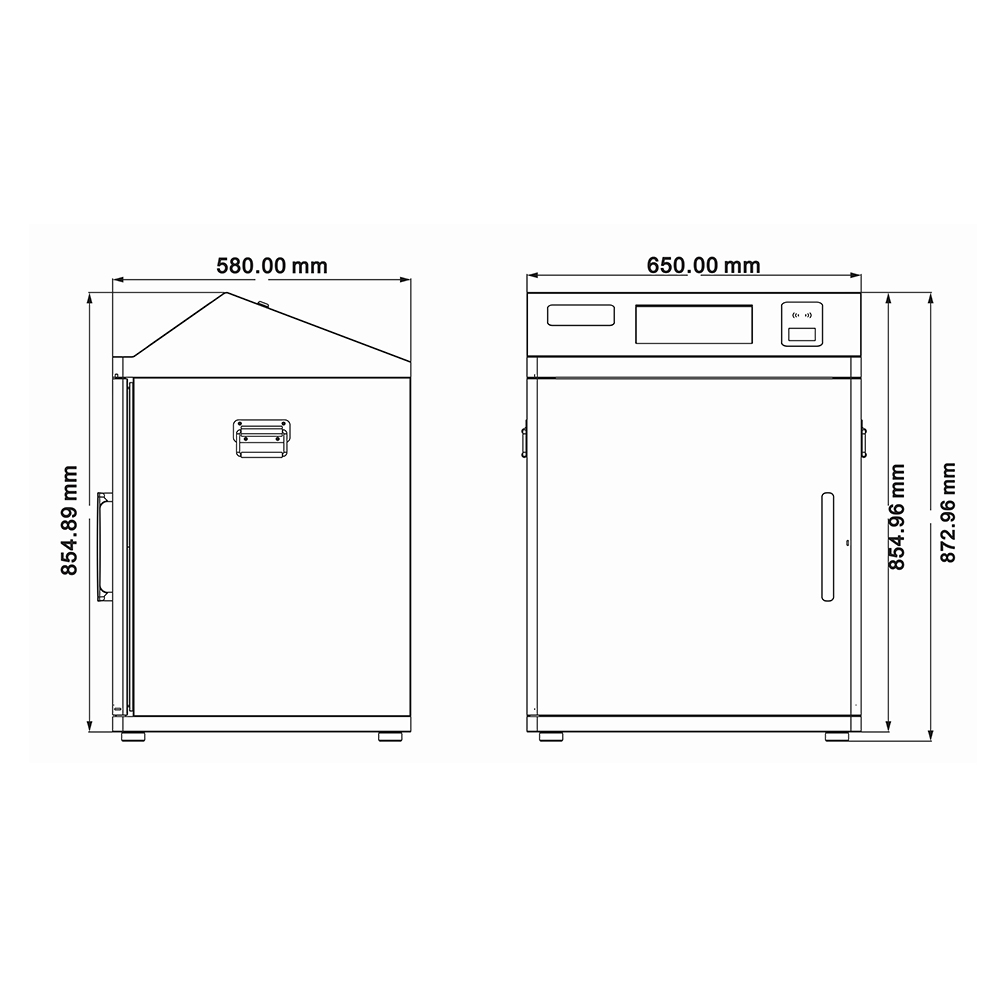

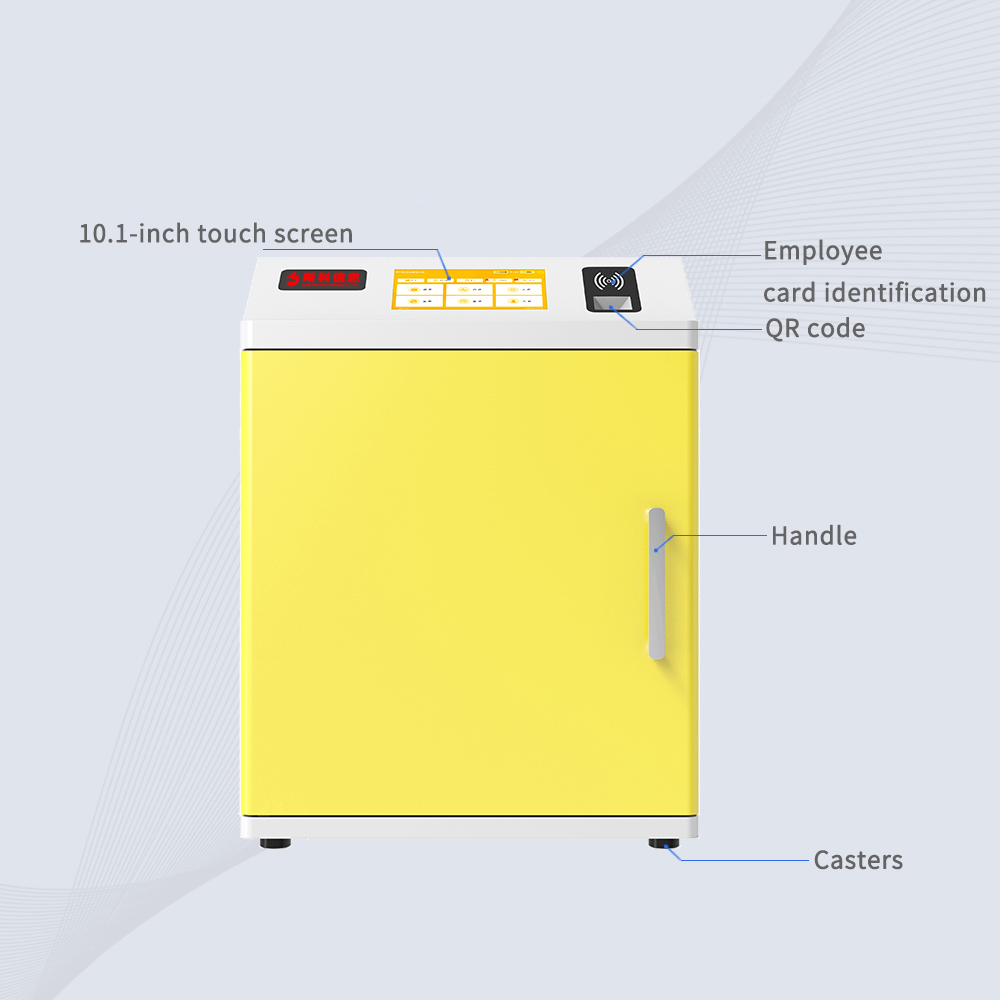

The CK-GT3A RFID Tool Management Cabinet revolutionizes confined-space asset control with ISO 18000-6C UHF technology. Featuring 5-layer adjustable shelves and a 10.1″ touchscreen, it scans 200 tools in 5 seconds within 872.9×650×580mm dimensions. Built with 1.2mm carbon steel, it supports constant temperature dehumidification and multi-cabinet networking for 24/7 unmanned workshops.

Optimized for tool cribs in aerospace factories, automotive plants, and semiconductor cleanrooms where space efficiency prevents production delays.

Tool management

Aviation management

Power grid maintenance control

Warehouse Logistics

Railway tool maintenance

Factory Automation

Cykeo CK-GT3A RFID Tool Management Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GT3A RFID TOOL MANAGEMENT CABINET

Impinj R2000 Precision

Scans 50+ tools/layer in <5s with ±1cm positioning accuracy.

Military-Grade Compactness

30% smaller than standard cabinets with 150kg/shelf capacity.

AI Voice Guidance

Multilingual audio prompts for one-handed operation.

Dynamic Humidity Defense

Optional dehumidifier maintains <20% RH in coastal areas.

Tamper-Proof Logs

AES-256 encrypted records with blockchain timestamps.

Hot-Swap Batteries

8hr backup power for mobile deployments.

Edge Computing

Local SQLite database stores 10,000+ transactions offline.

Tool Lifecycle AI

Predicts maintenance schedules from usage patterns.

Cykeo CK-GT3A RFID Tool Management Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GT4A
Product NameRFID Tool Management Cabinet

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel
Dimensions1100×600×2000mm
Internal grid size384mm*502mm*266mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen10.1″ Touchscreen
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Speed1-3 sec
Shelf OptionsGrid opening
Authentication ModesFace, Card, Fingerprint(Optional)
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
Power150W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID TOOL MANAGEMENT CABINET FAQS

How Does This Cabinet Achieve 1000-Tool Capacity in Compact Space?

Answer:
The CK-GT3A utilizes 5-layer sliding shelves with vertical RFID zoning to maximize storage:

Adjustable Shelf Height: Accommodates tools from 5cm (micro-drivers) to 40cm (wrenches).
Proximity-Optimized Antennas: Each shelf has dedicated readers avoiding cross-read errors.
Density Test: Stored 872 aviation tools (mix of sockets/gauges) in 0.58m² at Boeing supplier facility.
Space Tip: Pair cabinets back-to-back to create 2000-tool stations in 1.2m wide areas.

Can It Operate in Humid Workshops Without Tool Corrosion?

Answer:
Yes. The thermostatic dehumidification module maintains 10-30%RH humidity via:

Peltier Cooling: Condenses moisture without refrigerants.
Auto-Drain System: Directs water to external tanks.
Material Protection: Stainless steel rails + anti-corrosion coating.
Humidity Stats: In shipyard trials, reduced tool oxidation by 76% at 85%RH ambient.

How to Network 10+ Cabinets in a Large Factory?

Answer:
The daisy-chain RJ45/WiFi system enables centralized control:

Master-Slave Configuration: One “master cabinet” runs Windows OS for ERP sync.
Real-Time Sync: All slave cabinets (Android OS) update inventory via 4G/WiFi.
Alarm Cascading: If Cabinet 7 reports missing tool, adjacent units auto-rescan.
Case: Foxconn linked 32 cabinets for smartphone production, cutting tool retrieval time by 63%.
