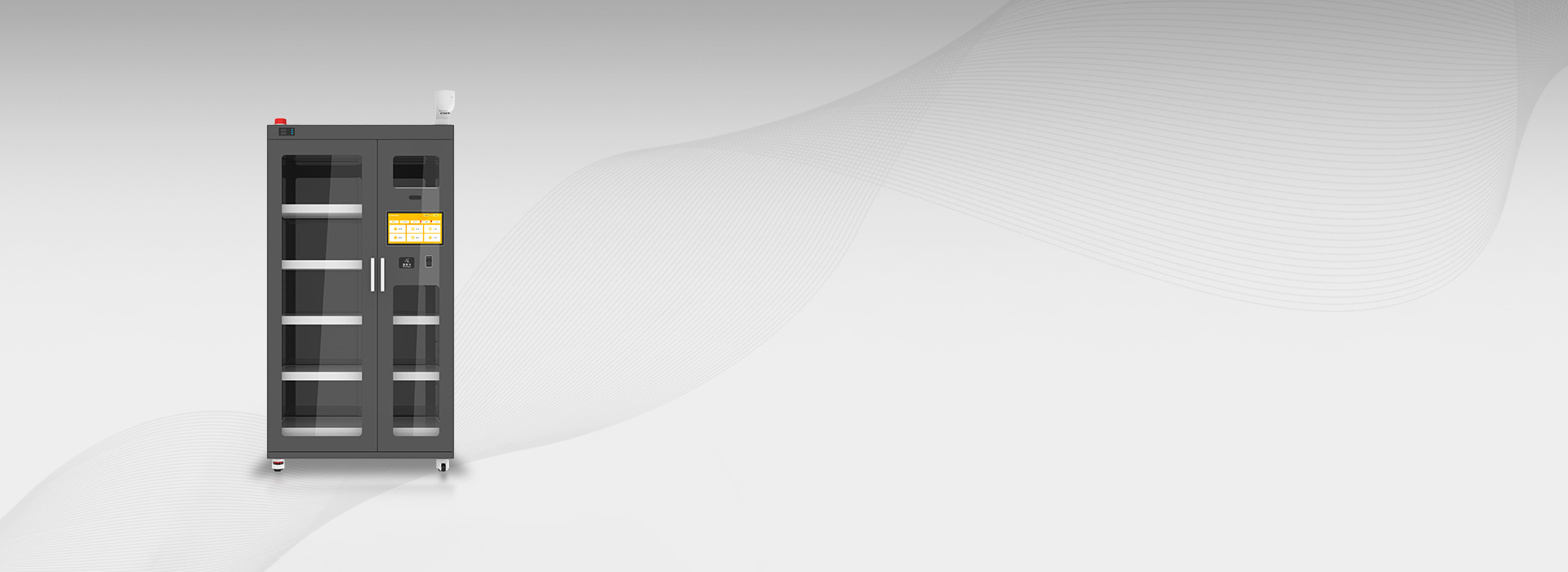

All RFID Product

TFUU

✔️ ≤5s/200pcs Ultra-Fast RFID Scanning

✔️ ​​14″ HD Touchscreen for Sunlight Readability

✔️ 24/7 Dehumidification for Critical Components

✔️ Triple Authentication (Face ID/Fingerprint/HF Card)

Email Our Team
ESDH
SRTH 2
SRTH 2
RTJ
TYJG
RUCJF
TDYJ
RDYH
ESRYDH
RTHD 1
RTDFU

PRECISION CONTROL, FLIGHT SAFETY

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

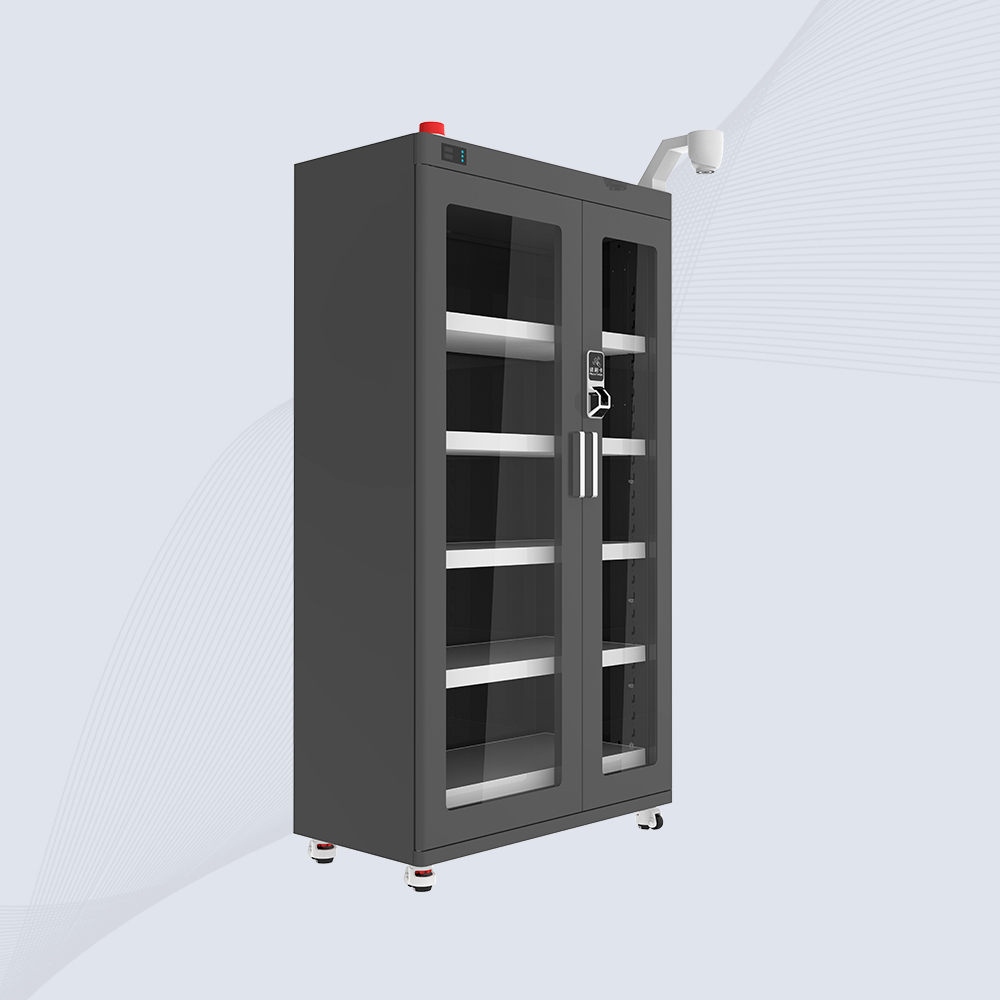

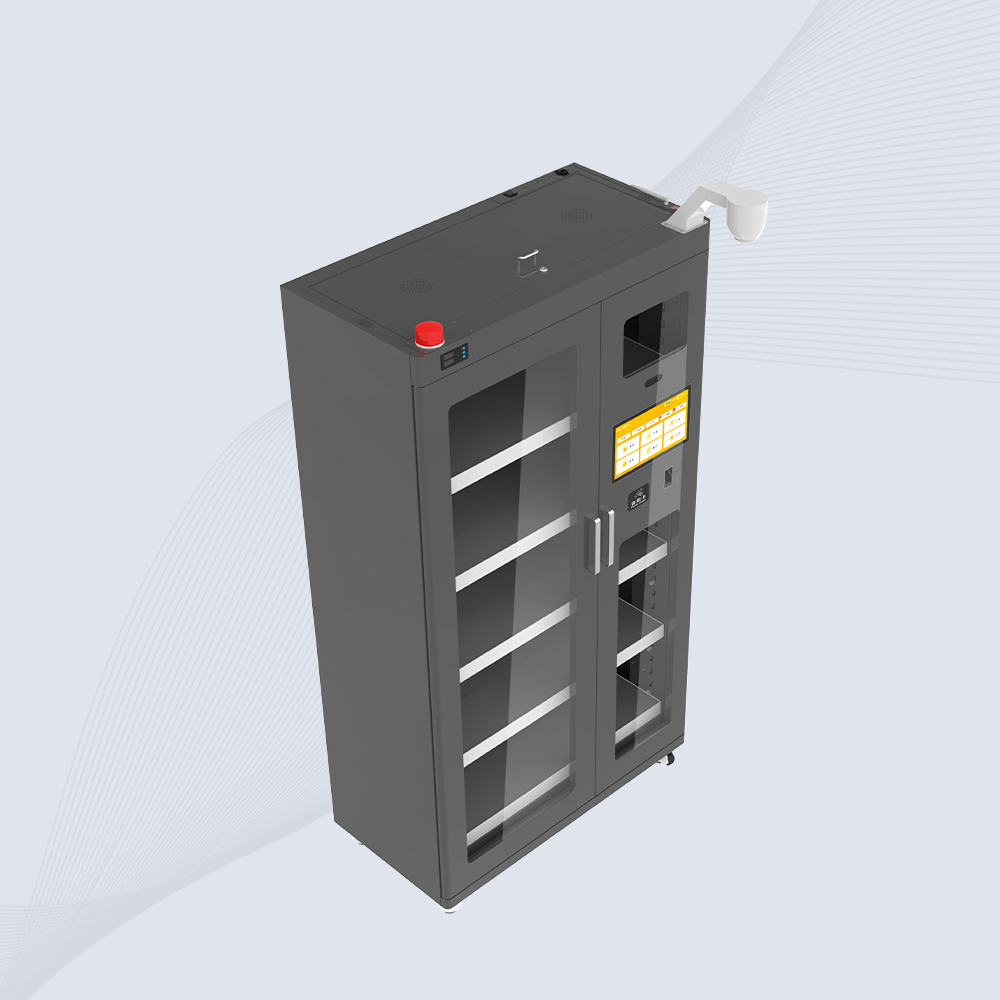

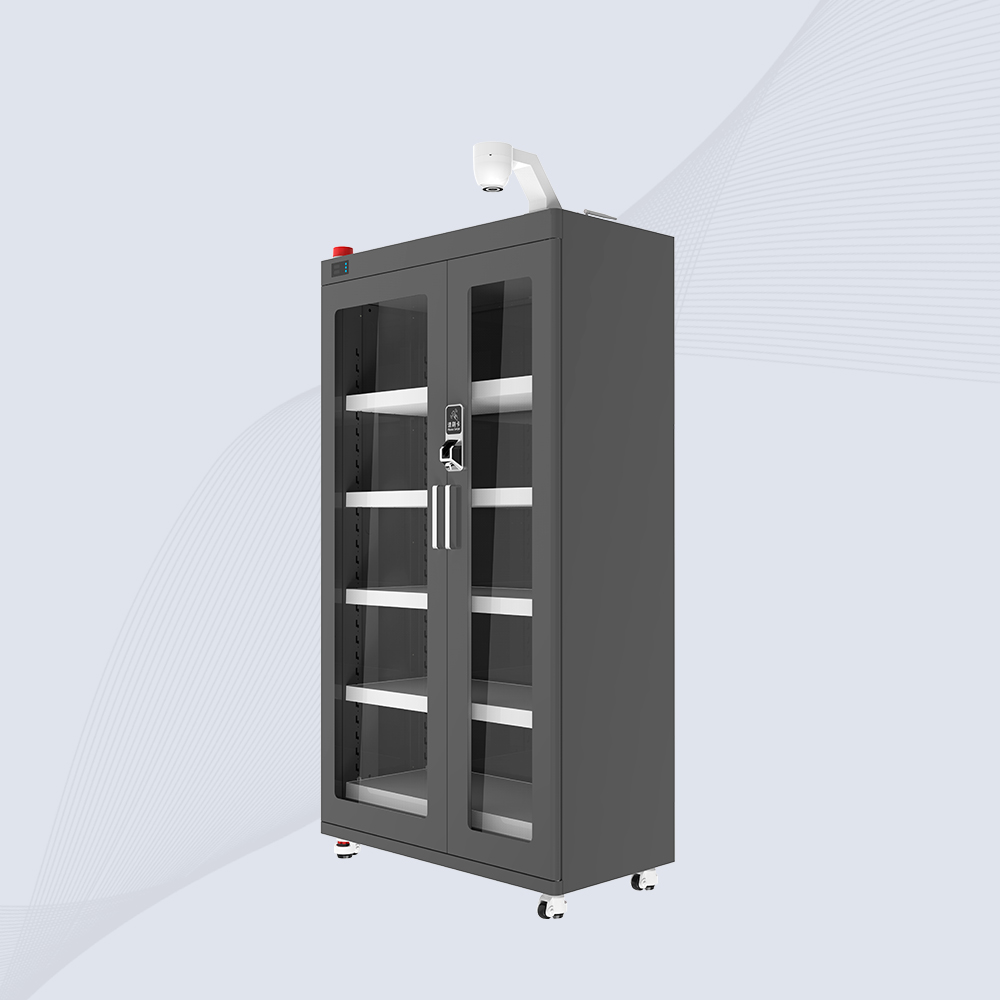

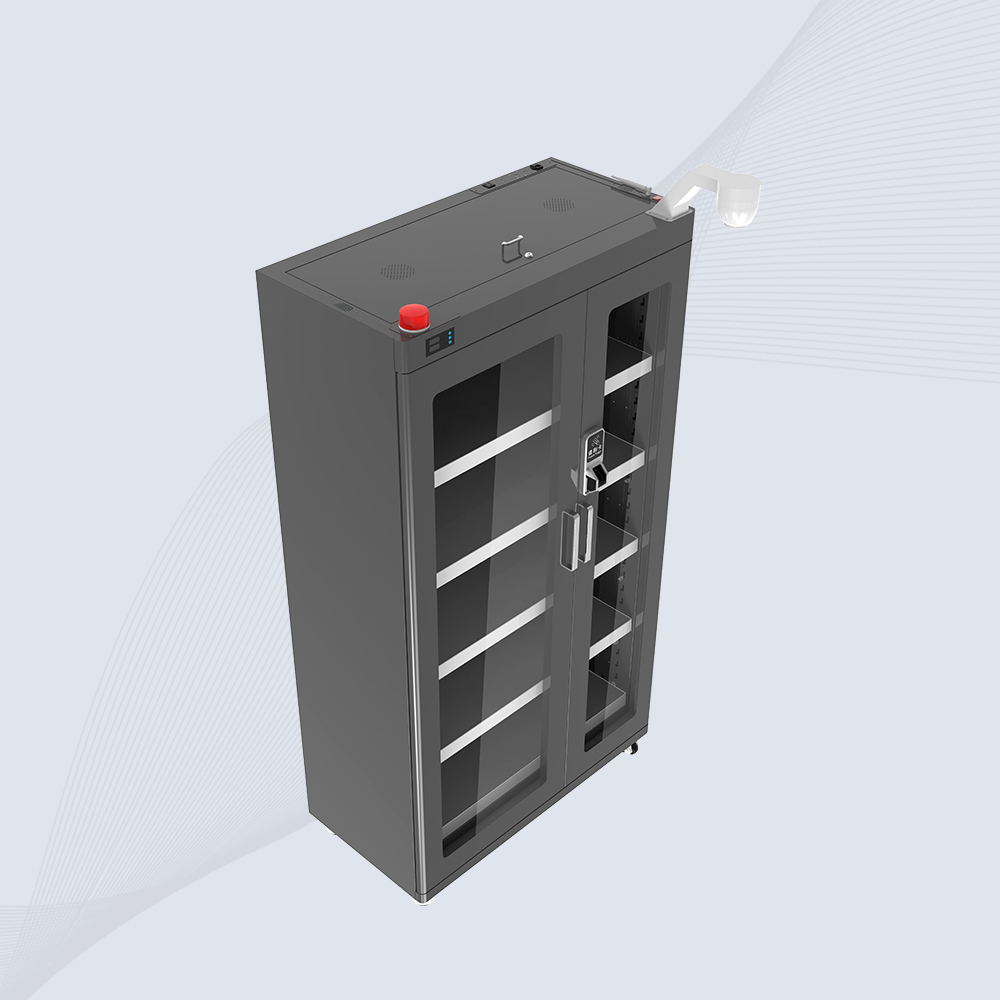

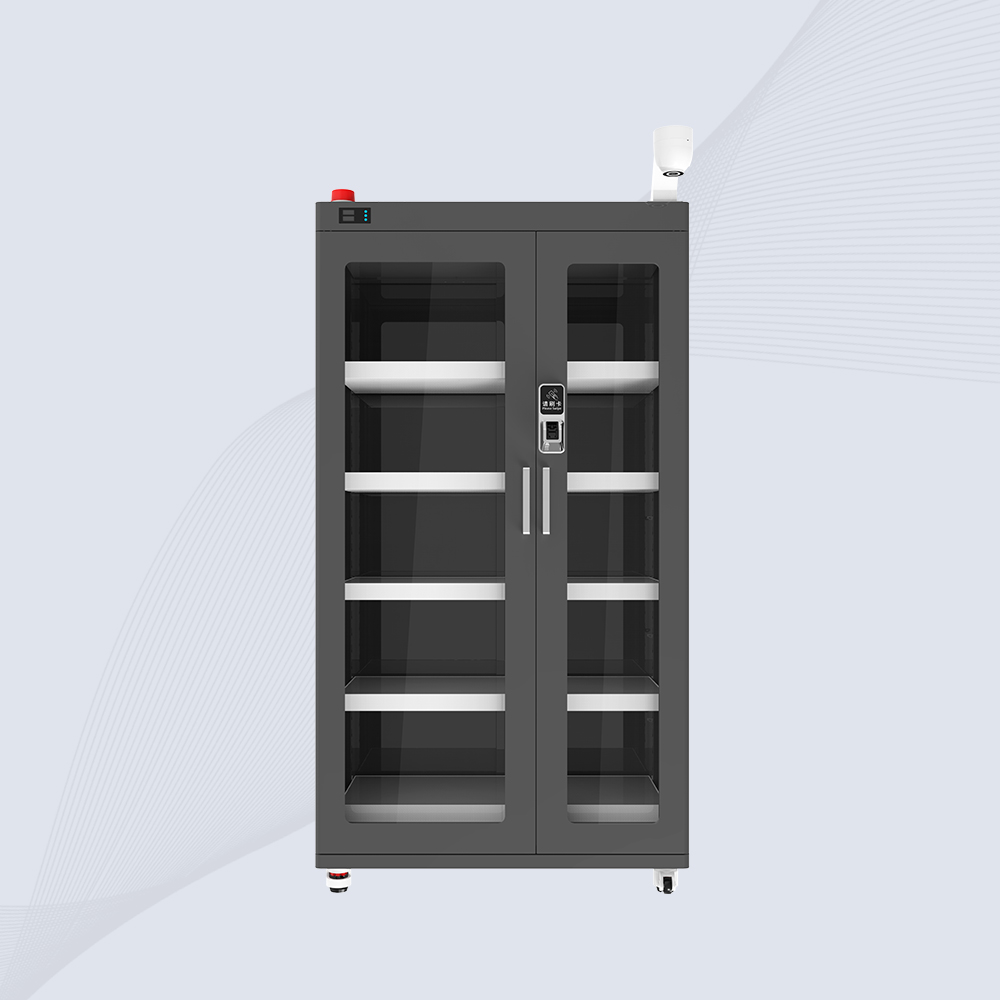

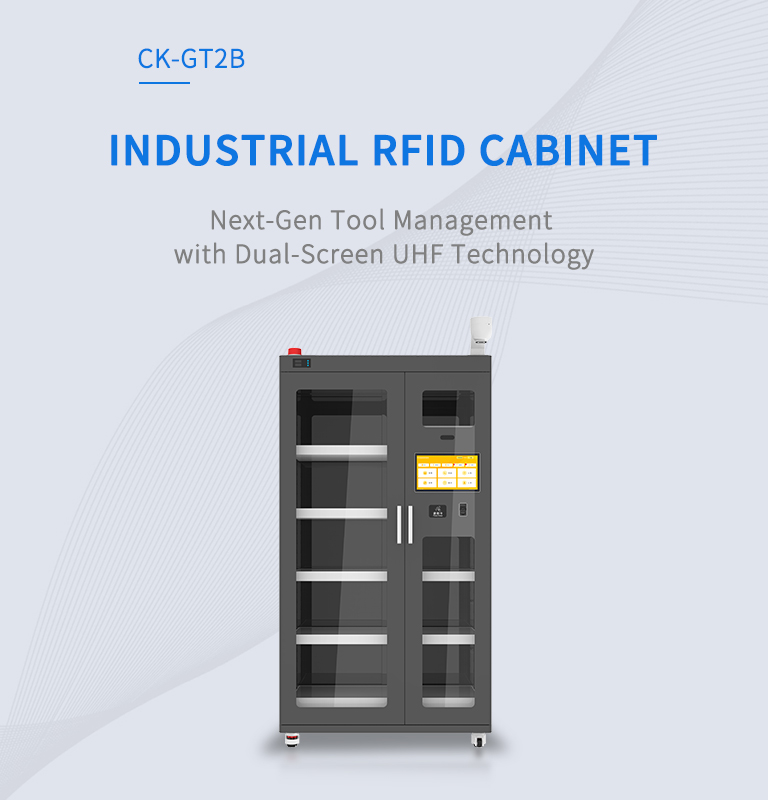

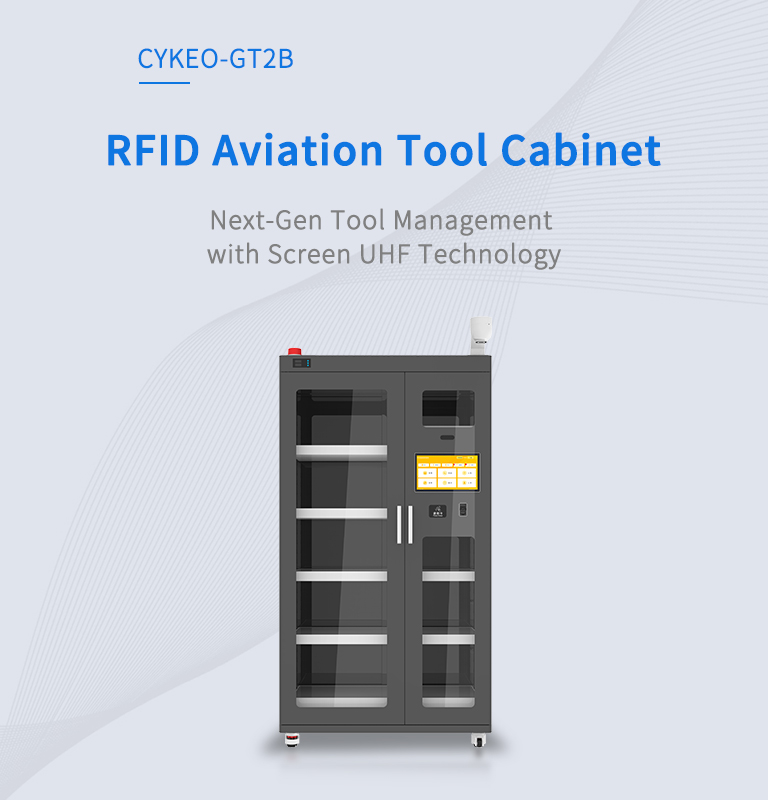

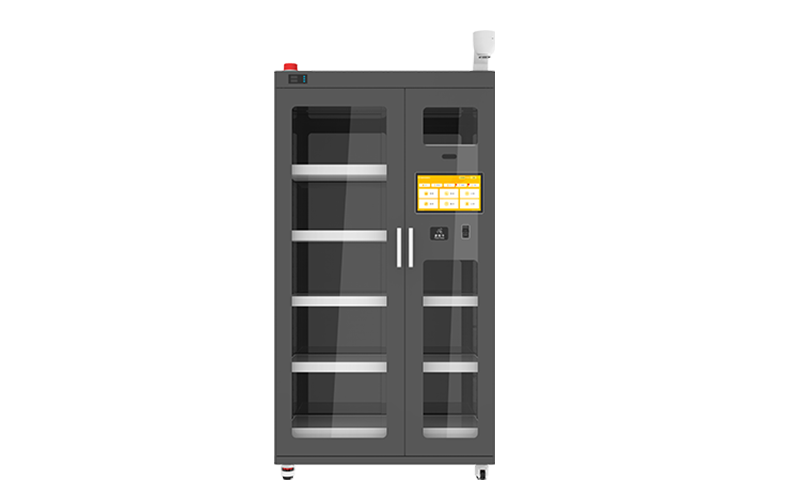

Cykeo CK-GT2B RFID Aviation Tool Cabine Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-GT2B
  • Product NameRFID Aviation Tool Cabinet

Physical Parameters

  • ​Communication ProtocolEthernet (RJ45), optional WiFi/4G
  • ​MaterialMetal casing + glass panel

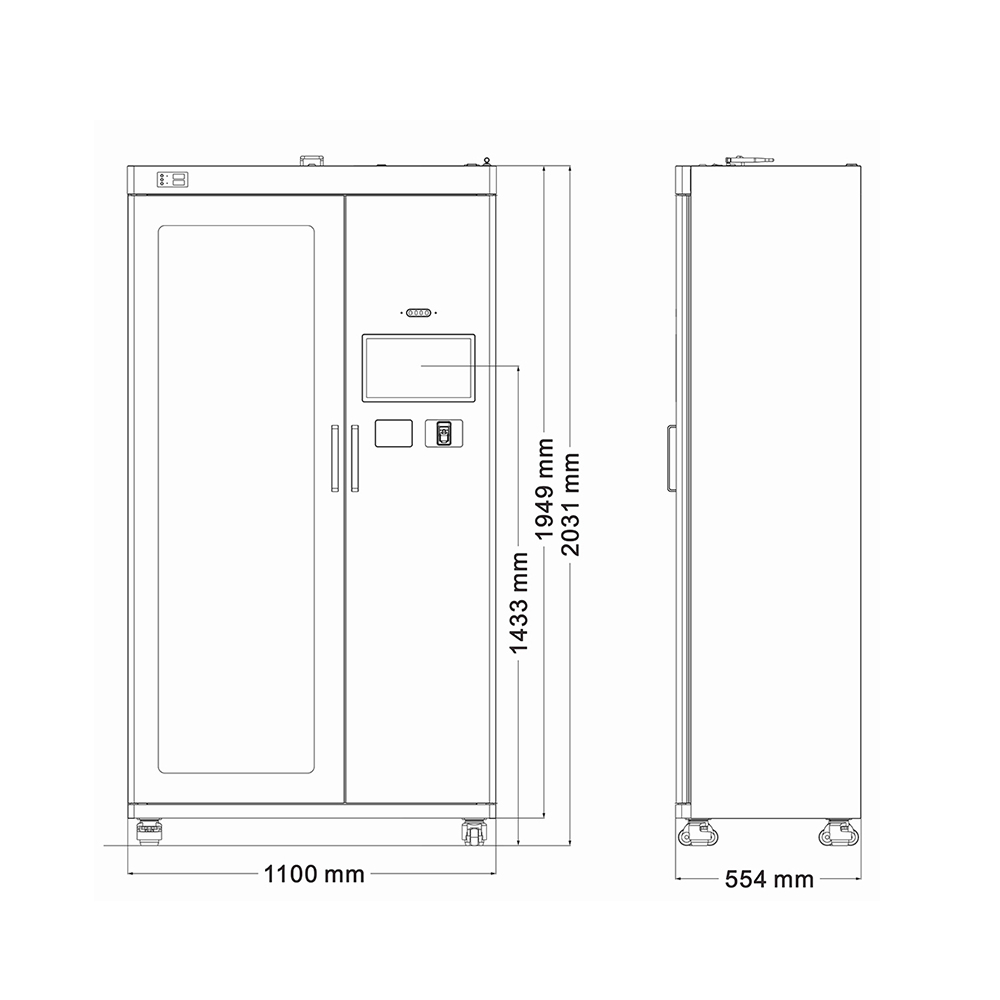

  • Dimensions2000×1100×600mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Touchscreen14″/21.5″ Touchscreen
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840MHz~960MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c
  • Read Range5-50cm Adjustable
  • Read Speed1-3 sec
  • Shelf Options4×280mm/6×225mm
  • ​​Connectivity​Ethernet, WiFi (Optional), 4G (Optional)
  • Power150W

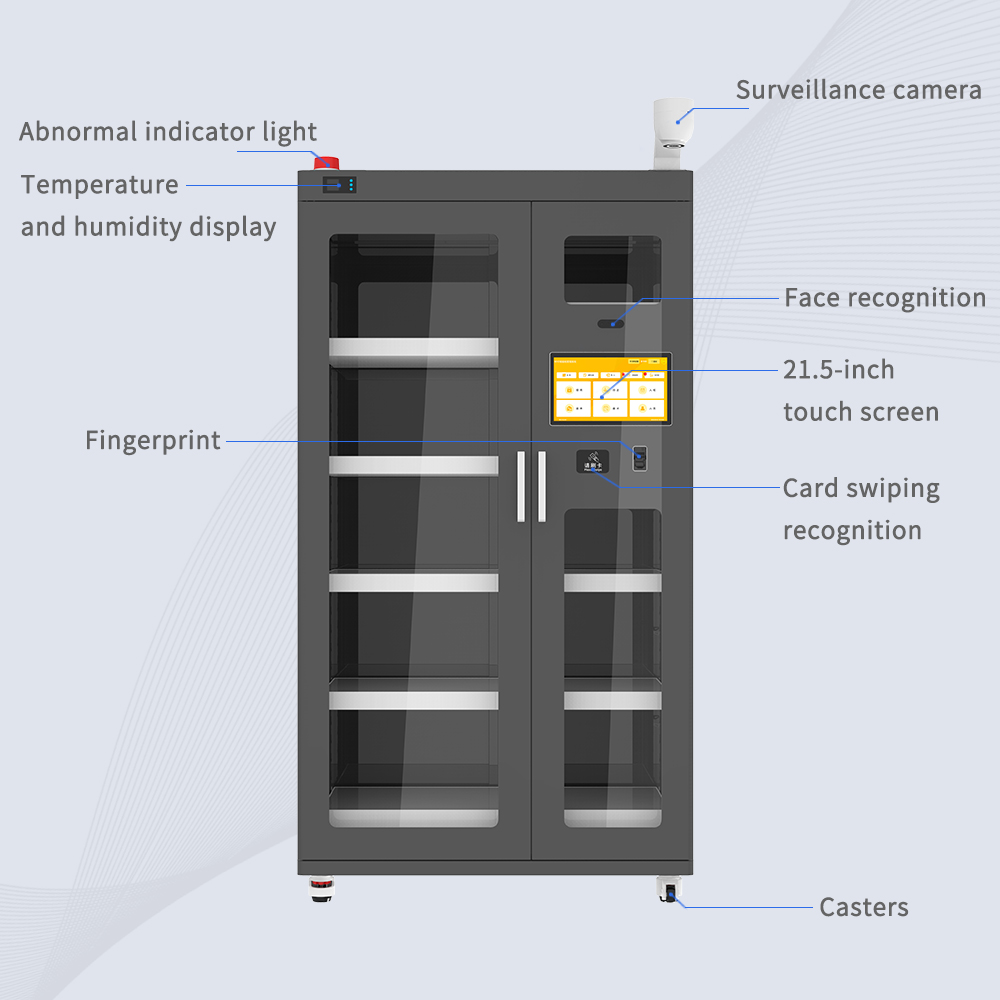

  • Authentication ModesFace, Card, Fingerprint(Optional)

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID AVIATION TOOL CABINET FAQS

Why is 99.9% Scan Accuracy Critical for Aircraft Tools?

Answer:
Aviation regulations require zero FOD tolerance. The CK-GT2B achieves 99.9% accuracy through:

  • Dual-Frequency Hopping: Scans at 865MHz and 915MHz simultaneously to bypass radar interference
  • Tool-Specific RSSI Calibration: Adjusts sensitivity for small parts (e.g., lockwire tags at -5dBm)
  • Case Study: Lufthansa Technik reduced tool-loss incidents by 92% across A350 maintenance lines
    Best Practice: Calibrate monthly using FAA TSO-C199 test tags.
How Does Triple Authentication Prevent Unauthorized Access?

Answer:
The tiered security protocol enforces:

  1. Biometric Verification: Compares live fingerprints against EASA-certified personnel database
  2. Facial Liveness Detection: Blocks photo spoofing with 3D infrared mapping
  3. Role-Based HF Cards: Restricts access (e.g., apprentices can’t remove torque wrenches)
    Security Log: All access attempts recorded with CCTV timestamps for FAA audits.
Can It Withstand Airport Hangar Chemical Exposure?

Answer:
Yes. The chemical-resistant package includes:

  • Epoxy-Coated Steel: Resists aviation fluids (Skydrol/Jet A fuel)
  • Sealed Electronics: Conformal coating on RK3399 motherboard
  • Dehumidifier Protection: Prevents corrosion in coastal bases
    Durability Test: Passed 500hr salt spray (ASTM B117) at Dubai International Airport.
