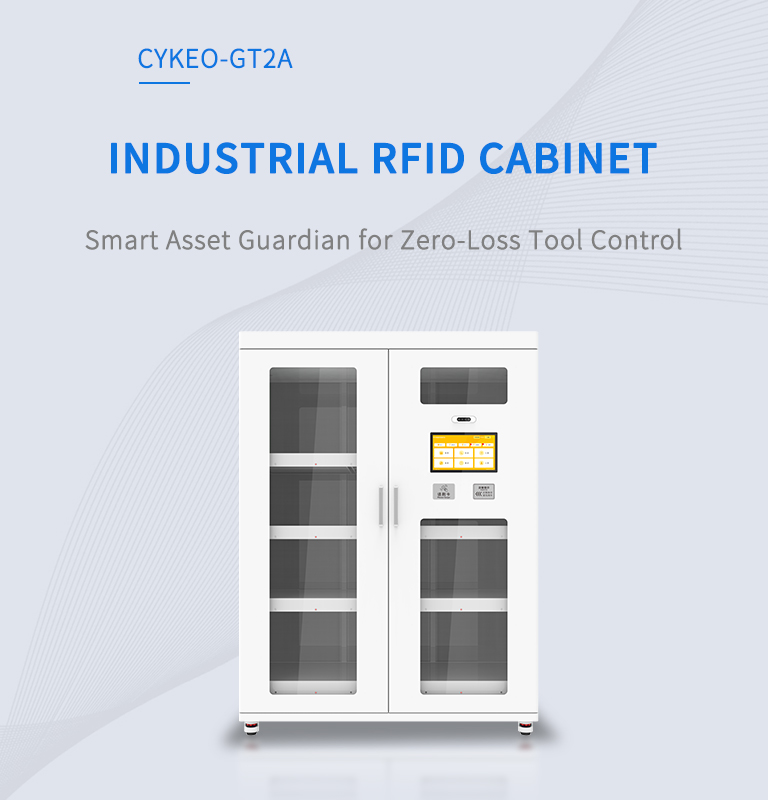

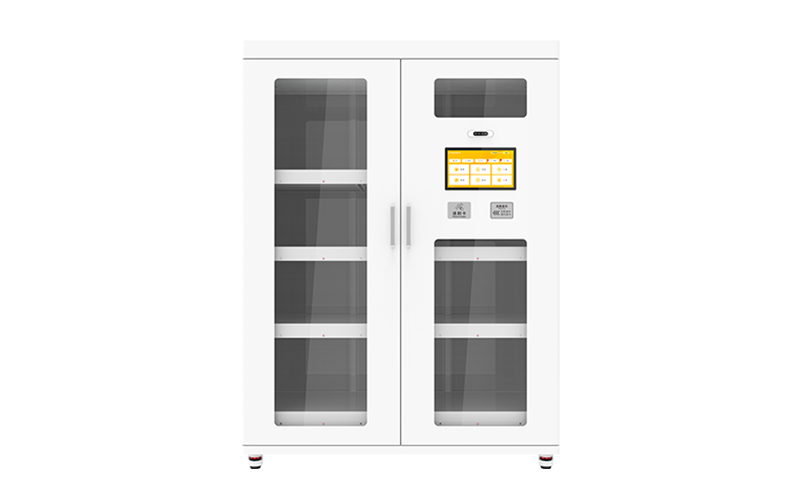

CK-GT2A

INDUSTRIAL RFID CABINET

Modular Industrial Cabinet with Real-Time SAP Integration & Voice Guidance

✔️ Semi-Outdoor Ready (0-60°C)

✔️ Multi-Cabinet Parallel Management

✔️ 24/7 Unmanned Operation with Voice Prompts

Talk to an Expert

Email Our Team

CK-GT2A INDUSTRIAL RFID CABINET（images 2）

CK-GT2A INDUSTRIAL RFID CABINET（images 3）

CK-GT2A INDUSTRIAL RFID CABINET（images 5）

CK-GT2A INDUSTRIAL RFID CABINET（images 6）

CK-GT2A INDUSTRIAL RFID CABINET（images 7）

CK-GT2A INDUSTRIAL RFID CABINET（images 8）

CK-GT2A INDUSTRIAL RFID CABINET（images 9）

CK-GT2A INDUSTRIAL RFID CABINET（images 10）

CK-GT2A INDUSTRIAL RFID CABINET（images 11）

SCALABLE CONTROL, VOICE COMMAND

The CK-GT2A RFID Scalable Tool Cabinet revolutionizes industrial asset management with Impinj R2000 UHF technology and dual OS (Windows/Android). Its 14″ HD touchscreen and 1.2mm carbon steel housing enable 24/7 unmanned operation in semi-outdoor environments. Featuring voice-guided workflows and real-time overdue tool alerts, it seamlessly integrates with SAP/Oracle for enterprise-scale tool accountability.

Essential for automotive assembly lines, construction equipment yards, and logistics hubs requiring adaptable tool control in variable environments.

CK-GT2A INDUSTRIAL RFID CABINET（images 12）

Tool management

CK-GT2A INDUSTRIAL RFID CABINET（images 13）

Aviation management

CK-GT2A INDUSTRIAL RFID CABINET（images 14）

Power grid maintenance control

CK-GT2A INDUSTRIAL RFID CABINET（images 15）

Warehouse Logistics

CK-GT2A INDUSTRIAL RFID CABINET（images 16）

Railway tool maintenance

CK-GT2A INDUSTRIAL RFID CABINET（images 17）

Factory Automation

Cykeo CK-GT2A RFID Scalable Tool Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GT2A RFID SCALABLE TOOL CABINET

3/6-Layer Flex Design

225mm adjustable shelves for oversized tools

10-Second Audit

Scans 100+ ISO 18000-6C tags simultaneously

Military-Grade Security

Optional facial recognition + fingerprint hybrid auth

Shockproof Build

1.2mm steel with IP54-rated seals

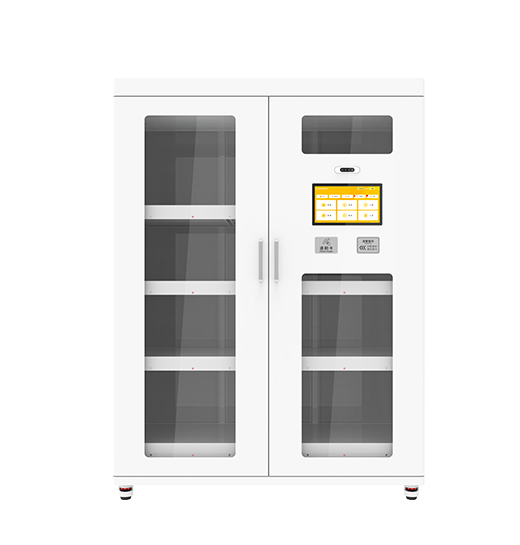

CK-GT2A INDUSTRIAL RFID CABINET（images 23）

Dual Connectivity

RJ45 + optional WiFi for cloud sync

Low-Energy Operation

≤150W with industrial SSD

Open API

Java/C# SDK for custom WMS integration

Smart Alarms

Visual/audio alerts for unauthorized removals

Cykeo CK-GT2A RFID Scalable Tool Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GT2A
Product NameRFID Scalable Tool Cabinet

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel
Appearancetransparent

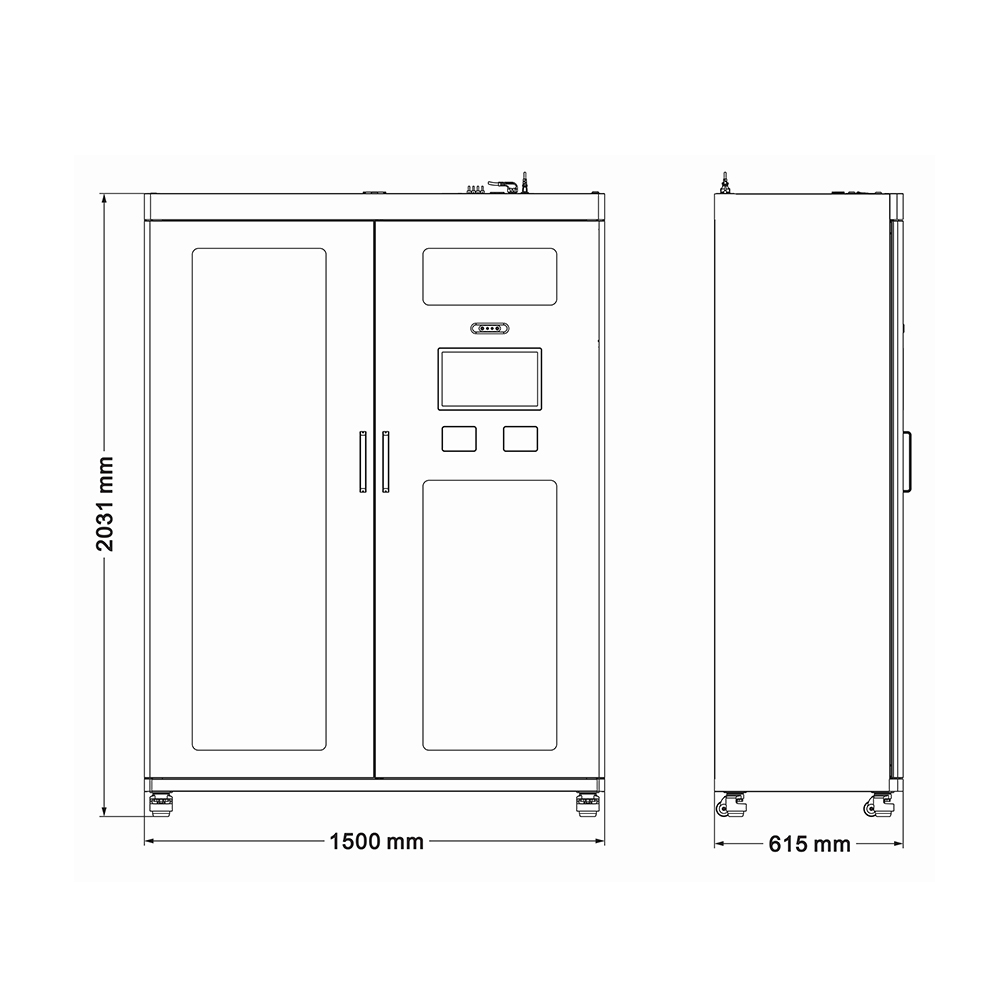

Dimensions1500mm*615mm*2031mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen14-inch / 21.5-inch capacitive touch screen
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Range5-50cm Adjustable
Scan Speed≤5s/200pcs
CapacityThree floors/six floors
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
InterfaceEthernet/RS232

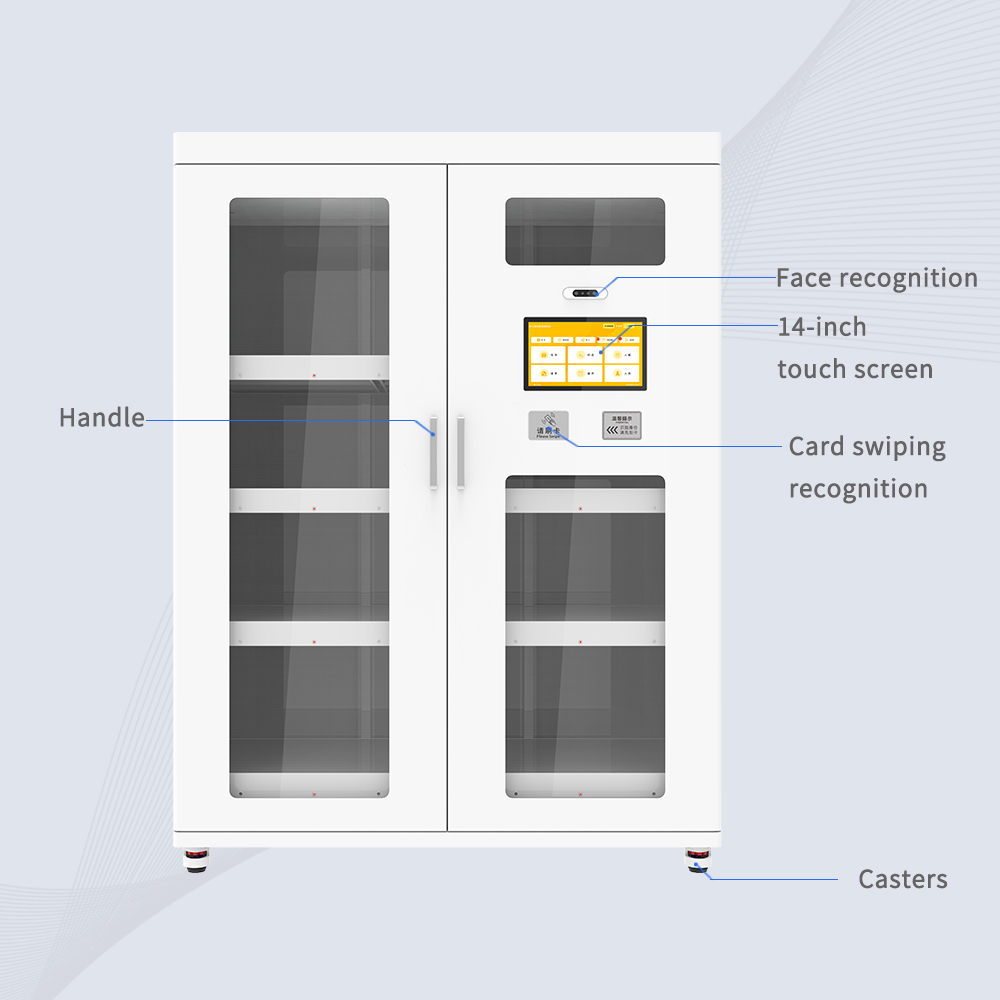

Authentication ModesFace, Card, Fingerprint(Optional)
Power150W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID SCALABLE TOOL CABINET FAQS

How Does Voice Guidance Improve Efficiency in Noisy Factories?

Answer:
The adaptive voice engine overcomes 85dB ambient noise through:

Beamforming Microphones: Isolate operator commands from machinery noise
Multilingual Support: Delivers instructions in 12 languages (e.g., “Torque wrench overdue in Bay 3”)
Contextual Feedback: Confirms actions (“Drill bit 7A returned – thank you”)
Case Study: Volvo plant reduced tool retrieval errors by 52% using voice-guided workflows.

Can This System Manage 100+ Cabinets Across Multiple Sites?

Answer:
Yes. The Cykeo Cloud Orchestrator enables:

Centralized Dashboard: Monitor all cabinets globally (e.g., “Site C: Cabinet 12 offline”)
Predictive Maintenance: Alert technicians when RFID read rates drop below 98%
Firmware Rollouts: Update 100 cabinets simultaneously overnight
Deployment Example: Bosch manages 87 cabinets across 9 factories from Stuttgart HQ.

How to Handle Power Outages at Remote Construction Sites?

Answer:
The power resilience package includes:

Supercapacitor Backup: Maintains operation for 45 minutes during outages
Solar-Ready Design: Integrates with 200W panels (optional)
Data Preservation: Saves 500,000+ records during sudden power loss
Contingency Protocol: Automatically triggers SMS alerts to managers when grid fails.
