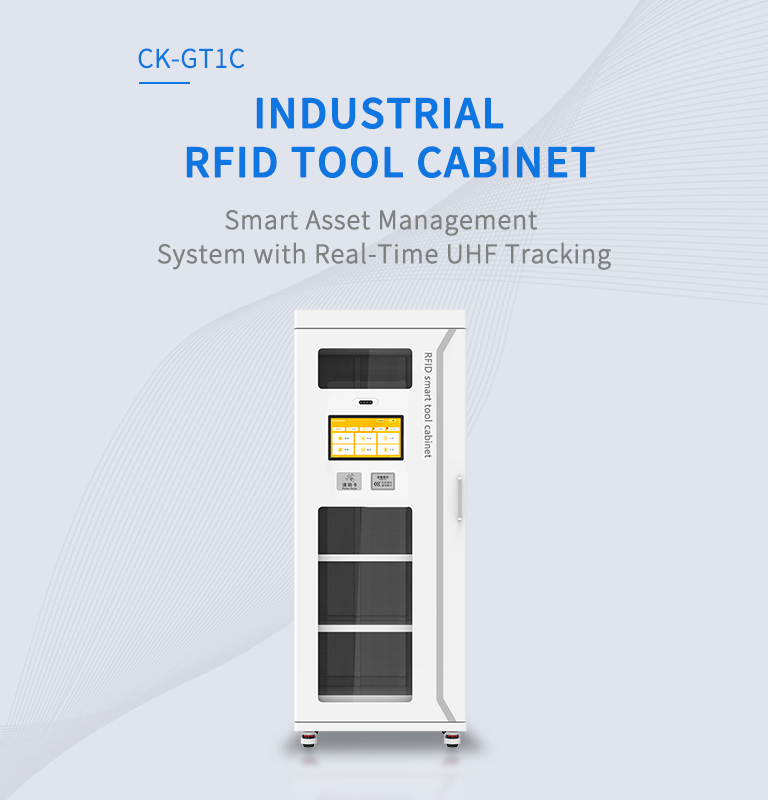

CK-GT1C

RFID Automated Tool Cabinet

Military-Grade Automated Tool Control with 99.9% Accuracy & Biometric Security

✔️ Java/C# SDK for Custom WMS Integration

✔️ 225mm Adjustable Shelving with Auto-Calibration

✔️ IP54-Rated Industrial Housing for Harsh Environments

Talk to an Expert

Email Our Team

AUTOMATED PRECISION, ZERO BREACHES

The CK-GT1C RFID Automated Tool Cabinet redefines industrial asset security with Impinj R2000 UHF technology and military-grade 1.2mm carbon steel construction. Featuring a 14″ HD touchscreen and adjustable shelving, it achieves 99.9% tool read accuracy while supporting biometric authentication. With Windows/Android OS flexibility and seamless SAP/Oracle integration, it enables fully automated tool tracking for 24/7 unmanned operations in 0-60°C environments.

Critical for defense manufacturing plants, aerospace component storage, and high-security industrial facilities requiring uncompromised tool accountability.

Tool management

Aviation management

Power grid maintenance control

Warehouse Logistics

Railway tool maintenance

Factory Automation

Cykeo CK-GT1C RFID Automated Tool Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GT1C RFID AUTOMATED TOOL CABINET

Impinj R2000 Chipset

Industry-leading RFID engine with 840-960MHz frequency range

5-Second Full Inventory

Ultra-fast scanning for 200+ tools simultaneously

225mm Adjustable Shelving

3/6-layer flexible configuration for varied tool sizes

14″ Industrial Touchscreen

IP54-rated capacitive panel with glove-compatible operation

Multi-Mode Authentication

HF card/fingerprint/face ID options for military-grade security

Windows/Android Dual OS

RK3399 processor with 4G+128G computing power

≤150W Energy Saving

24/7 operation with eco-cooling system

0-60℃ Extreme Tolerance

Reliable performance from freezing warehouses to tropical sites

Cykeo CK-GT1C RFID Automated Tool Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GT1C
Product NameINDUSTRIAL RFID TOOL CABINET

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel
Appearancetransparent

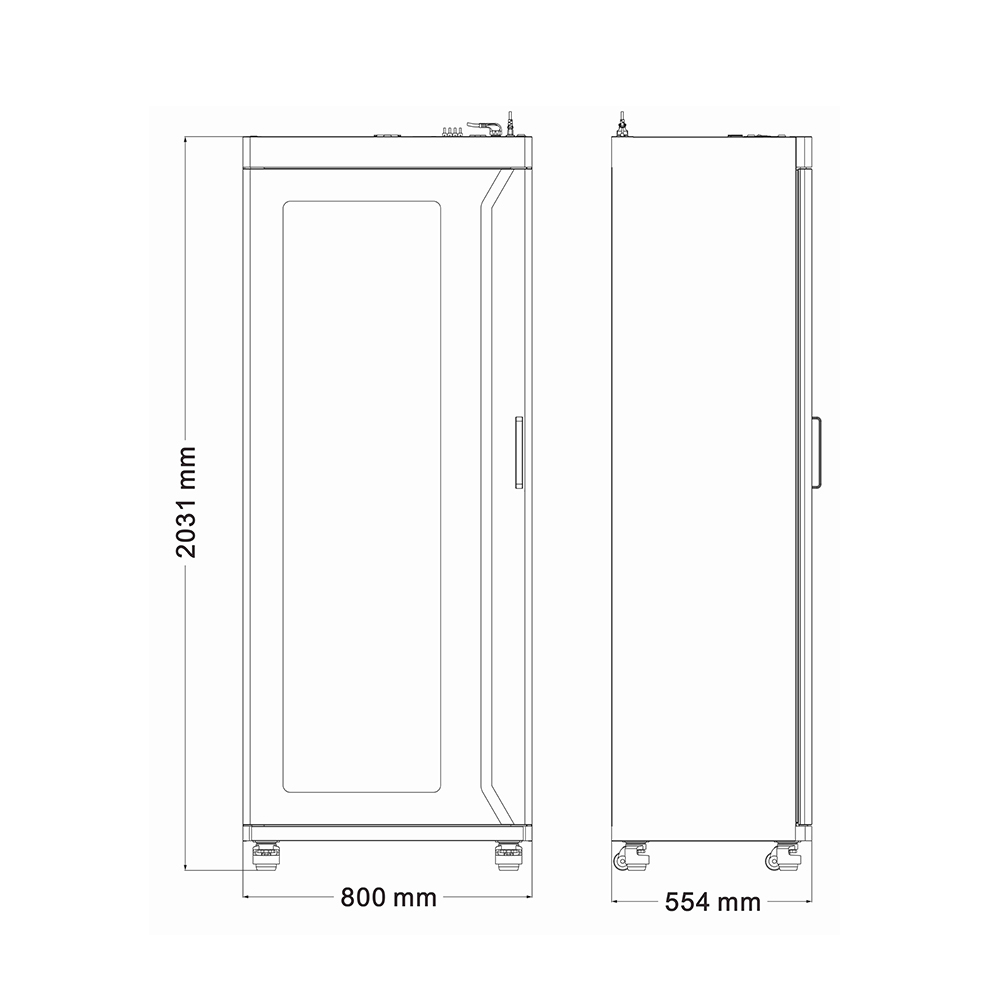

Dimensions800mm*554mm*2031mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen14-inch / 21.5-inch capacitive touch screen
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Range5-50cm Adjustable
Scan Speed≤5s/200pcs
CapacityThree floors/six floors
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
InterfaceEthernet/RS232
Power150W
Authentication ModesFace, Card, Fingerprint(Optional)

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID AUTOMATED TOOL CABINET FAQS

How Does Auto-Calibration Maintain 99.9% Accuracy?

Answer:
The AI-driven calibration system performs daily self-checks:

RFID Tag Mapping: Creates digital twins of all tools upon first scan
Positional Drift Correction: Adjusts antenna angles if shelf alignment shifts
Signal Strength Optimization: Auto-boosts power for metal-dense drawers
Case Study: Raytheon maintained 99.97% accuracy across 18,000 tools for 24 months without manual intervention.

Can Biometric Access Prevent Espionage in Defense Facilities?

Answer:
Yes. The counter-espionage package includes:

Vein Pattern Recognition: Scans subcutaneous blood vessels (unforgeable)
Thermal Imaging: Detects stress levels during access attempts
Covert Alarm Mode: Silent alerts to security teams
Defense Protocol: Locks cabinet and encrypts data if tampering detected.

How to Customize Workflows Without Coding Knowledge?

Answer:
The Visual Workflow Builder enables drag-and-drop automation:

Prebuilt Templates: “Calibrated Tool Audit” or “Shift Handover” workflows
Rule Engine: Set conditions (e.g., “Alert if torque wrench not returned by 5 PM”)
ERP Sync Wizard: Map RFID data to SAP fields in 3 clicks
ROI Example: BAE Systems reduced custom development costs by $85,000 per facility.
