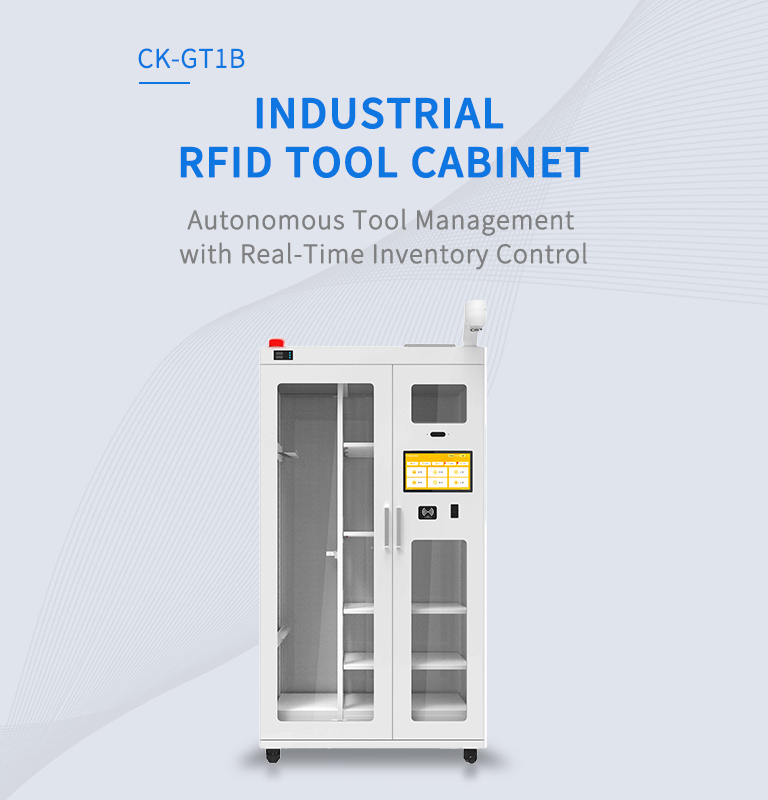

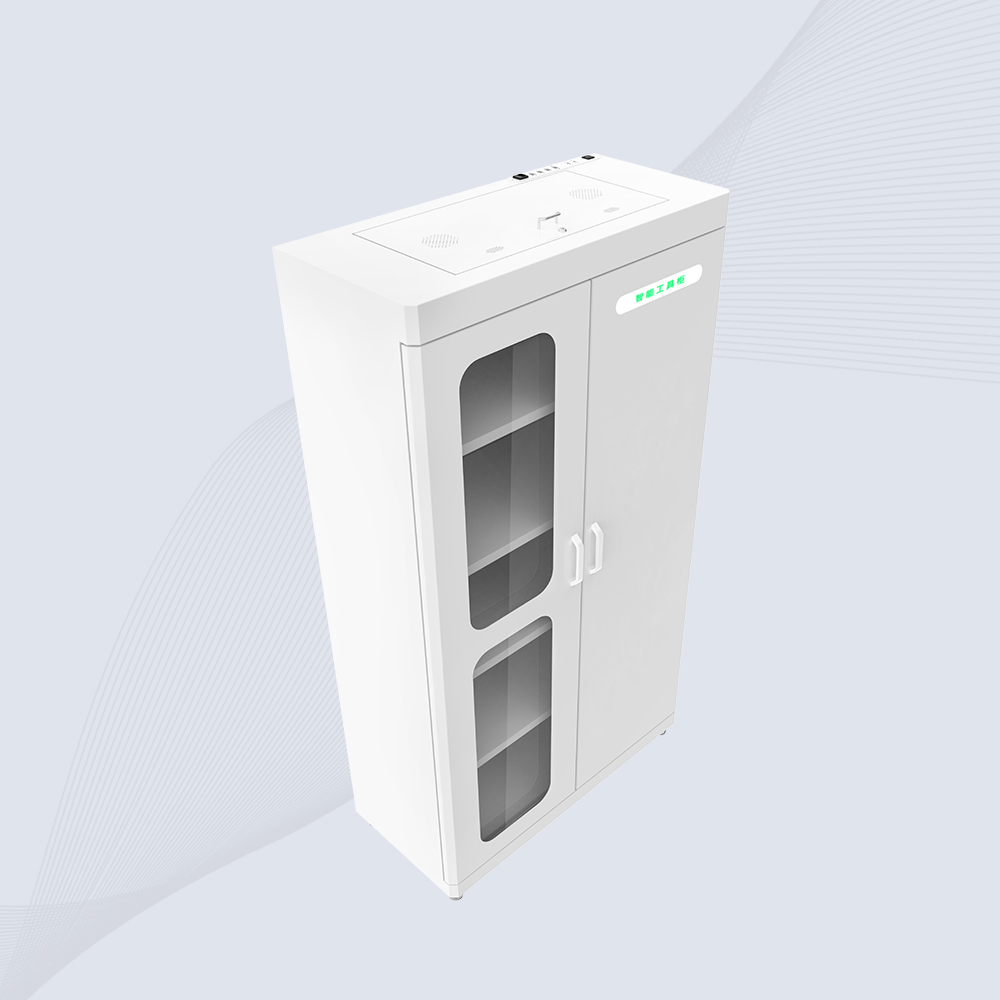

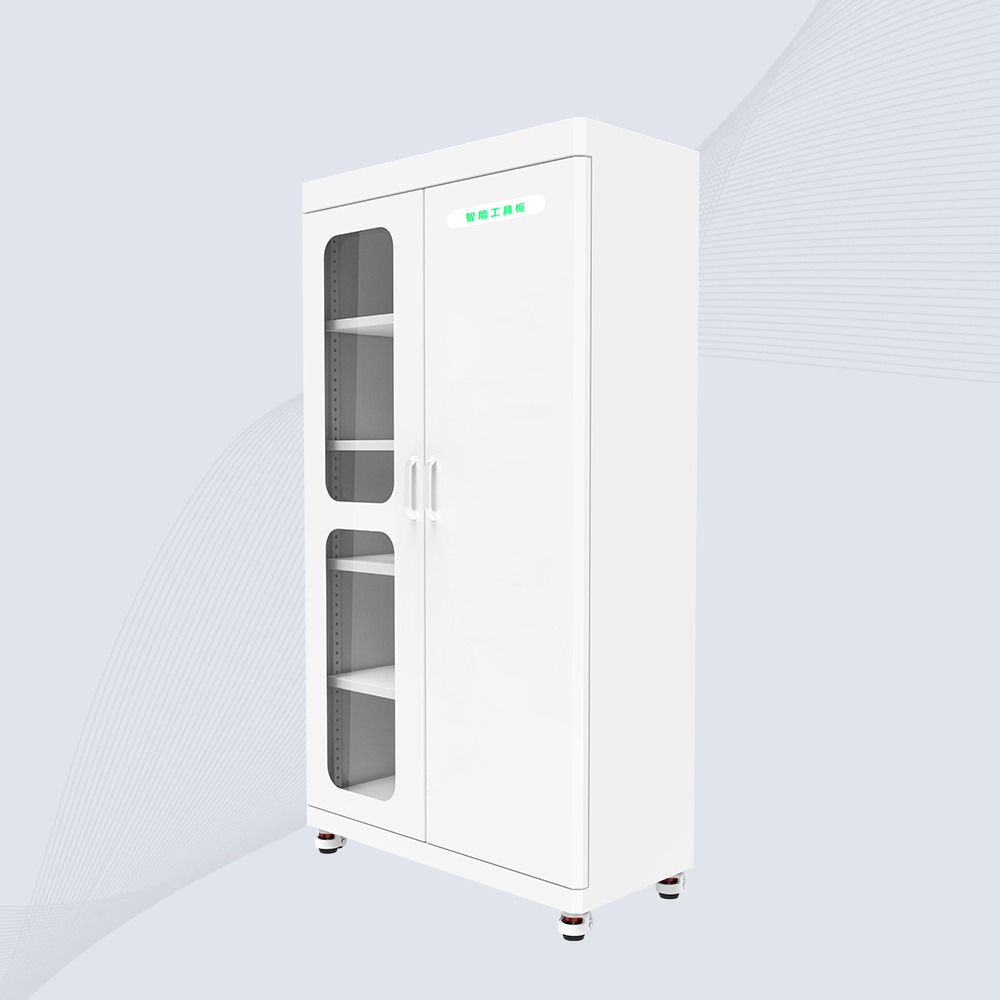

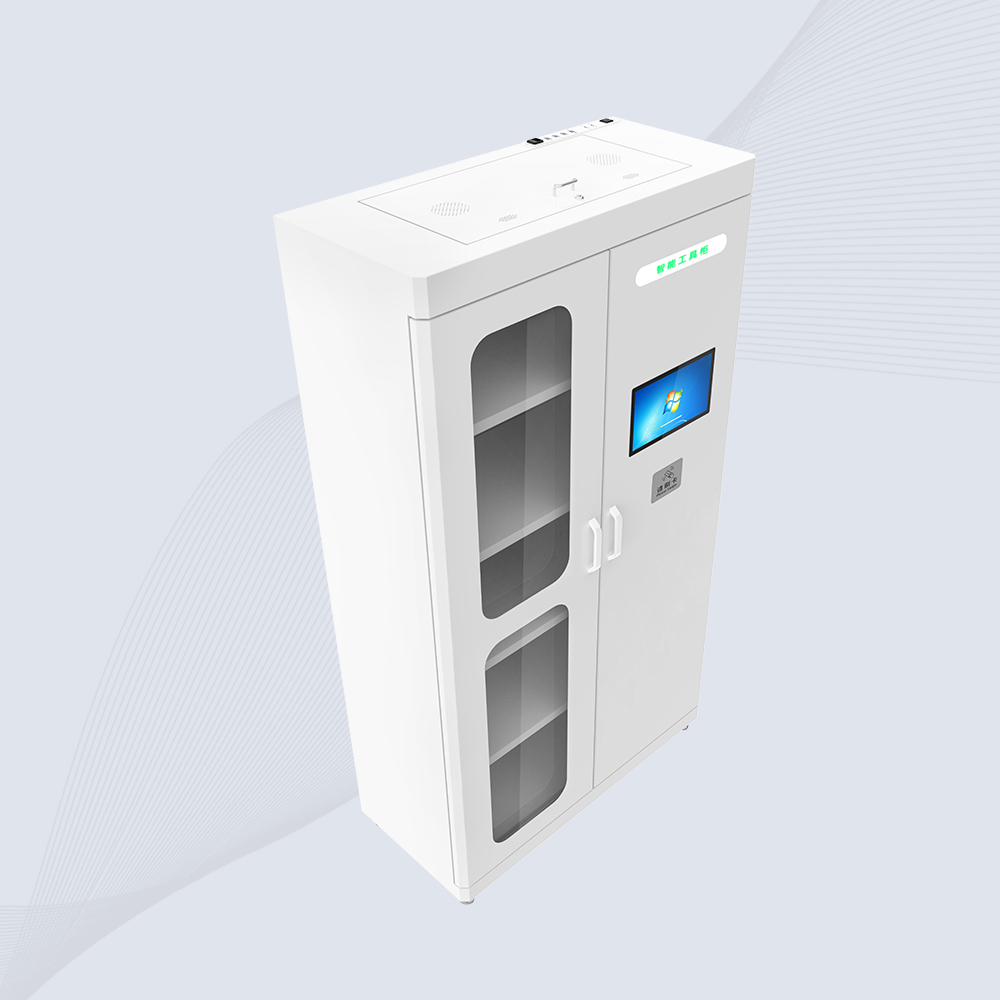

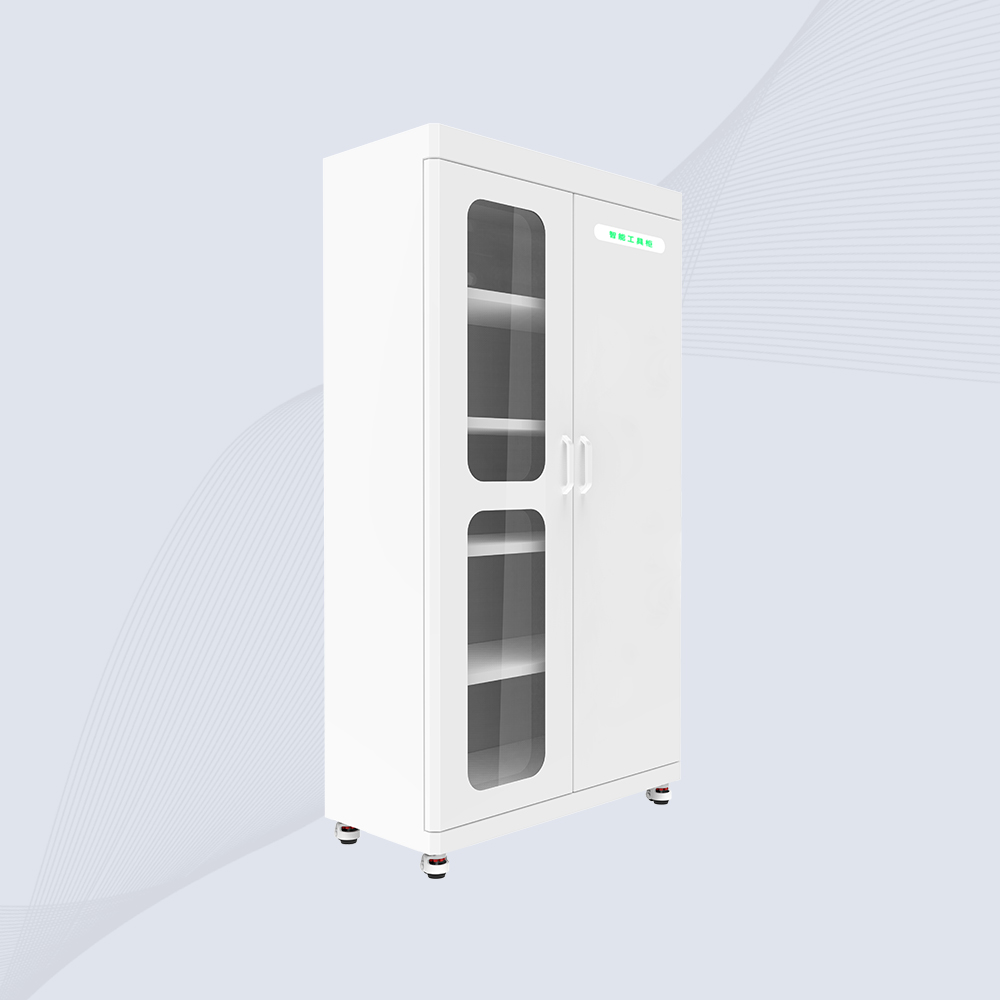

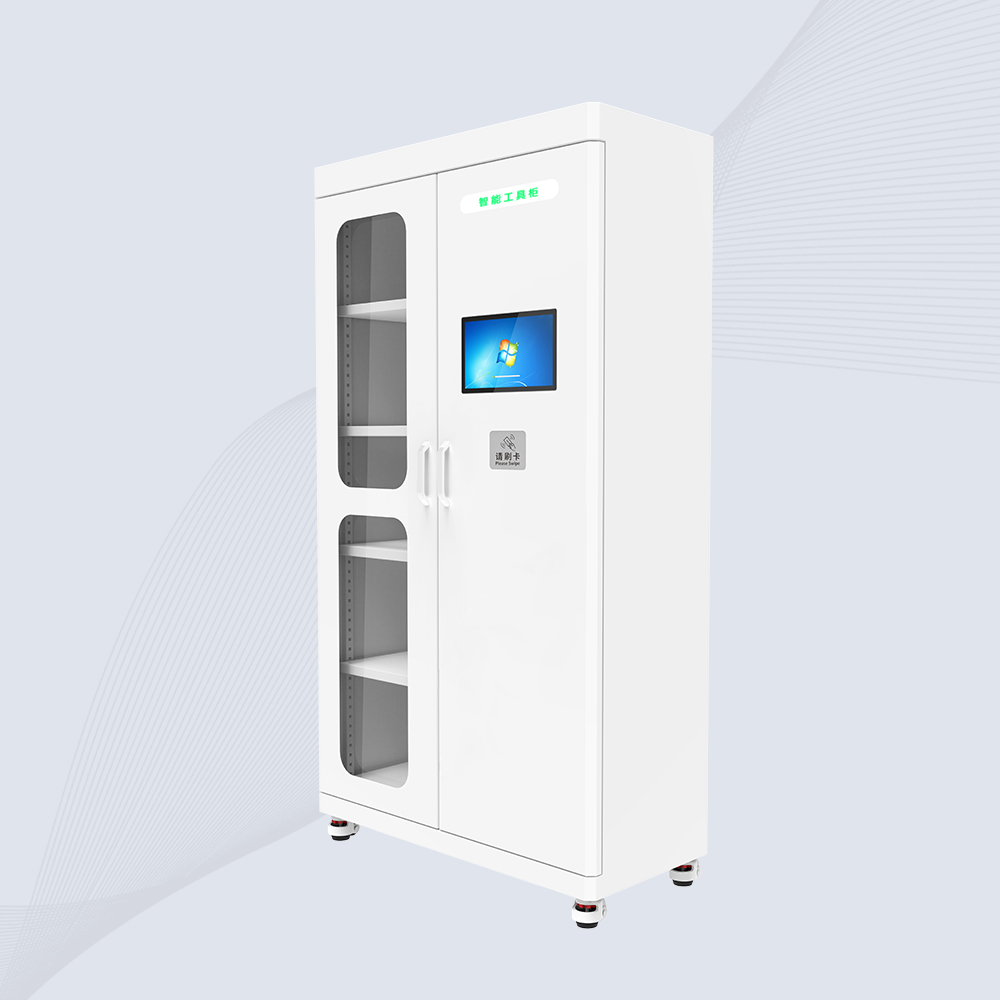

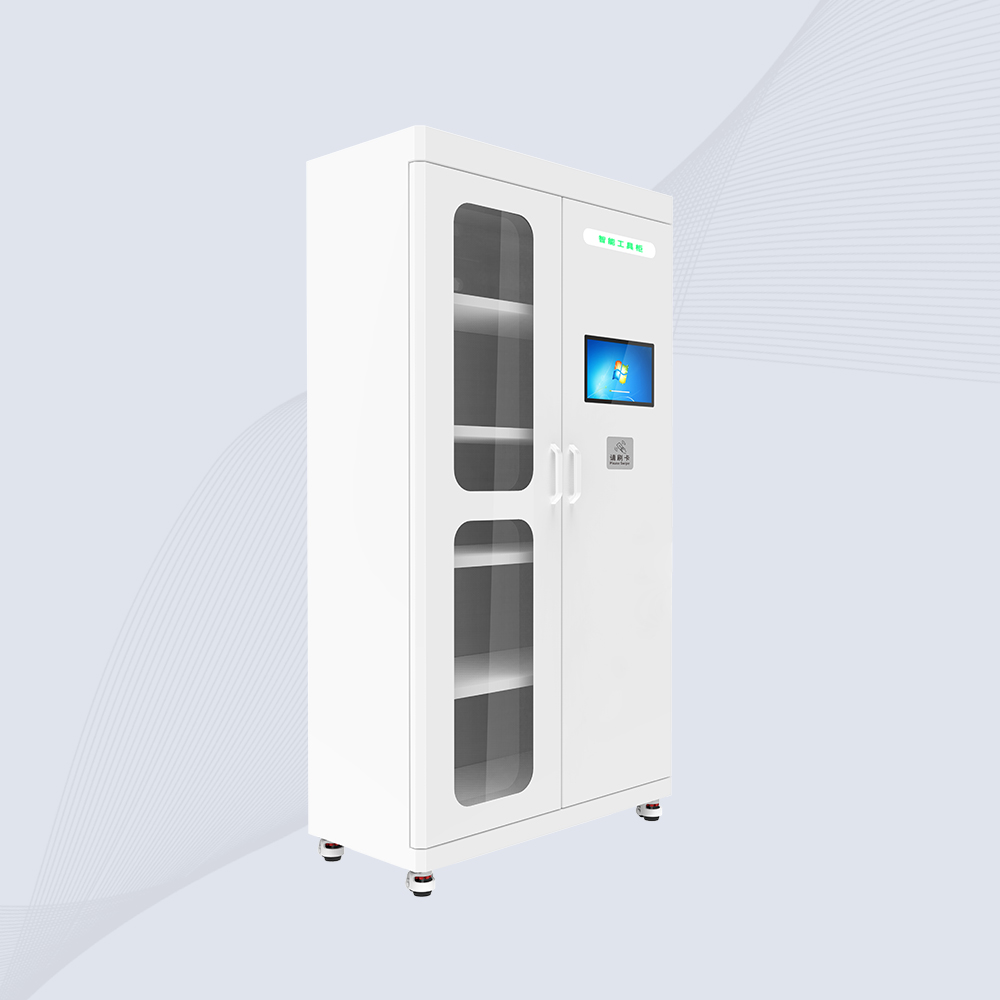

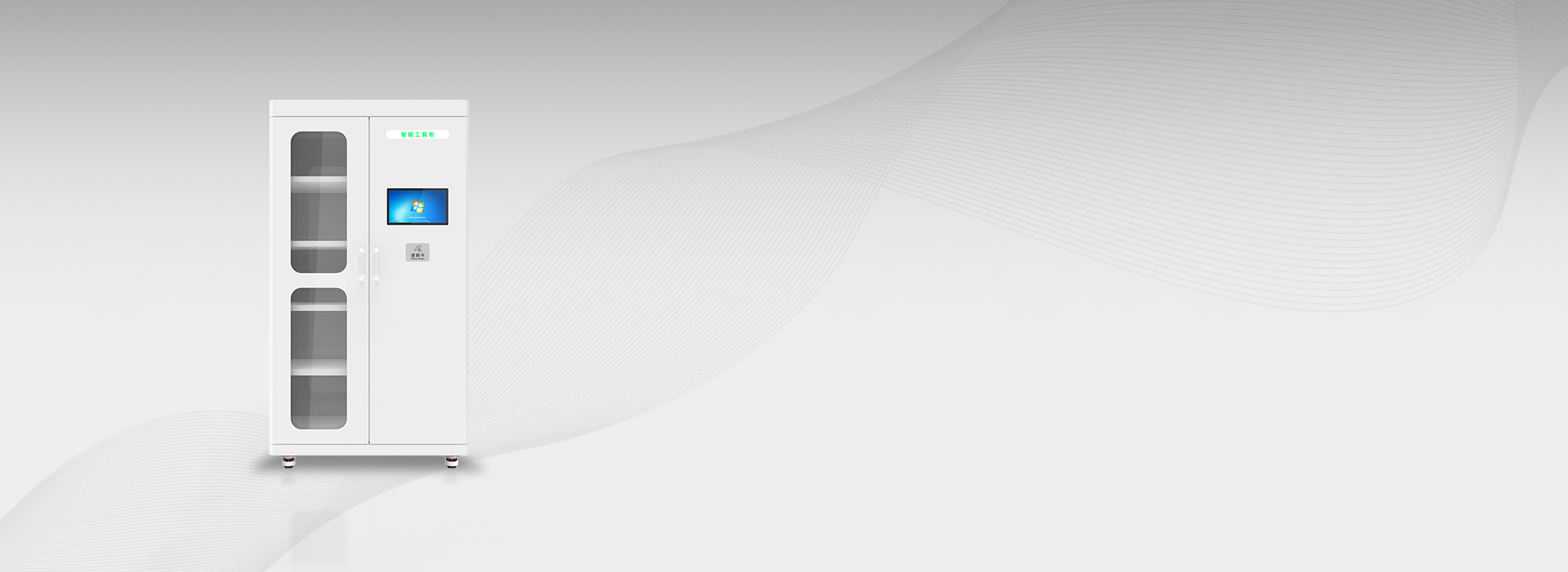

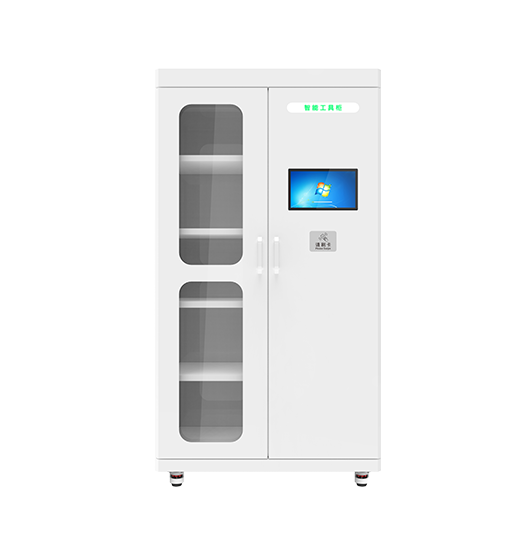

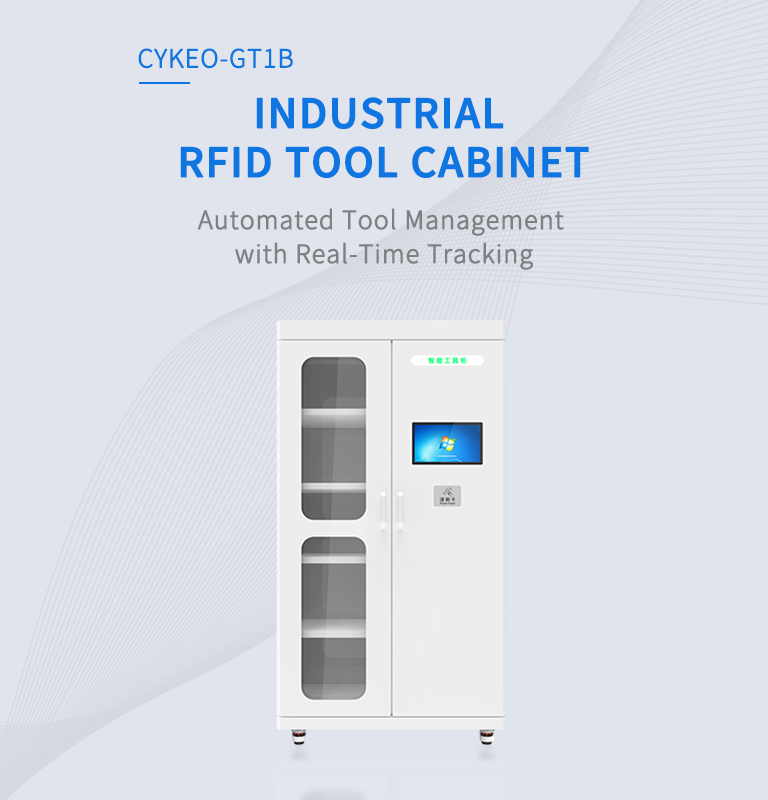

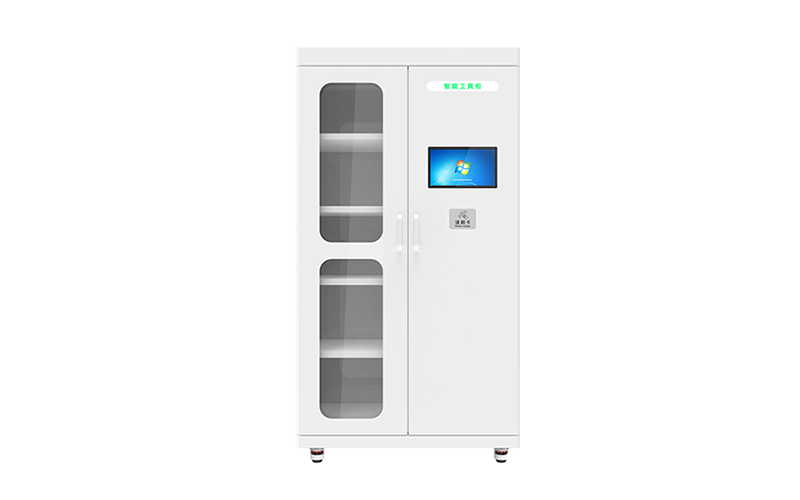

CK-GT1B

RFID Tool Storage Cabinet

Automated Industrial Tool Management with Real-Time Tracking

✔️ SAP/Oracle ERP Direct Integration

✔️ All-Weather IP54 Protection (0°C~60°C)

✔️ 1,000+ Tools Auto Check-In/Out via UHF RFID

✔️ Seamless ERP Integration via C#/Java SDK

Talk to an Expert

Email Our Team

SMART STORAGE, AUTO CONTROL

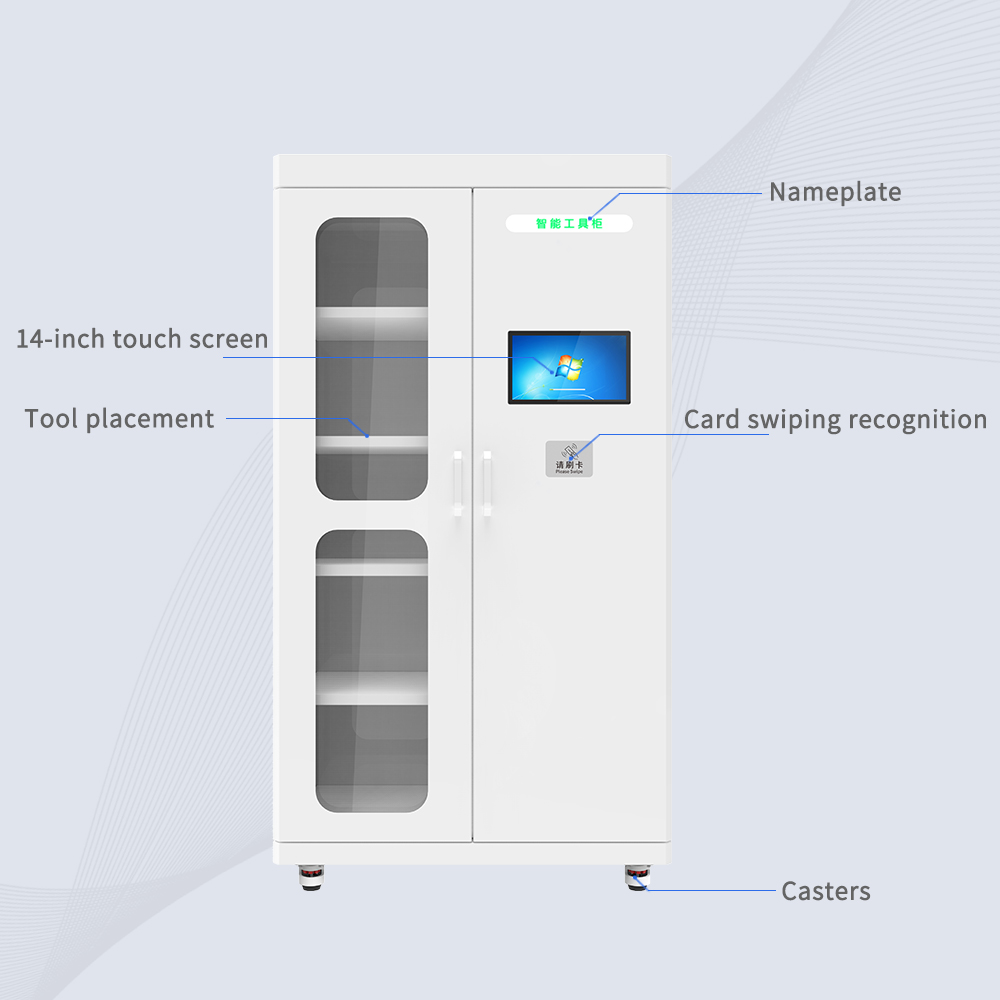

The CK-GT1B RFID Tool Storage Cabinet transforms industrial equipment management with Impinj R2000 UHF technology (840-960MHz). Its 1.2mm carbon steel body and 14″ capacitive touchscreen enable automated tool tracking, calibration reminders, and climate control in semi-outdoor environments. Compatible with Windows/Android OS for seamless SAP/Oracle connectivity.

Ideal for precision tool control: Manufacturing workshops, aviation maintenance hangars, construction sites, and energy plant tool rooms requiring real-time inventory audits.

Tool management

Aviation management

Power grid maintenance control

Warehouse Logistics

Railway tool maintenance

Factory Automation

Cykeo CK-GT1B RFID Tool Storage Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GT1B RFID TOOL STORAGE CABINET

4/6-Layer Modular Design

Adjustable shelf heights 225mm/280mm

5-Second Inventory

Scans 50+ tools simultaneously via ISO 18000-6C protocol

Multi-Auth Login

Face recognition/ID card/fingerprint optional

Industrial Durability

IP54-rated 1.2mm carbon steel housing

Hybrid Connectivity

RJ45/WiFi optional for cloud sync

Low-Power Operation

≤150W with SSD storage

SDK Support

Java/C# APIs for ERP integration

Real-Time Alerts

Audio/visual warnings for missing/overdue tools

Cykeo CK-GT1B RFID Tool Storage Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GT1B
Product NameRFID Tool Storage Cabinet

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel
Appearancetransparent

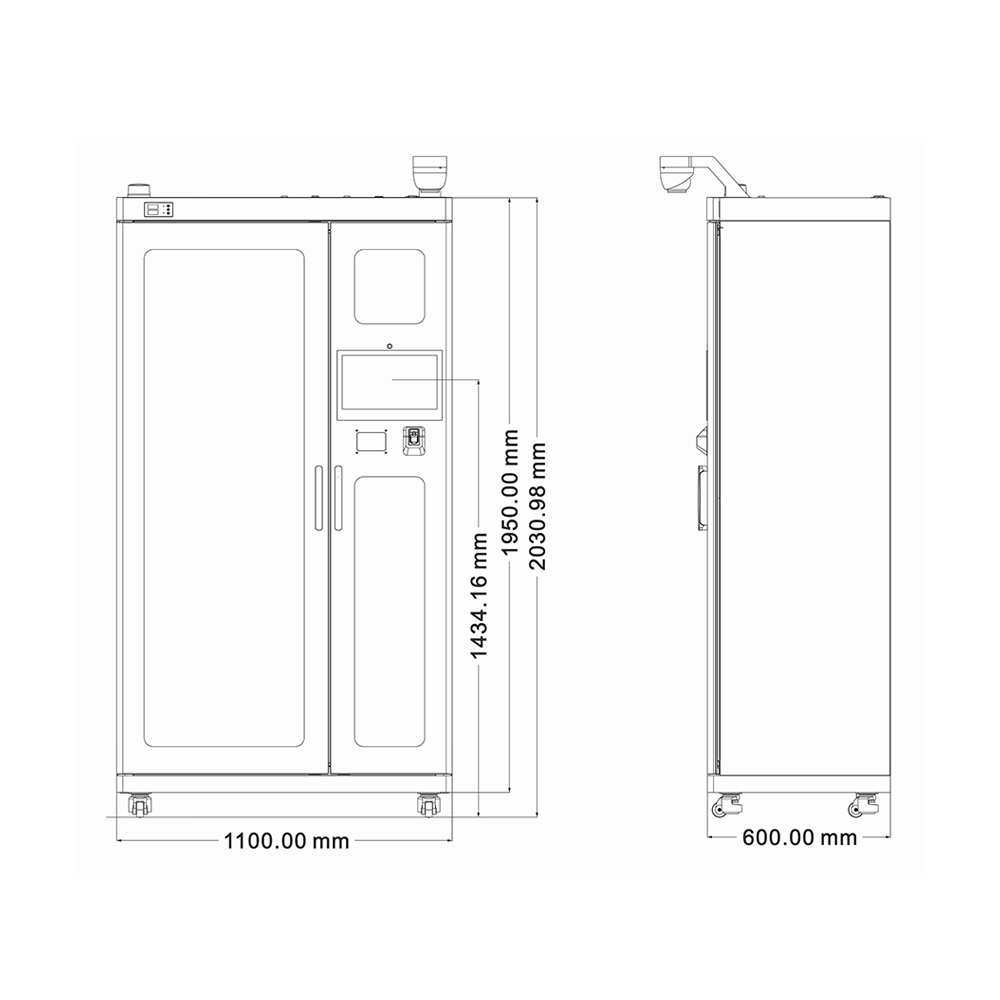

Dimensions1100mm*600mm*2030mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G

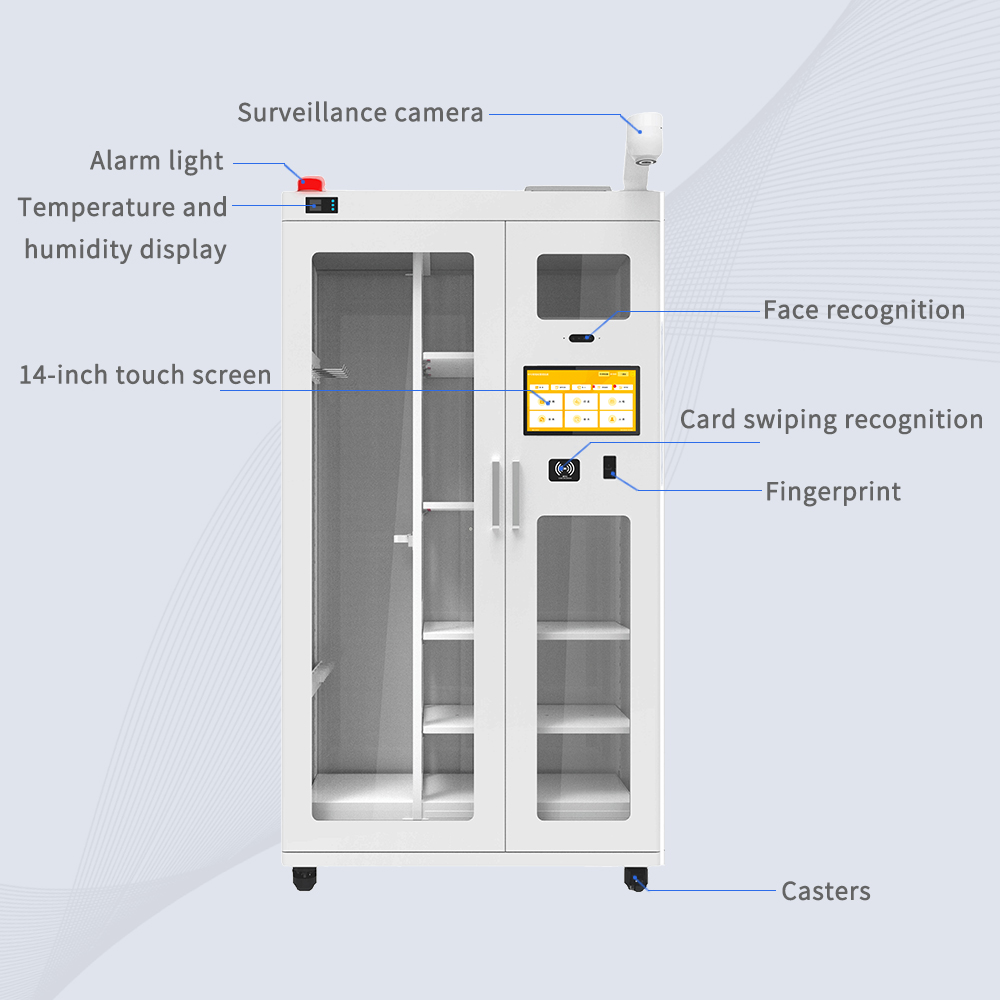

Touchscreen14-inch / 21.5-inch capacitive touch screen
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Range5-50cm Adjustable
Scan Speed≤5s/200pcs
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
InterfaceEthernet/RS232
Power150W
Authentication ModesFace, Card, Fingerprint(Optional)

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID TOOL STORAGE CABINET FAQS

How Does the RFID Tool Storage Cabinet Prevent Tool Loss?

Answer:
The CK-GT1B uses UHF RFID anti-collision technology to monitor 1,000+ tools simultaneously. Each tool embeds a waterproof RFID tag (ISO 18000-6C compliant). When unauthorized removal occurs:

3D Sensor Triggers – Detects door openings without approval
Voice Alert System – Announces missing tool IDs instantly
SMS/Email Alerts – Sends real-time notifications to managers
Case Study: An aircraft maintenance hub reduced lost tools by 92% after deployment, saving $18,000/month in replacement costs.

Can It Operate in Unheated Warehouses?

Answer:
Yes. Engineered for extreme environments with:

Heated Glass – Prevents condensation at -20°C
Sealed Electronics – IP54-rated components resist dust/ice
Low-Temperature Batteries – Backup power operates at -30°C
Performance Data: Maintains 99.7% uptime in Arctic oil rig tool rooms (-25°C).

How to Integrate with SAP for Automated Audits?

Answer:
Three-step integration via Cykeo’s IoT Middleware Platform:

EPC-to-Asset Mapping – Links RFID tags to SAP PM module
REST API Gateway – Syncs check-out records in real-time
Auto Report Generation – Creates daily audit logs (PDF/Excel)
ROI Example: A German auto plant cut audit time by 75% using SAP S/4HANA integration.
