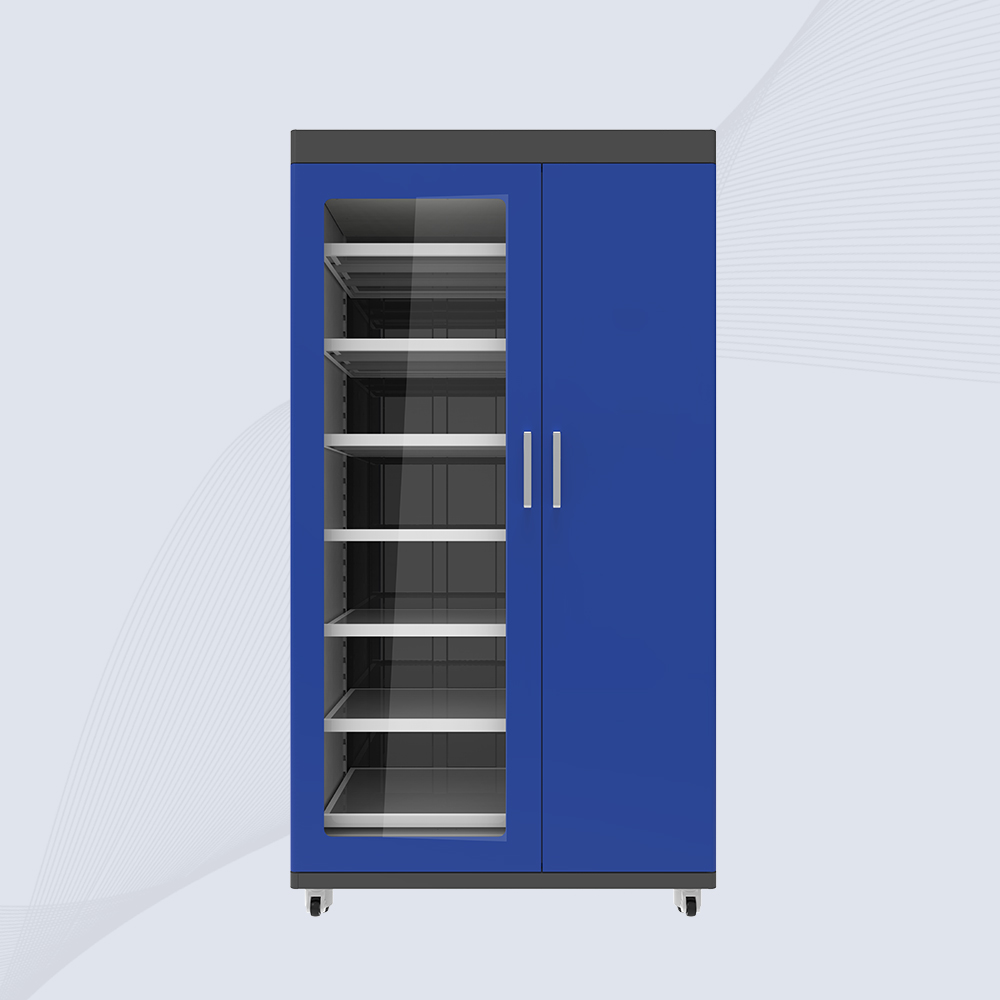

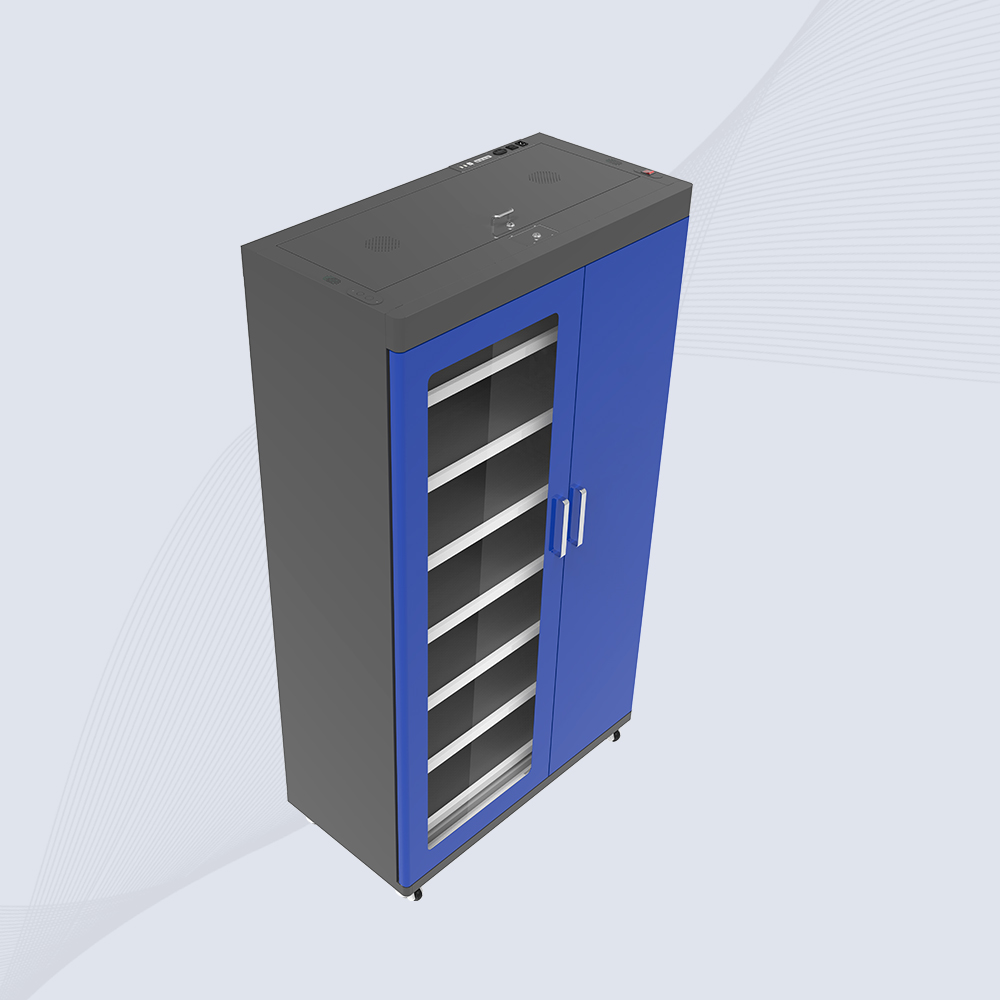

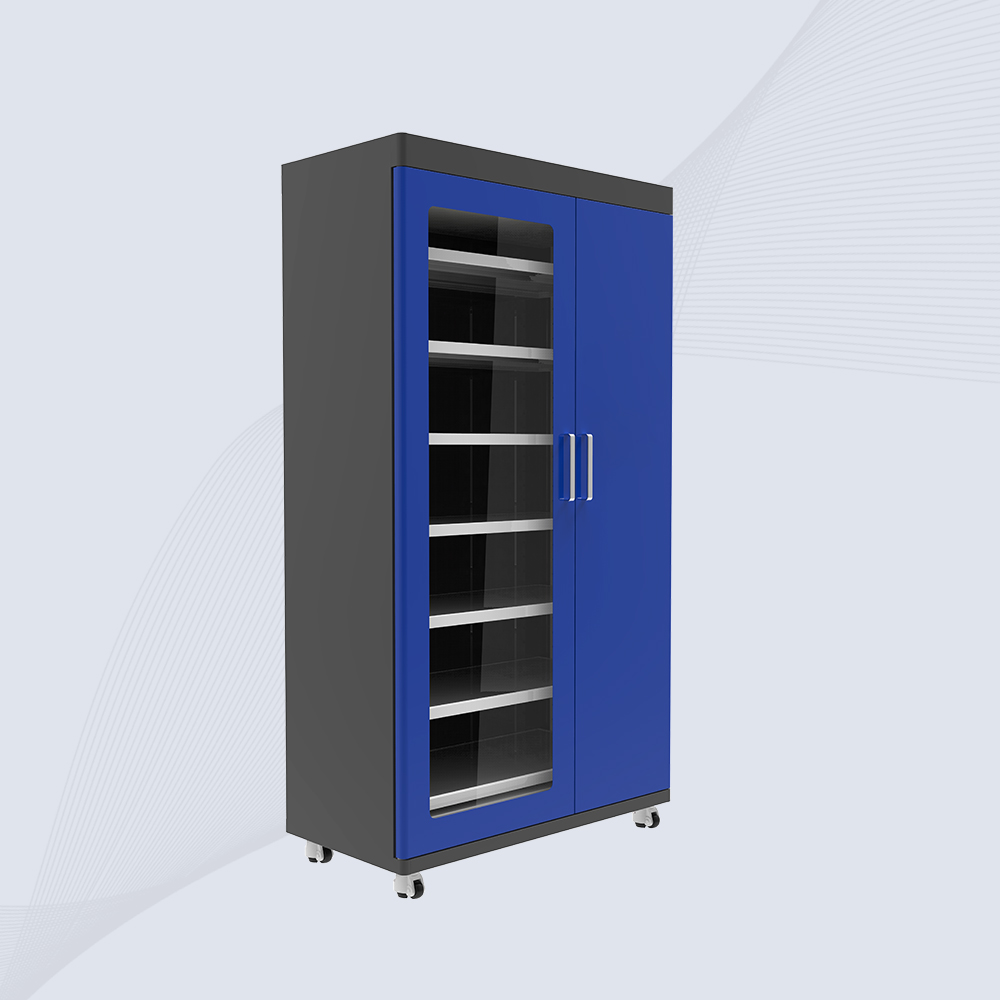

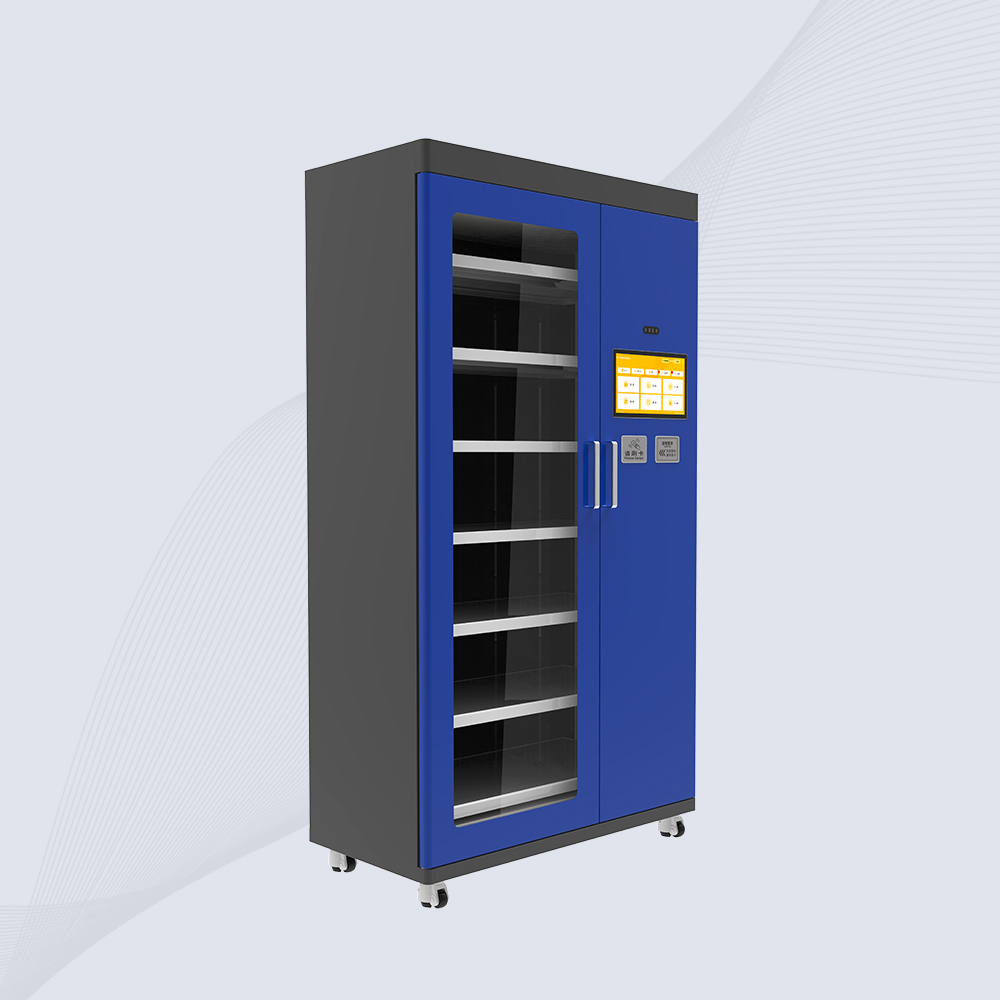

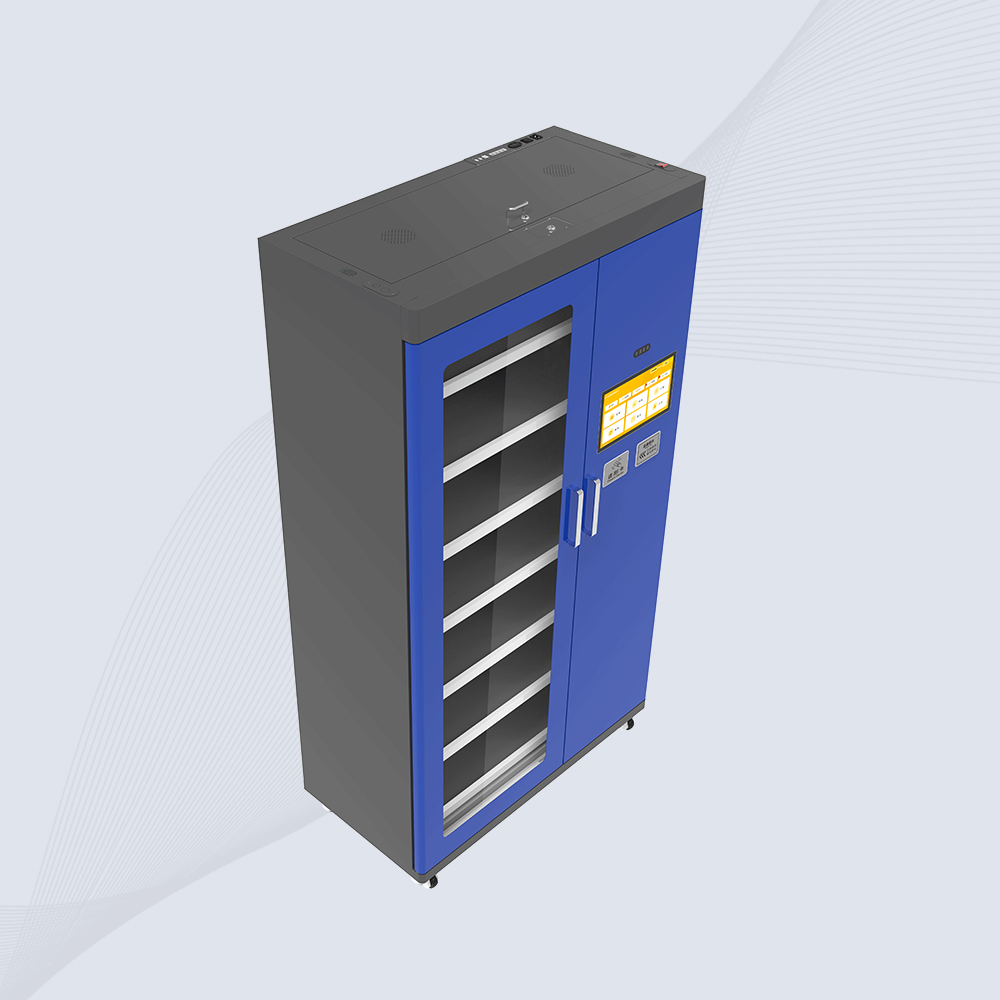

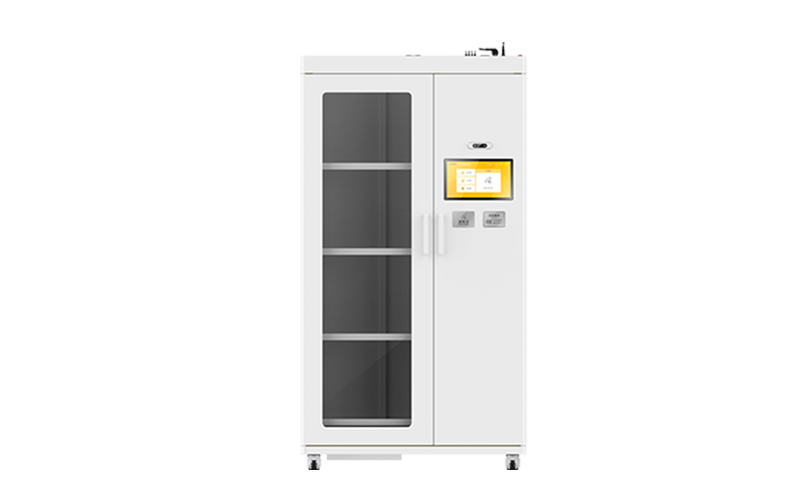

CK-GT1A

RFID Industrial Tool Cabinet

Modular 1000-Tool Control with 3-Second Voice-Guided Inventory

✔️ ≤80W Energy Efficiency for 24/7 Operation

✔️ 21.5″ Anti-Glare Touchscreen & Voice Prompts

✔️ Adjustable 4-6 Layer Shelves (225-280mm Height)

✔️ Seamless ERP Integration via C#/Java SDK

Talk to an Expert

Email Our Team

VOICE CONTROL, ZERO ERRORS

The CK-GT1A RFID Industrial Tool Cabinet sets new standards in automated asset management with ISO 18000-6C compliance. Featuring modular shelving and a 21.5″ industrial touchscreen, it scans 1000 tools in 3 seconds within 2029×1100×554mm. Its 1.2mm carbon steel construction supports voice-guided workflows and multi-cabinet networking for unmanned factories.

Critical for aerospace assembly lines, power plant maintenance depots, and automotive manufacturing requiring zero-tool-loss precision.

Tool management

Aviation management

Power grid maintenance control

Warehouse Logistics

Railway tool maintenance

Factory Automation

Cykeo CK-GT1A RFID Industrial Tool Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GT1A RFID INDUSTRIAL TOOL CABINET

Lightning Inventory

100+ tools scanned in 10 seconds

Flexible Capacity

Convertible 4/6-layer 280mm/225mm shelves

Multi-Layer Security

HF card/face ID/fingerprint options

Smart Environment

Optional dehumidifier & temperature alerts

Industrial-Grade UI

21.5″ capacitive touch with glove mode

Seamless Integration

Java/C# SDK for ERP/WMS connectivity

Fail-Safe Design

Dual backup for power/network outages

Voice Interaction

Mandarin/English vocal prompts

Cykeo CK-GT1A RFID Industrial Tool Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GT1A
Product NameRFID Industrial Tool Cabinet

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel

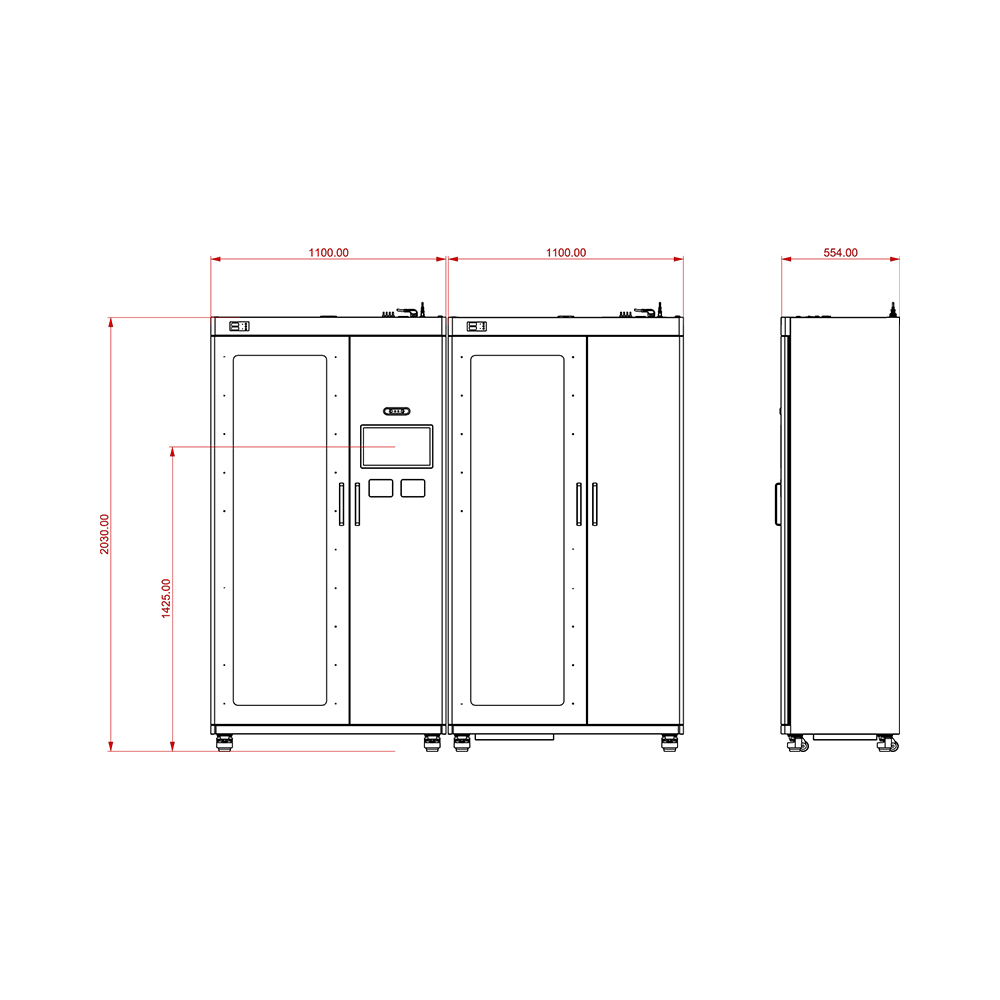

Dimensions2029×1100×554mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen14″ Touchscreen
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Speed1-3 sec
Shelf Options4×280mm/6×225mm

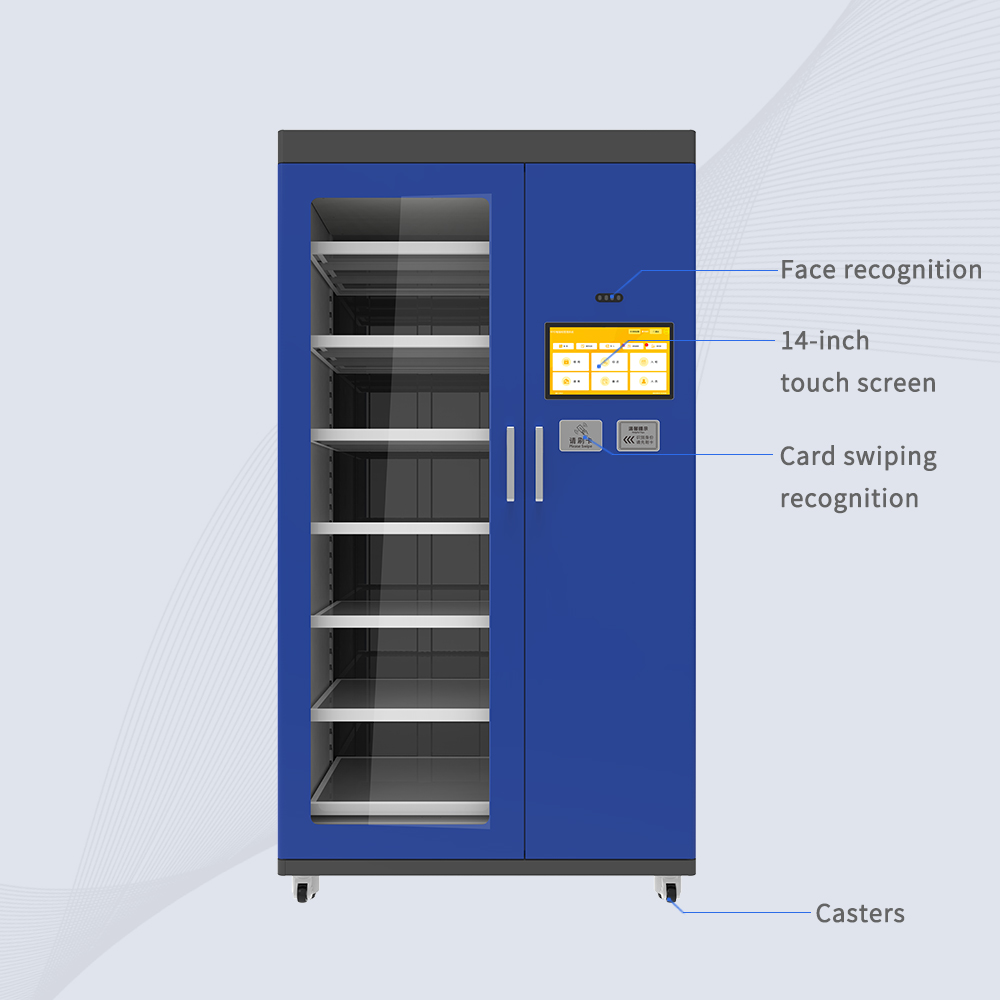

Authentication ModesFace, Card, Fingerprint(Optional)
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
Power150W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID INDUSTRIAL TOOL CABINET FAQS

How Do Adjustable Shelves Adapt to Oversized Tools?

Answer:
The slide-and-lock rail system allows dynamic height adjustments:

280mm Mode: Fits 25cm pneumatic drills (common in aircraft assembly).
225mm Mode: Holds 120+ micro-tools per layer for electronics manufacturing.
Tool Test: Stored 34×30cm torque wrenches in 4-layer mode at Airbus facility.
Pro Tip: Use barcode labels for non-RFID items (e.g., ceramic blades).

Why is Voice Guidance Critical in Noisy Factories?

Answer:
The dual-microphone array cancels 85dB ambient noise via:

Beamforming Technology: Focuses on operator’s voice commands.
Multilingual Alerts: Issues warnings like “Wrench A7 missing in Layer 2” in 8 languages.
Case: Siemens reduced tool retrieval errors by 41% in turbine workshops.

Can It Connect to Building Management Systems (BMS)?

Answer:
Yes. The MODBUS RTU protocol enables:

Power Monitoring: Alerts if consumption exceeds ≤80W threshold.
HVAC Sync: Triggers dehumidifiers when humidity >60%RH.
Security Integration: Locks cabinets during fire alarms via dry-contact ports.
ROI Example: A nuclear plant saved $8,200/month on manual climate checks.
