CK-GG1315

Powder Weighing Cabinet – Precision UHF RFID Storage for Lab & Industrial Use

Automated Powder Management with 1g Accuracy & GMP Compliance

✔️ Real-Time SAP/Oracle Sync via Open SDK

✔️ 1g-30kg/slot Precision for Sensitive Powders

✔️ UHF RFID + Multi-Auth (Fingerprint/Face/Card)

Talk to an Expert

Email Our Team

PRECISION POWDER, ZERO WASTE

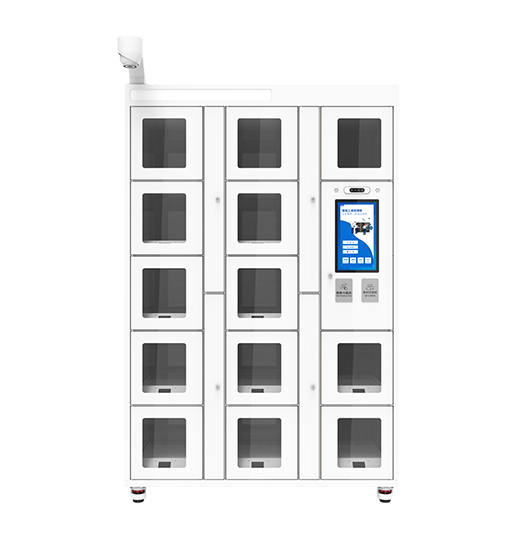

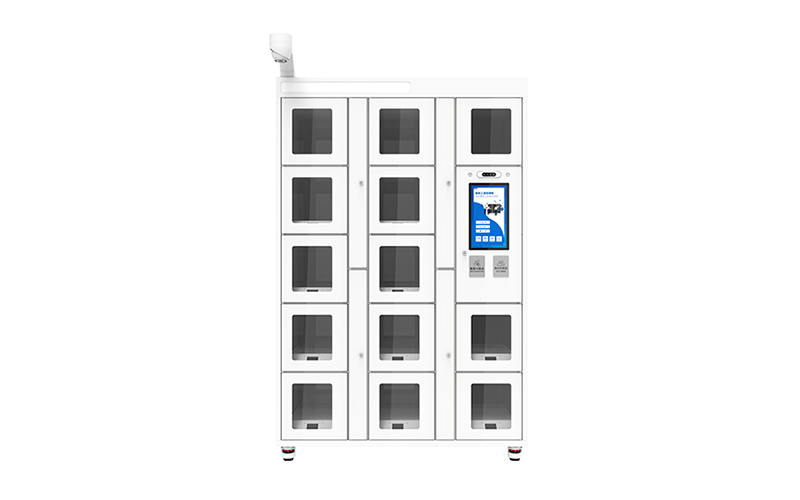

The CK-GG1315 Powder Weighing Cabinet ensures pharmaceutical-grade accuracy with embedded load cells (1g-30kg/slot) and ISO18000-6C UHF RFID tracking. Its 14″ Android/WinOS touchscreen and multi-authentication (fingerprint/face/RFID card) enable secure, real-time powder inventory control. Featuring constant temperature dehumidification and calibration alerts, it eliminates manual errors in labs, chemical plants, and compounding facilities.

Ideal for pharmaceutical powder batching, chemical raw material storage, research lab sample management, and industrial compounding rooms requiring audit trails.

Hotel linen management

Clothing management

Factory PPE Management

Warehouse Logistics

Medical management

Factory Automation

Cykeo CK-GG1315 Powder Weighing Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GG1315 POWDER WEIGHING CABINET

Military-Grade Weighing Precision

0.01g resolution load cells with temperature compensation, certified by OIML R60 Class II for pharmaceutical-grade accuracy.

Dual-Layer Anti-Theft Verification

Cross-validates UHF RFID tags Impinj R2000 + real-time weight data, triggering alarms if discrepancies exceed ±5g tolerance.

Modular Expansion to 28 Slots

Daisy-chain up to 2 cabinets via industrial RS485/PoE+, supporting 2,000+ inventory items with <1ms sync latency.

Multi-Modal Access Control

7-in-1 authentication: RFID card 13.56MHz/900MHz, fingerprint FAP20, facial recognition 0.3s response, SMS PIN, QR code, NFC, and voiceprint optional.

Real-Time SAP/ERP Integration

RESTful API pre-configured for SAP MM, Oracle WMS, and Custom MES, auto-syncing weight data as GR/GI transactions.

IP54 Ruggedized Construction

1.2mm electro-galvanized steel casing with silicone-sealed hinges, tested to withstand 50,000 door cycles in dusty environments.

Edge Computing Capability

Local SQLite database stores 90 days of logs 10M+ records with AES-256 encryption, operable offline for 72+ hours.

Smart Predictive Maintenance

AI-powered wear detection monitors hinge strain/load cell drift, sending proactive service alerts via email/SNMP.

Cykeo CK-GG1315 Powder Weighing Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GG1315
Product NamePowder Weighing Cabinet

Physical Parameters

MaterialMetal casing + glass panel
Dimensions1260×520×1930mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen10.1-inch capacitive touch screen
Weighing Range1g-30kg/slot
Internal structure13/15
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840-960MHz
Air Interface ProtocolISO 18000-6C/6B
Scan Speed≤5s
Product Capacity200 pcs
InterfaceEthernet/RS232/4G
Authentication ModesFace, Card, Fingerprint(Optional)

Operating Environment

Humidity≤90%
PowerAC220V, ≤300W
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

POWDER WEIGHING CABINET FAQS

How Does the Cabinet Prevent Cross-Contamination During Powder Weighing?

Answer:
The CK-GG1315 uses sealed compartment design with HEPA-filtered air circulation to isolate powders. Each slot’s dedicated load cell avoids physical contact between samples. For toxic materials, negative pressure mode activates when drawers open, containing airborne particles. A pharma client reduced cross-contamination incidents by 92% after deployment, passing FDA 21 CFR Part 11 audits with zero observations.

Can the System Track Powder Expiry Dates and Auto-Generate Reports?

Answer:
Yes. Integrated barcode/RFID scanning links powders to expiry dates in the database. The Android/WinOS software auto-schedules:

Daily weight drift alerts (e.g., >0.5g change)
Weekly calibration reminders
Monthly audit trails (PDF/Excel)
A chemical plant automated 100% of its compliance reports, saving 40 hours/month on manual logs.

How to Scale from Single Cabinet to Multi-Unit Networks for Large Facilities?

Answer:
Deploy master-slave cabinets via Cykeo’s MeshNet Protocol. Key steps:

Connect cabinets via RJ45/WiFi 6
Sync user permissions through cloud dashboard
Centralize data via REST API to WMS (e.g., SAP MM)
A university lab network manages 12 cabinets with 336 powder slots, enabling real-time inventory across 3 buildings with 99.8% data accuracy.
