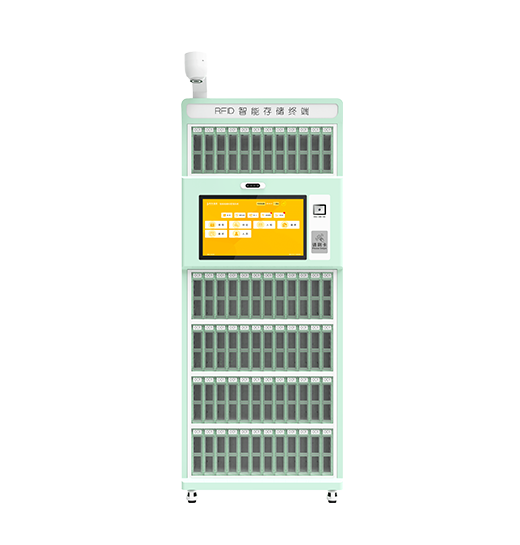

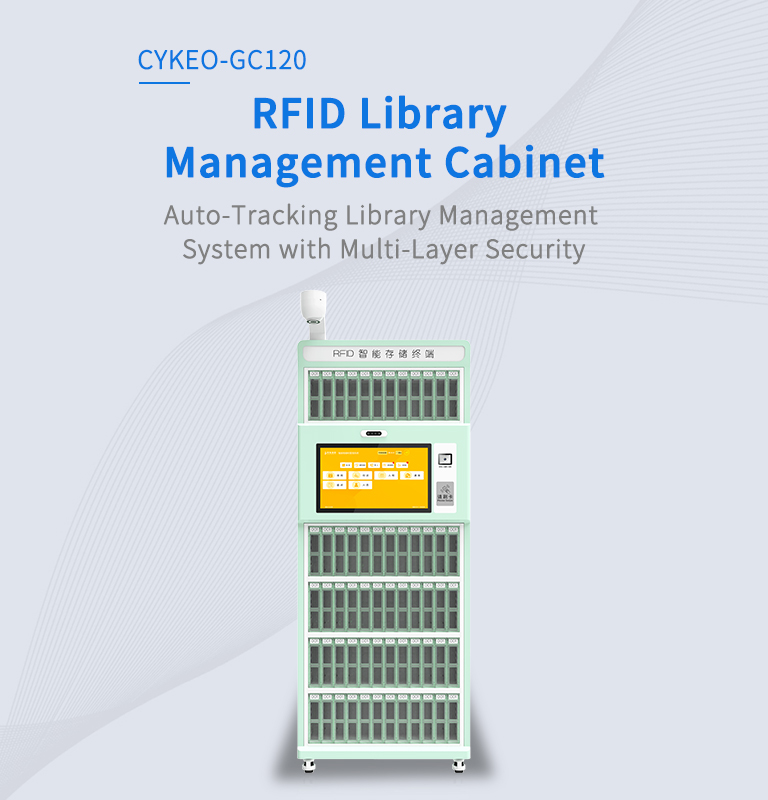

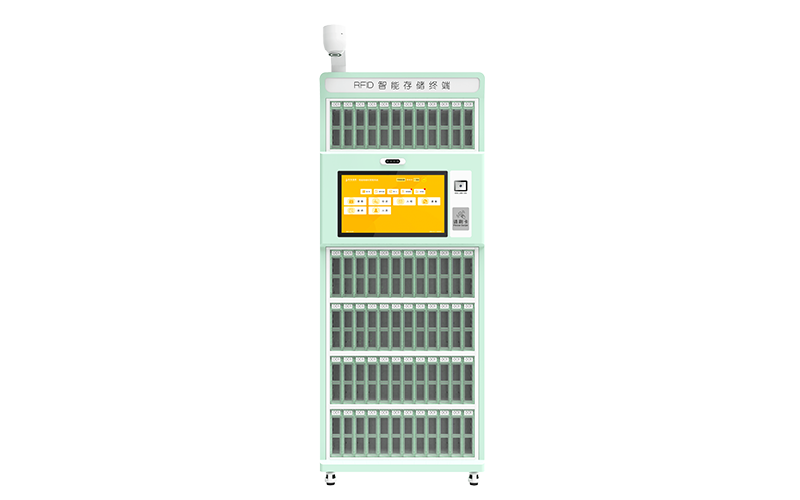

Cykeo CK-GC120 RFID Library Management Cabinet Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-GC120
  • Product NameRFID Library Management Cabinet

Physical Parameters

  • ​MaterialMetal casing + glass panel
  • Dimensions1949mm*780mm*375mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Touchscreen21.5-inch capacitive touch screen
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range13.56MHz
  • Air Interface ProtocolISO 15693
  • Scan Speed≤5s
  • Product Capacity36 pcs
  • InterfaceEthernet/RS232/4G
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Power220V ≤300W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID LIBRARY MANAGEMENT CABINET FAQS

How Do 72 Independent Cells Prevent Cross-Reading Errors in Dense Archives?

Answer:
Each cell uses directional antenna shielding and RSSI spatial filtering:

  • Signal Isolation: Metal barriers block RF interference between compartments.
  • Range Limiting: Readers detect only items within 10cm of their cell.
  • Multi-Frequency Verification: UHF scans bulk items; HF confirms fragile assets.
    Case Study: A Vatican archive reduced misplacement by 99% when storing 15th-century manuscripts. Cell scanning detected a misplaced folio in 3.2 seconds.
Can the System Handle Mixed Materials (Metal Tools/Paper Files) in One Cabinet?

Answer:
Yes. Adaptive dual-band scanning solves material challenges:

  • UHF (840-960MHz): Penetrates metal tool casings
  • HF (13.56MHz): Reads paper tags without liquid/metal interference
  • Auto-Band Switching: AI detects material type via weight/size profiling
    Best Practice: For museum artifacts, use HF tags on glass displays and UHF tags on storage crates.
How to Manage 100+ Cabinets Across Global Facilities?

Answer:
Through Cykeo’s Centralized Asset Cloud:

  1. Live Dashboard: Monitor Tokyo/Paris cabinets via 4G/Wi-Fi
  2. Custom Alerts: Receive SMS if rare documents exceed access time
  3. Blockchain Audit Trail: Immutable records for ISO-certified archives
    ROI Example: Boeing saved $1.2M/year on aviation part audits across 17 hangars.
