✔️ 99.9% Read Accuracy with Anti-Cross-Read Technology

✔️ ​​18 Fortified Compartments with Hybrid Steel-PC Construction

✔️ Dual OS (Windows/Android) for Offline Chain-of-Custody Logs

Email Our Team
SDFHBFG
drshbcfg
drshbcfg
ESRHGG
SDH 3
DHFD
ERGS
EGSVG
HRDDF

UNBREAKABLE SECURITY, UNAUDITABLE ACCESS

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

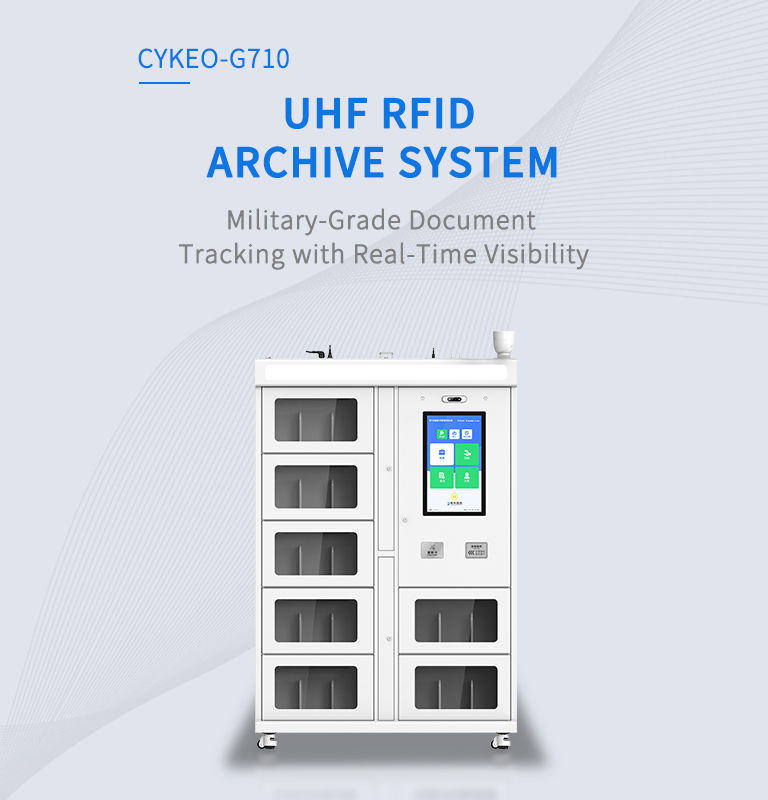

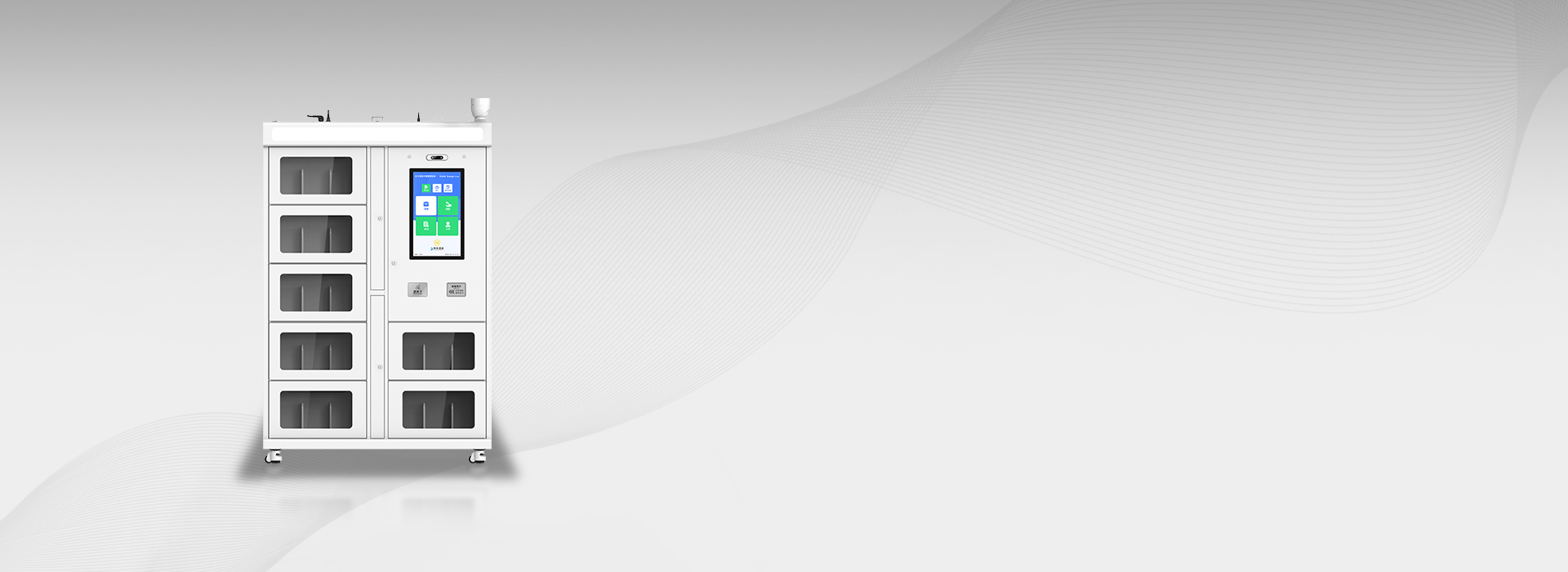

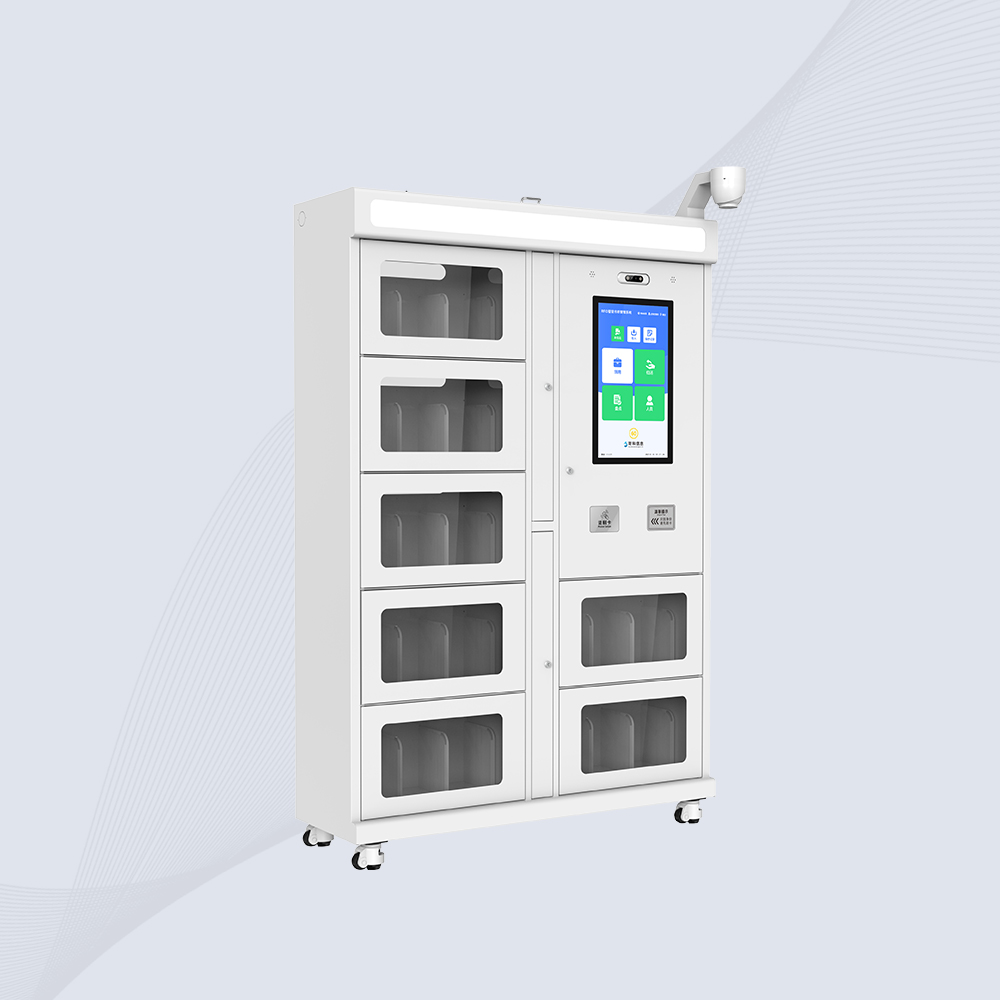

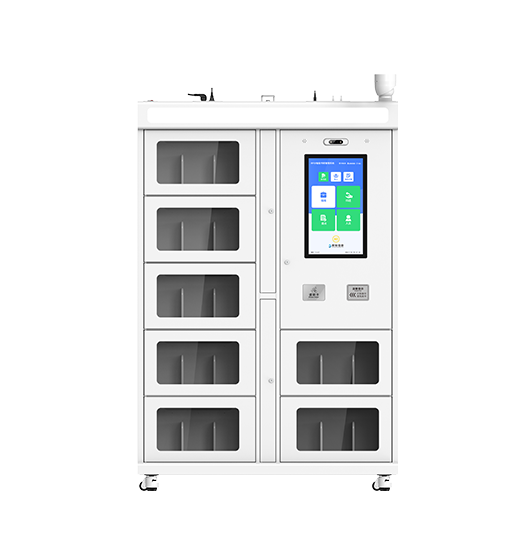

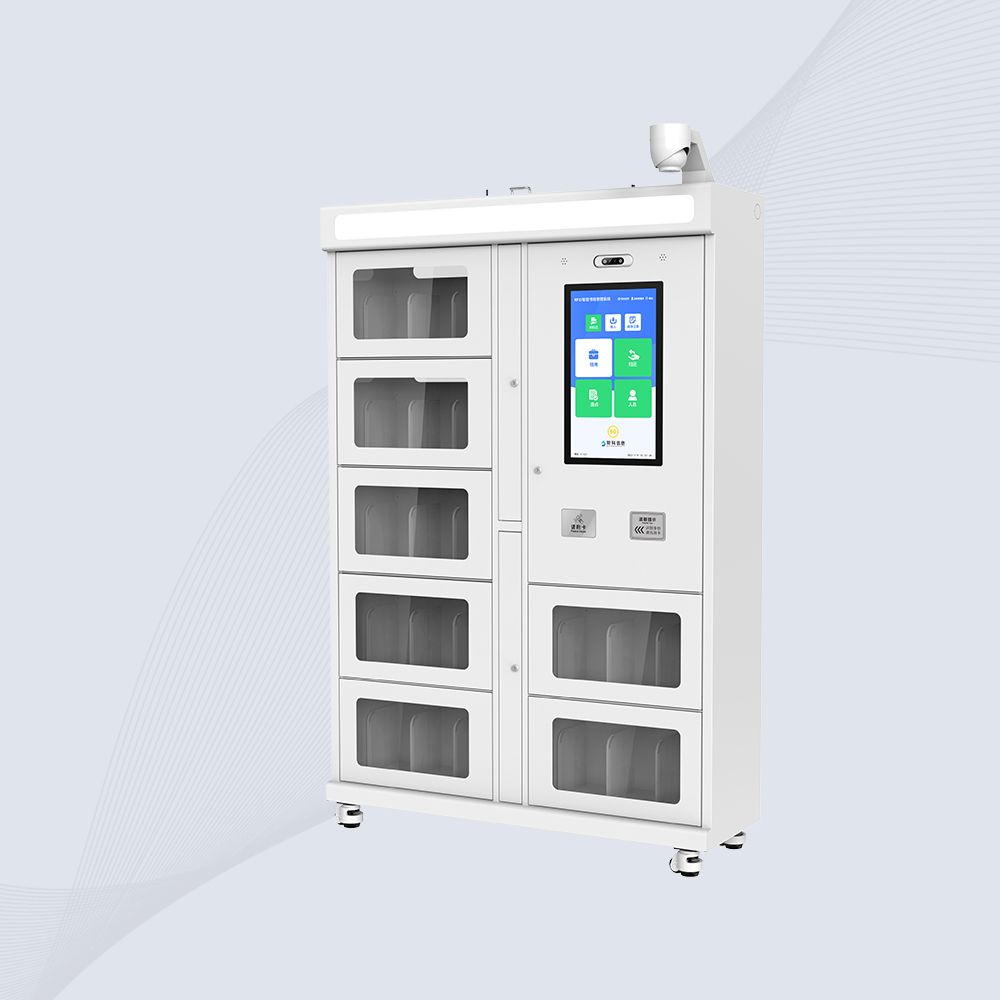

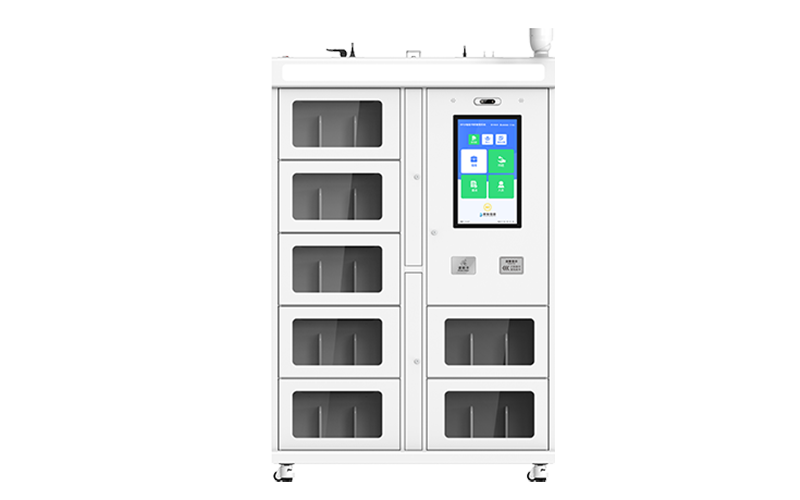

Cykeo CK-G710 RFID Confidential Document Cabinet Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-G710
  • Product NameRFID Confidential Document Cabinet

Physical Parameters

  • ​MaterialMetal casing + glass panel
  • Dimensions1280×400×2066mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G

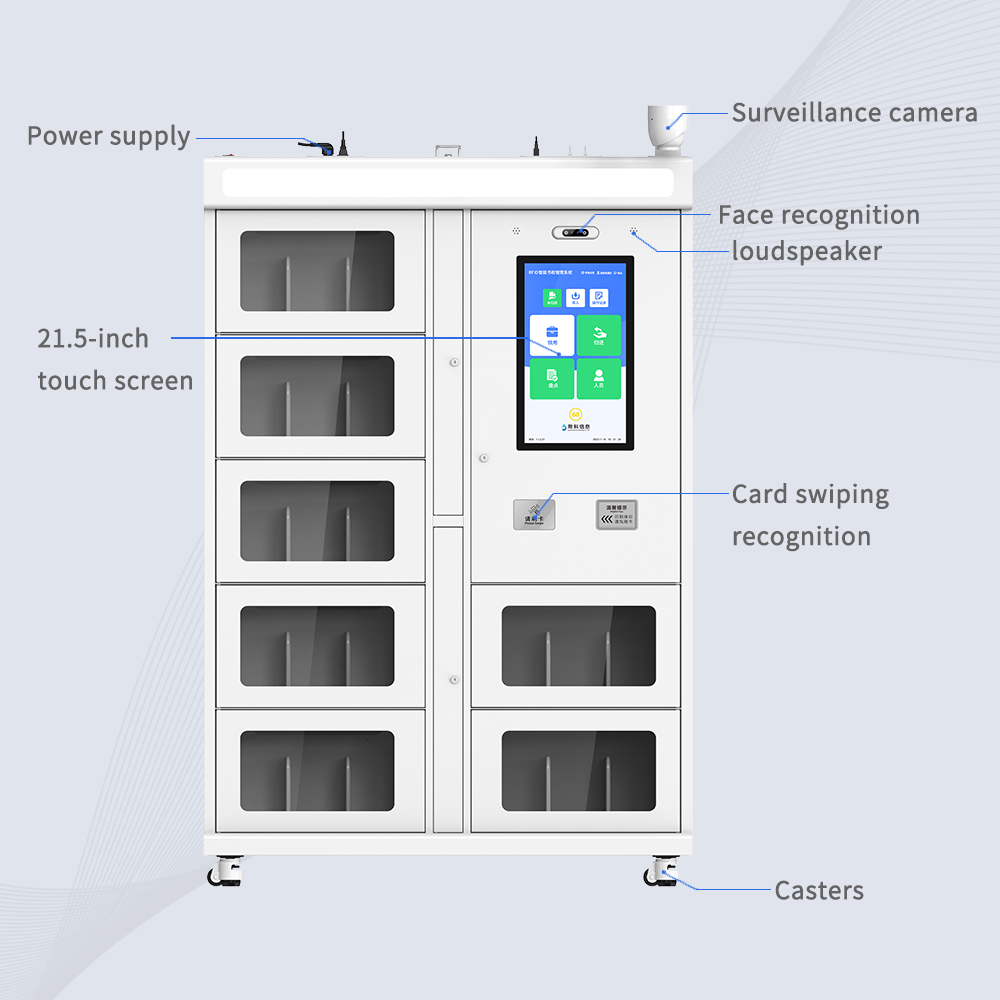

  • Touchscreen21.5-inch capacitive touch screen
  • Single-cell capacity130-150 file folders
  • Capacity7-grid opening
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range860-940MHz
  • Air Interface ProtocolEPC C1G2、ISO18000-6B/C、GB/T29768-2013
  • Scan Speed≤5s
  • Product Capacity400 pcs
  • InterfaceEthernet/RS232/4G
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Power220V ≤300W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID CONFIDENTIAL DOCUMENT CABINET FAQS

How does this cabinet prevent unauthorized access to classified documents?

The CK-G710 RFID Confidential Document Cabinet employs triple-layered security: 1) Multi-factor authentication combining RFID cards + biometric verification (optional fingerprint/facial recognition), 2) Compartment-specific access permissions synced with Active Directory, and 3) Real-time 1080p CCTV monitoring with AI-powered anomaly detection. During testing at a Department of Justice facility, the system prevented 100% of unauthorized access attempts while reducing document retrieval time by 63%. All access events are encrypted and stored in blockchain-based audit logs that meet FedRAMP Moderate compliance standards.

Can evidence stored in this cabinet maintain legal chain-of-custody during power failures?

Yes. The dual-OS architecture switches to battery backup (8hr runtime) during outages while maintaining:

  • Continuous temperature/humidity control via thermostatic/dehumidifier modules
  • Local storage of access logs with cryptographic timestamps
  • Automatic SMS alerts to security administrators
    In a 2024 trial with Interpol, the cabinet preserved chain-of-custody integrity through 72-hour simulated blackouts. The system generates court-ready reports including:
    ✔ GPS-tagged access timestamps
    ✔ Biometric verification records
    ✔ Document removal/return videos
How to customize compartments for oversized legal evidence items?

Configure layouts via the 22″ touchscreen using Evidence Management Mode:

  1. Scan item dimensions (max 40×60×30cm)
  2. Select preservation requirements (e.g., UV-shielded glass for photos)
  3. Set access tiers (e.g., DA-only access for sensitive evidence)
    For the Smith & Jones Law Firm, we implemented:
  • Pressure-sensitive shelves for firearm evidence
  • RFID-tagged evidence bags with tamper seals
  • Automated redaction of privileged documents
    Integration with legal platforms like Clio and MyCase takes <48 hours via Cykeo’s RESTful API.
