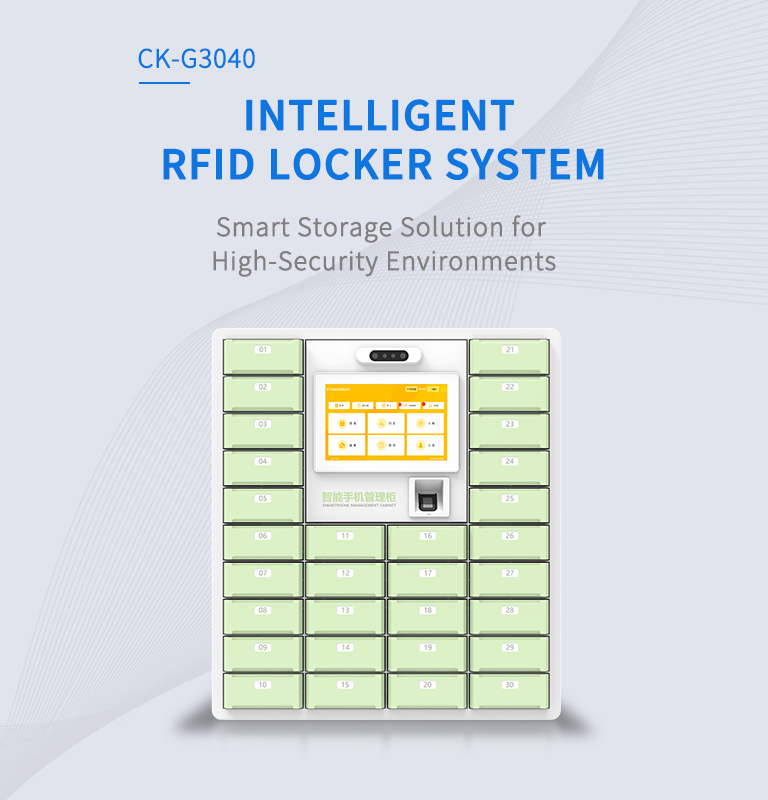

CK-G3040

INTELLIGENT RFID LOCKER SYSTEM

Intelligent Secure Storage for High-Value Asset Protection

✔️ Real-Time RFID Anti-Theft Monitoring

✔️ Automated Audit Trails for Compliance & Accountability

✔️ Military-Grade Access Control with Multi-Factor Authentication

Talk to an Expert

Email Our Team

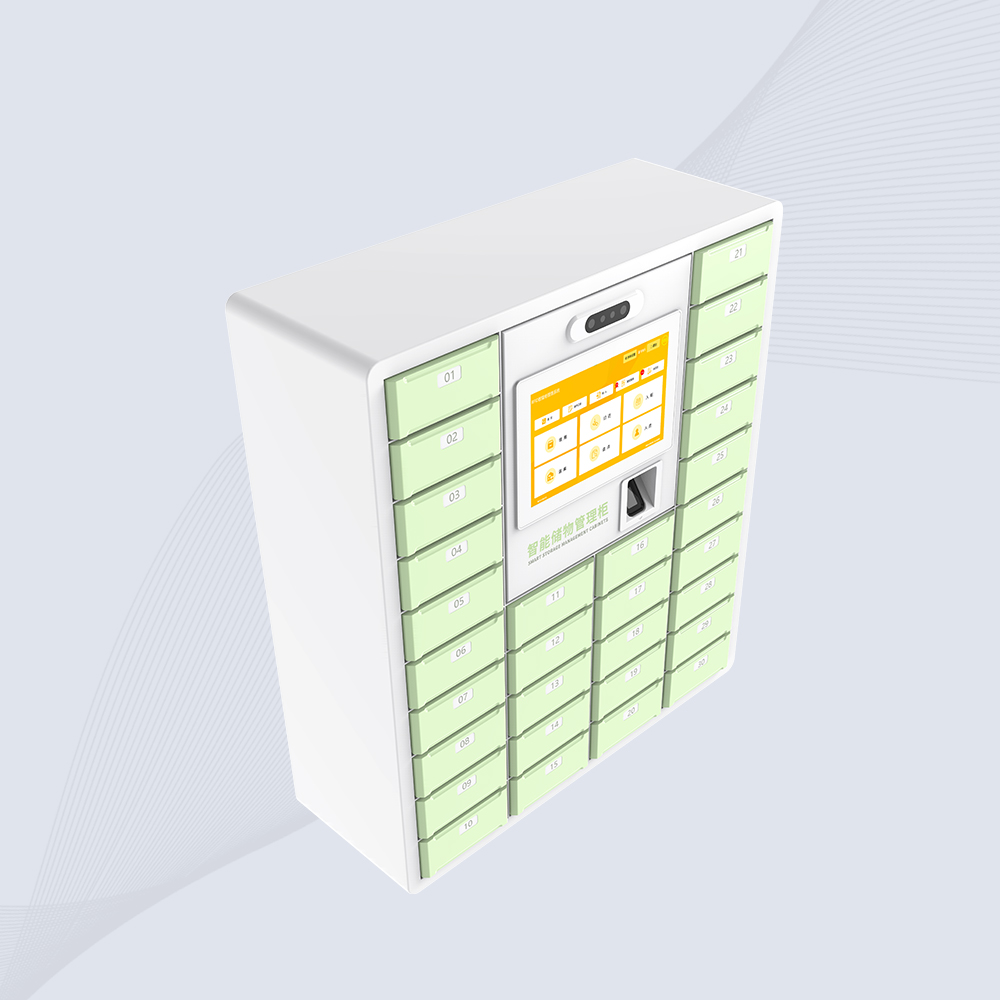

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 2）

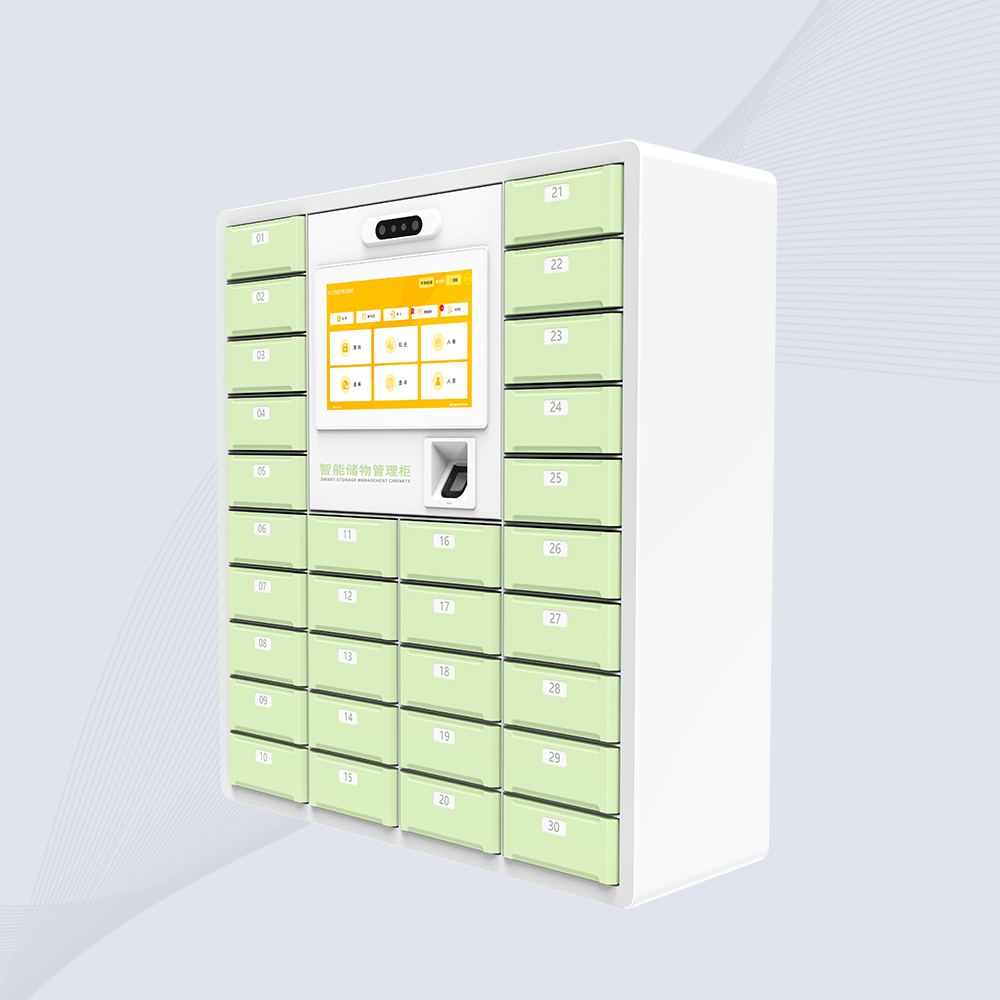

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 3）

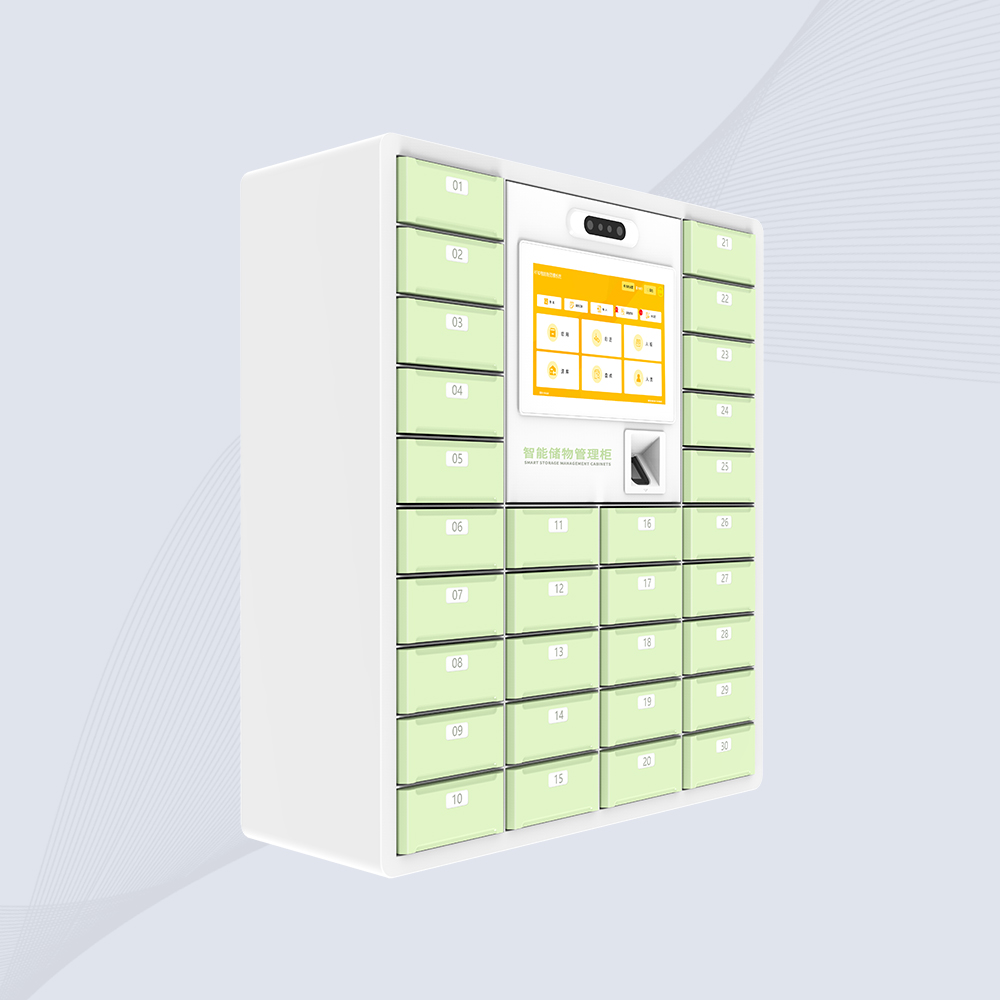

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 5）

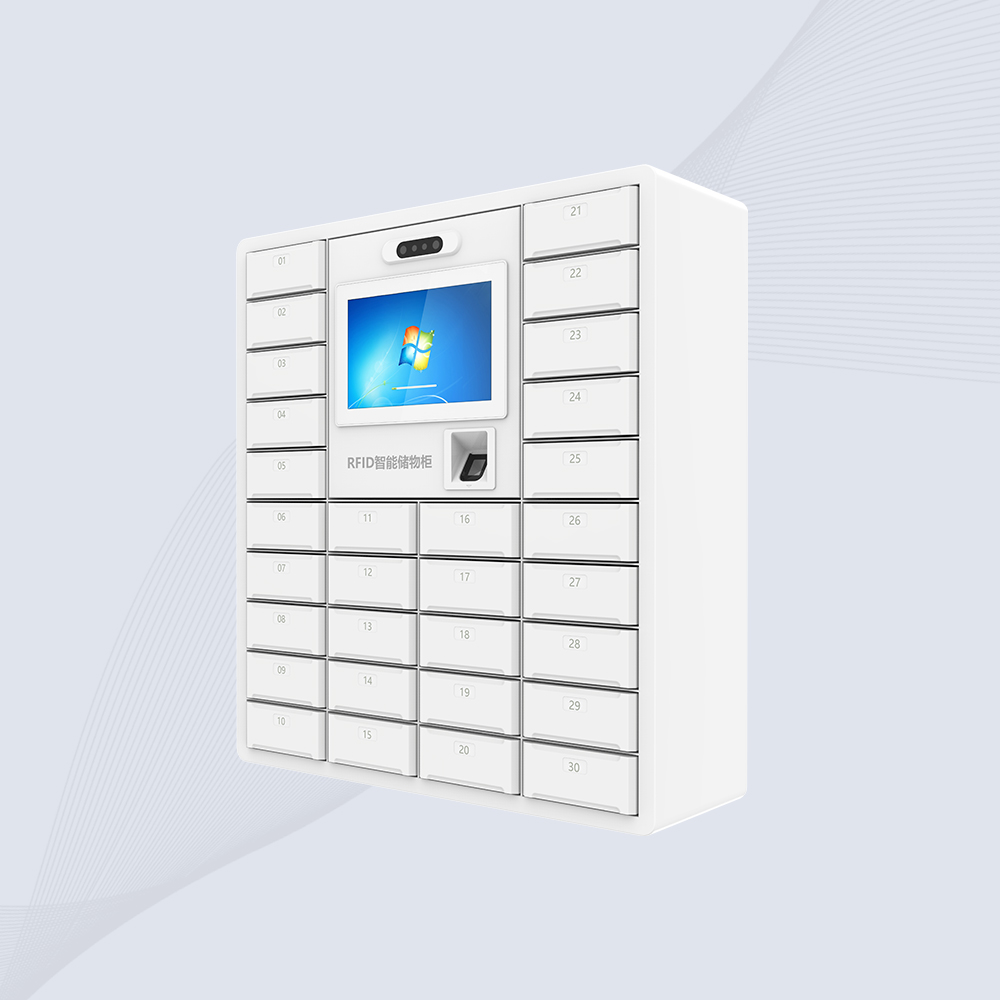

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 6）

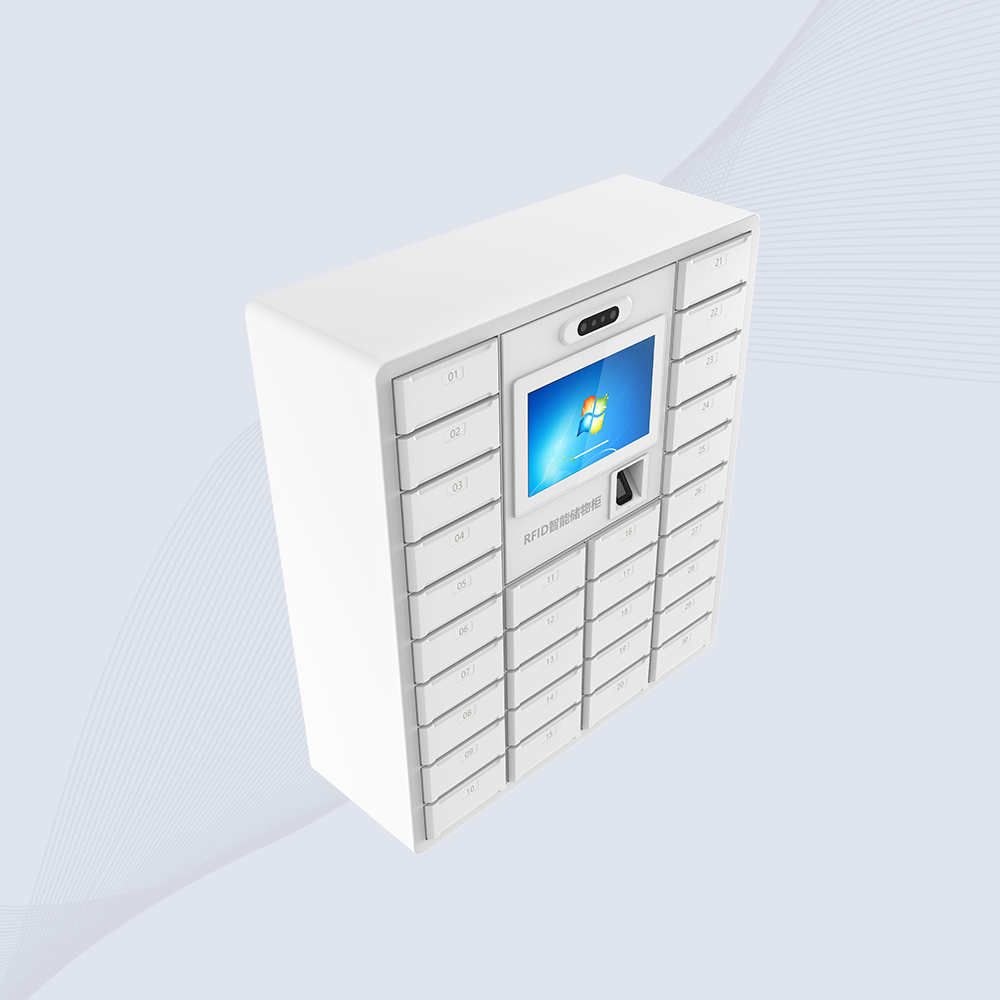

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 7）

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 8）

GUARD ASSETS, ZERO LOSSES

The CK-G3040 RFID Loss Prevention Cabinet delivers enterprise-grade security for high-risk assets like confidential documents, pharmaceutical samples, and retail merchandise. Equipped with UHF RFID technology, 14″ touchscreen, and modular expandability (30+40 compartments), it automates inventory tracking while preventing unauthorized removal. With Windows/Android OS and -30°C to 60°C operation, it ensures 24/7 protection in warehouses, labs, and smart retail stores.

Ideal for securing regulated assets: Pharmaceutical sample lockers in labs, retail high-theft merchandise storage, confidential government archives, and manufacturing tool cribs requiring chain-of-custody logs.

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 9）

Tool management

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 10）

Registration of items in the bank vault

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 11）

File management

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 12）

Tracking of the R&D laboratory

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 13）

Medical management

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 14）

Factory Automation

Cykeo CK-G3034 INTELLIGENT RFID LOCKER SYSTEM Specification

Download

Online Procurement

KEY FEATURES OF CYKEO RFID LOSS PREVENTION CABINET

Flexible Configuration

Main+expansion units with 30/40 compartments

Instant Inventory

Real-time item tracking with RFID

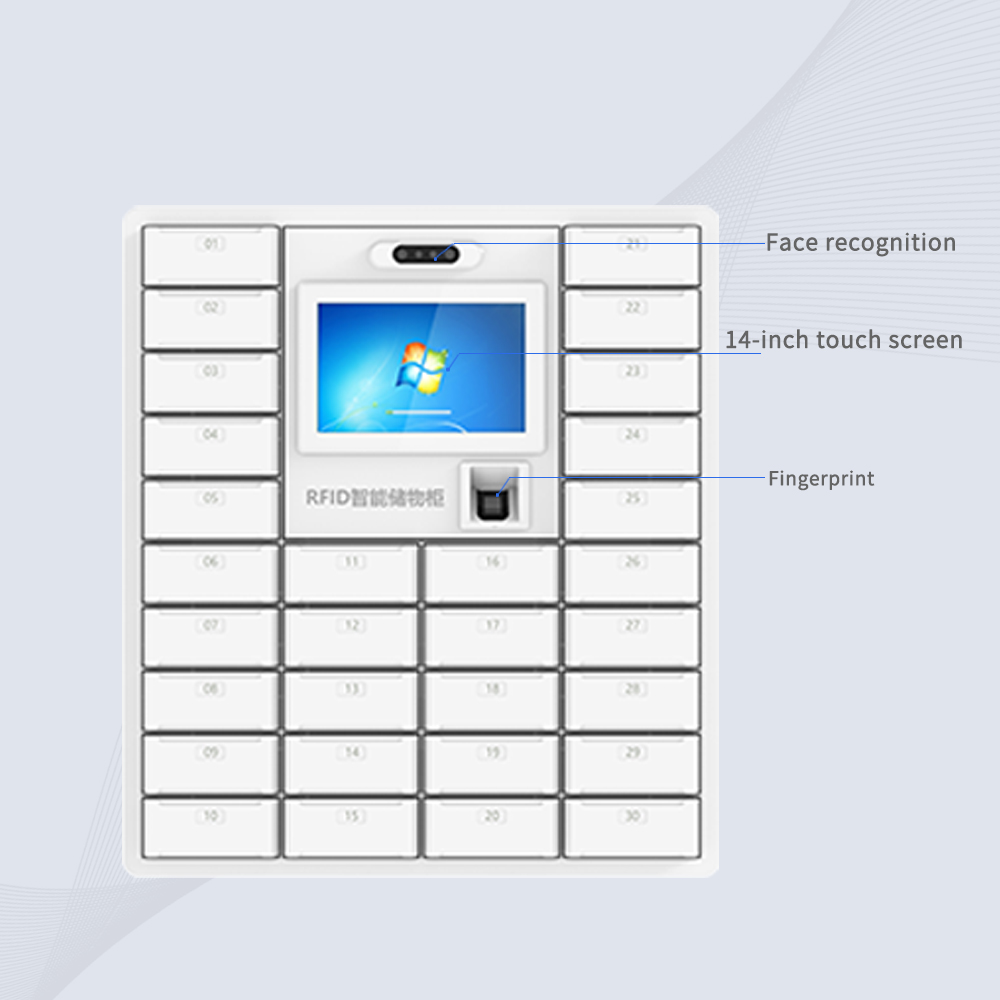

Multi-Layer Security

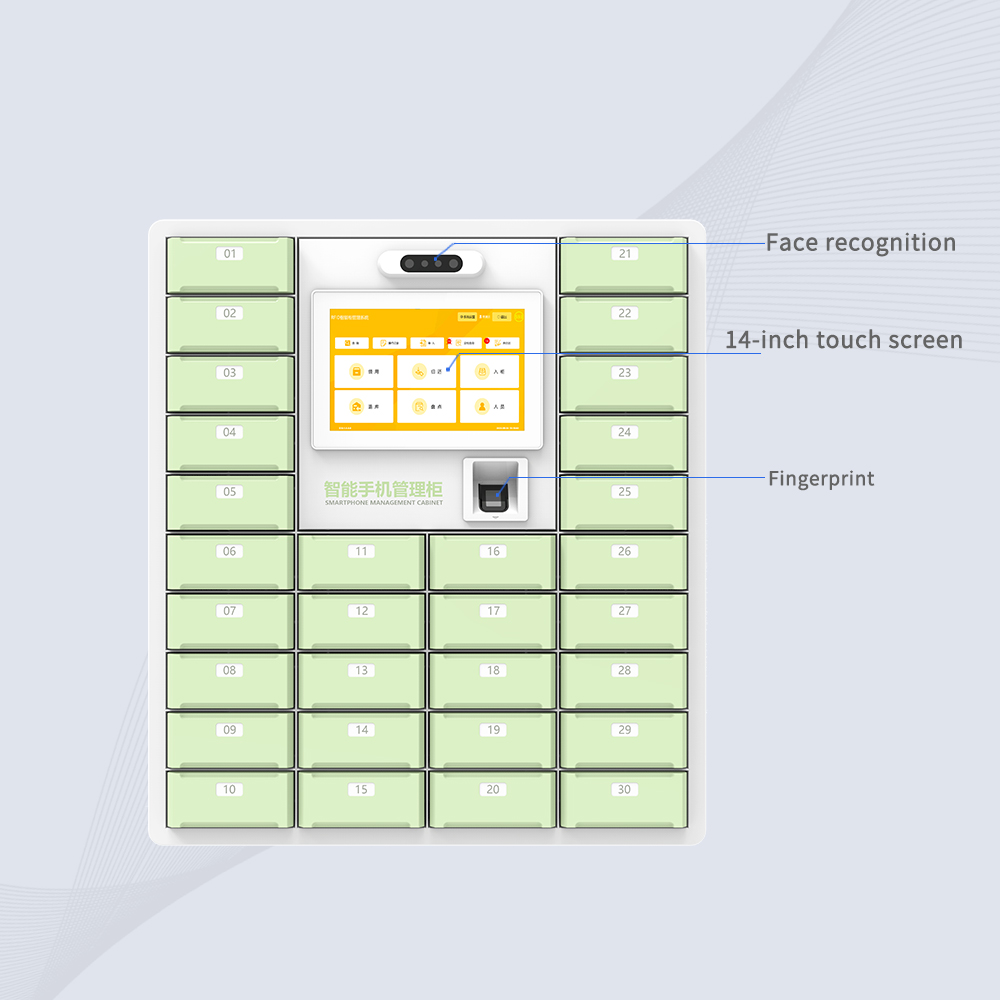

Face/fingerprint/RFID authentication

User-Friendly Interface

14″ HD touchscreen with voice guidance

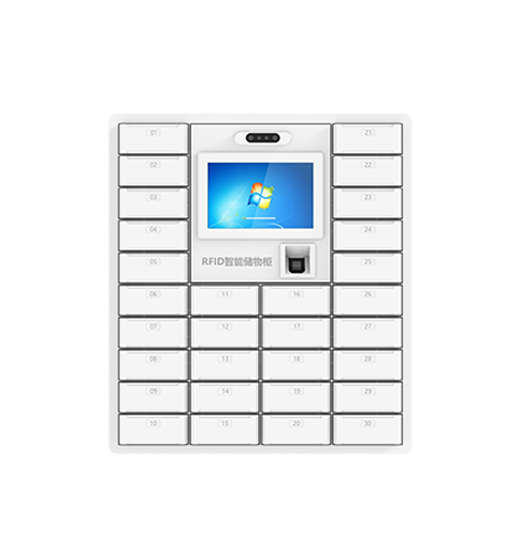

CK-G3040 INTELLIGENT RFIDLOCKER SYSTEM（images 20）

Comprehensive Logging

Detailed access records with timestamps

Durable Construction

1.2mm carbon steel rugged enclosure

Seamless Integration

Open SDK for system customization

Wide Compatibility

Supports EPC C1G2/ISO18000-6B/C standards

Cykeo CK-G3040 RFID Loss Prevention Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-G3040
Product NameRFID Loss Prevention Cabinet

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel
Dimensions622(L)*230(W)*698mm（H)
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen14-inch capacitive touch screen
Internal structureGrid opening The main cabinet has 30 compartments. The secondary cabinet is available with 40 compartments
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Range5-50cm Adjustable
Scan Speed≤5s/200pcs
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
InterfaceEthernet/RS232/4G
Authentication ModesFace, Card, Fingerprint(Optional)
Power220V ≤300W
Solar power300W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID LOSS PREVENTION CABINET FAQS

How Does RFID Prevent Theft in High-Risk Storage Areas?

Answer:
The CK-G3040 embeds UHF RFID sensors (840-960MHz) in each compartment, tagging assets with EPC C1G2 labels. When unauthorized removal occurs:

Instant Alarms: 120dB siren + strobe light activation
Spatial Filtering: RSSI thresholds ignore non-proximity tags
Chain-of-Custody Logs: User ID/timestamp/document scans recorded
Case Study: A pharmacy chain reduced narcotics shrinkage by 78% using compartment-specific RFID triggers.
Best Practice: Pair with Cykeo’s Directional Antennas to isolate high-value zones.

Can the Cabinet Withstand Warehouse Environmental Hazards?

Answer:
Yes. Engineered for MIL-STD-810G certification:

Humidity Resistance: 10%~90% RH non-condensing
Chemical Proof: Sealed ports resist solvents/oils
Thermal Stability: Heated glass prevents fogging at -25°C
Performance Metric: 150kg structural load capacity + IP67 dust/water resistance.

How to Integrate with Inventory Management Systems?

Answer:
Sync via:

ERP Connectors: Prebuilt SAP/Oracle modules map EPCs to SKUs
SDK Customization: Java/C# APIs for custom workflows (e.g., audit alerts)
Cloud Export: CSV/XML logs to AWS IoT or Azure
ROI Example: An auto plant cut tool replacement costs by $18,000/month using real-time RFID consumption tracking.
