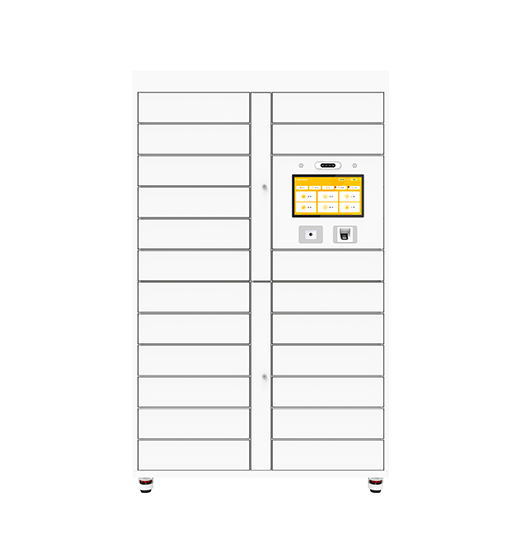

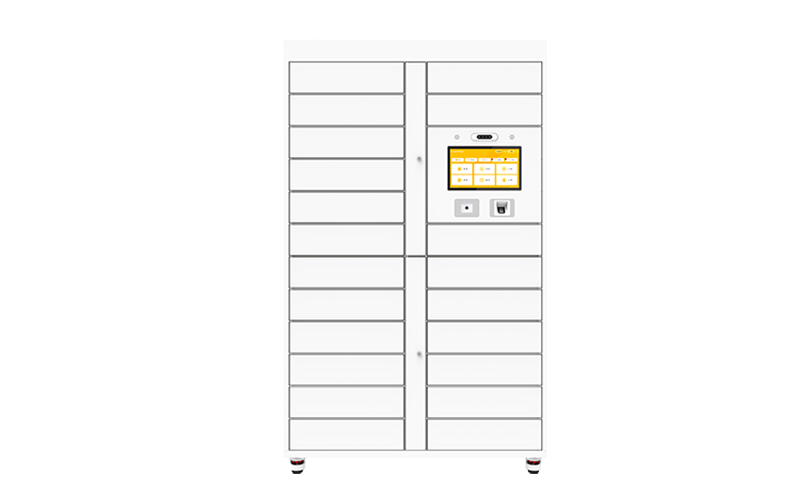

Cykeo CK-G2124 RFID Stock Management Cabinet Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-G2124
  • Product NameRFID Stock Management Cabinet

Physical Parameters

  • ​Communication ProtocolEthernet (RJ45), optional WiFi/4G
  • ​MaterialMetal casing + glass panel
  • ​Appearancetransparent

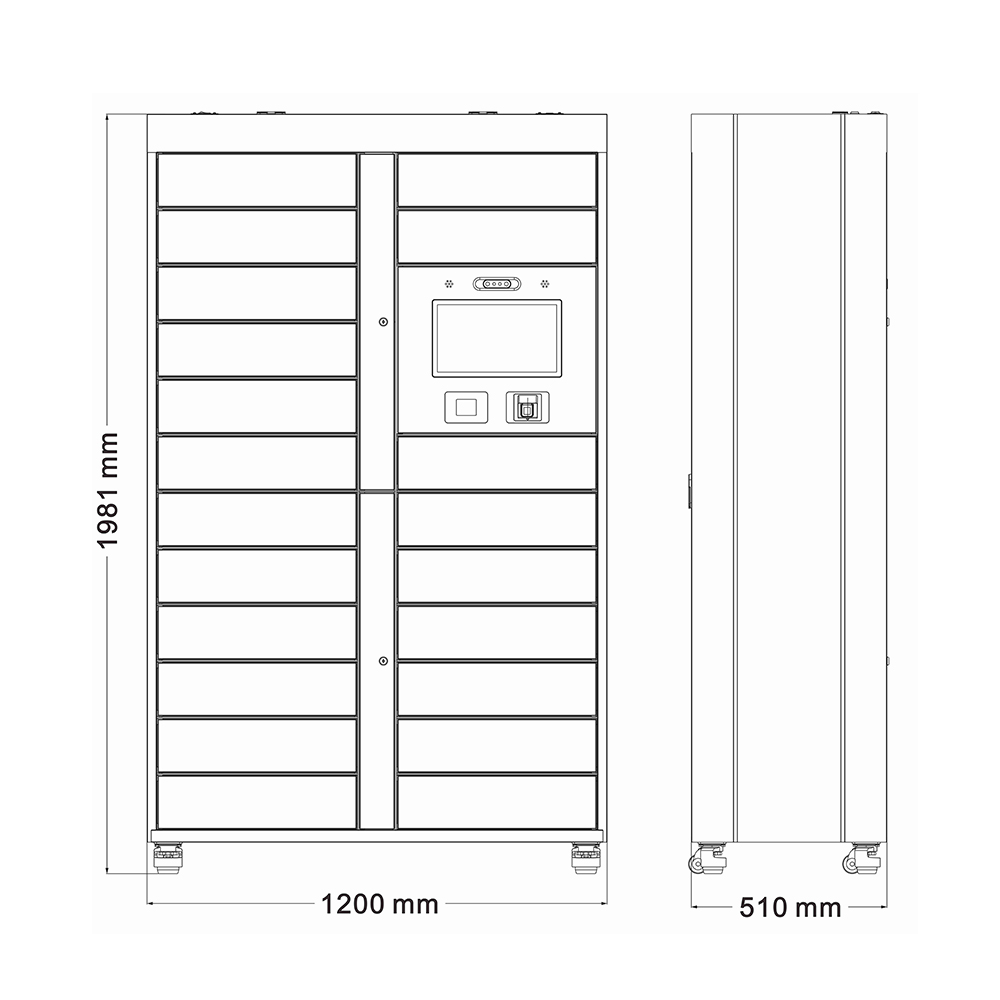

  • Dimensions1981mm*1200mm*510mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Weight200KG
  • Touchscreen14-inch capacitive touch screen

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840MHz~960MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c
  • Read Range5-50cm Adjustable
  • Scan Speed≤5s/200pcs
  • ​​Connectivity​Ethernet, WiFi (Optional), 4G (Optional)
  • InterfaceEthernet/RS232/4G

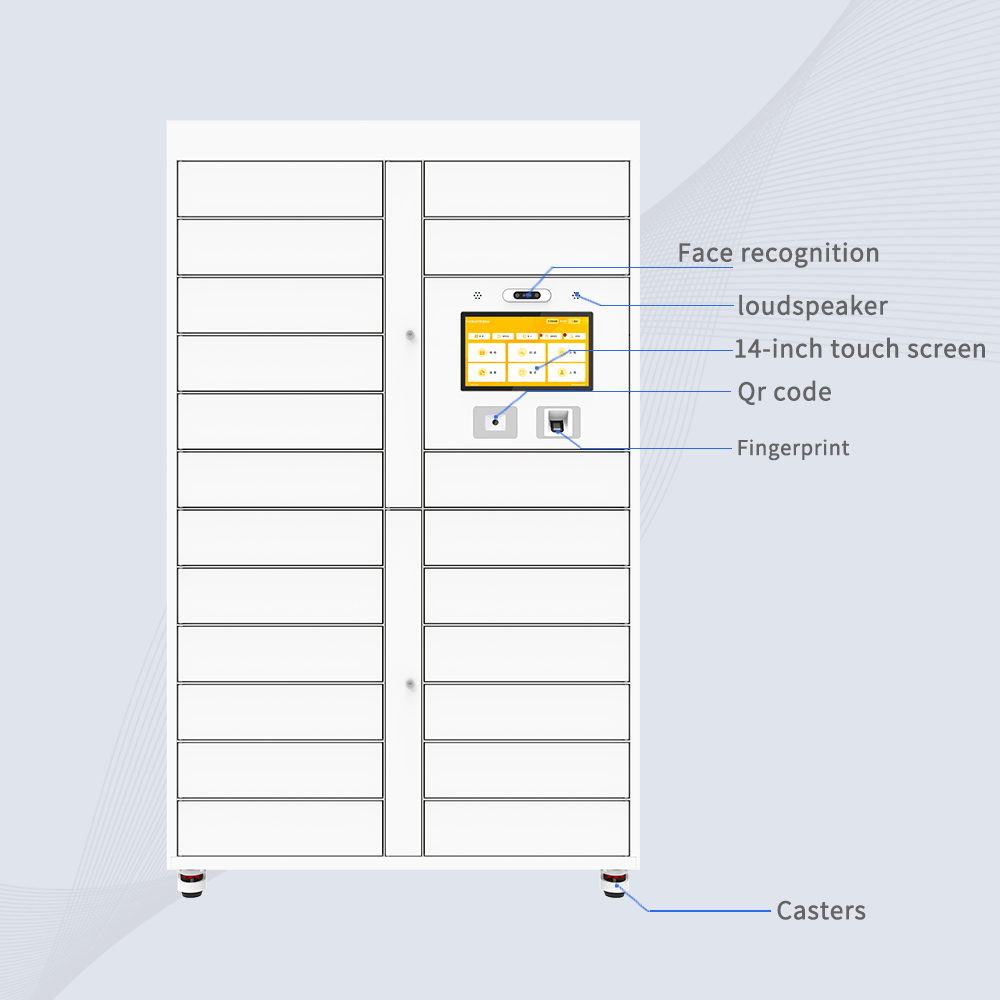

  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Power220V ≤300W
  • Solar power160W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID STOCK MANAGEMENT CABINET FAQS

How Does RFID Accelerate Daily Stock Audits in Multi-Item Cabinets?

Answer:
The CK-G2124 embeds UHF RFID readers (EPC C1G2) in each compartment, enabling:

  • Bulk Scanning: Simultaneously verify 100+ tools/documents in 10 seconds
  • Zero Manual Counts: Auto-log item removal/return timestamps
  • Error Reduction: 99.8% accuracy vs. human 75% (ISO 18000-6C certified)
    Case Study: A rail depot cut tool audit time by 92% using compartment-specific RFID mapping.
    Best Practice: Use spatial filtering to ignore non-relevant tagged assets.
Can the Cabinet Operate in Nuclear Facilities or High-EMI Zones?

Answer:
Yes. Engineered for MIL-STD-461G EMI compliance:

  • Shielded RFID Circuitry: Resists interference from heavy machinery
  • Faraday Cage Effect: Carbon steel construction blocks external signals
  • EMC Testing: Passed 10V/m RF immunity (80MHz–1GHz)
    Performance Metric: 0% read failure in 10k+ scans at 500kV substations.
How to Customize Workflows for Regulated Industries?

Answer:
Via:

  • SDK Toolkits: Java/C# APIs build FDA/ISO-compliant logs
  • Prebuilt ERP Modules: SAP PM/Oracle EAM for maintenance tracking
  • Alarm Chaining: Link multiple cabinets to central SCADA systems
    ROI Example: A fire station reduced equipment loss by $15,000/quarter with real-time PPE tracking.
