CK-G0628

Smart RFID Book Locker

59-Compartment Library Automation with 24/7 Self-Service

✔️ 14-Layer Book Storage with RFID Tracking

✔️ <80W Energy Efficiency with Battery Backup

✔️ Dual OS (Windows/Android) + Touchscreen Access

Talk to an Expert

Email Our Team

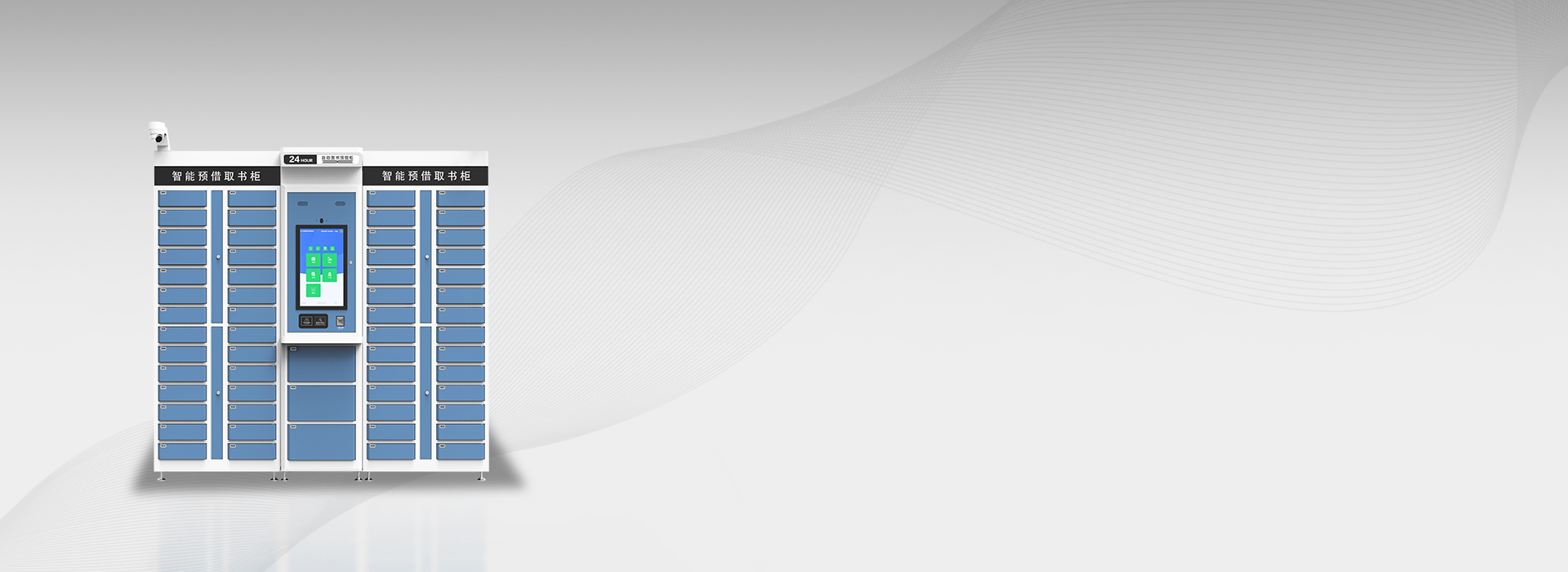

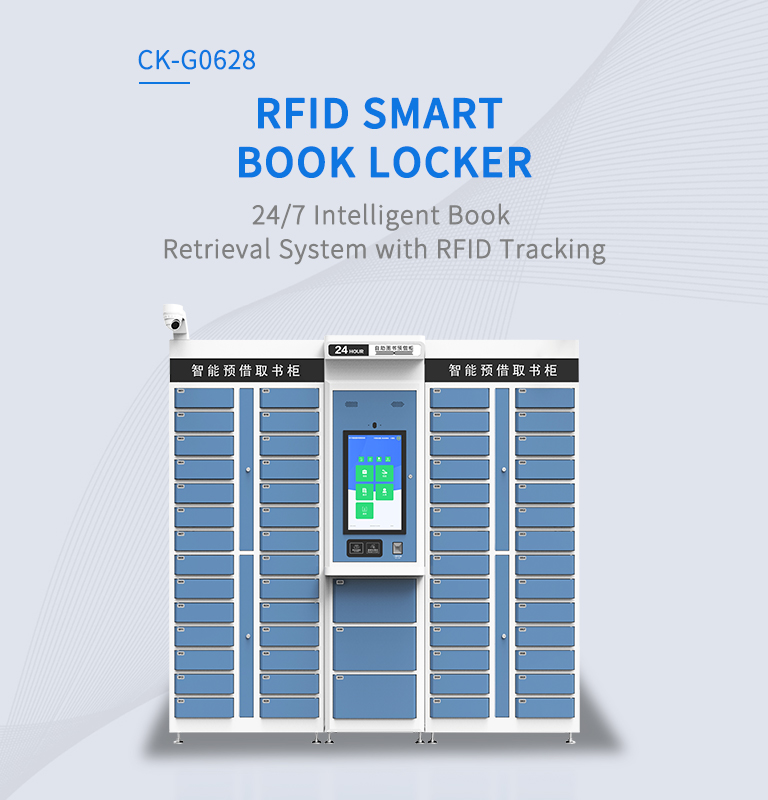

CK-G0628 Smart RFID Book Locker（images 2）

CK-G0628 Smart RFID Book Locker（images 3）

CK-G0628 Smart RFID Book Locker（images 5）

CK-G0628 Smart RFID Book Locker（images 6）

CK-G0628 Smart RFID Book Locker（images 7）

CK-G0628 Smart RFID Book Locker（images 8）

BOOKS ANYTIME, ZERO WAIT

The Cykeo CK-G0628 Smart RFID Book Locker transforms library services with its 14-layer, 59-compartment design featuring Impinj R2000 UHF technology. Equipped with a 21.5″ capacitive touchscreen and ISO 14443A RFID protocol, this smart rfid book locker enables contactless 24/7 book reservations with ID/biometric verification. Dual power modes (AC220V/backup battery) and <80W consumption ensure uninterrupted operation for academic and public libraries.

Ideal for 24/7 textbook pickup in universities, after-hours material distribution in public libraries, and archival access in research centers – all secured by smart rfid book locker technology.

Library Management

School Library

File management

Warehouse and Archives Room

Enterprise unit

Legal documents

Cykeo CK-G0628 Smart RFID Book Locker Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-G0628 SMART RFID BOOK LOCKER

14-Layer 59-Cell Design

59 independent RFID-tagged compartments

Multi-Auth Login

Supports face recognition dual-camera, ID cards, and 14443A protocol employee badges

21.5″ Touch Interface

1920×1080 capacitive screen with guided workflows

Hybrid Connectivity

RJ45/WiFi/4G options for cloud synchronization

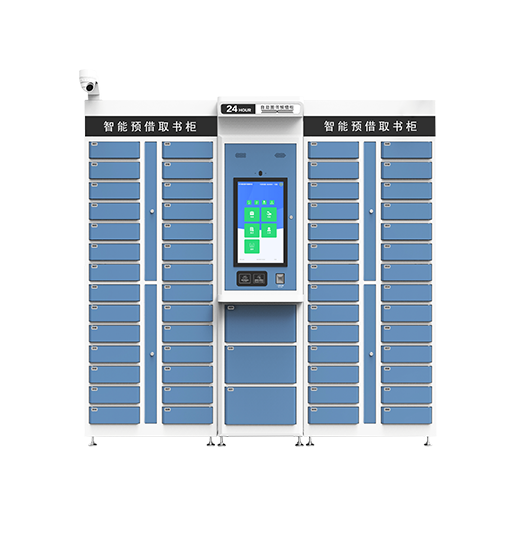

CK-G0628 Smart RFID Book Locker（images 20）

Industrial Durability

Carbon steel + PMMA construction -20℃~75℃ range

Low-Power Operation

≤80W consumption with SSD storage

SDK Support

C#/Java APIs for LMS integration

Modular Expansion

Master-slave cabinet cascading capability

Cykeo CK-G0628 Smart RFID Book Locker Specifications

Main Specifications

BrandCykeo
ModelCK-G0628
Product NameSmart RFID Book Locker

Physical Parameters

MaterialMetal casing + glass panel

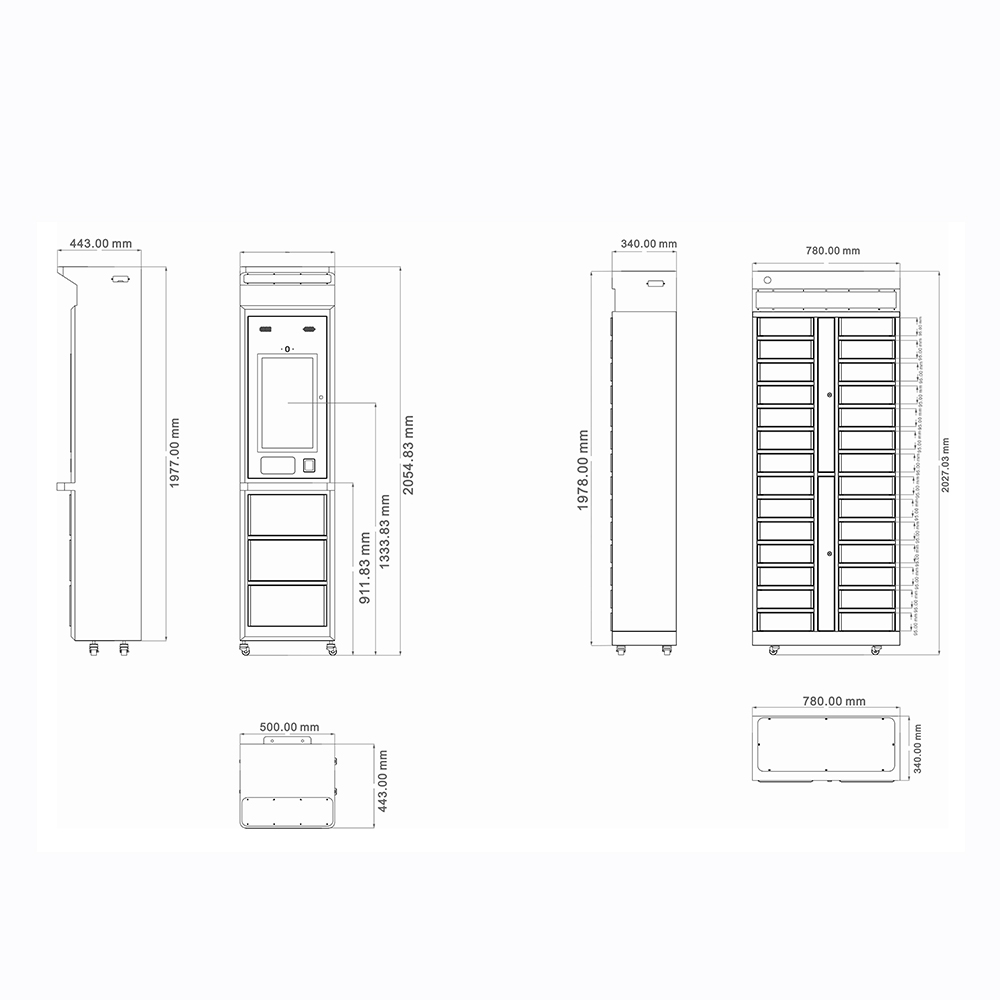

Dimensions500*443*2054MM
Dimensions of the secondary cabinet780*340*2027MM
Operating SystemWindows /Android
Touchscreen21.5-inch capacitive touch screen
ControllerIntel i5 4G+128G / RK3399 4G+16G
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840-960MHz
Air Interface ProtocolISO/IEC 18000-6C
Scan Speed≤5s
Capacity14 layers and 59 grids
Authentication ModesFace, Card, Fingerprint(Optional)
Reading modeSupport multiple modes such as dense and fast
InterfaceEthernet/RS232/4G/RJ45
Power220V ≤300W

Operating Environment

Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)
PowerAC220V, ≤150W

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

SMART RFID BOOK LOCKER FAQS

How Does This System Handle High-Demand Periods Like Exam Season?

Answer:
The multi-antenna UHF design processes 120+ transactions/hour through:

Parallel Scanning: Each compartment has dedicated RFID readers
Dynamic Queue Management: Auto-allocates lockers based on reservation density
Offline Mode: Battery backup maintains operation during outages
Performance Data: Cambridge University library served 1,850+ students daily during finals using CK-G0628 smart rfid book lockers with 99.1% success rate.

Can Patrons Return Books Without Staff Interaction?

Answer:
Yes. The smart return protocol:

Scan RFID Tag: At integrated wall-mounted reader
Auto-Assign Locker: System selects optimal vacant compartment
Receive E-Receipt: Email/SMS confirmation with return timestamp
User Benefit: Toronto Public Library reduced staff processing time by 55% with 24/7 smart rfid book locker returns.

How to Customize for Oversized Archival Materials?

Answer:
The modular grid system supports:

Adjustable Shelves: Heights from 5cm to 45cm
Double-Bay Lockers: Combine compartments via touchscreen
Specialized Trays: For fragile manuscripts/blueprints
Customization Example: British Museum stores 800+ historical folios (up to A1 size) in modified CK-G0628 units with humidity-controlled cells.
