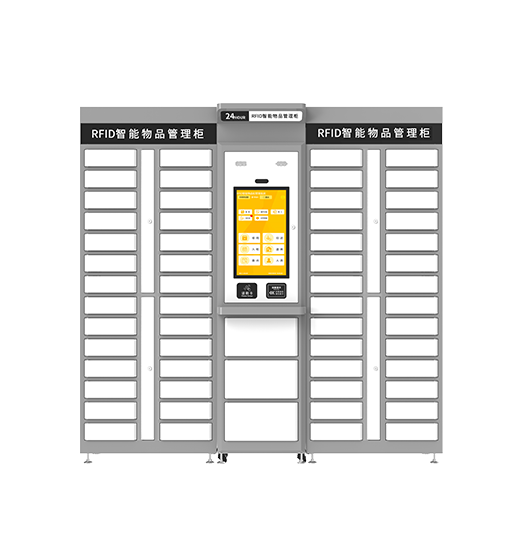

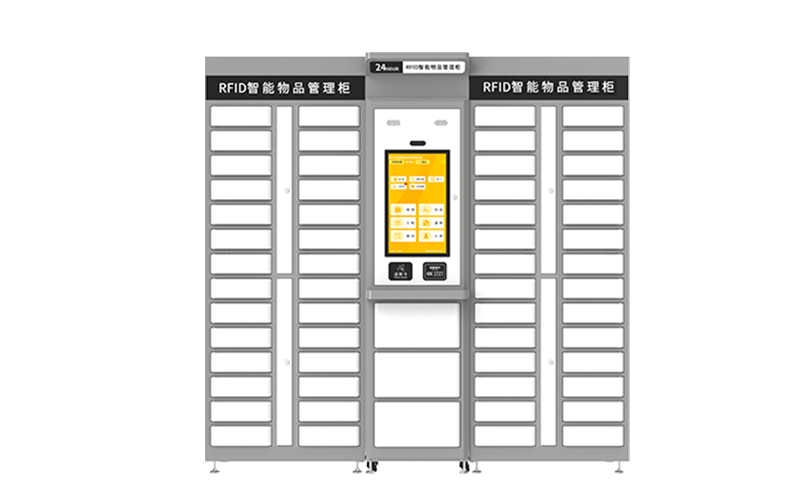

CK-G0628 UHF RFID Locker System(images 1)

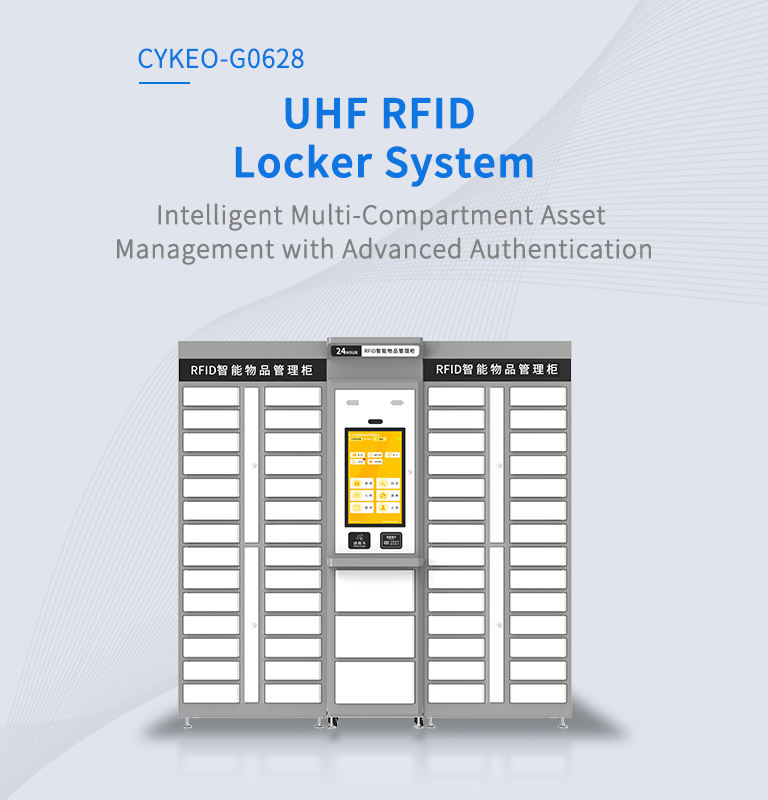

UHF RFID Locker System

✔️ Modular Setup


✔️ 21.5″ HD Touchscreen


✔️ Quad Authentication

Talk to an Expert
CK-G0628 UHF RFID Locker System(images 2)
CK-G0628 UHF RFID Locker System(images 3)
CK-G0628 UHF RFID Locker System(images 4)
CK-G0628 UHF RFID Locker System(images 5)
CK-G0628 UHF RFID Locker System(images 6)
CK-G0628 UHF RFID Locker System(images 7)
CK-G0628 UHF RFID Locker System(images 8)

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

Cykeo CK-G0628 UHF RFID Locker System Specifications​

  • BrandCykeo
  • ModelCK-G0628
  • Product NameUHF RFID Locker System
  • ​Communication ProtocolEthernet (RJ45), optional WiFi/4G
  • ​MaterialMetal casing + glass panel
  • Dimensions500mm*446mm*2035mm
  • Dimensions780mm*446mm*2035mm
  • Internal grid opening343mm*339mm*129mm
  • Internal grid opening460mm*369mm*239mm
  • Touchscreen21.5-inch capacitive touch screen
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Weight200KG
  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • Frequency Range840MHz~960MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c
  • Read Range5-50cm Adjustable
  • Scan Speed≤5s/200pcs
  • ​​Connectivity​Ethernet, WiFi (Optional), 4G (Optional)
  • InterfaceEthernet/RS232/4G
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Power220V ≤300W
  • Solar power160W
  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
UHF RFID LOCKER SYSTEM FAQS
How does UHF RFID improve security compared to traditional lockers?

UHF RFID, with Impinj R2000 tech, lets you track items from up to 8 meters away. It auto-logs everything when the door shuts and sends alerts if anything unregistered is taken. It also handles multi-user access with tiered RFID permissions. For example, a semiconductor factory cut tool theft by 92% with this system.

Can the cabinet system track item usage history?

it keeps track of everything. It logs who accessed what, when, and for how long. Plus, it sends maintenance reminders when things need calibrating. It also syncs with your SAP system, so ISO 9001 audits are a breeze.

How to scale for large facilities with 100+ users?

The system is super flexible. You can link up to 28 cabinets to one master unit, manage hundreds of users via cloud software, and control access by zones. For example, an aerospace plant uses 12 cabinets across 3 hangars to manage 300+ tools with almost perfect inventory accuracy.
