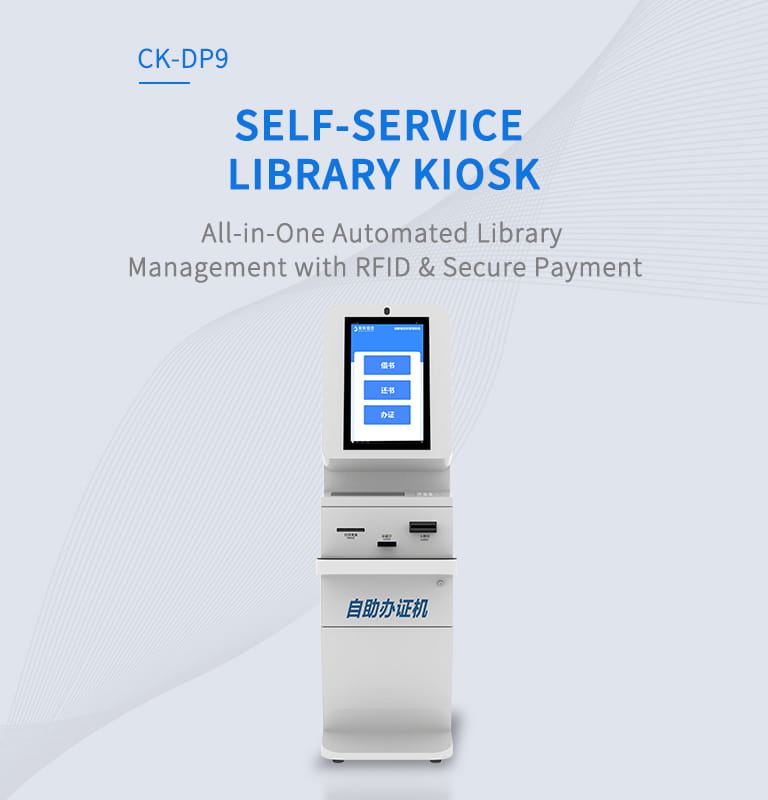

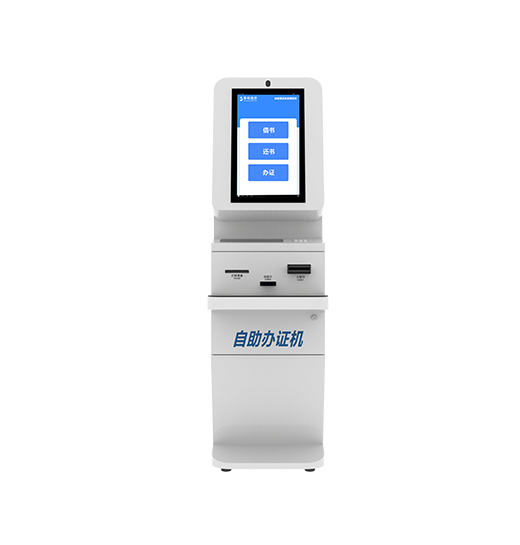

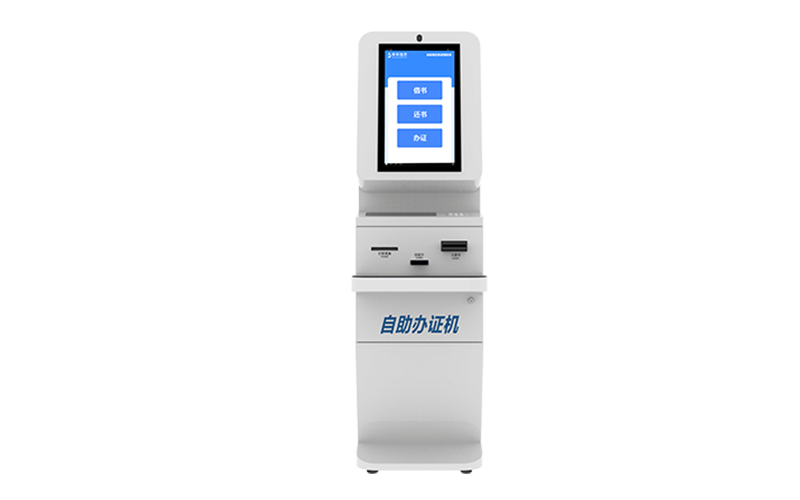

​​CYKEO-DP9 SELF-SERVICELIBRARY KIOSK​(images 1)

SELF-SERVICE LIBRARY KIOSK​

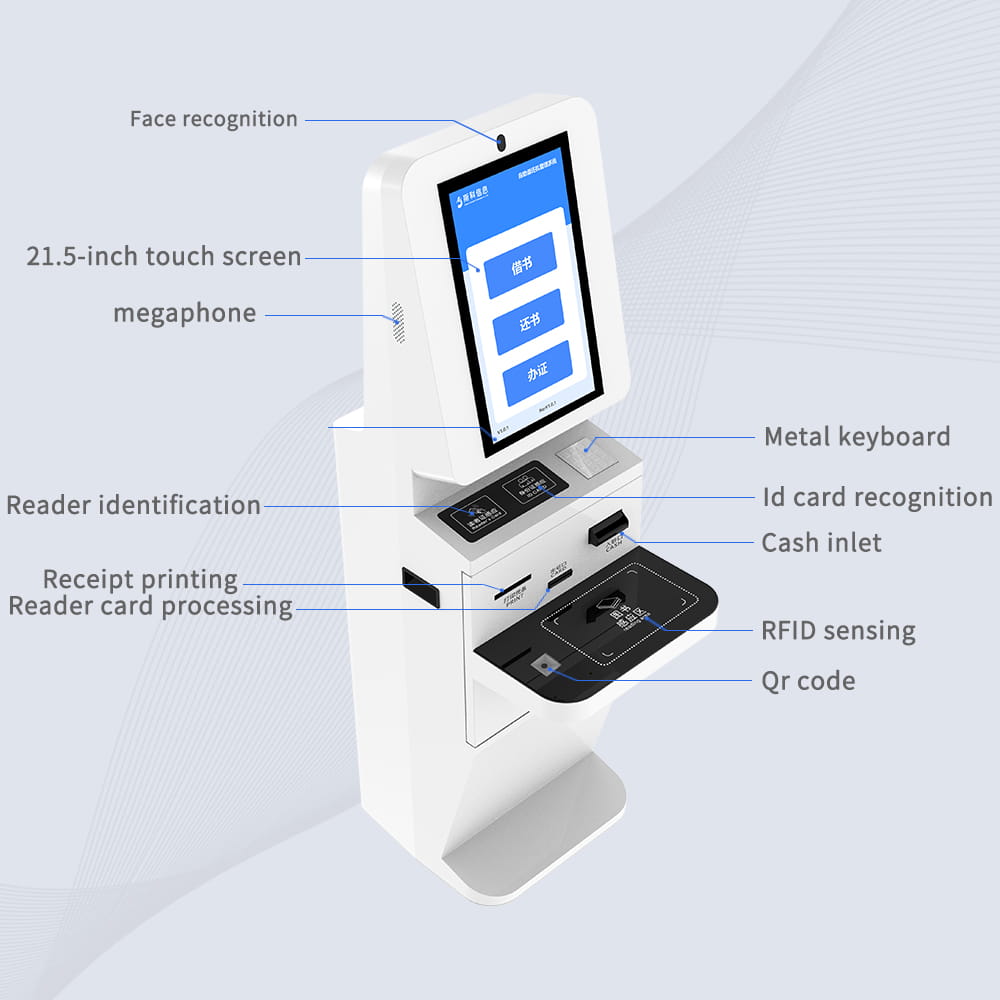

✔️ Multi-Protocol Card Reader – ID, RFID, or barcode

✔️ Fast & Secure – issue cards in 60 seconds with encryption

✔️ ​Dual Function – handle cards and book circulation at the same time

Talk to an Expert

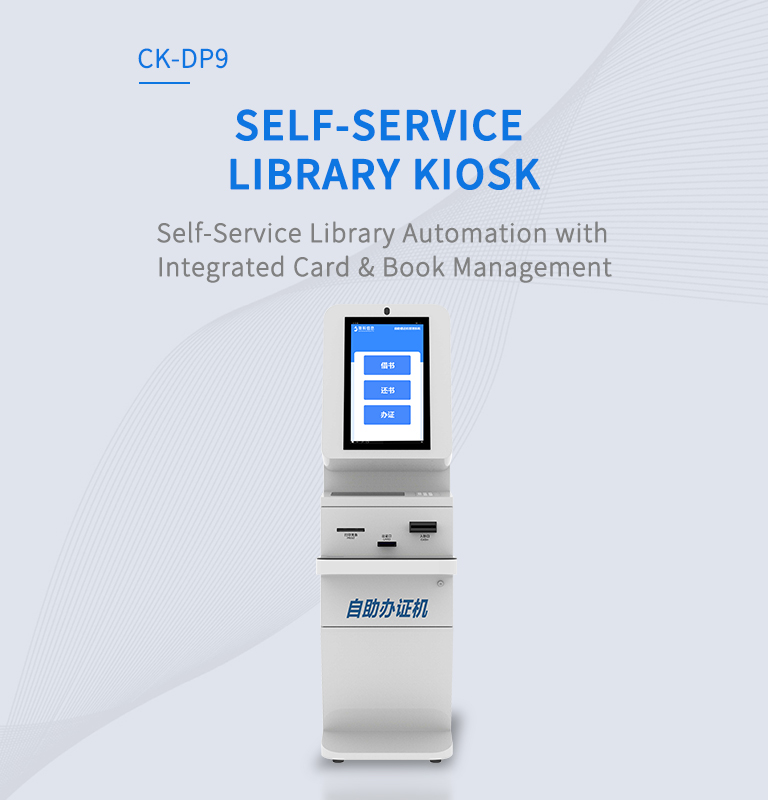

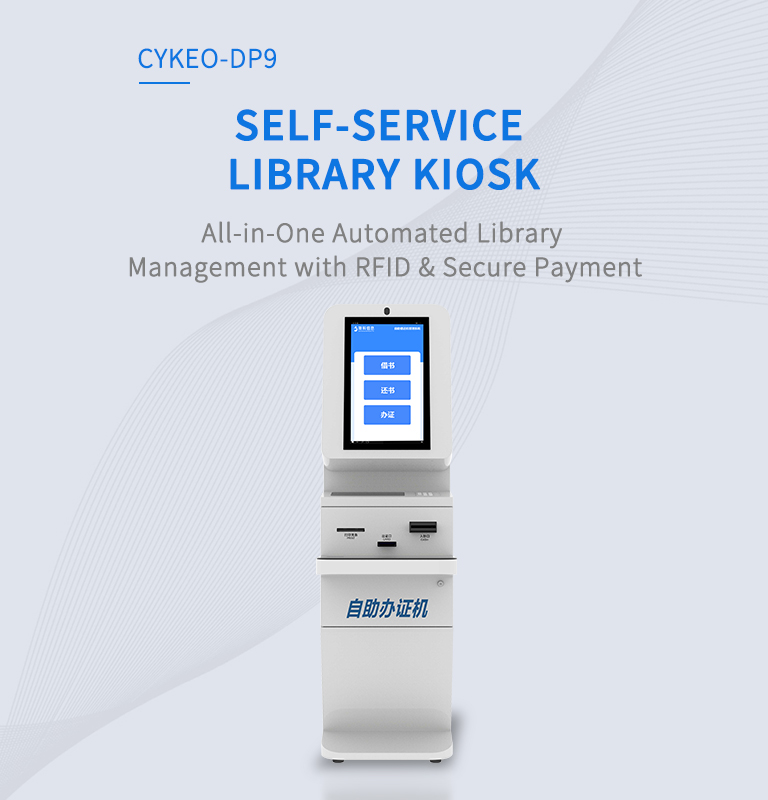

​​CYKEO-DP9 SELF-SERVICELIBRARY KIOSK​(images 2)
​​CYKEO-DP9 SELF-SERVICELIBRARY KIOSK​(images 3)
​​CYKEO-DP9 SELF-SERVICELIBRARY KIOSK​(images 4)
​​CYKEO-DP9 SELF-SERVICELIBRARY KIOSK​(images 5)
​​CYKEO-DP9 SELF-SERVICELIBRARY KIOSK​(images 6)
​​CYKEO-DP9 SELF-SERVICELIBRARY KIOSK​(images 7)

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID Reader Products

  • CYKEO-D6L Desktop UHF RFID Reader Writer​

    1536
    • Operating Temperature-20°C to +70°C

    The CYKEO CYKEO-D6L RFID Reader Writer is a heavy-duty Desktop RFID Reader designed for short-range, high-accuracy tag programming. Built for libraries, labs, and asset desks, this RFID Reader Writer supports batch processing, stable 33dBm output,…

    Check
  •  CYKEO-D1L RFID scanner USB

    1658
    • Operating Temperature-20°C to +70°C

    CYKEO CYKEO-D1L RFID scanner USB is a compact desktop UHF RFID scanner designed for short-range tag writing and verification. This usb rfid scanner supports batch encoding, stable 0–26 dBm output, and works across Windows, Linux, and Android syst…

    Check
  • CYKEO-D5L Desktop RFID Card Reader

    1203
    • Operating Temperature-20°C to +70°C

    The CYKEO CYKEO-D5L Desktop RFID Card Reader is a stable UHF RFID Card Reader designed for controlled short-range reading and writing. Built for libraries, tool rooms, and asset desks, this UHF RFID Card Reader supports dense tag handling, secure …

    Check
  • CYKEO-D8C RETAIL UHF RFID READER

    446
    • InputAC 220V ±10% 50/60Hz

    Cykeo’s CYKEO-D8C UHF RFID gate reader achieves 200-tag/batch scanning with adjustable power control, ideal for retail inventory and smart warehouse management.

    Check
  • CYKEO-D1LA USB RFID Reader

    1506
    • Operating Temperature-20°C to +70°C

    CYKEO CYKEO-D1LA USB RFID Reader is a compact desktop solution with near-field control for precise tag reading and encoding. Powered by USB, supporting ISO 18000-6C, and built for stable batch writing, this usb rfid tag reader fits retail, librari…

    Check

loading…

已经是到最后一篇内容了!

Cykeo CYKEO-DP9 Card Reader RFID Kiosk​ Specifications

  • BrandCykeo
  • ModelCYKEO-DP9
  • Product NameCard Reader RFID Kiosk​
  • ​Communication ProtocolRJ45
  • ​MaterialAluminum alloy + Tempered glass
  • ​Appearancetransparent

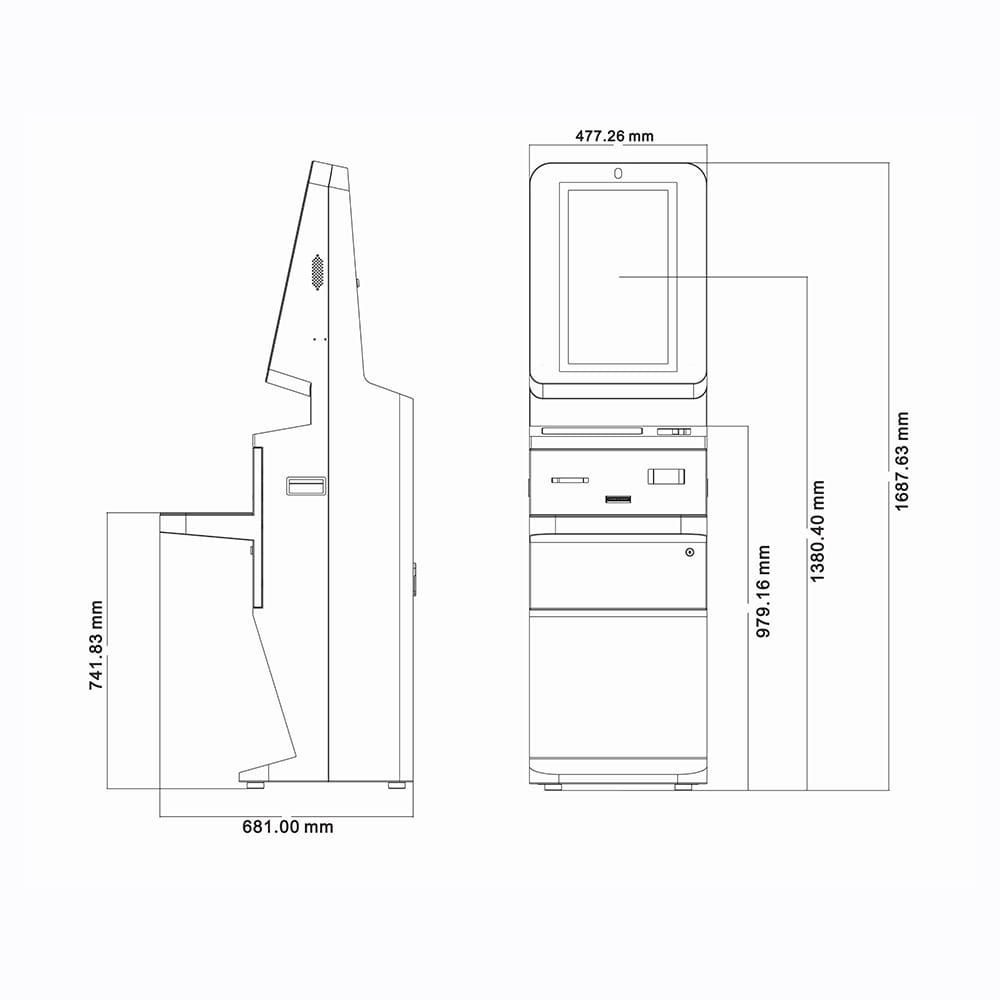

  • Dimensions1687×477×681mm
  • Display21.5″ Capacitive Touch
  • Operating SystemWindows /Android
  • ProcessorIntel i5 / RK3399 Octa-Core
  • Memory4GB RAM + 128GB SSD
  • Card Capacity50
  • Cash Acceptor1-100RMB
  • Weight36KG
  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • Frequency Range840MHz~960MHz (Adjustable);13.56MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
  • Read Range5-50cm Adjustable
  • Number of books read≥10 books
  • ConnectivityGigabit Ethernet + Optional 4G
  • Network Interface10M/100M Adaptive
  • PowerDC12V/50W
  • InputAC 220V ±10% 50/60Hz
  • Humidity≤90%
  • Operating Temp-20℃~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
​​Card Reader RFID Kiosk FAQs​
Why is CYKEO-DP9 good for busy libraries?

Handles cards and IDs at the same time, scans 10 books in a few seconds, and has multi-language voice prompts. One library ran 2,300+ transactions a day and cut staff intervention by 40%.

How does it stop fake memberships?

Checks IDs with biometrics, encrypts RFID cards, requires deposits, and has tamper-proof hardware. A pilot blocked 127 fake attempts at one university.

Can it work across multiple branches?

Totally. Cloud syncs cards, admins set rules remotely, sensors monitor hardware, and resources can be split by department. One library network ran 38 branches with 98% uptime and 1.2M+ transactions a year.
