CK-DP7

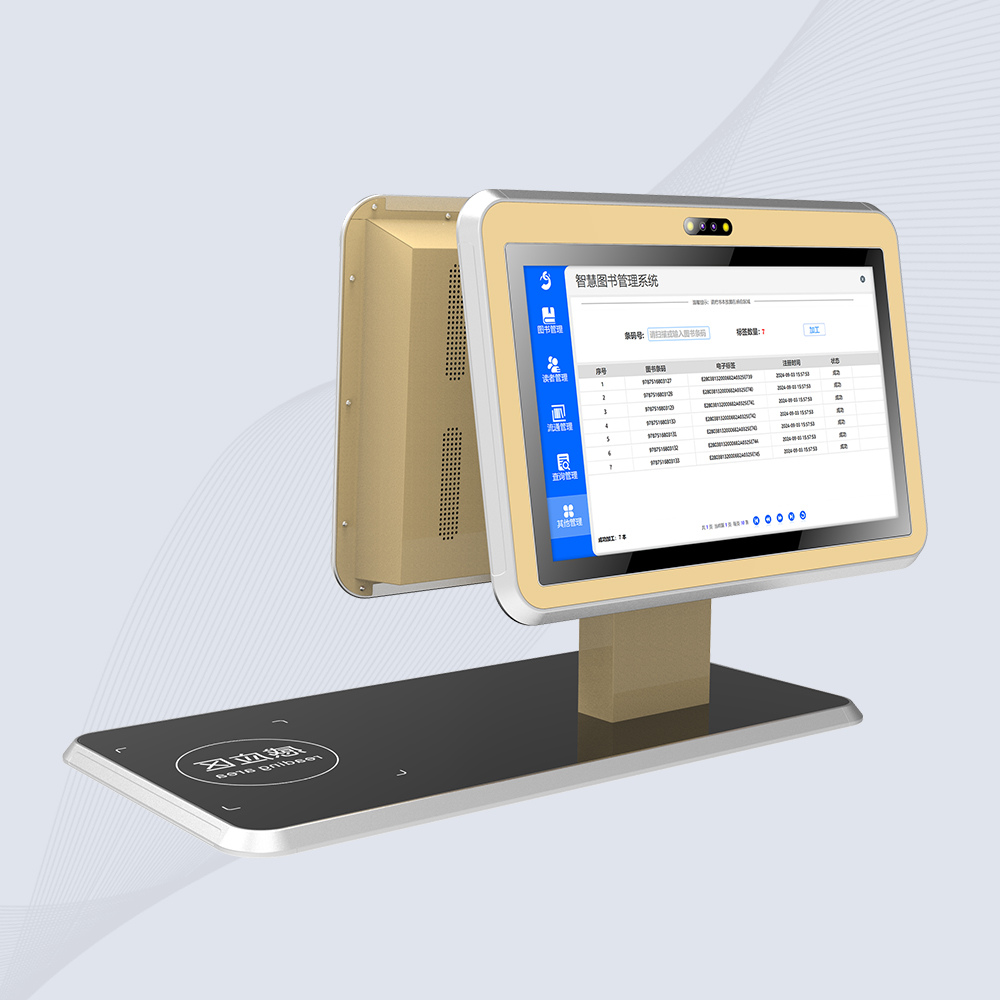

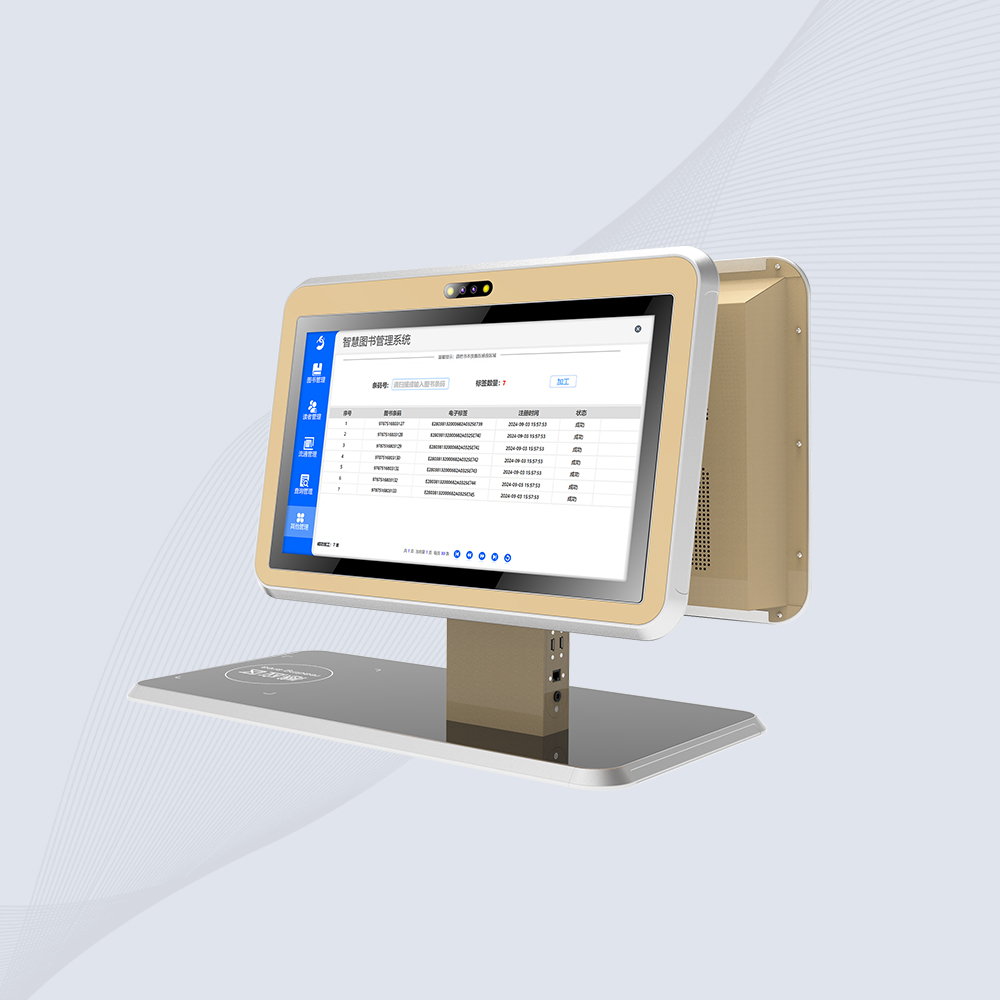

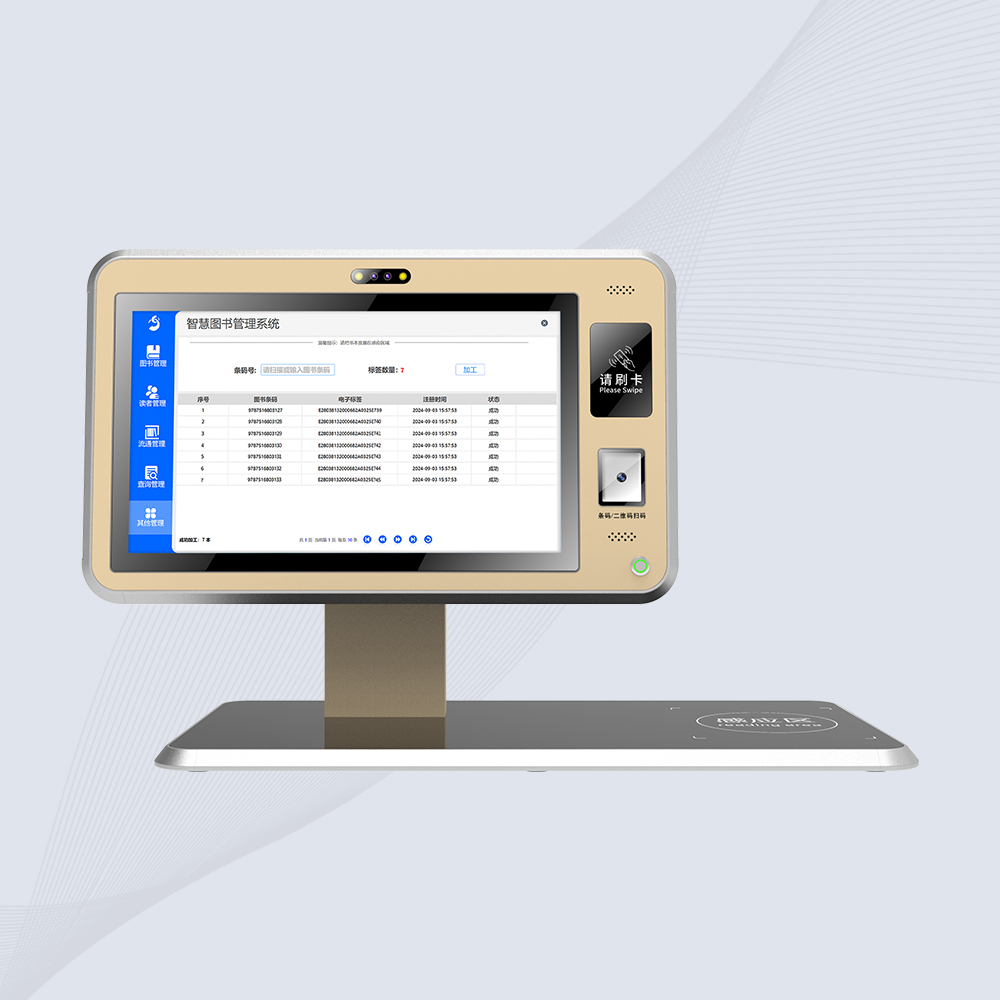

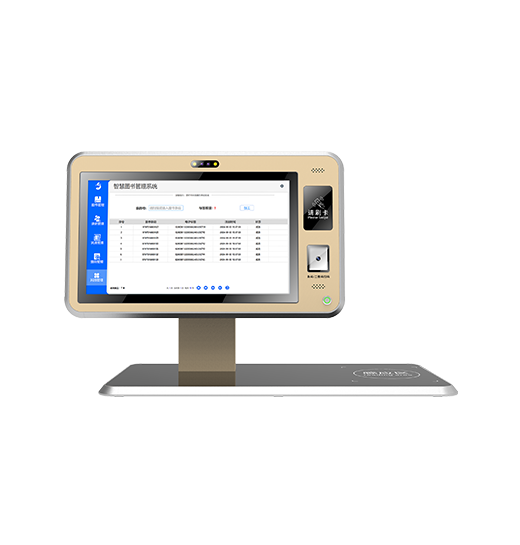

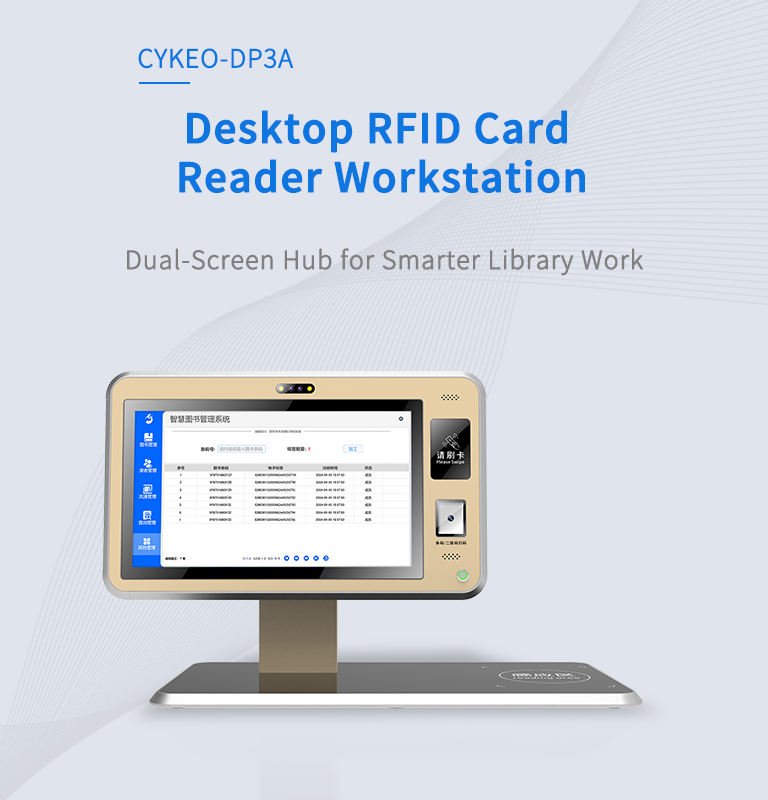

Desktop RFID Card Reader Workstation
Dual-Screen RFID Processing Hub for Smart Library Operations
✔️ 10-Book Batch Scanning in 0.3m² Detection Zone
✔️ 21.5″ Dual Touch Interface with Multi-User Access
✔️ Customizable Windows/Android Library Management OS

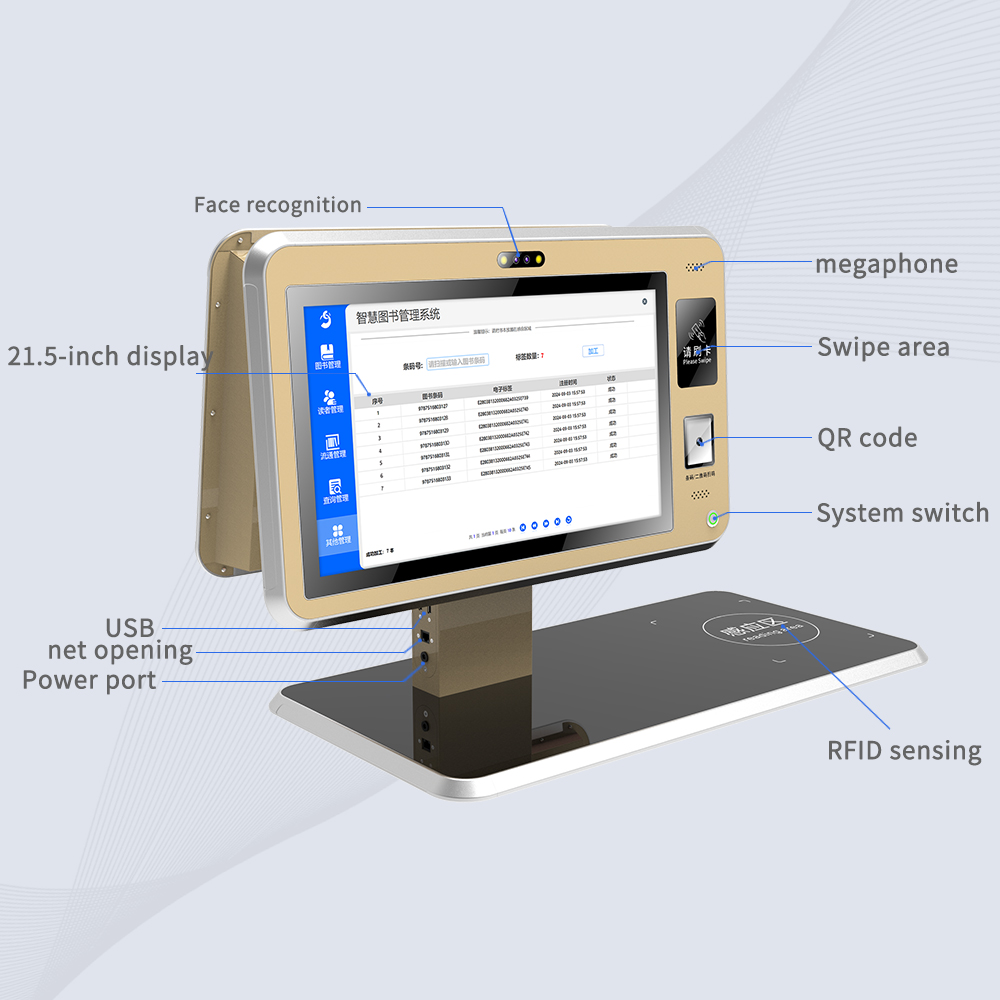

TWIN SCREENS, SINGLE SOLUTION

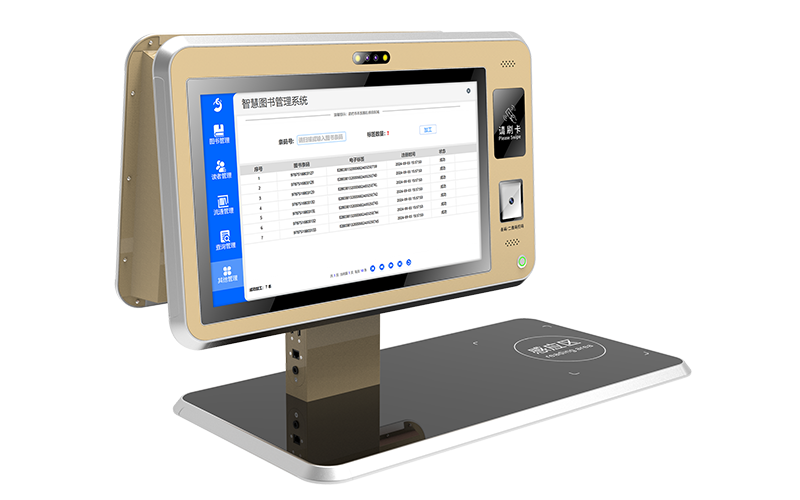

The CK-DP7 Desktop RFID Card Reader Workstation transforms library workflows with dual 22″ 1080p capacitive touchscreens and industrial-grade UHF RFID technology. Featuring Impinj R2000 chipset and optional Windows/Android OS, this RFID card reader workstation processes 15+ items simultaneously through ISO 18000-6C/B protocols. Its carbon steel construction supports 24/7 operation in archival environments.
Essential for library circulation desks, archival digitization centers, and retail inventory hubs requiring batch RFID card registration and data filtering.
Cykeo CK-D4L desktop UHF RFID tag reader delivers 30cm near-field precision, ISO 18000-6C compliance, and USB 3.0 connectivity for asset tracking, library systems, and industrial tag management.
Cykeo CK-D8A embedded RFID badge reader offers 30+ tags/sec scanning, 20cm anti-crosstalk precision, and DC 12V power for unmanned stores, warehouses, and smart inventory systems.
Cykeo’s CK-D8C UHF RFID gate reader achieves 200-tag/batch scanning with adjustable power control, ideal for retail inventory and smart warehouse management.
Cykeo CK-D8B UHF RFID tunnel features 30+ items batch reading,
Cykeo CK-D5L desktop RFID card reader offers 30cm precision reading, 40 tags/sec batch processing, and rugged metal design for libraries, asset tracking, and NFC encoding. Supports ISO 18000-6C/6B.
loading…
已经是到最后一篇内容了！
* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.
Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.
The CK-DP7 Desktop RFID Workstation is engineered for industrial-scale library workflows with:
✓ Dual-OS Industrial Computing: Choose between Windows 10 (Intel i5/4GB RAM) for legacy library software compatibility or Android 9.0 (RK3399 octa-core) for cloud-based ILS platforms like Libnova – both supporting 12-hour continuous batch processing.
✓ Multi-Protocol RFID Module: Equipped with the Impinj R2000 chipset, this workstation dynamically adjusts between EPC C1G2 (book tags) and ISO 18000-6B (archive asset tags) protocols, achieving 98% read accuracy across 15+ items simultaneously.
✓ Ruggedized Build: The carbon steel chassis (IP54-rated) protects against book carts impacts (up to 50kg force) and paper dust accumulation, critical for busy circulation desks handling 500+ daily transactions.
The 22″ dual capacitive touchscreens (1920×1080) transform staff workflows:
✓ Split Workflow Optimization:
The CK-DP7 acts as a central hub for library IoT ecosystems through:
✓ API-Driven Security Sync: RESTful APIs auto-update 3M/Checkpoint security gates with new RFID registrations, eliminating manual data transfers (supports SIP2 and NCIP standards).
✓ Barcode/RFID Hybrid Workflows: Simultaneously scan legacy ISBN barcodes (via USB scanner) while writing RFID tags – critical for phased library RFID migrations.
✓ Custom Expansion Slots:
