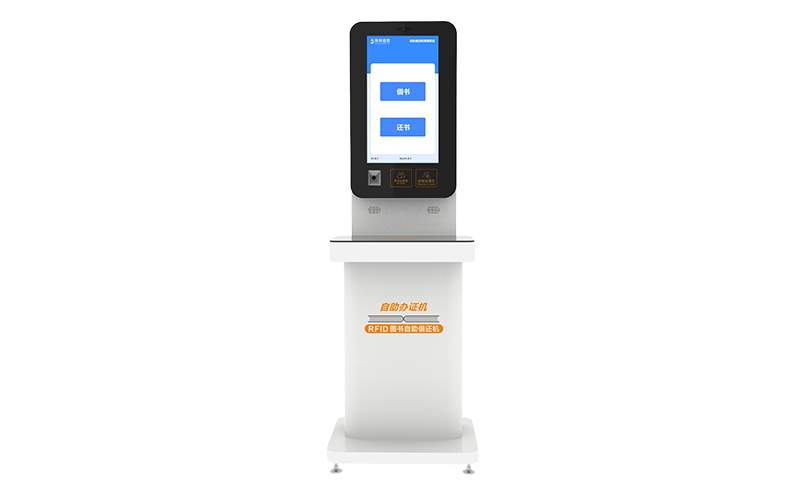

CK-DP6

RFID SELF-SERVICE LIBRARY KIOSK

Automated Book Circulation with Multi-Language Support

✔️ Dual-Band RFID & Smart Card Compatibility

✔️ Real-Time Sync with Access Control Systems

✔️ IP67 Water/Dust Resistance for 24/7 Operation

Talk to an Expert

Email Our Team

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 2）

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 3）

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 5）

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 6）

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 7）

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 8）

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 9）

SECURE SCAN, INSTANT ACCESS

The CK-DP6 Pro Industrial RFID Card Reader Workstation delivers precision scanning for access cards, employee badges, and smart credentials. Engineered with multi-protocol RFID support (125kHz/13.56MHz) and Android 12 OS, it ensures rapid identification in manufacturing plants, corporate campuses, and secure facilities. Its military-grade housing withstands drops up to 2m, while the 10-hour battery enables shift-long operations.

Ideal for secure identification across industries: Office access management, manufacturing staff tracking, event credential verification, and contactless payment systems.

Library management

Public library

File management

School library management

Medical management

Factory Automation

Cykeo CK-DP6Specification

Download

Online Procurement

RFID Card Reader Products

CK-D8B RFID EMBEDDED UHF TUNNEL READER
2025-11-04 61
- InputAC 220V ±10% 50/60Hz
Cykeo CK-D8B UHF RFID tunnel features 30+ items batch reading,
Check
CK-D4L Desktop UHF RFID Tag Reader
2025-03-02 984
- Operating Temperature-20°C to +70°C
Cykeo CK-D4L desktop UHF RFID tag reader delivers 30cm near-field precision, ISO 18000-6C compliance, and USB 3.0 connectivity for asset tracking, library systems, and industrial tag management.
Check
CK-D1C USB RFID DESKTOP READER
2025-04-03 1055
- Operating Temperature-20°C to +70°C
Cykeo CK-D1C USB RFID Card Reader offers 10cm precision encoding, batch tag writing, and multi-OS support for access control, asset tagging, and ID management.
Check
CK-D3L INDUSTRIAL HANDHELD RFID READER
2025-04-02 1121
- Operating Temperature-20°C to +70°C
Cykeo CK-D3L USB RFID tag reader delivers 50 tags/sec scanning, 30cm range, and driver-free USB-C setup. Ideal for asset tagging in libraries, warehouses, and retail. SDK support for C#, Java, Python.
Check
CK-D5L Desktop RFID Card Reader
2025-03-03 901
- Operating Temperature-20°C to +70°C
Cykeo CK-D5L desktop RFID card reader offers 30cm precision reading, 40 tags/sec batch processing, and rugged metal design for libraries, asset tracking, and NFC encoding. Supports ISO 18000-6C/6B.
Check

loading…

已经是到最后一篇内容了！

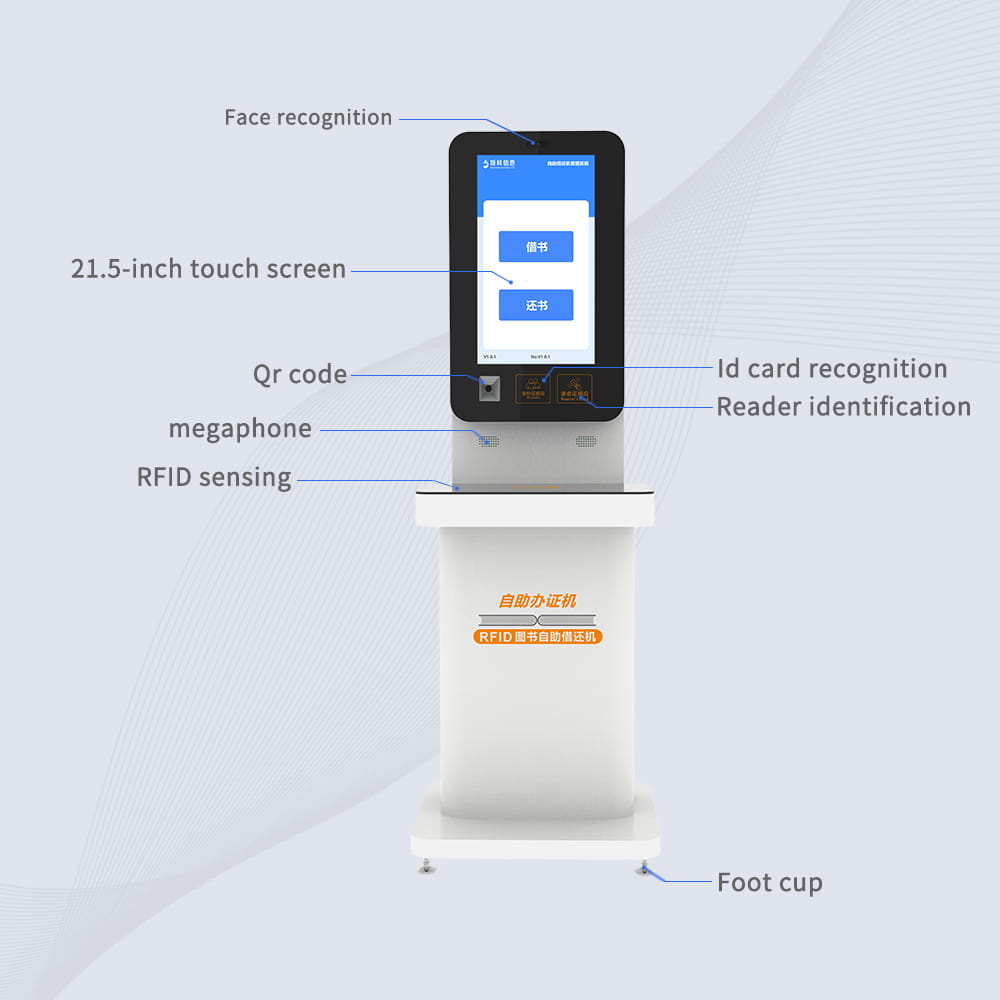

KEY FEATURES OF CYKEO CK-DP6 PRO RFID CARD READER Workstation

21.5″ Multi-Touch Display

1920×1080 IPS Panel

OS Compatibility

Windows 10/Android 9.0

High-Speed UHF RFID

Impinj R2000 Chipset

Multi-Item Processing

≤10 Books/Transaction

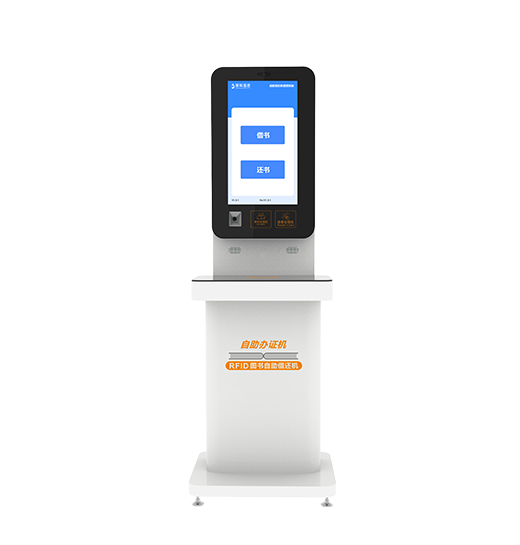

CK-DP6 RFID SELF-SERVICE LIBRARY KIOSK（images 26）

All-Weather Reliability

0-60℃ Operation Range

Smart User Auth

Card/QR Code/Face Recognition

Real-Time Syncing

Ethernet/4G Data Transmission

ADA Compliance

110-150cm Accessible Height

CK-DP6 Pro Industrial RFID Card Reader Workstation Specifications

Main Specifications

BrandCykeo
ModelCK-DP6
Product NamePro Industrial RFID Card Reader Workstation

Physical Parameters

Communication ProtocolRJ45
MaterialAluminum alloy + Tempered glass
Appearancetransparent
Dimensions1612mm*550mm*450mm
Display21.5″ Capacitive Touch
Operating SystemWindows /Android
ProcessorIntel i5 / RK3399 Octa-Core
Memory4GB RAM + 128GB SSD
Weight36KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)；13.56MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
Read Range5-50cm Adjustable
Number of books read≥10 books
ConnectivityGigabit Ethernet + Optional 4G
Network Interface10M/100M Adaptive
PowerDC12V/50W

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID CARD READER WORKSTATION FAQS

How Does the CK-DP6 RFID Card Reader Workstation Improve High-Volume Access Control Systems?

The CK-DP6 RFID Card Reader Workstation streamlines secure credential management for enterprises through:
① Multi-Card Batch Processing

Simultaneously scans 200+ RFID cards per minute (ISO 14443A/B, MIFARE, DESFire) for rapid employee check-ins or event badge verification.
Auto-sort feature categorizes cards by type (employee/visitor/contractor) and exports logs to Excel or cloud platforms like Azure AD.
② Centralized Workstation Integration
Dock up to 4 CK-DP6 readers into the workstation hub for synchronized scanning across building entry points.
Real-time alerts via LED indicators and buzzer notifications for expired cards or unauthorized access attempts.
③ Industrial-Grade Reliability
IP65-rated housing protects against dust, spills, and accidental drops (tested up to 1.8m).
-20°C to 55°C operational range ensures stable performance in outdoor construction sites or cold storage facilities.

Can the CK-DP6 Workstation Read Embedded RFID Cards Through Metal Barriers?

Yes, the CK-DP6 RFID Card Reader Workstation overcomes metal interference challenges with:
① Adaptive Signal Boosting

Automatically increases read power to 1.5W when detecting metal-shielded cards (e.g., industrial safety badges or equipment tags).
Frequency-shift algorithms minimize interference from nearby machinery or electronic locks.
② Anti-Metal Card Presets
Preconfigured profiles for common metal-embedded RFID cards:
- EM4100 Metal Tags: 10cm read range through 3mm steel.
- HID Prox Metal Series: Optimized for construction site tool tracking.
  ③ Diagnostic Tools
Use the Cykeo Workstation Manager Software to visualize signal strength and adjust antenna alignment for challenging environments.

What Makes the CK-DP6 Ideal for Healthcare or Government Secure Card Authentication?

The CK-DP6 RFID Card Reader Workstation meets high-security demands with:
① FIPS 140-2 Compliance

Encrypts card data using AES-256 during transmission to prevent eavesdropping.
Tamper-proof casing triggers data wipe if physical intrusion is detected.
② Hybrid Card Support
Reads RFID, smart cards (IC), and magnetic stripes for legacy system compatibility.
Dual authentication requires both card scan and PIN entry for restricted areas.
③ Audit-Ready Reporting
Generates GDPR/HIPAA-compliant logs with timestamps, user IDs, and access locations.
Syncs with Siemons Siveillance or Lenel OnGuard systems for centralized security management.
