All RFID Product

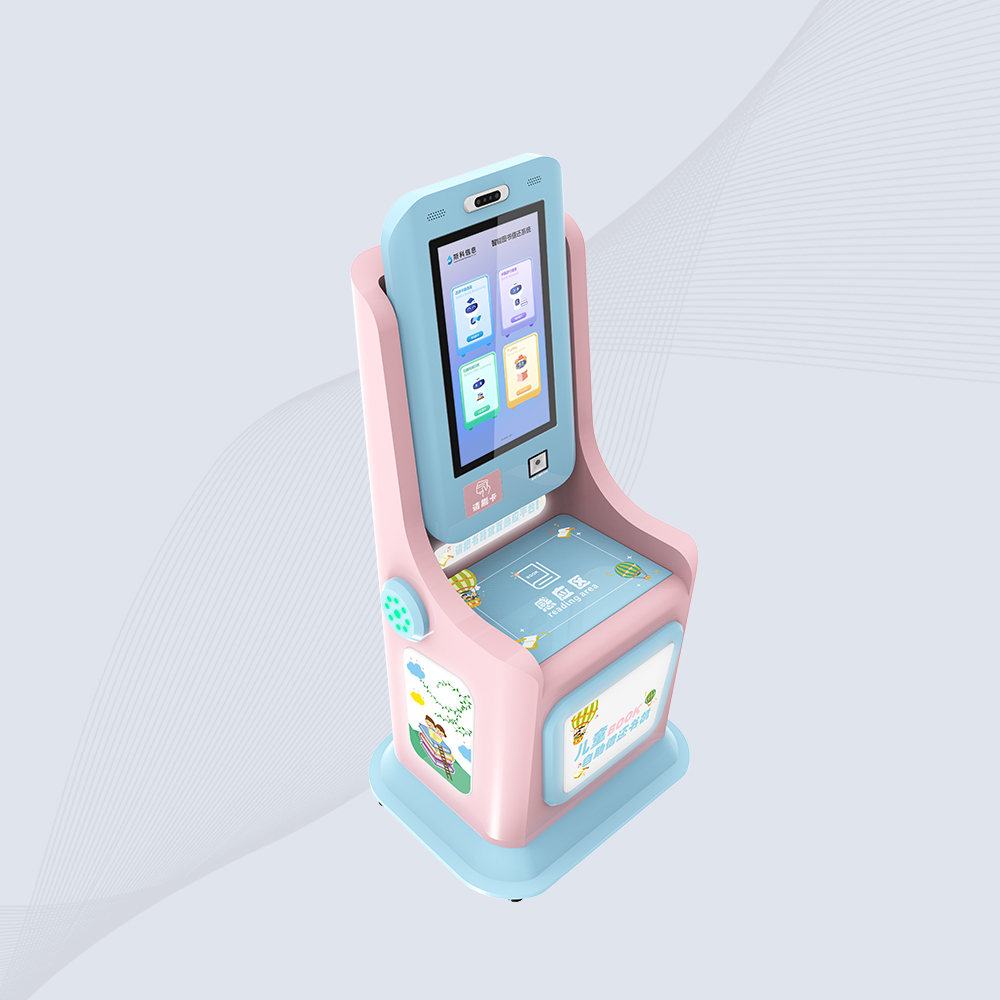

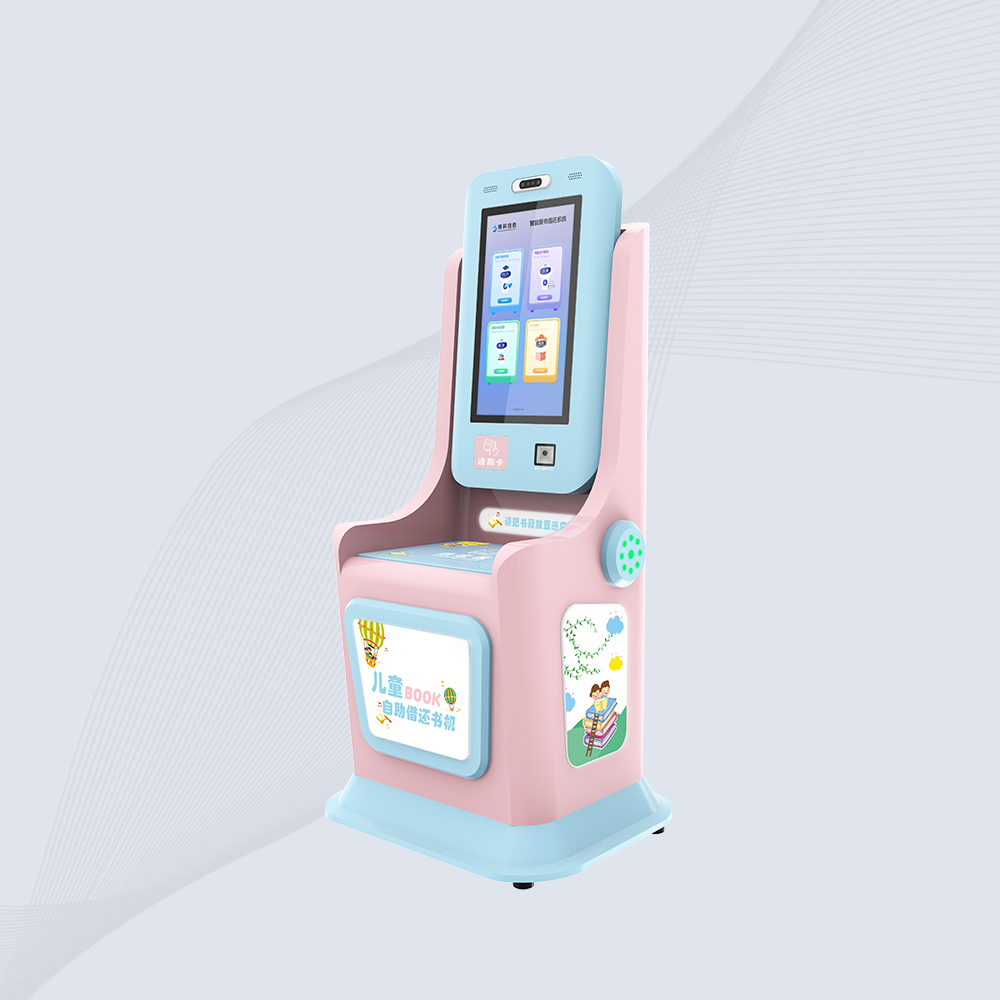

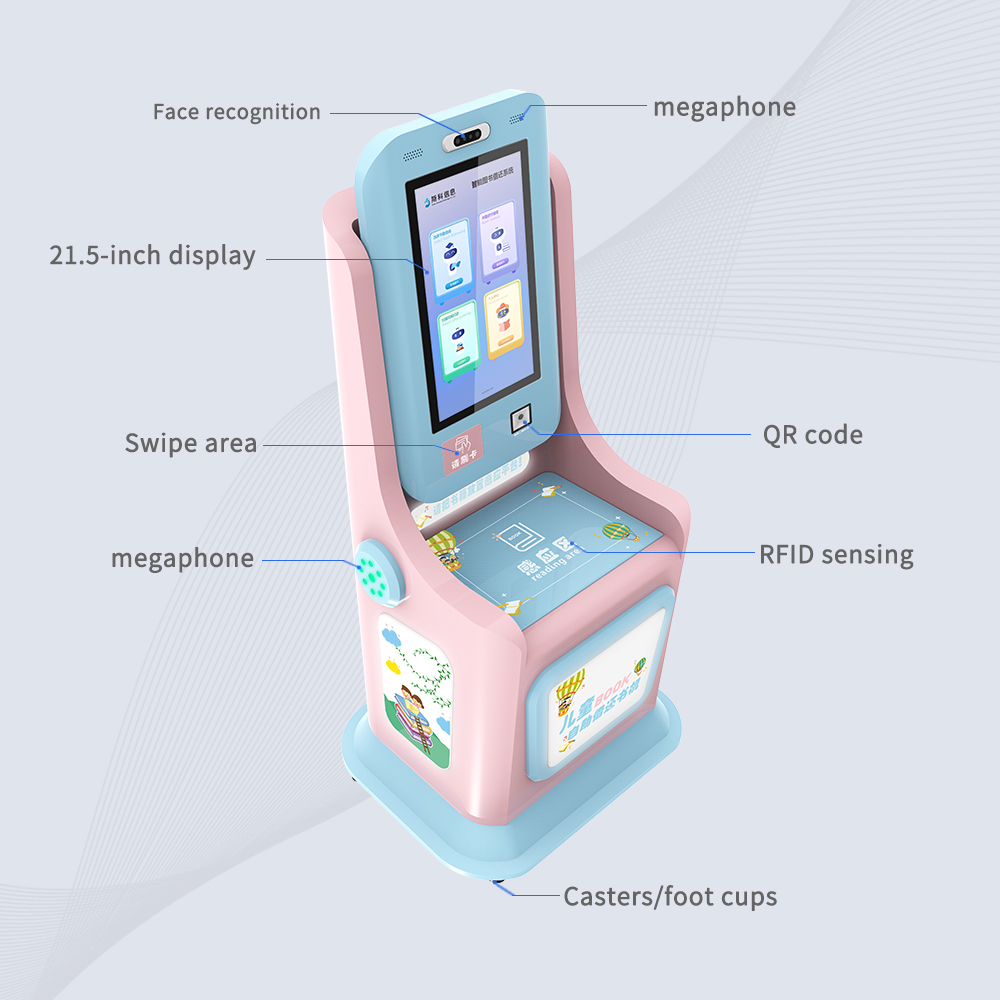

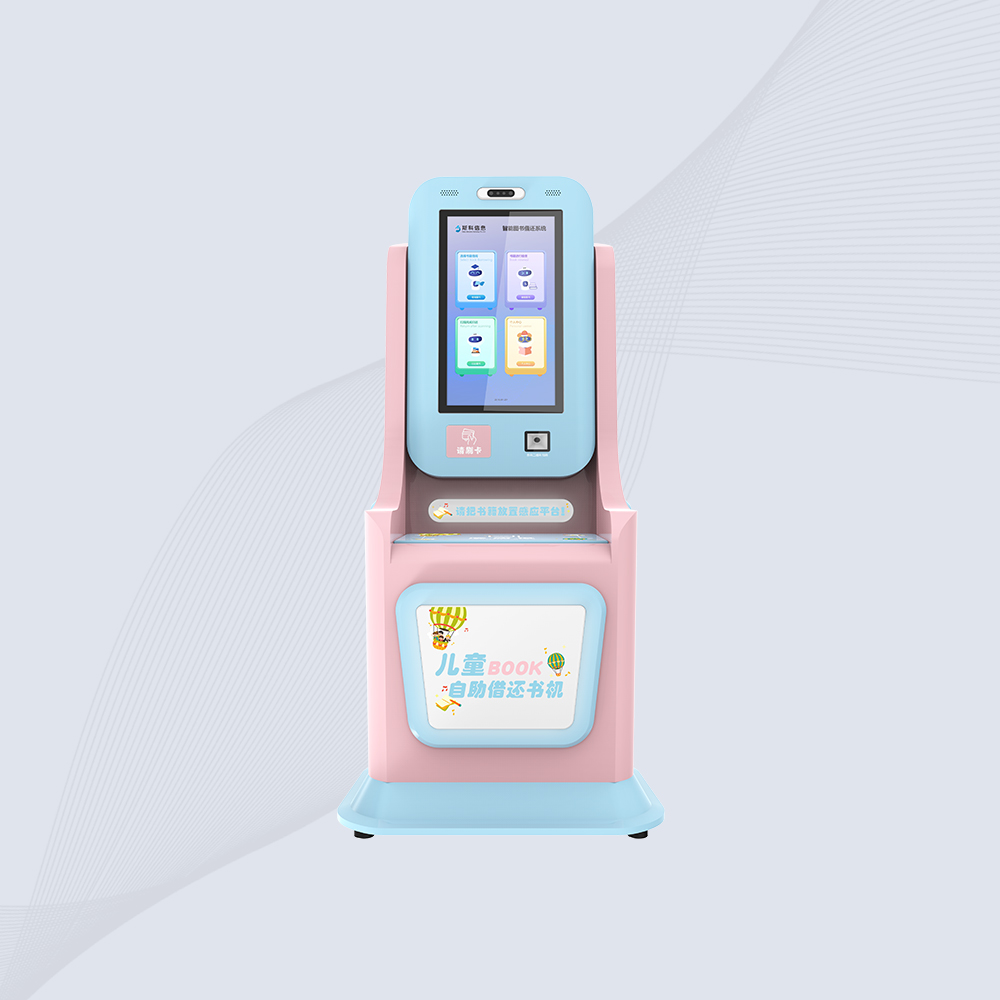

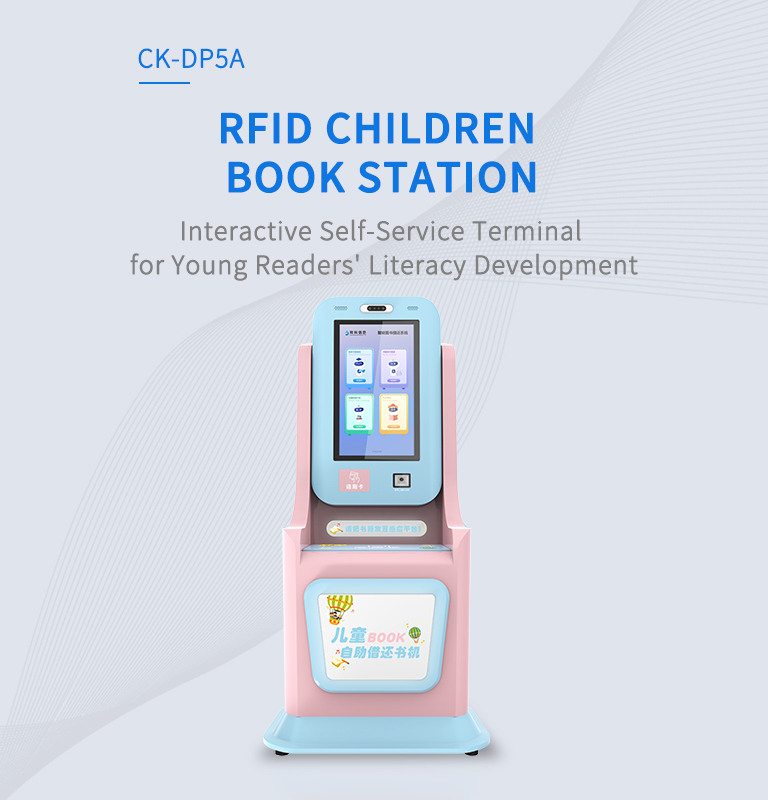

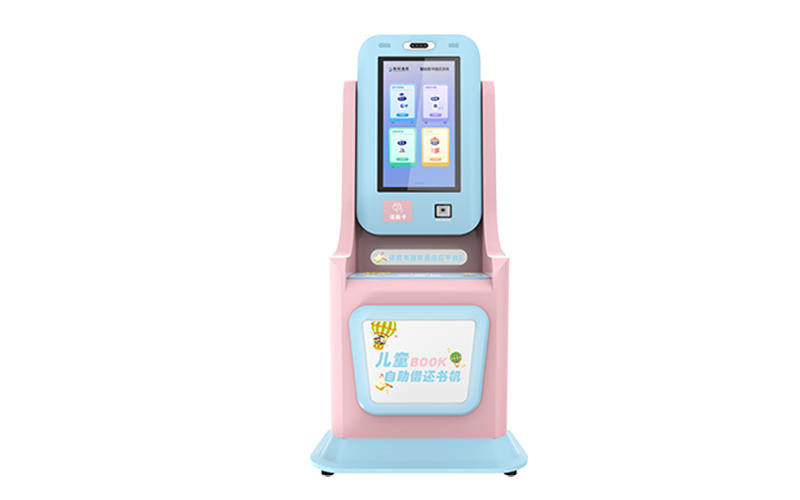

CYKEO-DP5A RFID CHILDREN BOOK STATION(images 1)

RFID CHILDREN BOOK STATION

✔️ 10-Item Scan – HF/UHF tags at once

21.5″ Touchscreen – intuitive operation

✔️ Dual OS – Windows or Android, customizable

Talk to an Expert

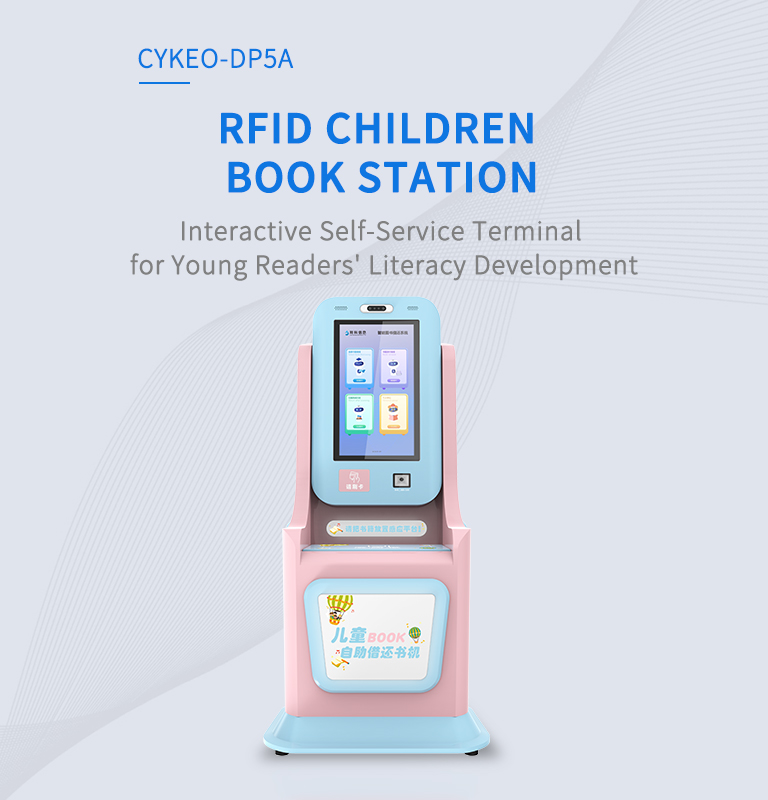

CYKEO-DP5A RFID CHILDREN BOOK STATION(images 2)
CYKEO-DP5A RFID CHILDREN BOOK STATION(images 3)
CYKEO-DP5A RFID CHILDREN BOOK STATION(images 4)
CYKEO-DP5A RFID CHILDREN BOOK STATION(images 5)
CYKEO-DP5A RFID CHILDREN BOOK STATION(images 6)
CYKEO-DP5A RFID CHILDREN BOOK STATION(images 7)
CYKEO-DP5A RFID CHILDREN BOOK STATION(images 8)

Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

Passive RFID Reader Products

  • CYKEO-D3L USB RFID Tag Reader

    1625
    • Operating Temperature-20°C to +70°C

    CYKEO CYKEO-D3L USB RFID Tag Reader delivers stable UHF tag reading and writing for daily desktop and light industrial tasks. Designed for controlled short-range operation, this USB RFID Tag Reader works reliably with rfid tag and reader systems i…

    Check
  • CYKEO-D8A Embedded RFID Badge Reader

    941
    • InputAC 220V ±10% 50/60Hz

    Cykeo CYKEO-D8A embedded RFID badge reader offers 30+ tags/sec scanning, 20cm anti-crosstalk precision, and DC 12V power for unmanned stores, warehouses, and smart inventory systems.

    Check
  •  CYKEO-D1L RFID scanner USB

    1818
    • Operating Temperature-20°C to +70°C

    CYKEO CYKEO-D1L RFID scanner USB is a compact desktop UHF RFID scanner designed for short-range tag writing and verification. This usb rfid scanner supports batch encoding, stable 0–26 dBm output, and works across Windows, Linux, and Android syst…

    Check
  • CYKEO-D6L Desktop UHF RFID Reader Writer​

    1676
    • Operating Temperature-20°C to +70°C

    The CYKEO CYKEO-D6L RFID Reader Writer is a heavy-duty Desktop RFID Reader designed for short-range, high-accuracy tag programming. Built for libraries, labs, and asset desks, this RFID Reader Writer supports batch processing, stable 33dBm output,…

    Check
  • CYKEO-D5L Desktop RFID Card Reader

    1291
    • Operating Temperature-20°C to +70°C

    The CYKEO CYKEO-D5L Desktop RFID Card Reader is a stable UHF RFID Card Reader designed for controlled short-range reading and writing. Built for libraries, tool rooms, and asset desks, this UHF RFID Card Reader supports dense tag handling, secure …

    Check

loading…

已经是到最后一篇内容了!

Cykeo CYKEO-DP5A Passive RFID Tag Reader Station Specifications

  • BrandCykeo
  • ModelCYKEO-DP5A
  • Product NamePassive RFID Tag Reader Station
  • ​MaterialAluminum alloy + Tempered glass
  • ​Appearancetransparent

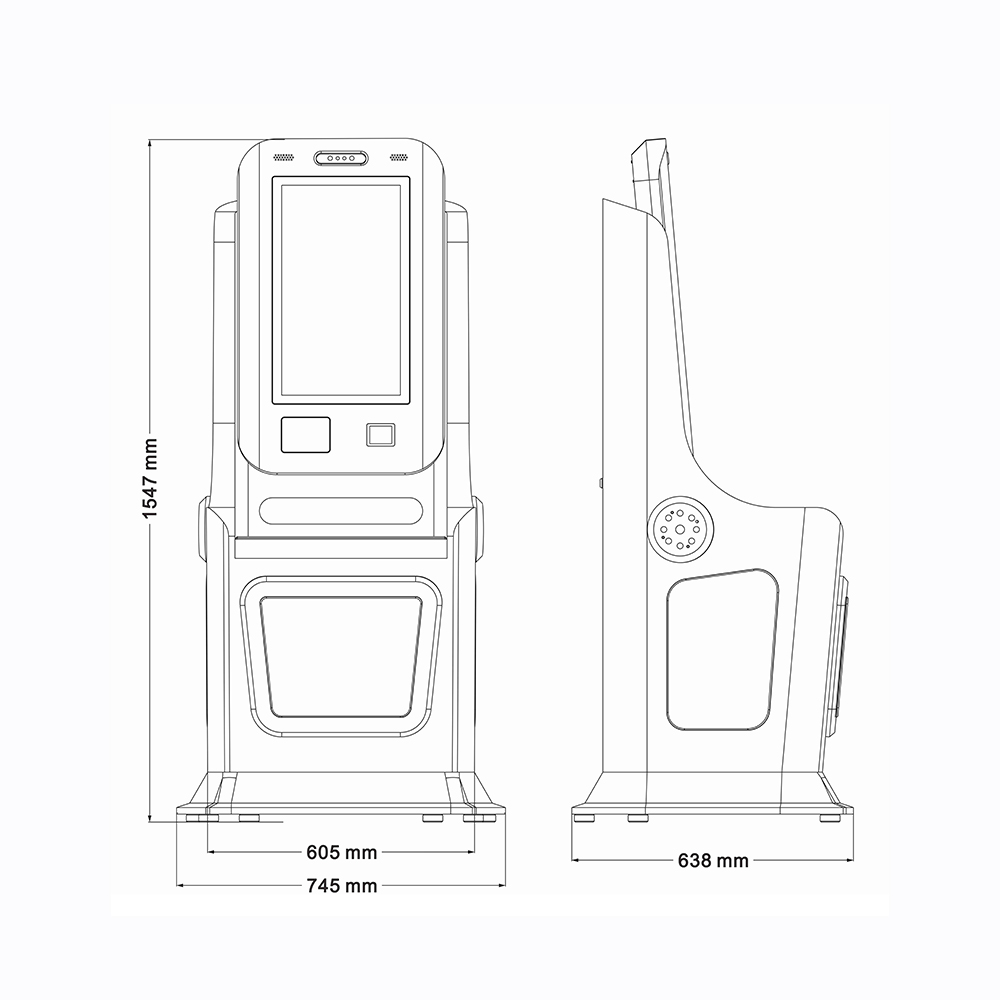

  • Dimensions1547mm*745mm*638mm
  • Display21.5″ Capacitive Touch
  • Operating SystemWindows /Android
  • ProcessorIntel i5 / RK3399 Octa-Core
  • Memory4GB RAM + 128GB SSD
  • Weight36KG
  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • Frequency Range840MHz~960MHz (Adjustable);13.56MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
  • Read Range0-50cm Adjustable
  • Number of books read≥10 books
  • ConnectivityGigabit Ethernet + Optional 4G
  • Network Interface10M/100M Adaptive
  • Power220V
  • InputAC 220V ±10% 50/60Hz
  • Humidity≤90%
  • Operating Temp-20℃~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
PASSIVE RFID TAG READER FAQS
How does CYKEO-DP5A speed up library inventory?

Scans 10 RFID tags at once, uses anti-collision algorithms, and shows results on the touchscreen with signal strength. Misplaced items pop up instantly. Optional barcode support helps transition from old systems.

Can it work around metal in tool rooms or factories?

Yes. Auto frequency tuning bypasses metal interference, works with anti-metal tags, and uses frequency hopping to reduce wireless disruption. Rugged IP54 steel housing handles dust, impacts, and humidity. One plant cut tool retrieval time by 40%.

Does it support cloud-based analytics?

Absolutely. Sync via 4G or Wi-Fi to AWS, Azure, or Koha. APIs and SDKs let you automate alerts and workflows. Android or Windows options integrate with apps or legacy databases. One archive cut manual data entry by 60% using cloud integration.
