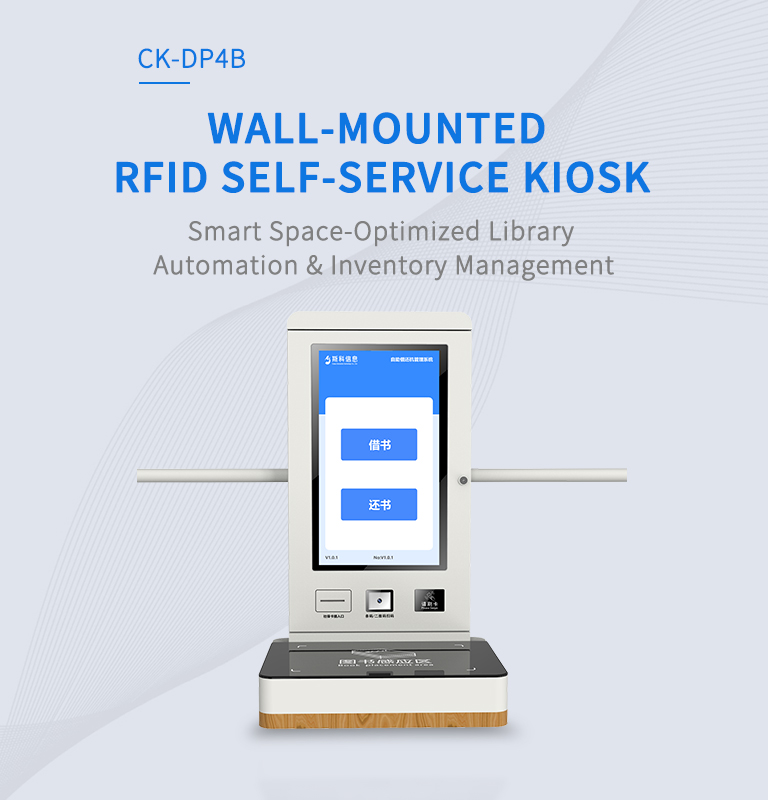

CK-DP4B

WALL-MOUNTED RFID SELF-SERVICE KIOSK

Compact, Fast, Reliable

✔️ 60+ Items/Sec – UHF batch scanning

✔️ IP54 Industrial Housing – dust and water resistant

✔️ Custom Integration – works with ERP and cloud

Talk to an Expert

Email Our Team

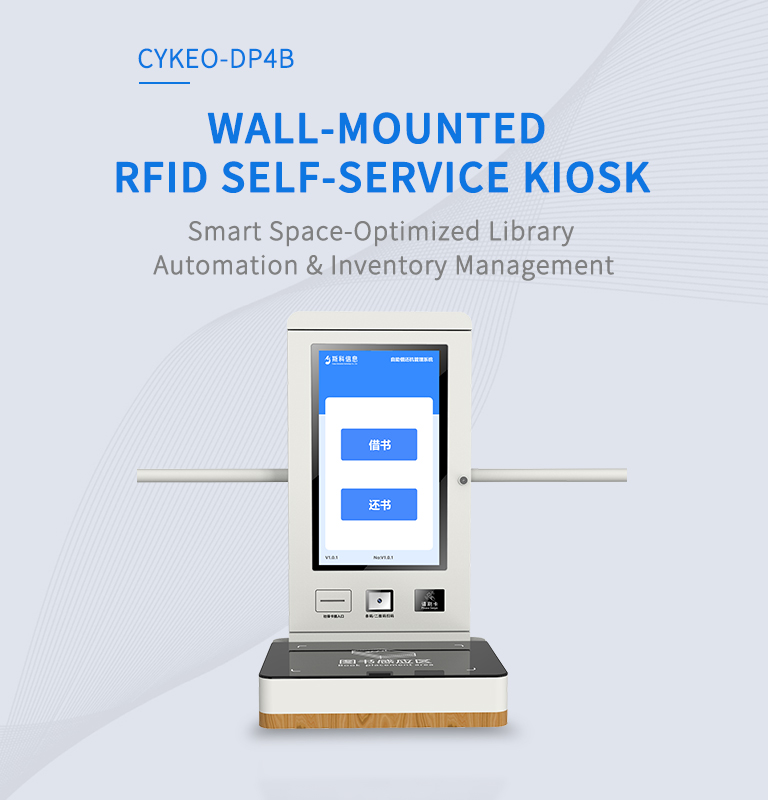

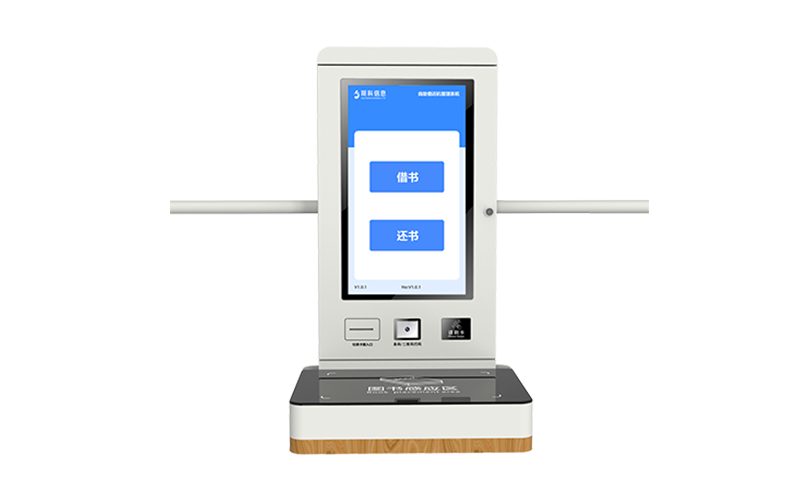

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 2）

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 3）

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 5）

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 6）

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 7）

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 8）

COMPACT POWER, INSTANT SCAN

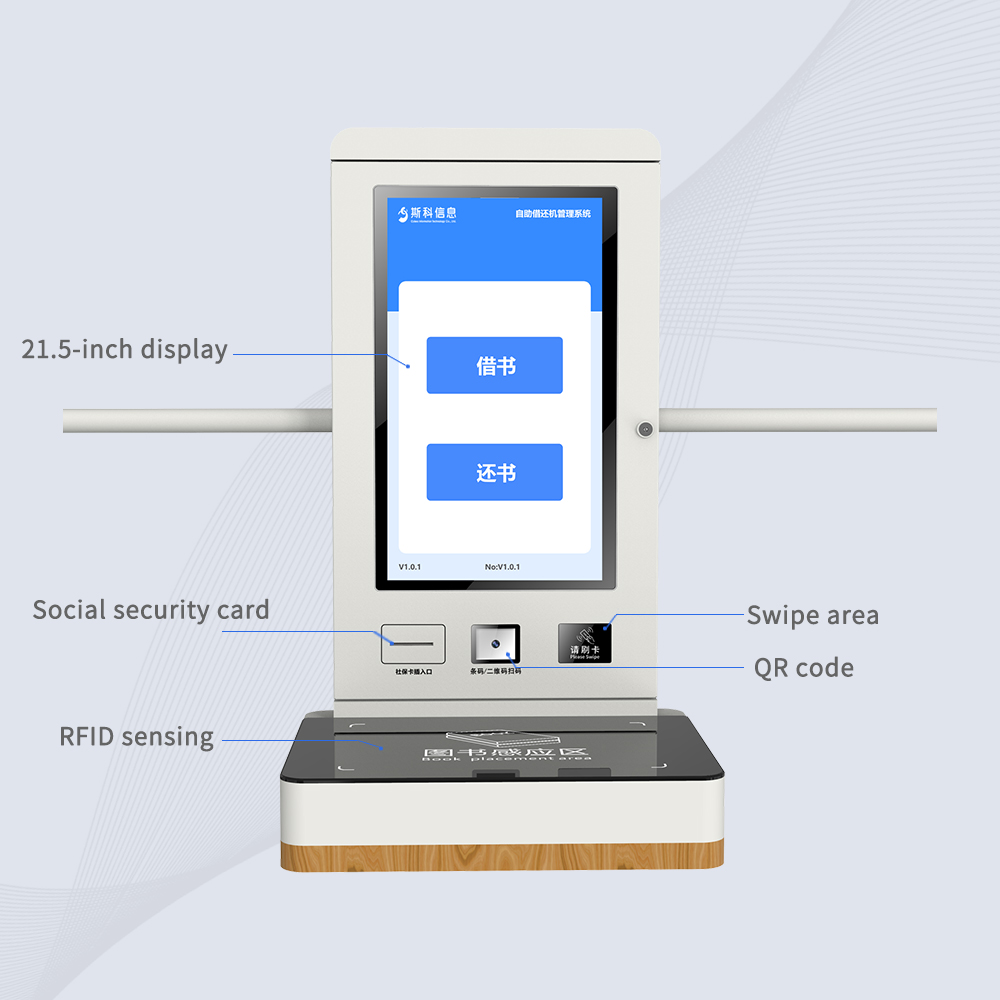

CK-DP4B scans RFID chips in a 0.5m radius using Impinj R2000 tech. 21.5″ touchscreen, Windows/Android, multi-protocol tags. Perfect for libraries, warehouses, tool rooms, and retail spaces needing real-time tracking and self-service checkouts.

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 9）

Cykeo CK-DP4B Wall-Mounted RFID Chip Scanner Kiosk Specification

Download

Online Procurement

Handheld RFID Scanner Products

CK-B2L UHF RFID Handheld Terminal
2025-12-01 1182
- API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Cykeo CK-B2L industrial UHF RFID handheld offers 10m range, 500 tags/sec scanning, Android 11 OS, and IP65 rugged design for retail/warehouse/manufacturing.
Check
CK-B9 UHF Bluetooth Handheld RFID Scanner
2025-12-01 1086
- Operating Temperature-30°C to +85°C
Cykeo CK-B9 UHF Bluetooth handheld RFID scanner features 12m UHF range, 200+ tags/sec scanning, IP67 rugged design for retail/warehouse/pharma. Supports Android SDK & real-time Bluetooth 5.0 transmission.
Check
CK-B4 Professional UHF Handheld RFID Reader
2025-12-01 1304
- Operating Temperature-20°C to +50°C
Cykeo CK-B4 UHF Handheld RFID Reader scanner delivers 1300 tags/sec reading, 30m UHF range, and 12-hour battery life. IP65 rugged design with barcode/NFC/ID scanning for retail/manufacturing/logistics.
Check
CK-B3 Pro Rugged RFID Reader Handheld
2025-12-01 1184
- API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Cykeo CK-B3 industrial RFID Reader Handheld, terminal offers 2m read range, multi-protocol scanning (NFC/barcode/ID), Android 10 OS, and IP65 ruggedness for logistics/retail/manufacturing.
Check
CK-B3L UHF RFID Handheld Reader
2025-12-01 1348
- API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Cykeo CK-B3L industrial handheld UHF RFID Reader terminal features 20m read range, 500 tags/sec scanning, Android 13 OS, 12-hour battery for logistics/retail/manufacturing. Supports barcode/NFC/ID reading.
Check

loading…

已经是到最后一篇内容了！

KEY FEATURES OF CYKEO CK-DP4B RFID CHIP SCANNER KIOSK

Batch Scanning

100 tags/sec recognition speed

Space-Saving

500mm ultra-slim wall profile

Multi-Protocol

Supports EPC C1G2/ISO18000-6B/C

Dual Auth

HF Card & ID Card readers

CK-DP4B WALL-MOUNTED RFID SELF-SERVICE KIOSK（images 25）

Industrial-Grade

-20℃~60℃ operation range

Voice Guidance

Multi-language audio prompts

Low Power

20W energy-efficient operation

Network Ready

TCP/IP + WIFI connectivity

Cykeo CK-DP4B Wall-Mounted RFID Chip Scanner Kiosk Specifications

Main Specifications

BrandCykeo
ModelCK-DP4B
Product NameWall-Mounted RFID Chip Scanner Kiosk

Physical Parameters

Communication ProtocolRJ45
MaterialAluminum alloy + Tempered glass
Appearancetransparent

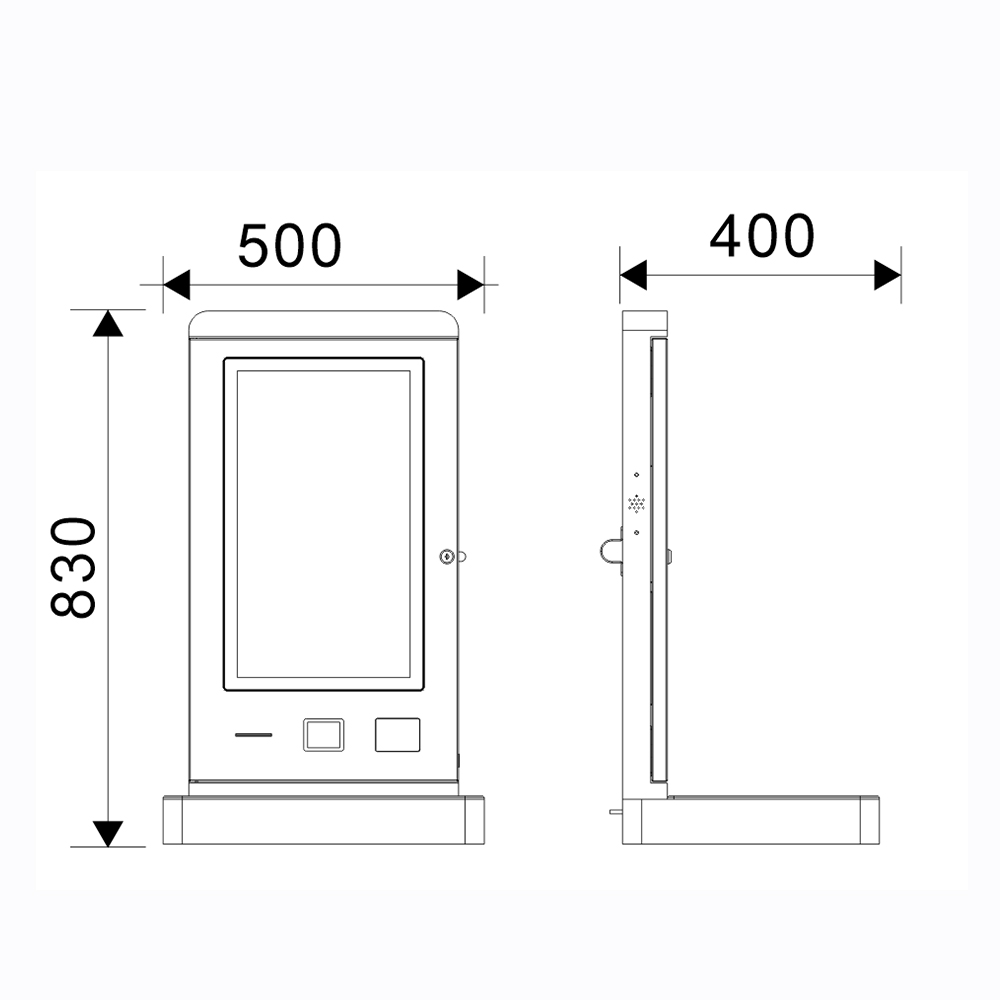

Dimensions400mm*830mm*500mm
Display21.5″ Capacitive Touch
Operating SystemWindows /Android
ProcessorIntel i5 / RK3399 Octa-Core
Memory4GB RAM + 128GB SSD
Installation modeSupport fixation
Weight36KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)；13.56MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
Read Range5-50cm Adjustable
Number of books read≥10 books
ConnectivityRJ45 + RS232 + WiFi
Network Interface10M/100M Adaptive
Power220V AC / DC12V 5A

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID Chip Scanner FAQS

How does CK-DP4B handle dense docs?

Scans 60+ tags/sec in a small radius, skips duplicates, flags misplaced items. One library lets users return 50+ books at once, updates instantly.

Can it handle heat, cold, or humidity?

Yes. Works 0–60°C, 10–90% humidity. IP54 housing keeps dust and water out. Optional anti-vibration mounts add durability.

Can it be customized for unique workflows?

Totally. Supports regional frequencies, custom encryption, add-on barcode/facial/voice modules, and SDKs for ERP or custom apps. Android/Windows dual OS keeps legacy systems running.
