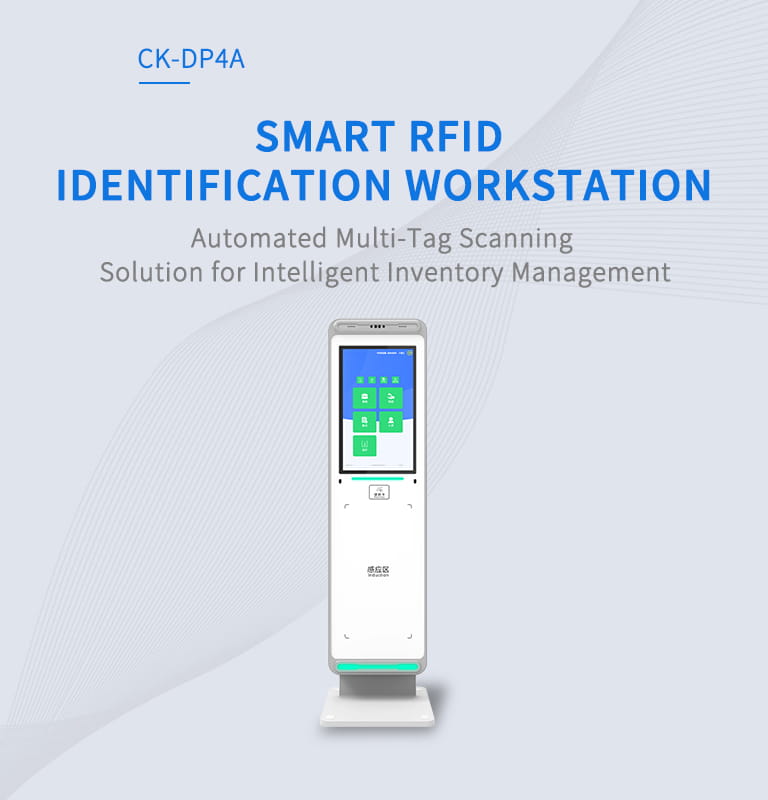

CK-DP4A

Vertical RFID Scanner Station

High-Efficiency RFID & Barcode Scanning Hub for Smart Inventory Control

✔️ 50+ Items Batch Scanning in 3 Seconds

✔️ Dual OS Compatibility (Win10/Android7.2)

✔️ Hospital-Grade Security with Facial Recognition

✔️ Anti-Interference Design with 80cm Precision Zone

Talk to an Expert

Email Our Team

INSTANT SCAN, ERROR-FREE TRACKING

The CK-DP4A Vertical RFID Scanner Station revolutionizes inventory management with its ultra-high frequency (UHF) RFID technology and dual scanning capabilities. Engineered for healthcare facilities, smart warehouses, and unmanned retail stores, this all-in-one station features a 21.5″ HD touchscreen and industrial-grade components for 24/7 operation. Its near-field antenna array ensures 99.9% read accuracy while preventing cross-read errors between adjacent storage areas.

Essential for medical supply management, automated warehouse audits, and contactless retail checkouts – perfect for environments requiring bulk RFID scanning and real-time inventory updates.

Tool management

Clothing management

File management

Warehouse Logistics

Medical management

Factory Automation

Cykeo CK-DP4A Vertical RFID Scanner Station Specification

Download

Online Procurement

Handheld RFID Scanner Products

CK-B9 UHF Bluetooth Handheld RFID Scanner
2025-03-26 571
- Operating Temperature-30°C to +85°C
Cykeo CK-B9 UHF Bluetooth handheld RFID scanner features 12m UHF range, 200+ tags/sec scanning, IP67 rugged design for retail/warehouse/pharma. Supports Android SDK & real-time Bluetooth 5.0 transmission.
Check
CK-B2L UHF RFID Handheld Terminal
2025-03-27 612
- API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Cykeo CK-B2L industrial UHF RFID handheld offers 10m range, 500 tags/sec scanning, Android 11 OS, and IP65 rugged design for retail/warehouse/manufacturing.
Check
CK-B2 Industrial Handheld RFID Reader Writer
2025-03-27 675
- API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Cykeo CK-B2 industrial handheld RFID reader writer features dual read/write modes, 300 tags/min operation, MIL-STD-810G protection. Ideal for manufacturing and logistics RFID deployments.
Check
CK-B4 Professional UHF Handheld RFID Reader
2025-03-27 663
- Operating Temperature-20°C to +50°C
Cykeo CK-B4 UHF Handheld RFID Reader scanner delivers 1300 tags/sec reading, 30m UHF range, and 12-hour battery life. IP65 rugged design with barcode/NFC/ID scanning for retail/manufacturing/logistics.
Check
CK-B3L UHF RFID Handheld Reader
2025-03-28 728
- API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Cykeo CK-B3L industrial handheld UHF RFID Reader terminal features 20m read range, 500 tags/sec scanning, Android 13 OS, 12-hour battery for logistics/retail/manufacturing. Supports barcode/NFC/ID reading.
Check

loading…

已经是到最后一篇内容了！

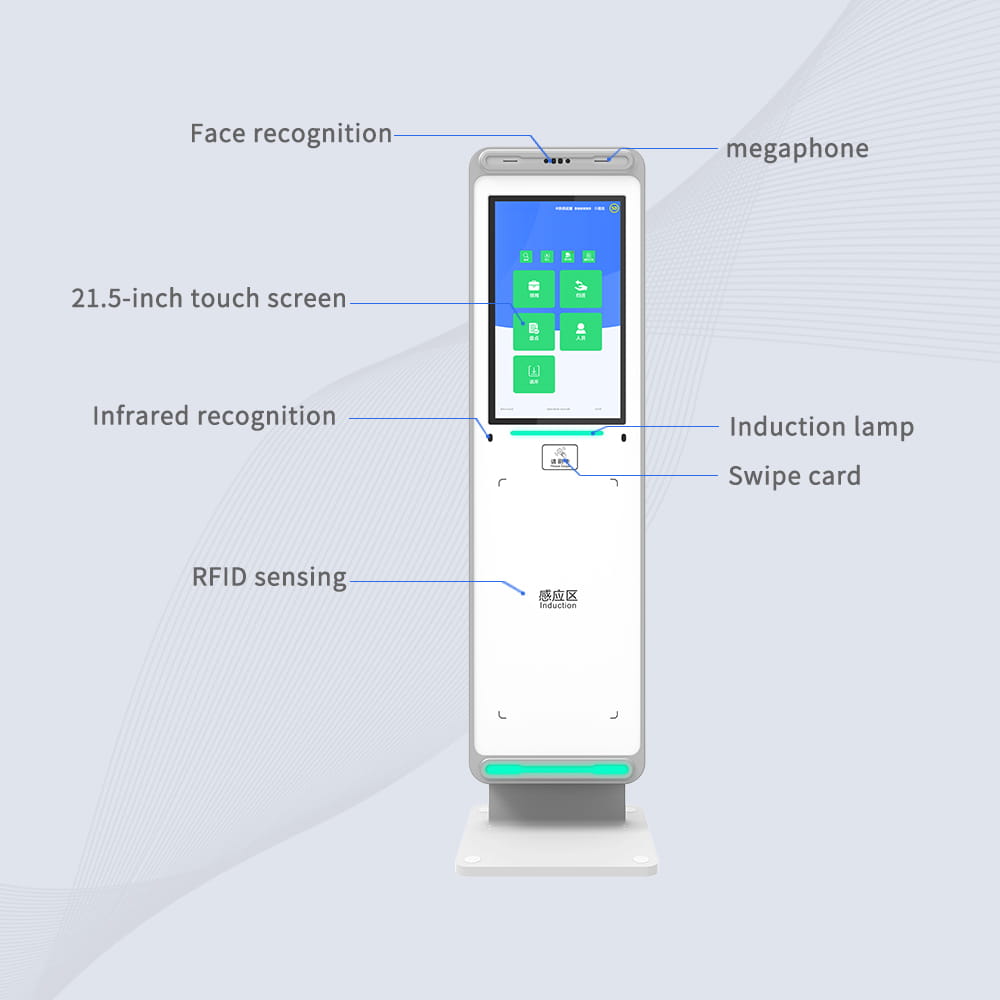

KEY FEATURES OF CYKEO CK-DP4A VERTICAL RFID SCANNER STATION

80cm Precision Containment

Patented antenna design limits RF leakage beyond 80cm

50-Tag/Sec Batch Mode

Impinj R2000-based array reads 50 surgical tools in 3sec

HIPAA-Ready Encryption

256-bit AES for PHI data protection

Medical-Grade Touchscreen

IP54-rated 21.5″ capacitive panel

OS Flexibilit

Windows 10 & Android 7.2 parallel operation

Real-Time Sync Engine

REST API for ERP/WMS integration

Ultra-Low Temp Operation

-20℃ cold chain compliance

Self-Diagnostic System

Auto-calibrates every 500 scans

Cykeo CK-DP4A Vertical RFID Scanner Station Specifications

Main Specifications

BrandCykeo
ModelCK-DP14A
Product NameVertical RFID Scanner Station

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialCarbon steel + tempered glass
Appearancetransparent

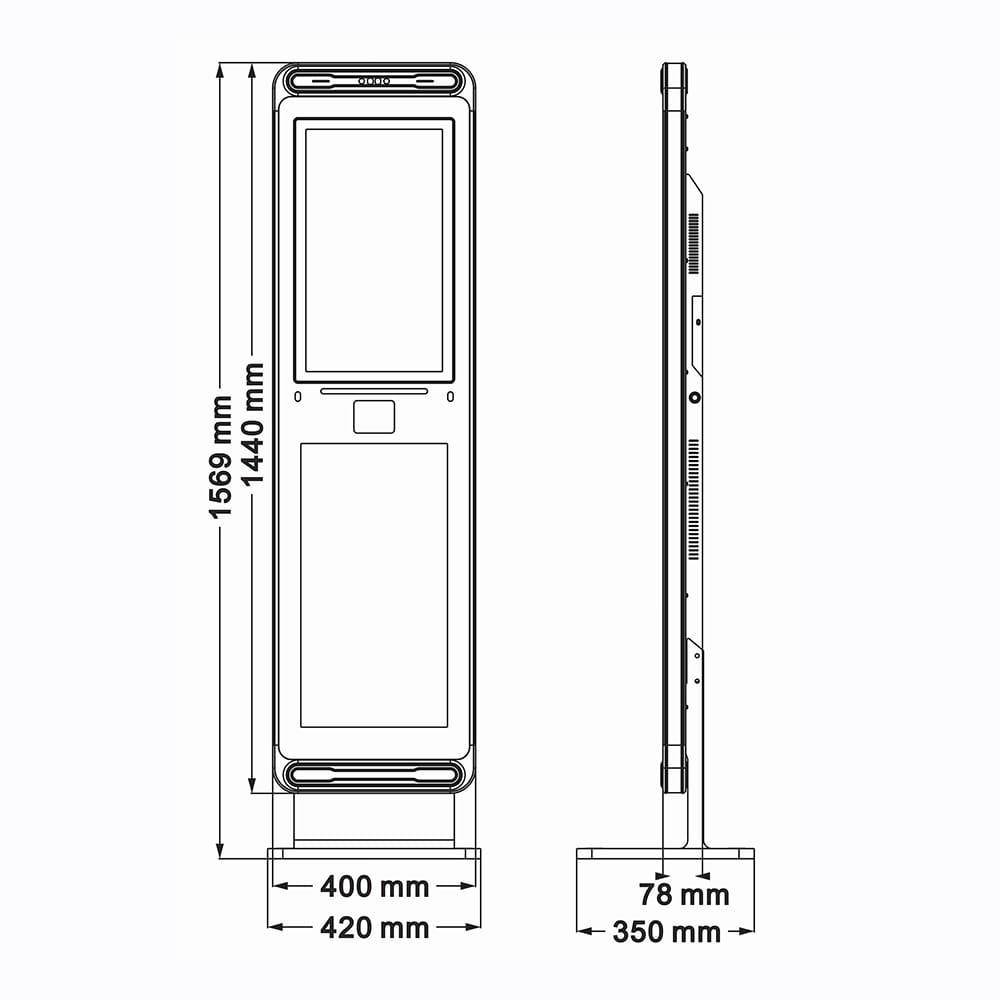

Dimensions420×350×1569mm
Operating SystemWindows 10/Android 7.2 Dual Boot
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen21.5-inch capacitive (10-point touch)
Resolution1920×1080 (16:9)
Weight50KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)；13.56MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
Scan Speed≤3sec/50 tags
Anti-Crosstalk Range≤80cm
Expansion SlotsUSB3.0×2, RS232×1
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
Network Interface10M/100M Adaptive
Power150W
Authentication ModesFace, Card, Fingerprint(Optional)

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID SCANNER STATION FAQS

How Does the CK-DP4A RFID Scanner Station Ensure Accurate Batch Scanning in High-Traffic Hospital Settings?

Technical Breakdown:
The CK-DP4A tackles high-density medical inventory scenarios through a three-layer accuracy system:

Smart Antenna Array: 4 near-field UHF antennas (840-960MHz) create overlapping coverage zones, scanning items from multiple angles to eliminate blind spots.
Dynamic Signal Adjustment: Automatically reduces power to 0.5W when detecting clustered metal instruments, preventing false reads from adjacent storage carts.
Visual Verification: Displays real-time scanned counts (e.g., “48/50 items confirmed”) on the 21.5″ HD touchscreen, with red outlines highlighting any missed tags.
Hospital Application: Ideal for OR kits preparation – staff can verify 50+ surgical tools in 3 seconds while maintaining sterile fields.

Can This RFID Station Integrate with Existing Hospital Inventory Systems Like SAP or Epic?

Integration Protocol:
Yes, the CK-DP4A supports seamless interoperability through:

Dual OS Flexibility: Runs Windows 10 for legacy .NET systems or Android 7.2 for modern cloud platforms.
HL7 Healthcare Data Standard: Pre-configured templates for medical device UDI (Unique Device Identification) compliance.
API Gateway: RESTful APIs enable automatic updates to:
- Pharmacy stock levels after nurse station withdrawals
- Equipment maintenance schedules post-scan
- Patient billing systems during supply room checkouts
  Security Certification: Includes HIPAA-compliant AES-256 encryption for all RFID-tagged patient data.

What Makes the CK-DP4A Suitable for Sterile Environments Like Vaccine Storage Rooms?

Sanitation-Optimized Design:
Engineered for CDC-grade environments with:

Sealed IP54 Housing: Withstands daily decontamination using:
- 70% ethanol wipes
- Hydrogen peroxide vapor systems
- UV-C light sterilization cycles
Glove-Friendly Interface: 5-point capacitive touchscreen responds to:
- 3mm nitrile gloves
- Double-layered surgical gloves
- Antimicrobial copper-infused surfaces
Cold Chain Compliance: Operates flawlessly in:
- Vaccine refrigerators (2°C to 8°C)
- Cryo storage (-40°C)* with optional heated screen module
  Requires -40°C Cold Chain Package (CCP-4A)
