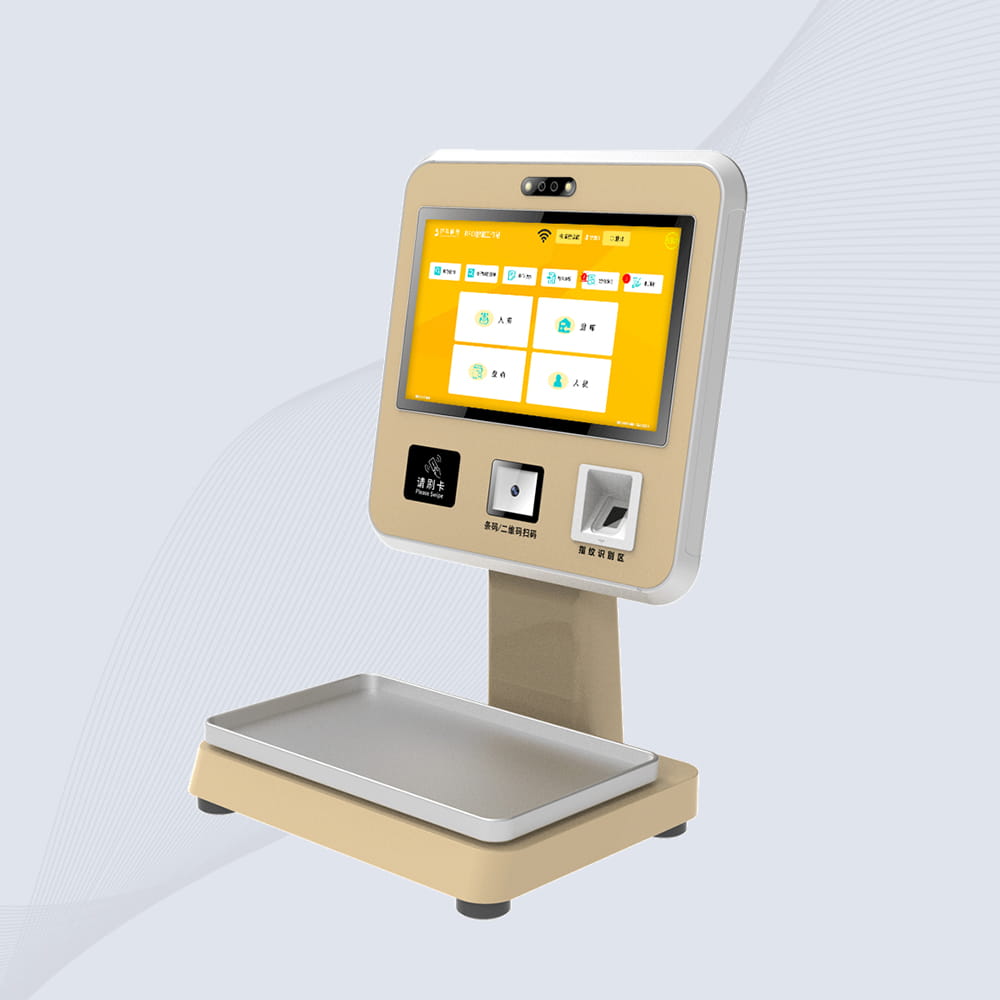

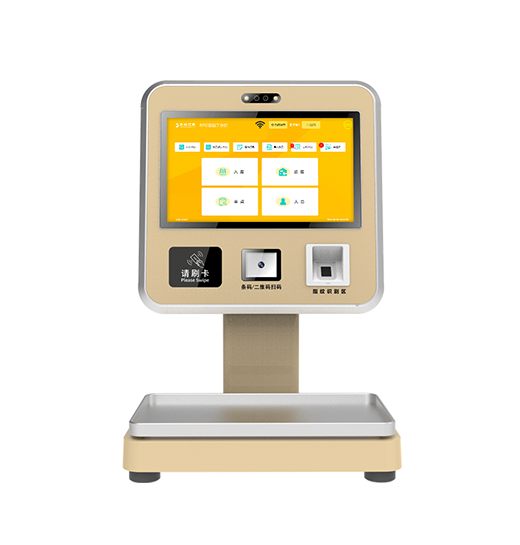

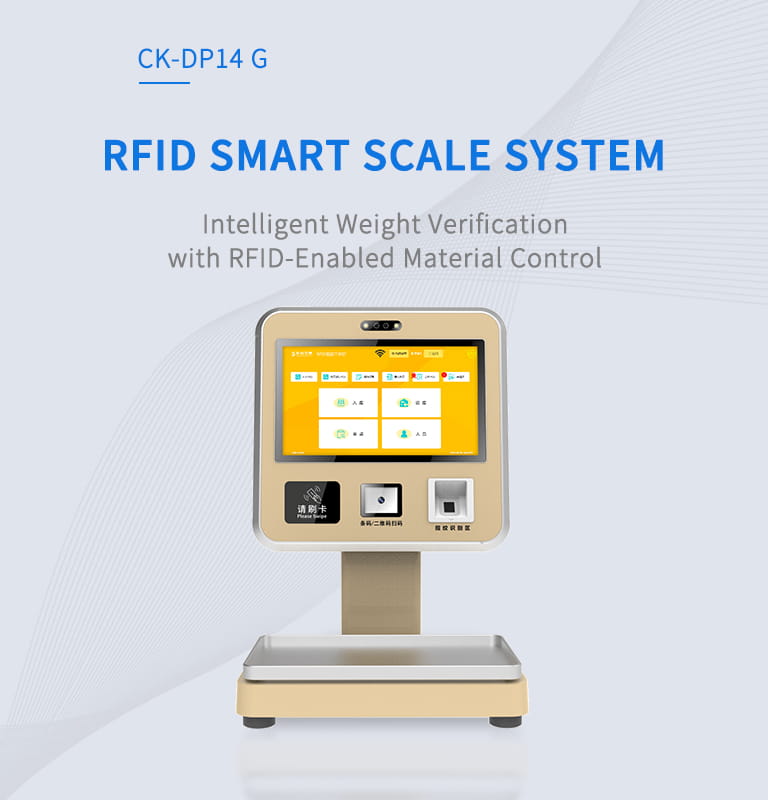

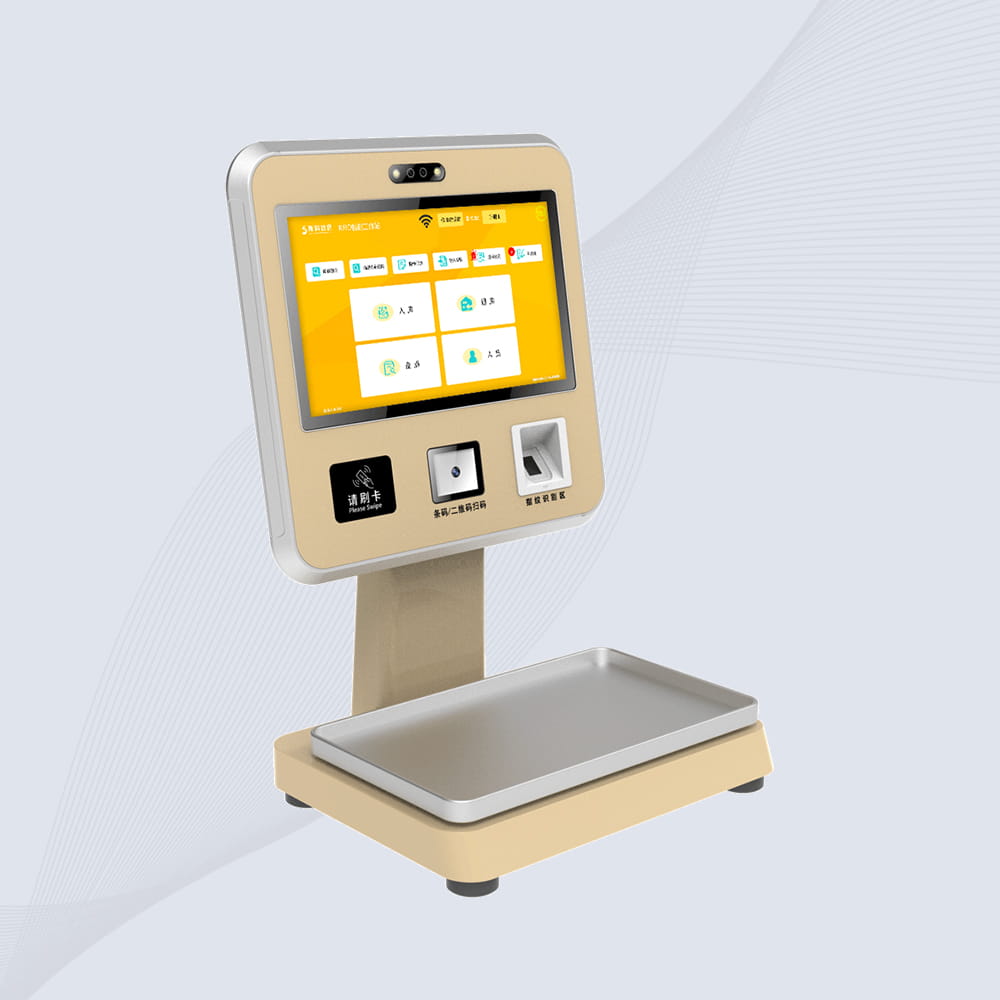

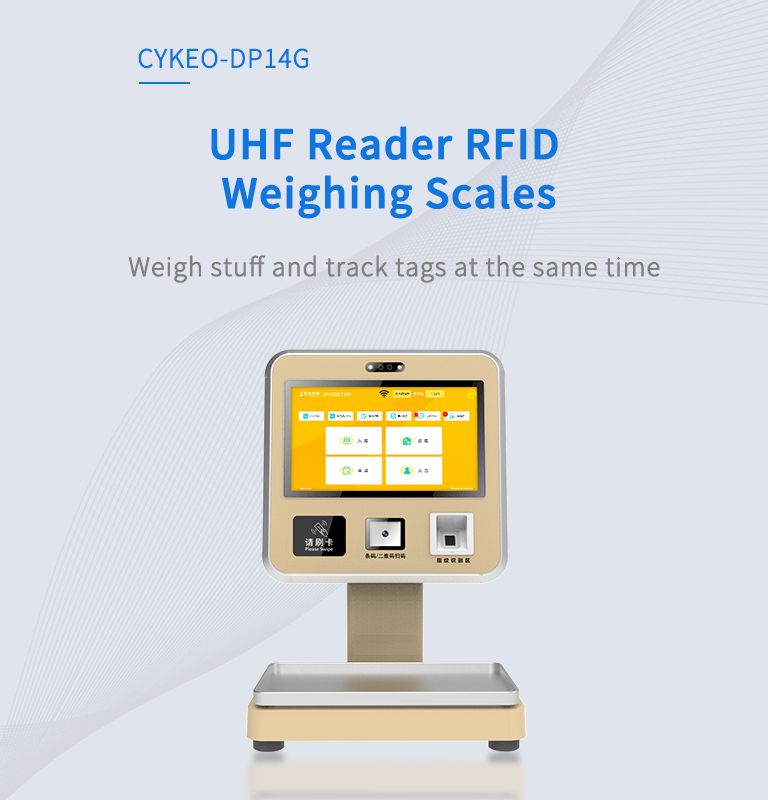

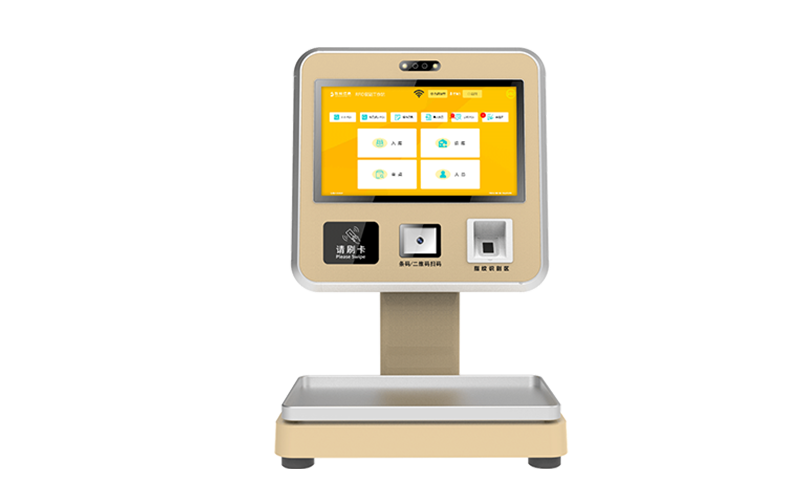

CK-DP14G

UHF Reader RFID Weighing Scales

Smart Dual-Mode Weighing & RFID Tracking for Pharmaceutical Inventory

✔️ SAP-Integrated RFID Weighing Data Automation

✔️ IP65 Rugged Design for Chemical Storage Environments

✔️ 14″ Industrial Touchscreen + Fingerprint/Face Recognitiong

✔️ 840-960MHz UHF Reader with 10-Tag/Sec RFID Scanning

✔️ 30kg ±1g Precision Weighing Scales for Lab-Grade Accuracy

Talk to an Expert

Email Our Team

UHF READER MEETS PHARMA WEIGHING

The CK-DP14G UHF reader RFID weighing scales system synchronizes ISO 18000-6C RFID tag reading with pharmaceutical-grade load cells (30kg/±1g) for automated chemical inventory control. Its built-in UHF reader identifies 10 tags/sec while weighing, enabling real-time material tracking through SAP. The IP65 carbon steel construction withstands corrosive lab environments, with dual biometric authentication ensuring compliance in regulated industries.

Ideal for precision material management: Pharmaceutical raw material dispensing, chemical warehouse stocktaking, and MRO supplies replenishment with simultaneous RFID-weight data capture.

Tool management

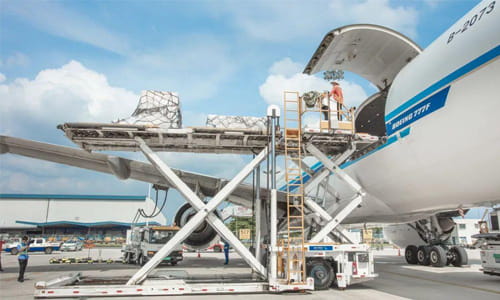

Aviation management

File management

Warehouse Logistics

Medical management

Factory Automation

Cykeo CK-DP14G UHF Reader RFID Weighing Scales Specification

Download

Online Procurement

RFID Reader Products

CK-D3L INDUSTRIAL HANDHELD RFID READER
2025-04-02 917
- Operating Temperature-20°C to +70°C
Cykeo CK-D3L USB RFID tag reader delivers 50 tags/sec scanning, 30cm range, and driver-free USB-C setup. Ideal for asset tagging in libraries, warehouses, and retail. SDK support for C#, Java, Python.
Check
CK-D5L Desktop RFID Card Reader
2025-03-03 750
- Operating Temperature-20°C to +70°C
Cykeo CK-D5L desktop RFID card reader offers 30cm precision reading, 40 tags/sec batch processing, and rugged metal design for libraries, asset tracking, and NFC encoding. Supports ISO 18000-6C/6B.
Check
CK-D1L UHF RFID DESKTOP ENCODER
2025-04-26 958
- Operating Temperature-20°C to +70°C
Cykeo CK-D1L Pro RFID USB reader delivers 200 tags/min encoding via USB 3.0, featuring driver-free operation, ESD protection, and SDK support for Windows/Linux/Android systems.
Check
CK-D4L Desktop UHF RFID Tag Reader
2025-03-02 815
- Operating Temperature-20°C to +70°C
Cykeo CK-D4L desktop UHF RFID tag reader delivers 30cm near-field precision, ISO 18000-6C compliance, and USB 3.0 connectivity for asset tracking, library systems, and industrial tag management.
Check
CK-D1L Ultra-Compact USB RFID Reader
2025-04-03 873
- Operating Temperature-20°C to +70°C
Cykeo CK-D1L USB RFID reader features 10cm precision writing, ISO 18000-6C compliance, and USB 3.0 connectivity for retail/library/event management. Includes batch encoding software and SDK.
Check

loading…

已经是到最后一篇内容了！

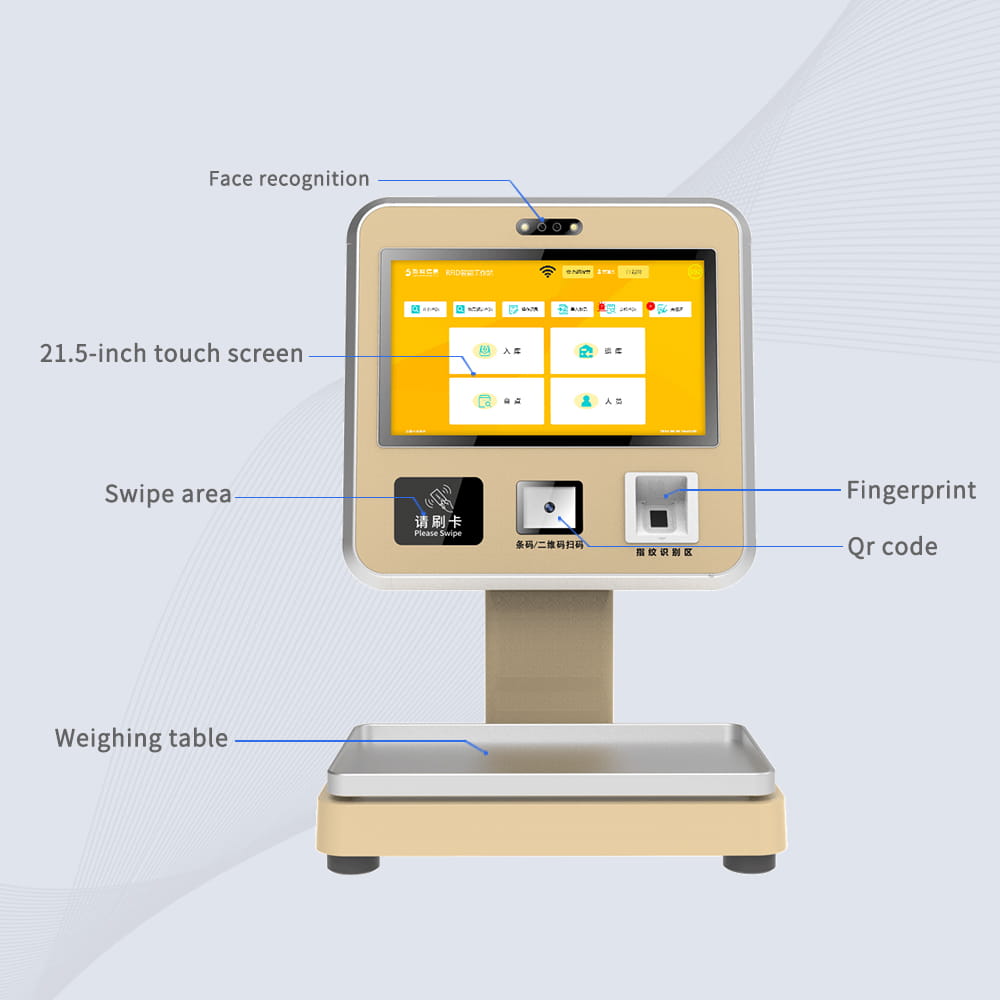

KEY FEATURES OF CYKEO UHF READER RFID WEIGHING SCALES

30kg/1g Precision

Medical-grade load cells with auto-tare

Dual OS Flexibility

Windows/Android for ERP connectivity

Multi-ID Authentication

Face recognition + RFID card + optional fingerprint

UHF RFID Tunnel

Simultaneous 50-tag reading during weighing

SAP BAPI Integration

Real-time material consumption updates

IP54 Splash Protection

Stainless steel weighing platform

21 CFR Part 11 Compliance

Audit-ready electronic records

Multi-Protocol Scanning

RFID + barcode + QR code

CK-DP14G UHF Reader RFID Weighing Scales Specifications

Main Specifications

BrandCykeo
ModelCK-DP14G
Product NameUHF Reader RFID Weighing Scales

Physical Parameters

Communication ProtocolRJ45
MaterialAluminum alloy + Tempered glass
Appearancetransparent

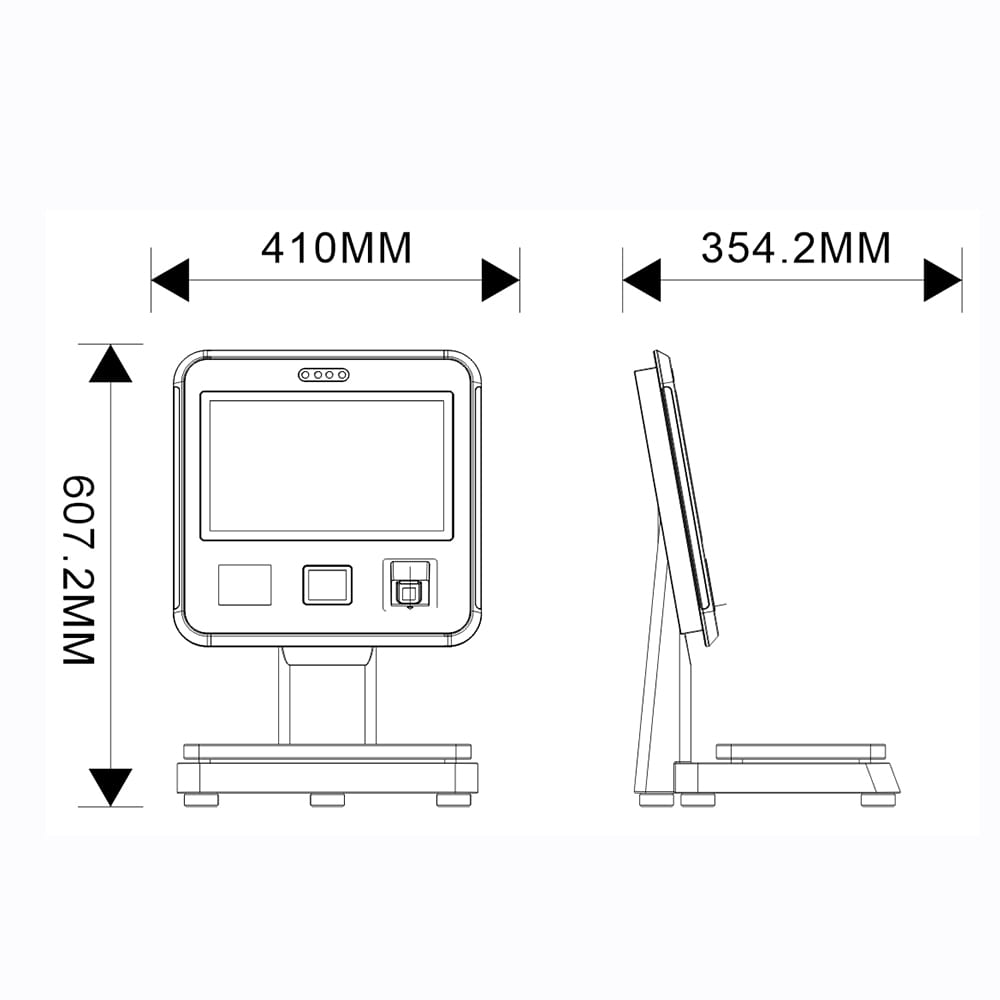

Dimensions607mm*410mm*354mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
High camera5MP with Auto-Focus
Fixed/mobile modeBottom foot cup/caster
Weighing Range1g-30kg
Accuracy Class0.1G
Weight50KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)；13.56MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
Read Range5-50cm Adjustable
Batch Processing60 tags/min
Data InterfaceEthernet/RS232/USB
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
Network Interface10M/100M Adaptive
Power150W
Authentication ModesFace, Card, Fingerprint(Optional)

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF READER RFID WEIGHING SCALES FAQS

How Does the UHF Reader RFID Weighing Scales Handle High-Density Tag Environments in Pharmaceutical Warehouses?

Solution: The CK-DP14G UHF Reader RFID Weighing Scales are engineered for bulk inventory scenarios with advanced anti-collision algorithms:

Multi-Tag Scanning: Simultaneously reads up to 10 RFID tags/sec (±1g weighing同步) while ignoring duplicate entries, critical for tracking stacked chemical containers.
Smart Filtering: Users can pre-define tag ranges (EPC C1G2/ISO 18000-6C) via the 14″ touchscreen to exclude non-target assets, reducing false reads by 95%.
RSSI-Based Sorting: Automatically prioritizes tags within 0-30cm range during weighing, ensuring only items on the scale platform are logged into SAP.
Real-Time Alerts: Triggers sound/light alarms if unregistered tags (e.g., expired chemicals) are detected during dispensing.

What Makes These RFID Weighing Scales Suitable for SAP-Integrated Batch Record Management?

Technical Integration:
The UHF Reader RFID Weighing Scales streamline GMP compliance through:

Direct SAP MM Module Sync: Automatically uploads weight data (30kg/±1g) paired with RFID tag IDs (ISO 18000-6C) to SAP as material transactions, replacing manual entries.
Biometric Audit Trails: Combines fingerprint/facial recognition with each weighing event, creating immutable logs for FDA 21 CFR Part 11 compliance.
Customizable Fields: Add batch numbers, expiration dates, or COA references via the touchscreen before SAP submission.
Offline Mode: Stores 10,000+ transactions locally (128GB ROM) during network outages, with auto-recovery once RJ45/WiFi/4G connectivity resumes.

How to Maintain Accuracy of UHF Reader Weighing Scales in Corrosive Chemical Labs?

Durability Features:
Built for harsh environments, the CK-DP14G ensures reliability via:

IP65 Sealed Load Cells: Protected against acid/alkali spills (10-90% RH) with automatic self-calibration triggered by humidity/temperature sensors.
Anti-Corrosion Design: Carbon steel platform with epoxy coating resists oxidation from chlorine/ammonia vapors.
Heated RFID Antenna: Prevents fogging/condensation (-0℃ to 60℃ operational range) during cold room weighing.
Preventive Maintenance Alerts: The Android OS sends reminders for quarterly load cell verification and annual RF power calibration.
