CK-DP13C UHF Reader RFID Workstation

UHF RFID Workstation

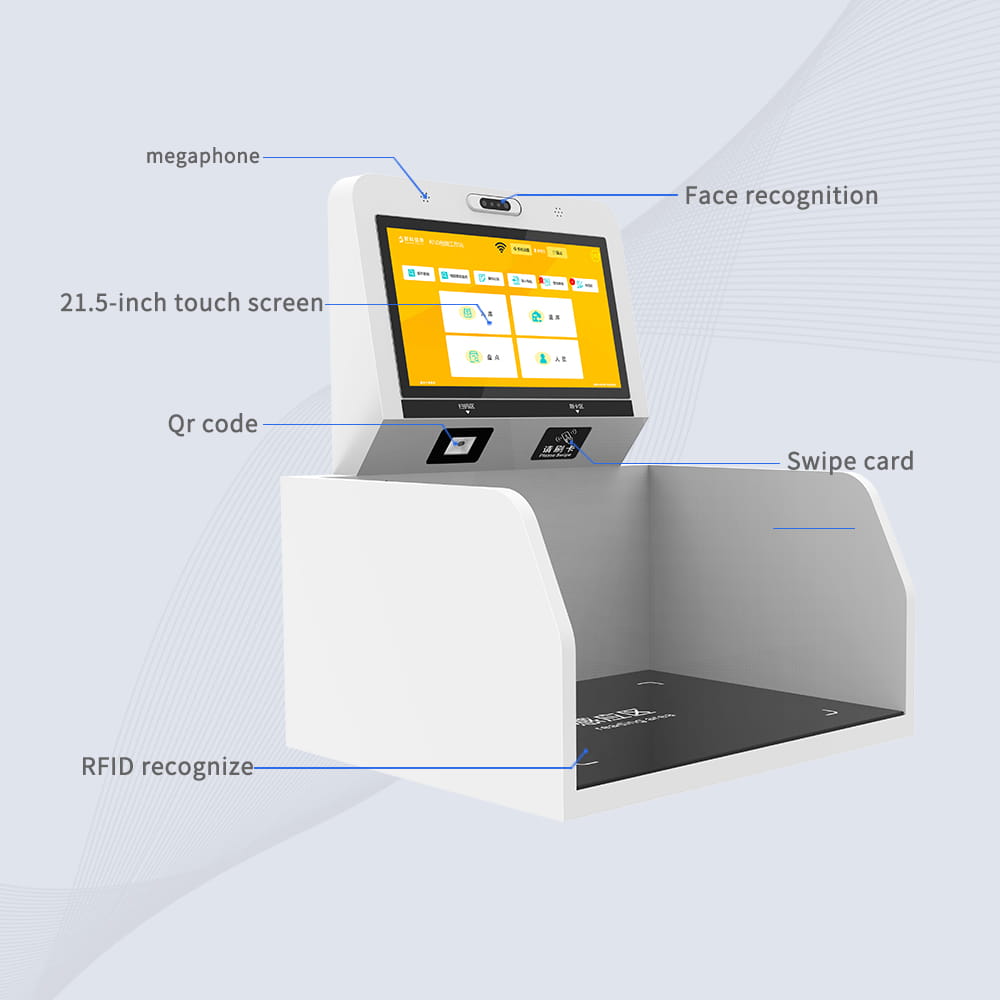

✔️ 21.5″ touchscreen with read/write control


✔️ Reads 50+ tags per second


✔️ Signal isolation to avoid misreads

Talk to an Expert
CK-DP13C ​​UHF Reader RFID Workstation(images 2)
CK-DP13C ​​UHF Reader RFID Workstation(images 3)
CK-DP13C ​​UHF Reader RFID Workstation(images 4)
CK-DP13C ​​UHF Reader RFID Workstation(images 5)
CK-DP13C ​​UHF Reader RFID Workstation(images 6)
CK-DP13C ​​UHF Reader RFID Workstation(images 7)
CK-DP13C ​​UHF Reader RFID Workstation(images 8)

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID Reader Products

  • CK-D6L Desktop UHF RFID Reader Writer​

    1331
    • Operating Temperature-20°C to +70°C

    The CYKEO CK-D6L RFID Reader Writer is a heavy-duty Desktop RFID Reader designed for short-range, high-accuracy tag programming. Built for libraries, labs, and asset desks, this RFID Reader Writer supports batch processing, stable 33dBm output, an…

    Check
  • CK-D5L Desktop RFID Card Reader

    1067
    • Operating Temperature-20°C to +70°C

    The CYKEO CK-D5L Desktop RFID Card Reader is a stable UHF RFID Card Reader designed for controlled short-range reading and writing. Built for libraries, tool rooms, and asset desks, this UHF RFID Card Reader supports dense tag handling, secure dat…

    Check
  • CK-D2L RFID Reader USB

    1021
    • Operating Temperature-20°C to +70°C

    CYKEO CK-D2L RFID Reader USB is a compact desktop encoder built on the Impinj R500 chip. With near-field control and stable USB power, this usb rfid card reader delivers precise tag writing for offices, retail counters, and small-scale logistics e…

    Check
  • CK-D8C RETAIL UHF RFID READER

    277
    • InputAC 220V ±10% 50/60Hz

    Cykeo’s CK-D8C UHF RFID gate reader achieves 200-tag/batch scanning with adjustable power control, ideal for retail inventory and smart warehouse management.

    Check
  •  CK-D1L RFID scanner USB

    1436
    • Operating Temperature-20°C to +70°C

    CYKEO CK-D1L RFID scanner USB is a compact desktop UHF RFID scanner designed for short-range tag writing and verification. This usb rfid scanner supports batch encoding, stable 0–26 dBm output, and works across Windows, Linux, and Android systems.

    Check

loading…

已经是到最后一篇内容了!

CK-DP13C UHF Reader RFID Workstation​ Specifications

  • BrandCykeo
  • ModelCK-DP13C
  • Product NameUHF Reader RFID Workstation​
  • ​Communication ProtocolEthernet (RJ45), optional WiFi/4G
  • ​MaterialCarbon steel + tempered glass
  • ​Appearancetransparent

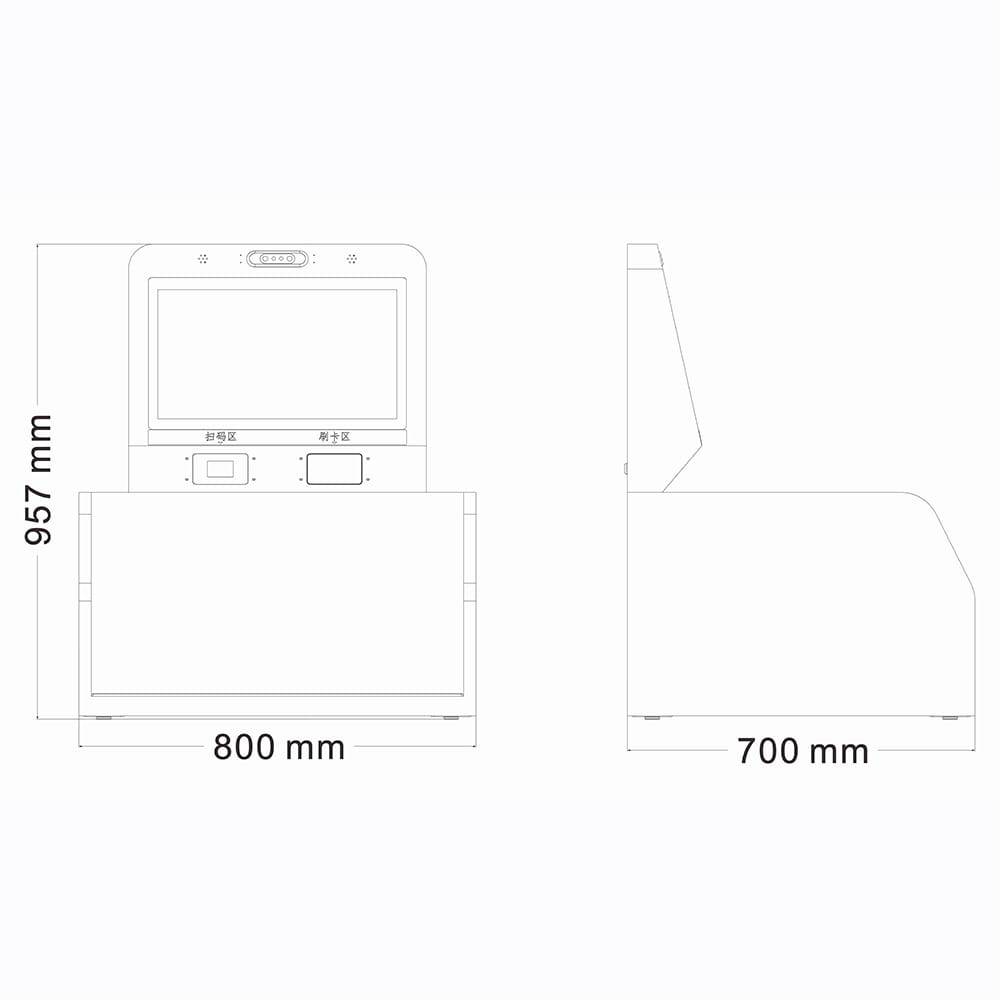

  • Dimensions957×800×700mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Touchscreen21.5-inch capacitive (10-point touch)
  • Weight50KG
  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • Frequency Range840MHz~960MHz (Adjustable);13.56MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
  • Read Range5-50cm Adjustable
  • Batch Processing60 tags/min
  • ​​Connectivity​Ethernet, WiFi (Optional), 4G (Optional)
  • Network Interface10M/100M Adaptive
  • Power150W
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp-20℃~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
UHF READER RFID WORKSTATION FAQS
How does this UHF workstation help with apparel inventory?​

It’s built for bulk work. Drop a pile of garments on, and it reads everything in a few seconds—no sorting, no rescans. The shielded scan area keeps nearby racks from interfering, and counts sync straight to your WMS or ERP. Less manual checking, fewer mistakes, way faster cycle counts.​

Can it handle hospital linen and sterilization environments?

Yes. The surface is made for daily disinfection, and the antennas stay stable around heat and moisture. RFID tags survive repeated wash cycles, and every scan is logged with time and operator info. It’s reliable enough for laundry rooms where speed, hygiene, and traceability all matter.

​​Why is it a good fit for mixed logistics setups?

Because it doesn’t lock you into one tech. UHF tags, HF cards, QR codes—it handles them in one workflow. The system adjusts frequencies to avoid interference and can sync data locally or to the cloud, even in tricky warehouse zones. Everything ends up in one clean dashboard instead of scattered systems.
