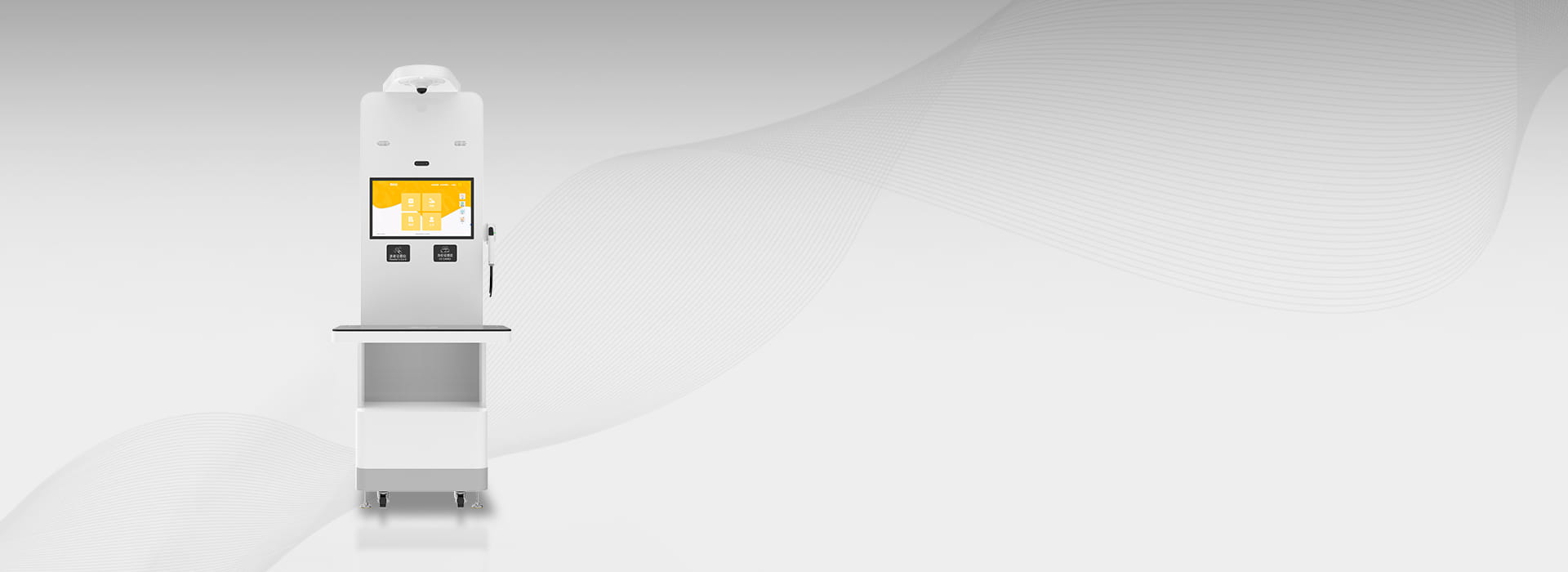

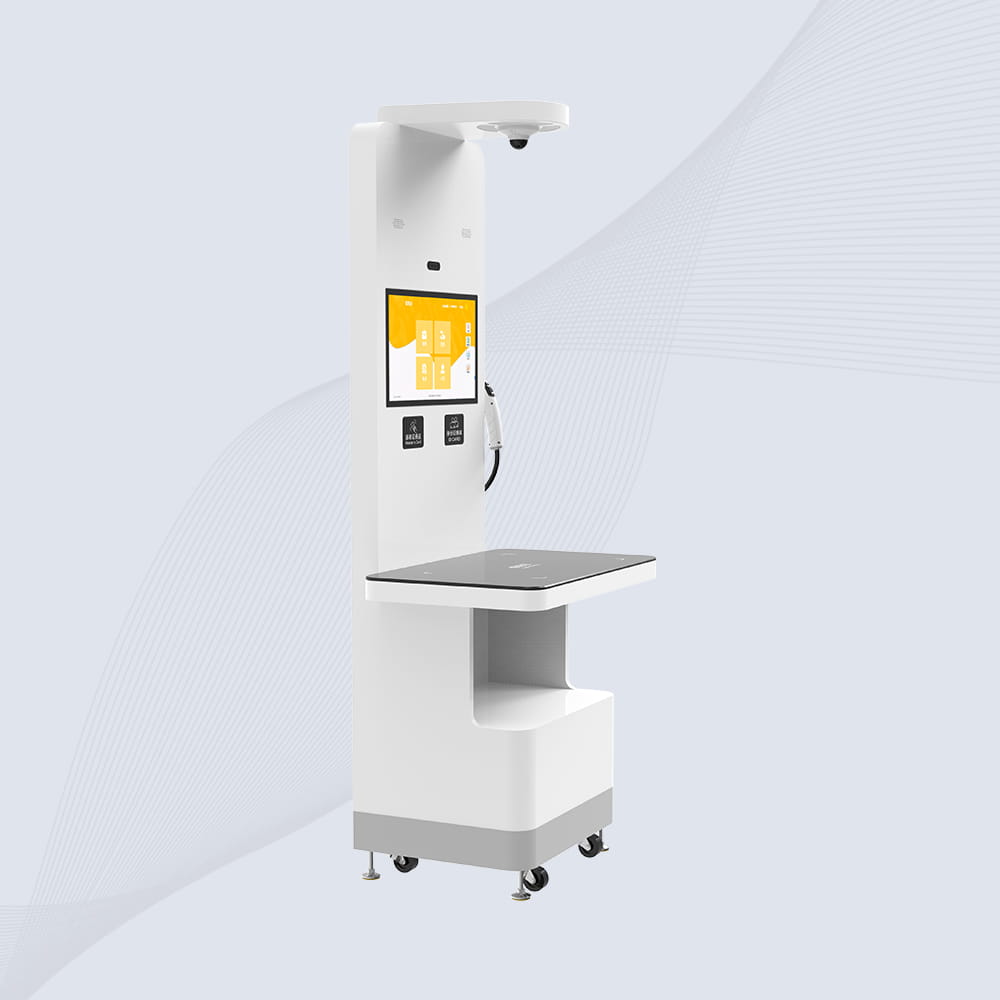

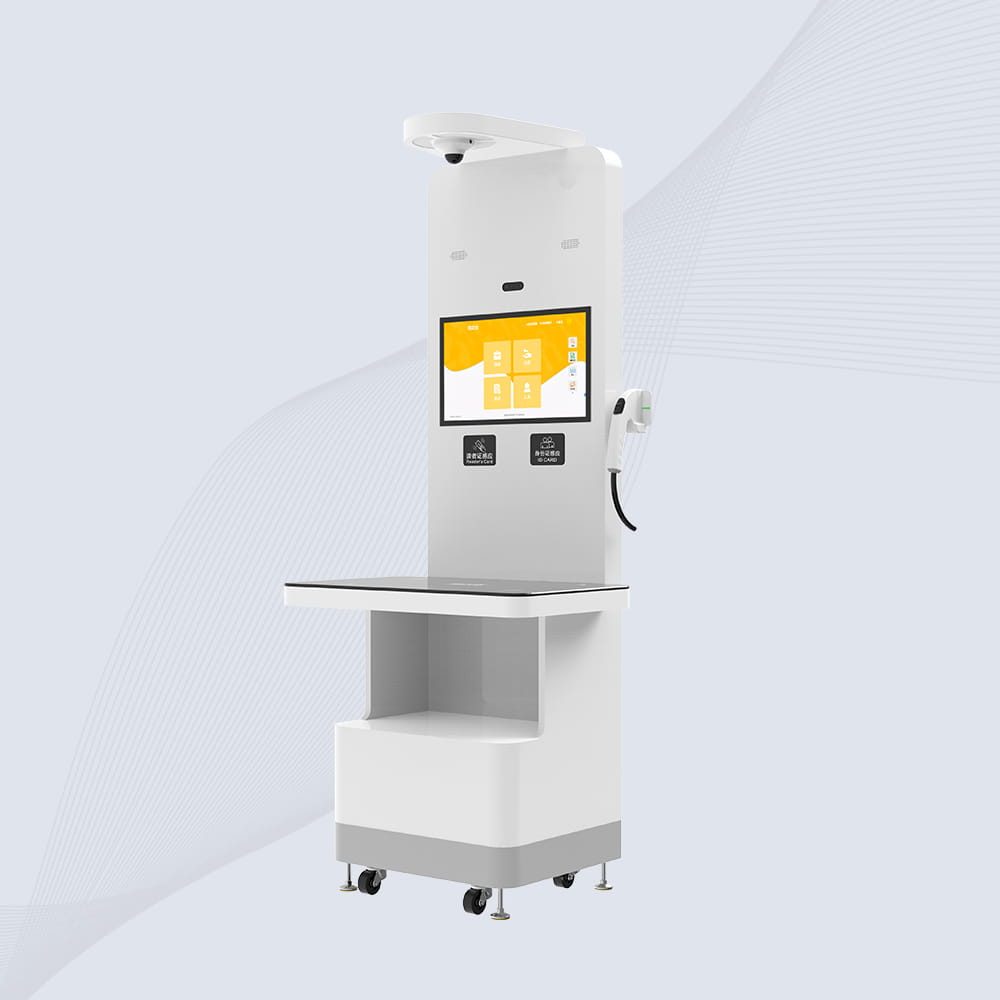

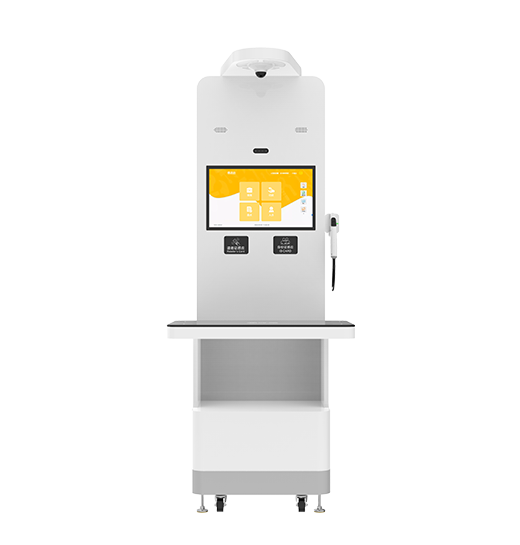

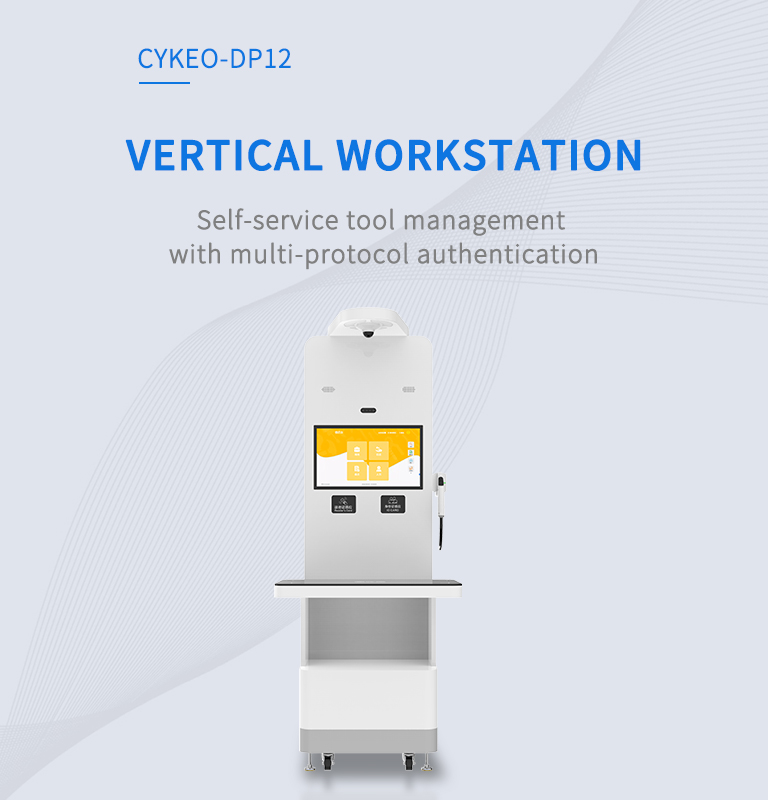

CK-DP12

Vertical RFID Workstation

Intelligent Self-Service Tool Management System with Multi-Protocol Authentication

✔️ 21.5″ HD Touch Interface with Multi-Language Support

✔️ 30-Tool Simultaneous RFID Tracking Capacity

✔️ Military-Grade -20℃~70℃ Operational Reliability

Talk to an Expert

Email Our Team

TOOLSMART CONTROL, WORKFLOW EVOLUTION

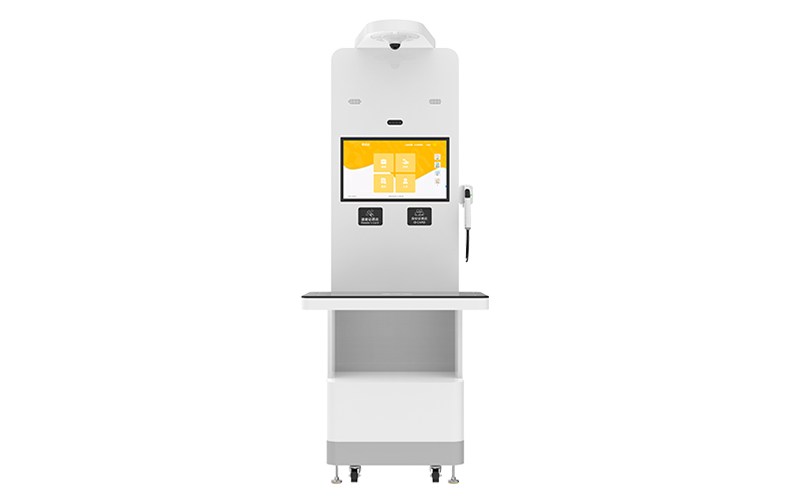

The CK-DP12 Vertical RFID Workstation revolutionizes industrial tool management through its autonomous RFID-enabled operation system. Featuring dual Windows/Android OS compatibility and Impinj R2000 UHF technology, it achieves 99.9% read accuracy for simultaneous tracking of 30+ tools. The IP54-rated housing with 2000mm vertical design ensures optimal accessibility in workshops and production lines.

Essential for manufacturing tool cribs, aerospace maintenance centers, and automotive assembly lines requiring high-frequency tool exchanges with audit trails.

Aviation management

Tool management

File management

Warehouse Logistics

Vehicle maintenance

Factory Automation

Cykeo CK-DP12Specification

Download

Online Procurement

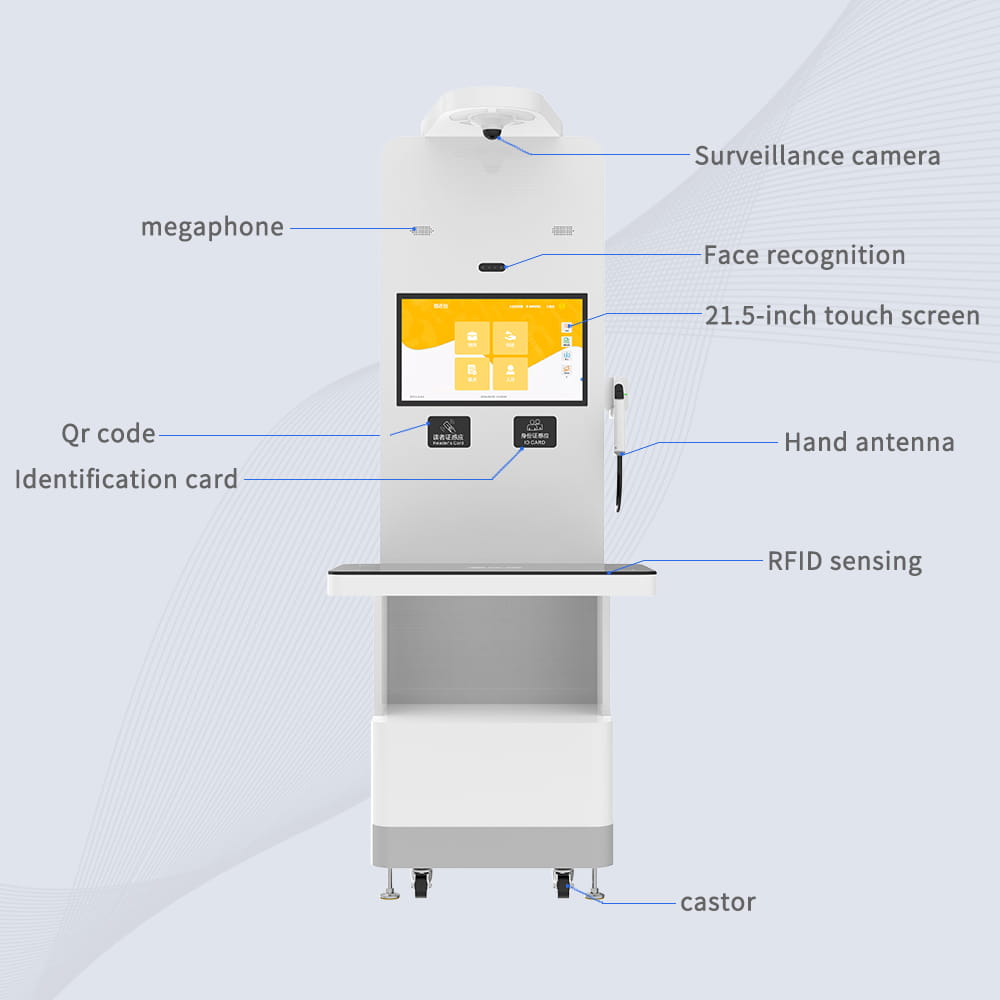

KEY FEATURES OF CYKEO CK-DP12 VERTICAL RFID WORKSTATION

21.5″ Industrial Touch GUI

Capacitive screen with 10-point touch & 1920×1080 resolution, supports glove operation -20℃ low-temperature mode

OS Flexibility

Intel i5 Win11 + Android 13 dual-boot system with 4GB RAM/128GB SSD

30-Tool UHF Tracking

Impinj R2000 chipset achieves ≤0.5s simultaneous identification of 30 ISO18000-6C tools

Grade Endurance

Operates at -20~70℃ with 90%RH tolerance, IP54 certified aluminum alloy housing

Smart Load Verification

500kg steel base with ±50g precision load cells for tool-weight matching

Multi-Access Control

3D face recognition + RFID card dual authentication 0.3s response time

Industrial IoT Ready

Dual Gigabit Ethernet + RS485 + WIFI6 for MES/WMS integration

Tool Lifecycle Analytics

AI-powered predictive maintenance with tool usage history tracking

CK-DP12 Vertical RFID Workstation Specifications

Main Specifications

BrandCykeo
ModelCK-DP12
Product NameVERTICAL WORKSTATION

Physical Parameters

Communication ProtocolRJ45
MaterialAluminum alloy + Tempered glass
Appearancetransparent

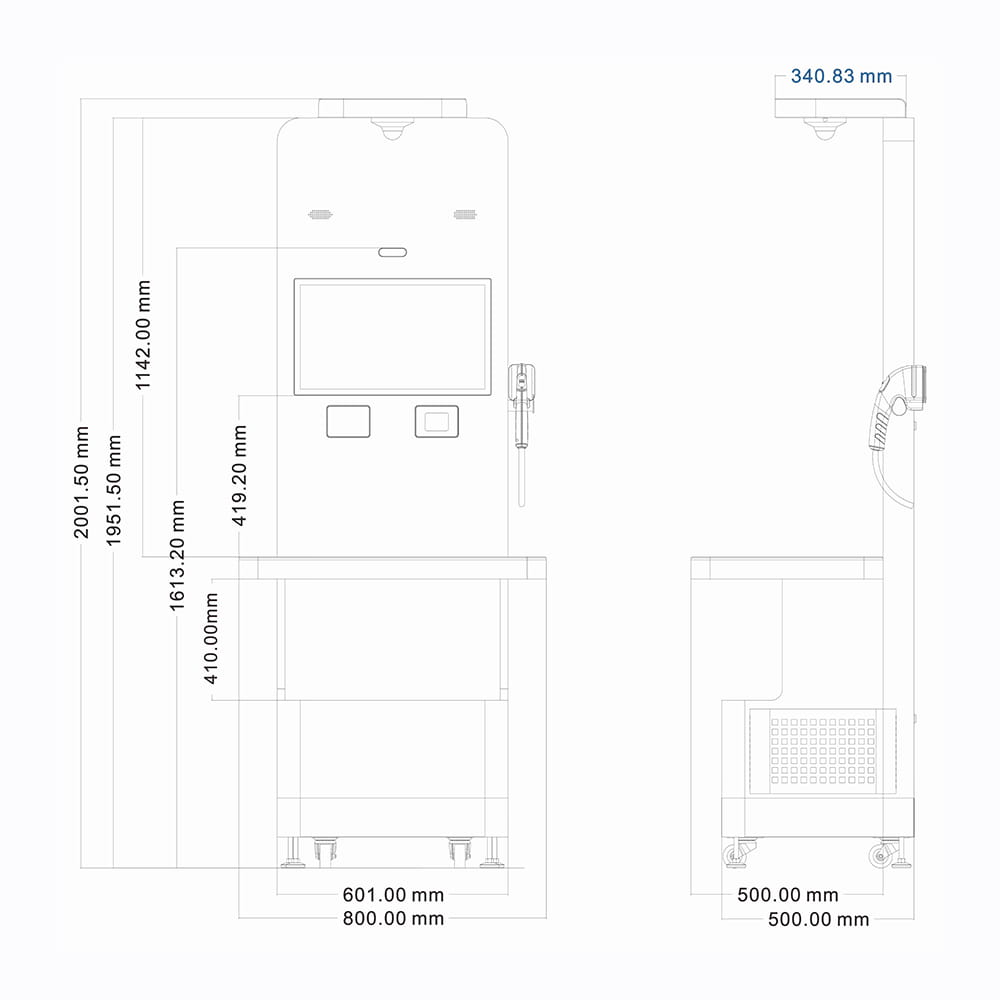

Dimensions2001×800×500mm
Operating SystemWindows /Android
Touchscreen21.5″ Capacitive (1920×1080)
ControllerIntel i5 4G+128G / RK3399 4G+16G
Fixed/mobile modeBottom foot cup/caster
Weight50KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)；13.56MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
Read Range5-50cm Adjustable
Batch Processing100 tags/min
ConnectivityGigabit Ethernet + USB 3.0
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
Network Interface10M/100M Adaptive
Power150W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

Vertical RFID Workstation Tool Management FAQs

How does CK-DP12 prevent tool misplacement during batch checkouts?

Precision Control:

RFID Spatial Mapping
Deploys 8 directional antennas to create 3D tool positioning within 0.5m³ cabinet space, reducing misplacement by 92% compared to traditional systems.
Weight Verification
Integrated load cells cross-verify tool weight (±10g accuracy) with RFID data to ensure physical presence matches digital records.

What cybersecurity protocols protect tool usage data?

Data Protection:

256-bit EPC Encryption
Implements NIST-certified encryption for all RFID tag data transmissions, compliant with ISO 27001 standards.
Biometric Audit Trail
Facial recognition logs associate each tool transaction with operator biometrics, creating immutable maintenance records.

How to maintain RFID performance in metallic environments?

RF Optimization:

Adaptive Tuning Technology
Auto-adjusts RF power (0.5-4W) based on real-time cabinet metal interference levels detected by built-in VSWR sensors.
Ferromagnetic Isolation
Tool trays feature RF-transparent composite materials with 35dB shielding attenuation for stable tag reads.
