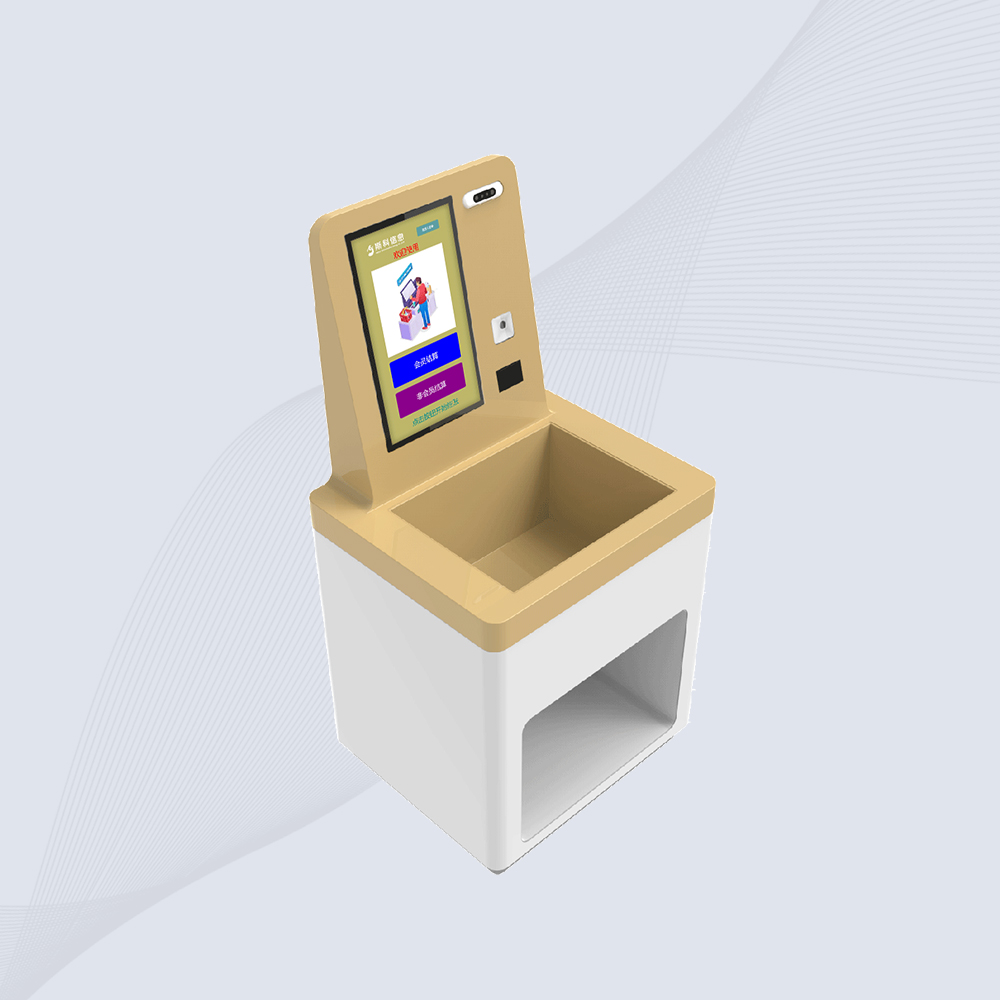

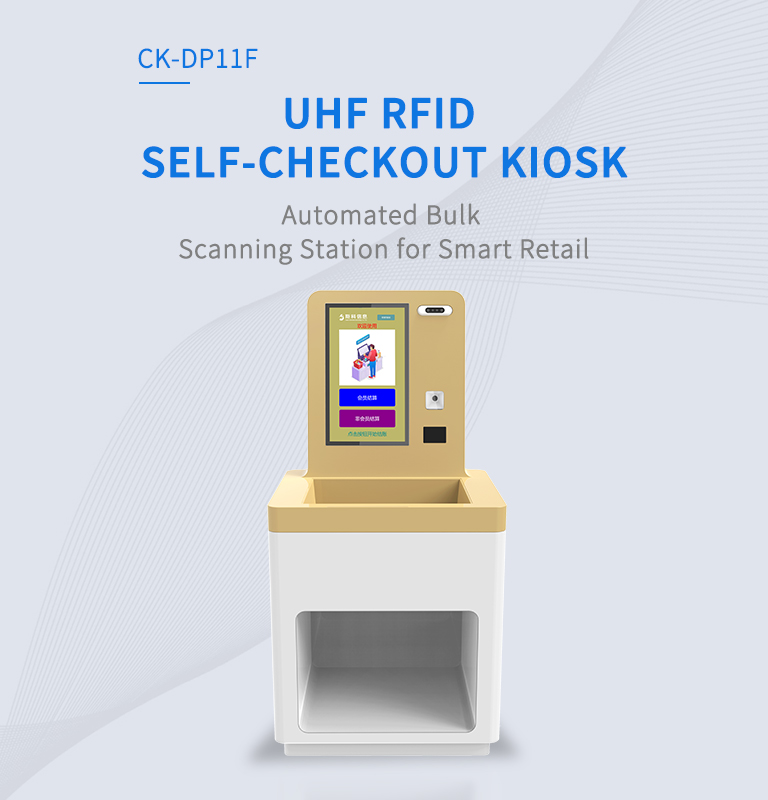

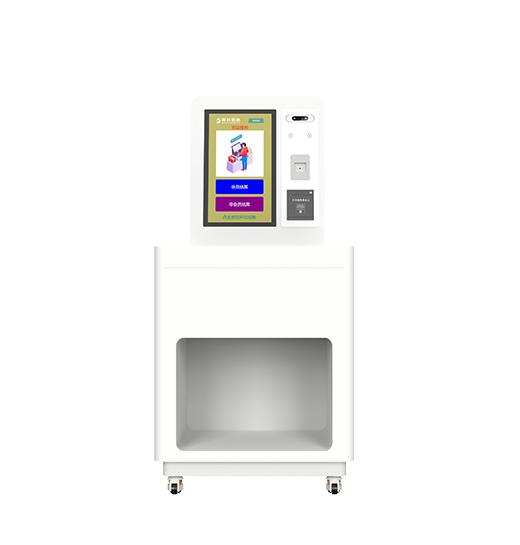

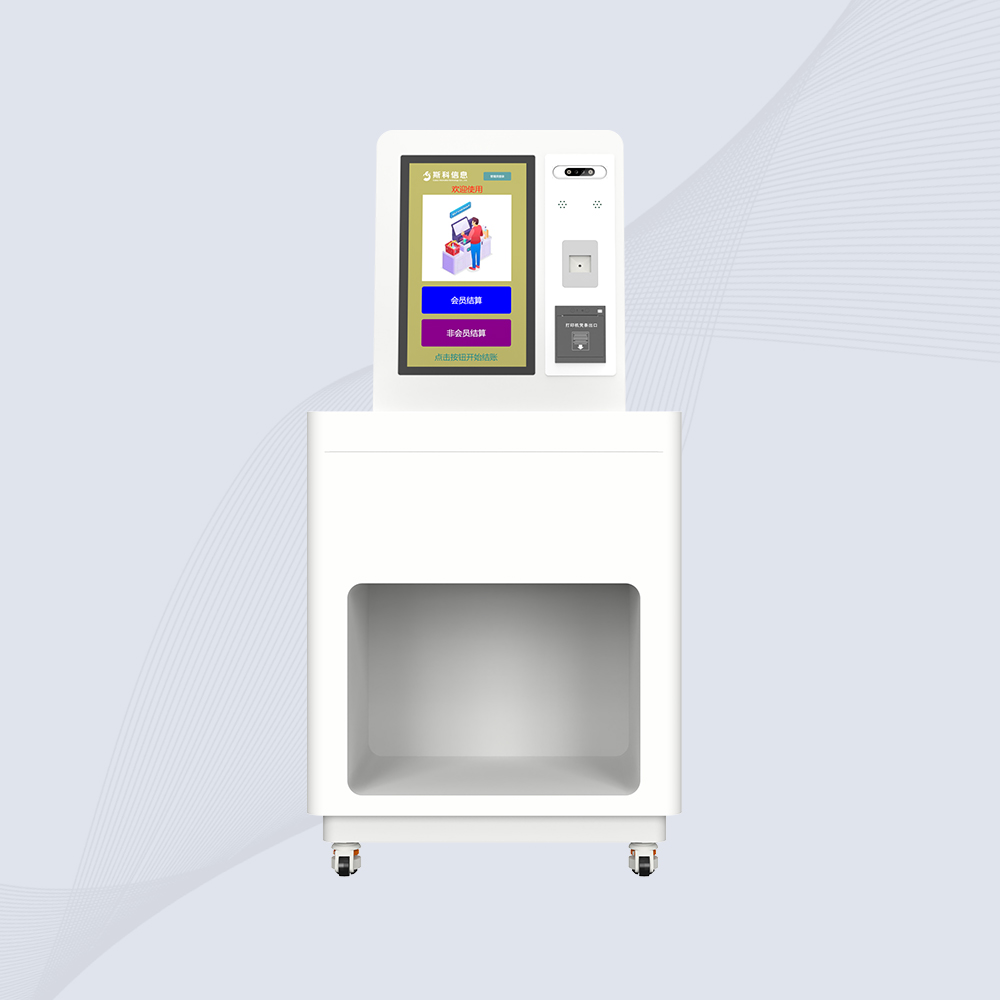

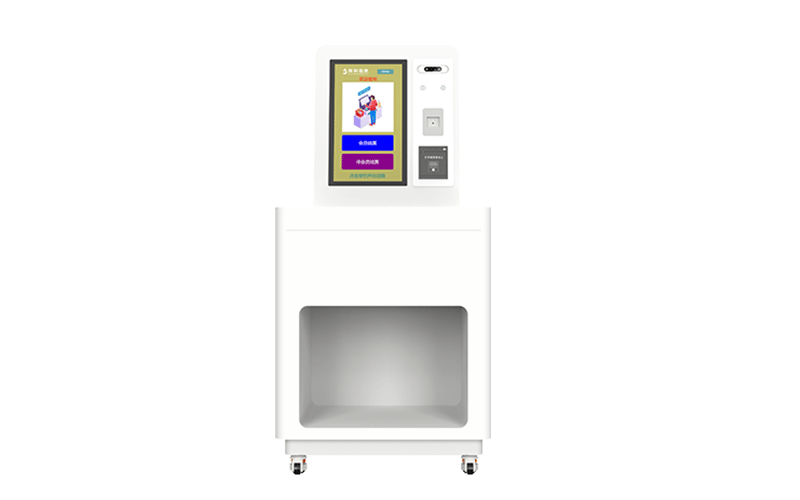

CK-DP11F

RFID Payment Kiosk

Autonomous Checkout Solution with Instant RFID Transaction

✔️ Integrated Anti-Theft Tag Rewriting

✔️ 10+ Items Batch RFID Payment in 3 Sec

✔️ Windows/Android Dual OS Compatibility

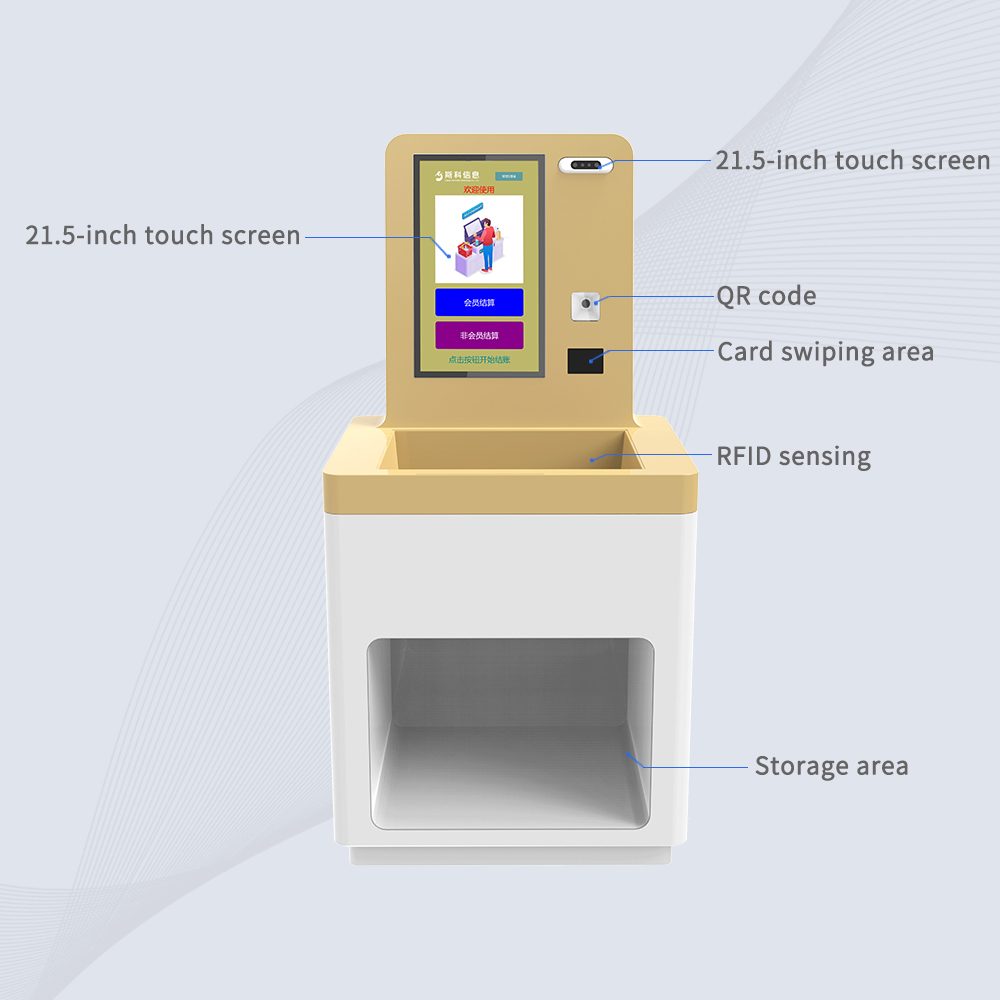

✔️ Retail-Grade 21.5″ Touch Payment Interface

Talk to an Expert

Email Our Team

ONE TOUCH, ALL PAID

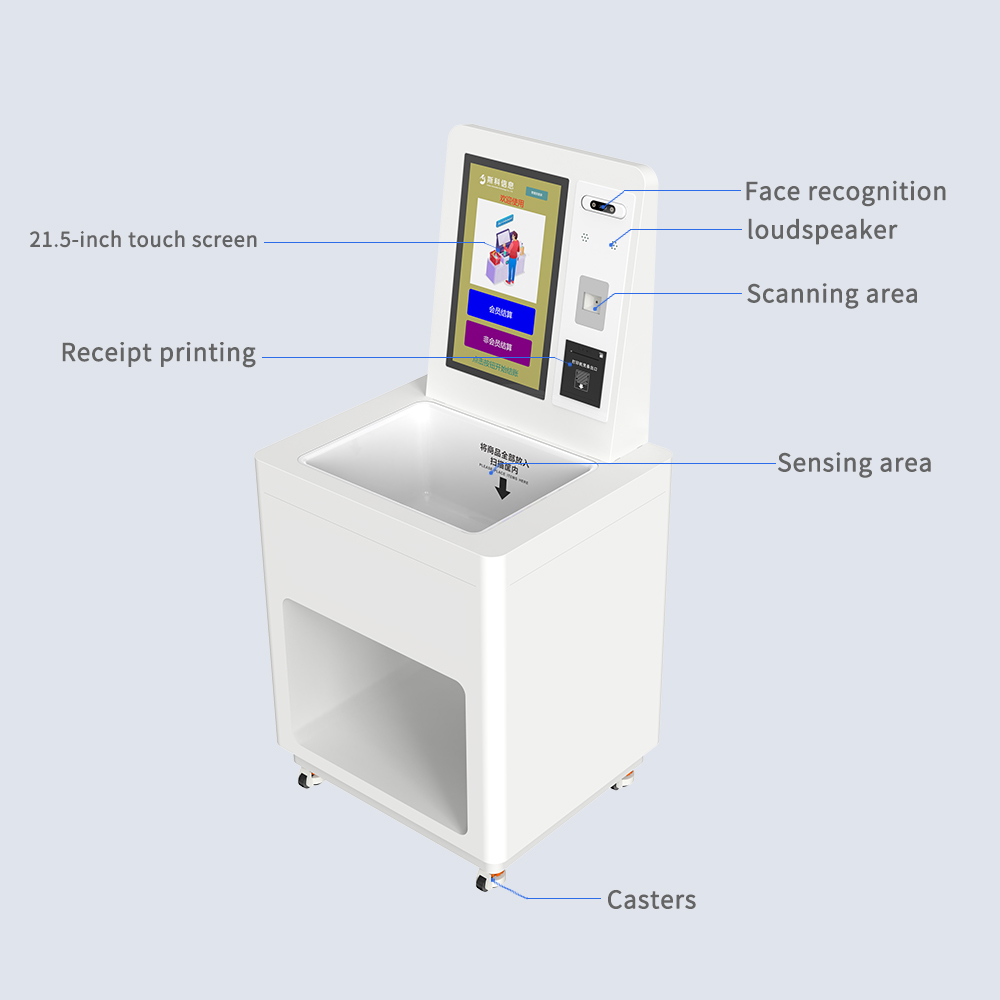

The CK-DP11F RFID Payment Kiosk revolutionizes retail transactions with UHF RFID bulk scanning and instant payment processing. Designed for unmanned stores, it simultaneously reads 10+ tagged items, updates POS data, and modifies RFID security bits through its 21.5″ HD touchscreen interface. Supports dual-mode operation with optional QR code/face recognition payment modules.

Essential for cashier-less retail environments: Ideal for RFID-enabled apparel stores, RFID self-checkout supermarkets, and smart convenience stores requiring instant payment confirmation.

Clothing retail

Retail of pharmaceuticals

Unmanned supermarket self-service

Management of large supermarkets

Medical management

Factory Automation

Cykeo CK-DP11F RFID Payment Kiosk Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-DP11F RFID PAYMENT TERMINAL

10+ Item Batch Scanning

Impinj R2000-based UHF system achieves 98% first-pass read rate

Retail-Ready Touch Interface

21.5″ 1080p capacitive screen with multi-language POS interface

Dual OS Flexibility

Windows 10 IoT/Android 9.0 options for system integration

Biometric Expansion

Optional facial recognition module with 0.01% FAR False Acceptance Rate for secure staff login.

Real-Time Inventory Sync

Automatic stock updates via Ethernet/WiFi optional

Compact Footprint

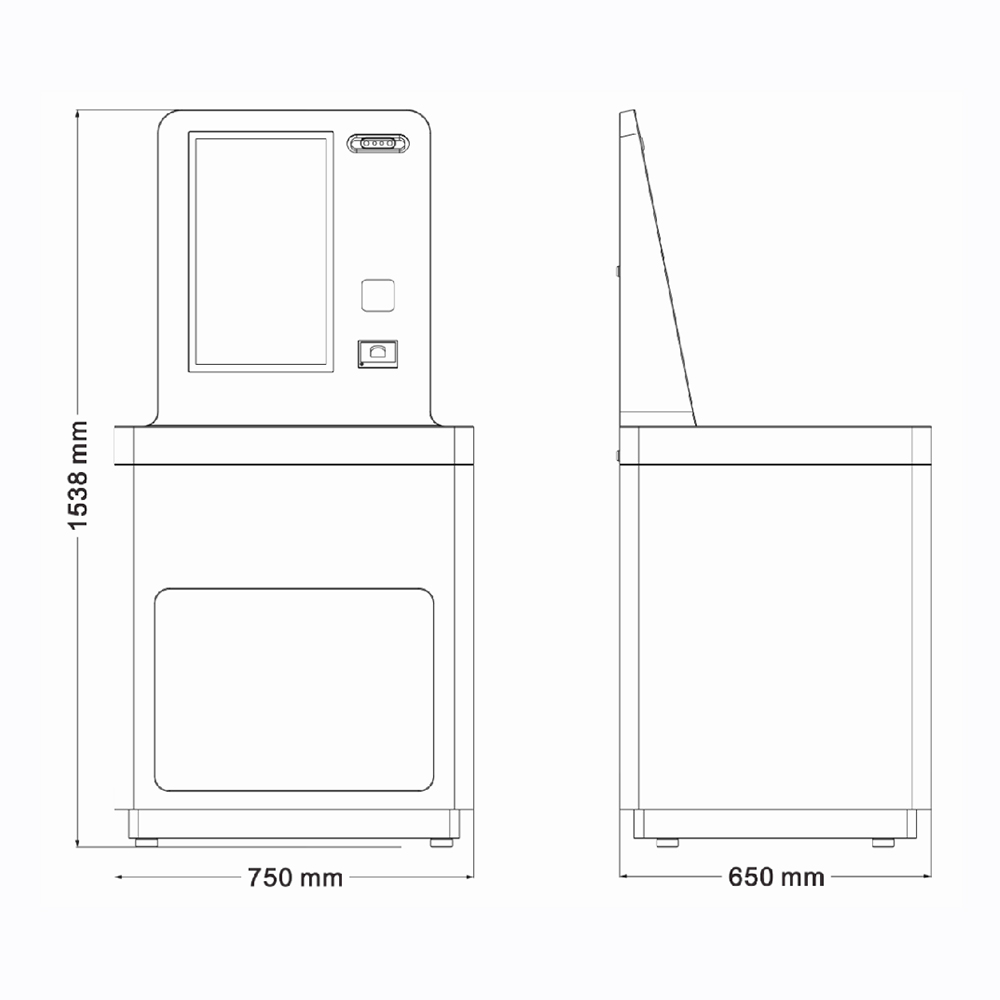

Space-saving 1538mm height design with mobility casters

Payment Terminal Ready

Supports API integration with Alipay/WeChat Pay/Stripe

Energy Efficiency

50W low-power design with 90% energy recovery during idle periods.

Cykeo RFID Payment Kiosk Specifications

Main Specifications

BrandCykeo
ModelCK-DP11F
Product NameRFID Payment Kiosk

Physical Parameters

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Reading speed≥40
ConnectivityRS232, WiFi
PowerDC12V/50W

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID PAYMENT KIOSK FAQS

How Does the RFID Payment Kiosk Ensure Secure Transactions During High-Volume Batch Scanning?

Technical Safeguards:

Multi-Layer Tag Authentication: Verifies both EPC (Electronic Product Code) and TID (Tag Identifier) simultaneously to prevent counterfeit tag spoofing, critical for high-value retail environments.
Dynamic Encryption: Employs ISO 18000-6C compliant AES-128 encryption during payment processing, updating tag security bits in real-time post-transaction.
Collision Avoidance Algorithm: Processes up to 10 items/sec within the 0.75m² scanning zone using Time Division Multiple Access (TDMA) technology, isolating each tag’s signal to avoid misreads.
Audit Trail: Generates encrypted logs (PCI PTS 5.x certified) with timestamps, transaction IDs, and tag metadata for dispute resolution.

Can the Kiosk Integrate with Existing Retail POS Systems for RFID Payment Reconciliation?

Technical Edge:

Simultaneous NFC/RFID/QR code recognition
Multi-wallet integration: AliPay/WeChat/PayPal
Automatic currency conversion for global retail
Offline payment caching (72hr transaction memory)

What Maintenance Required for RFID Payment Systems?

Maintenance Protocol:

Self-diagnosis: Daily hardware check at startup
Auto-cleaning cycle for RFID antenna array
Over-the-air firmware updates (Wifi/4G optional)
Dust-proof IP54 rating for 24/7 operation
