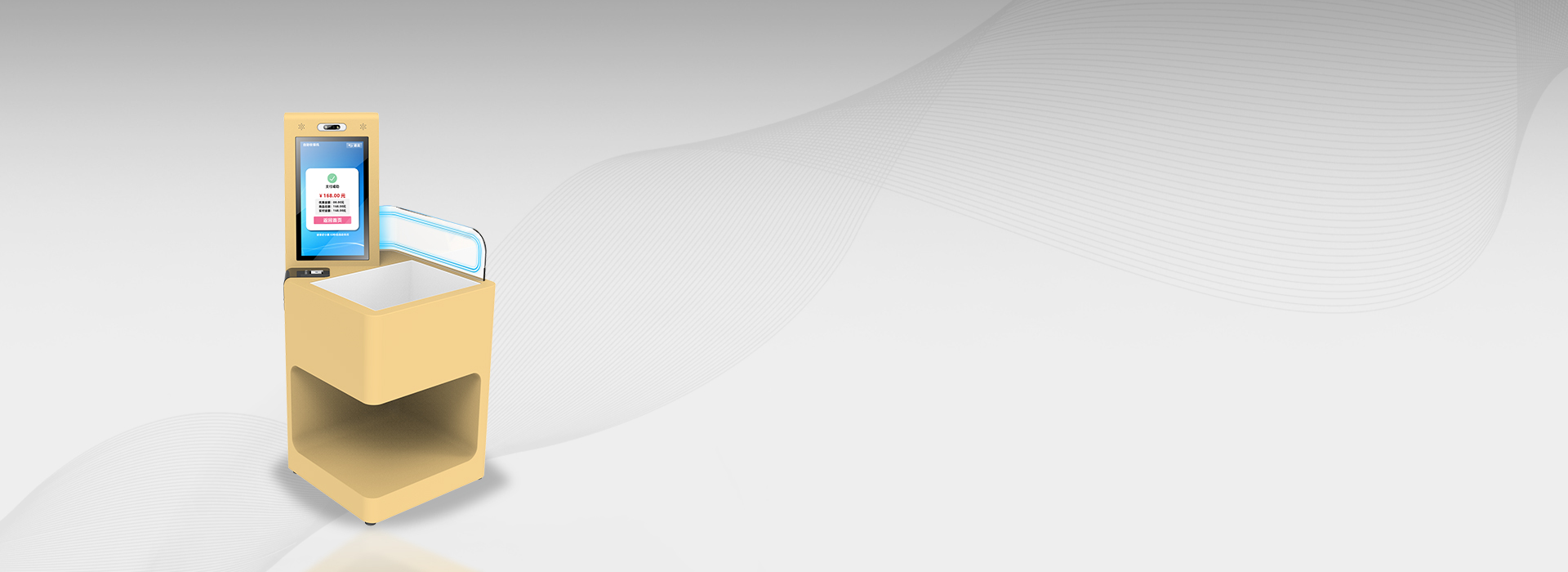

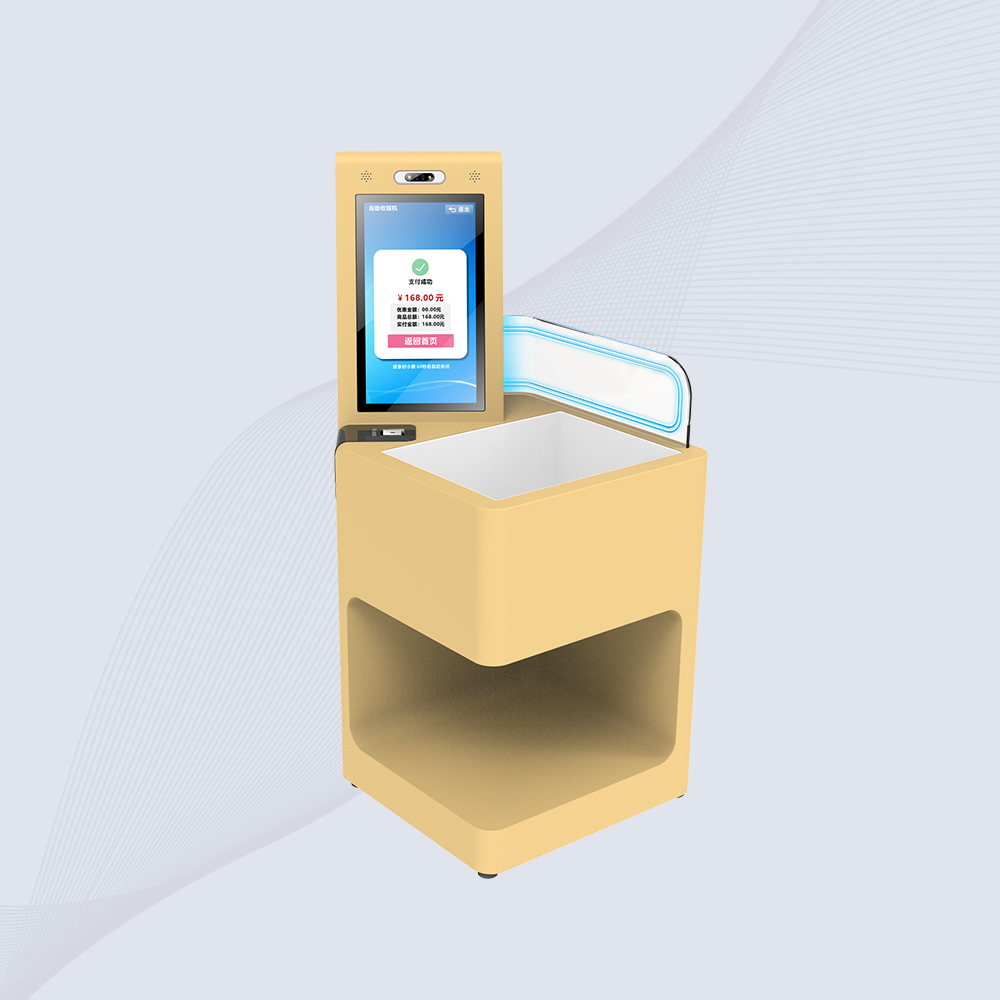

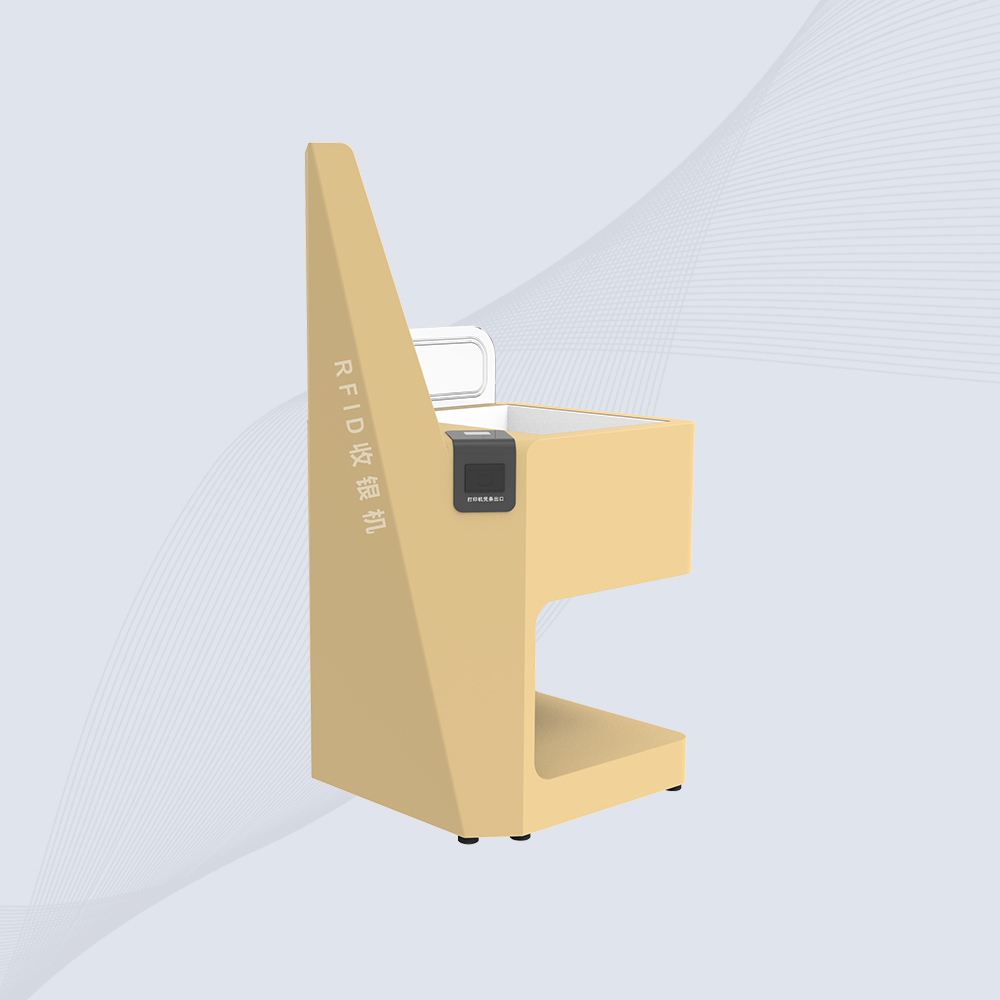

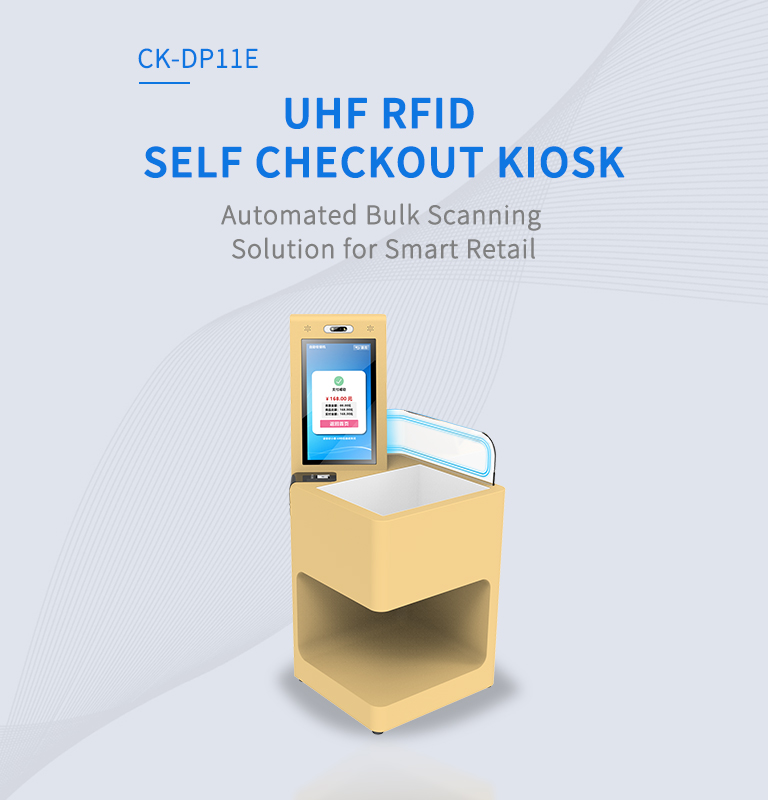

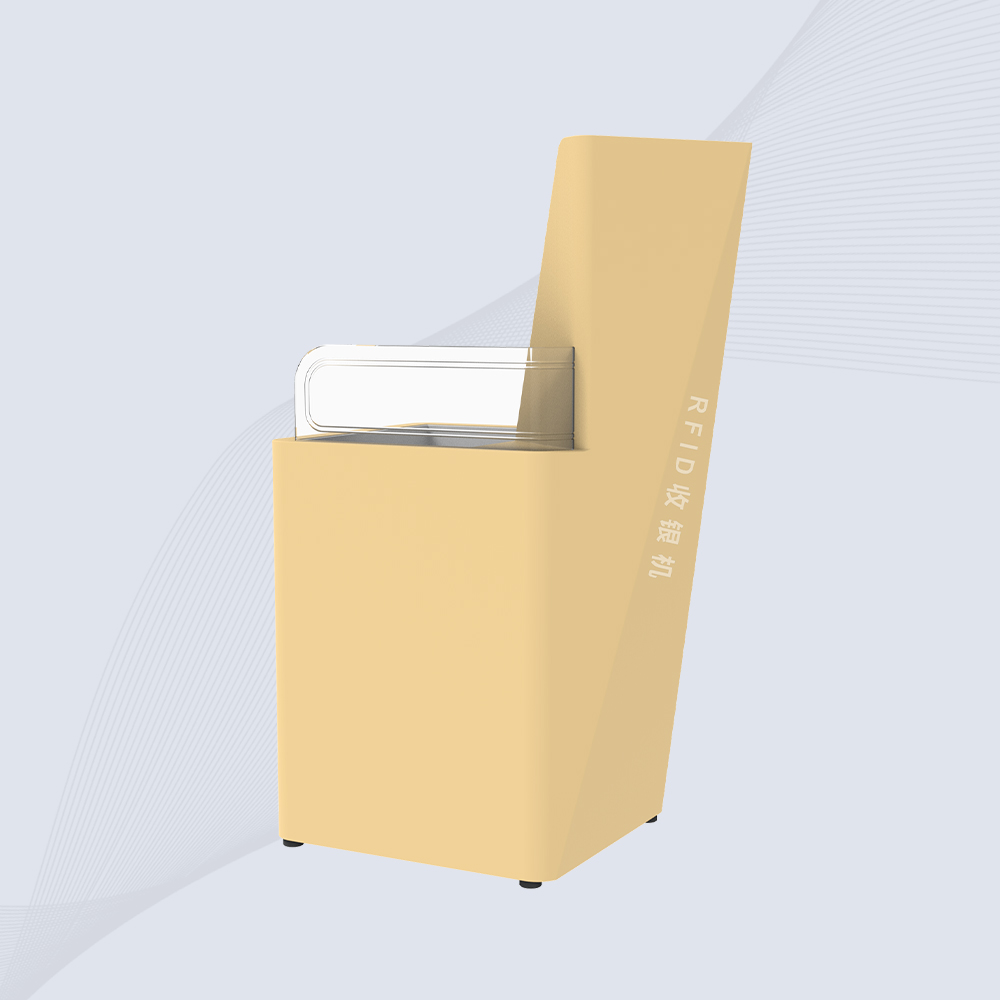

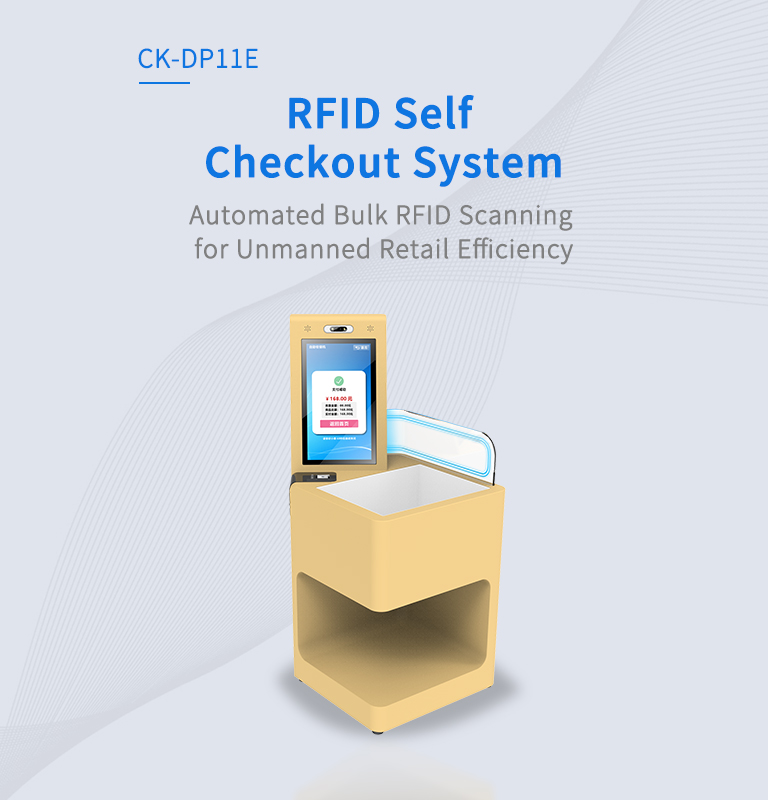

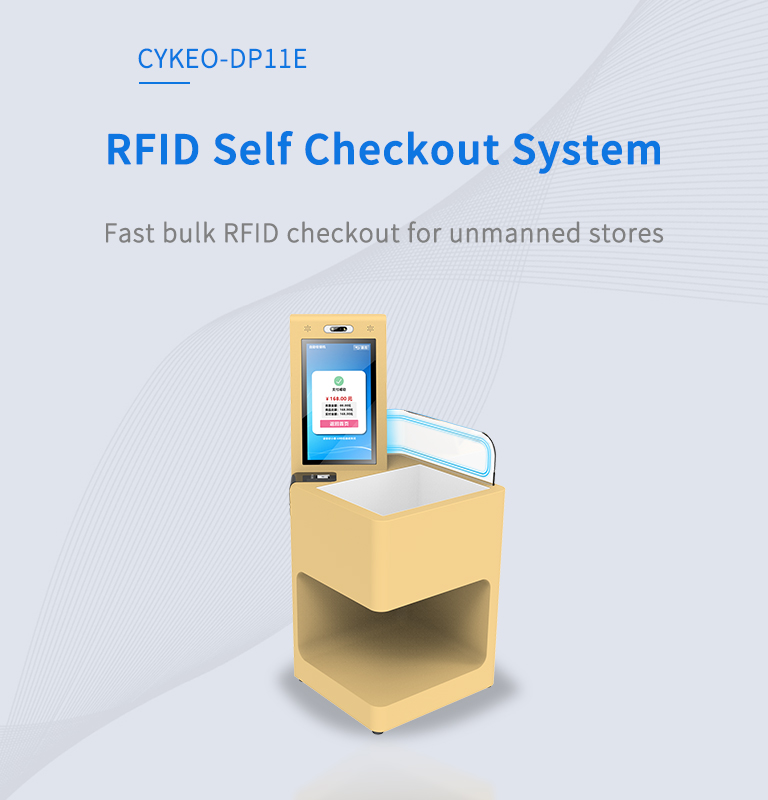

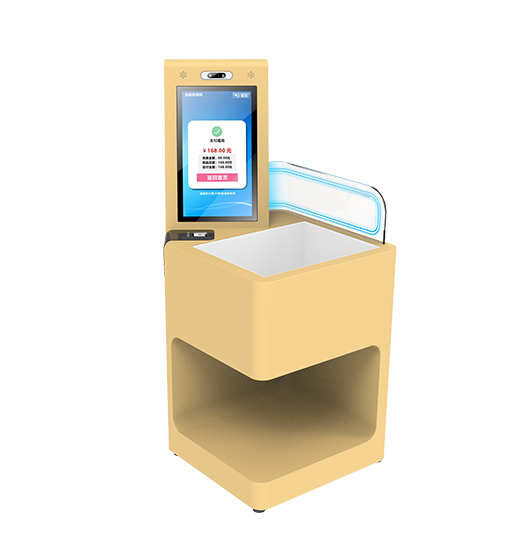

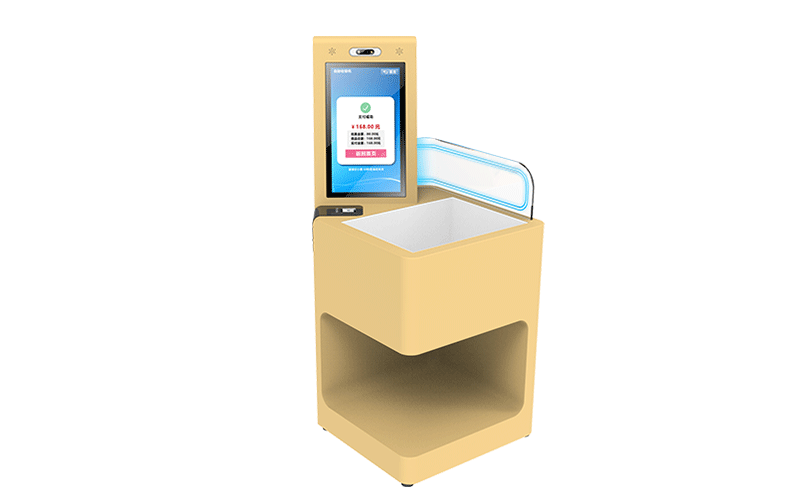

CK-DP11E

RFID Self Checkout System

Automated Bulk RFID Scanning for Unmanned Retail Efficiency

✔️ 10+ Items/Second Batch RFID Scanning

✔️ 21.5″ HD Touchscreen with Payment Integration

✔️ All-in-One Design for Retail Space Optimization

Talk to an Expert

Email Our Team

SWIFT SCANS, SEAMLESS SALES

The CK-DP11E RFID Self Checkout System revolutionizes unmanned retail with bulk RFID scanning, payment processing, and anti-theft tag deactivation. Its 21.5″ touchscreen guides users through seamless transactions while syncing real-time sales data via Ethernet. Designed for high-traffic environments like smart supermarkets and apparel stores, it combines UHF RFID accuracy (ISO 18000-6C) with Windows/Android flexibility to streamline operations.

Ideal for self-service retail: From unmanned convenience stores processing mixed baskets to fashion outlets verifying tagged garments at checkout.

Parts management

Production line material

Management of large supermarkets

Clothing retail

Medical management

Unmanned supermarket self-service

Cykeo CK-DP11E RFID Self Checkout System Specification

Download

Online Procurement

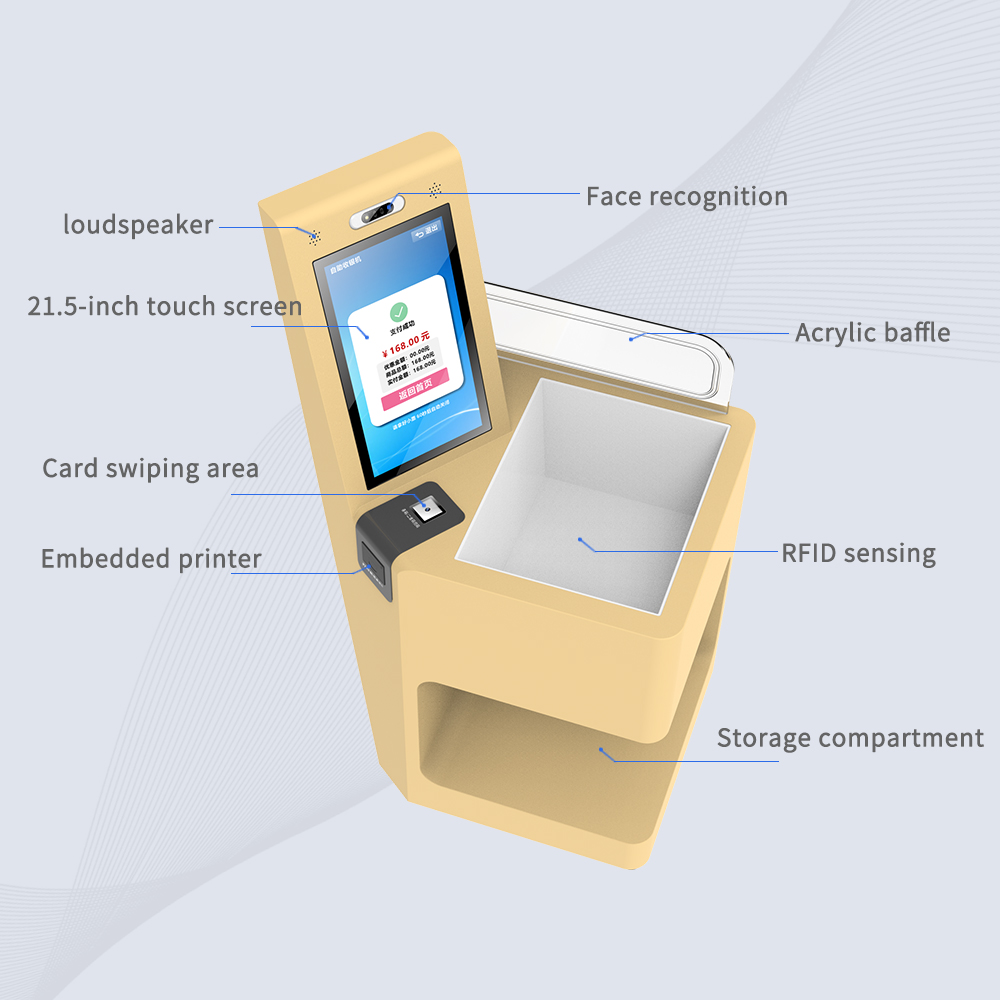

KEY FEATURES OF CYKEO CK-DP11E RFID SELF CHECKOUT SYSTEM

10-Item Bulk Scanning

Advanced Impinj R420 solution achieves 98.7% read accuracy

Dual OS Compatibility

Windows 10 IoT/Android 11 with retail SDK

Anti-Theft Tag Rewriting

EPC C1G2 tag security bit modification in <0.5s

Multi-Payment Ready

Supports WeChat/Alipay/Contactless Cards/QR

Retail-Grade Touchscreen

21.5-point capacitive touch with anti-smudge coating

Real-Time Inventory Sync

REST API integration with major POS systems

Thermal Receipt Printer

Integrated 80mm high-speed printer

Expandable IoT Hub

RS232/USB/GPIO for scale/camera integration

Cykeo CK-DP11E RFID Self Checkout System Specifications

Main Specifications

BrandCykeo
ModelCK-DP11E
Product NameRFID Self Checkout System

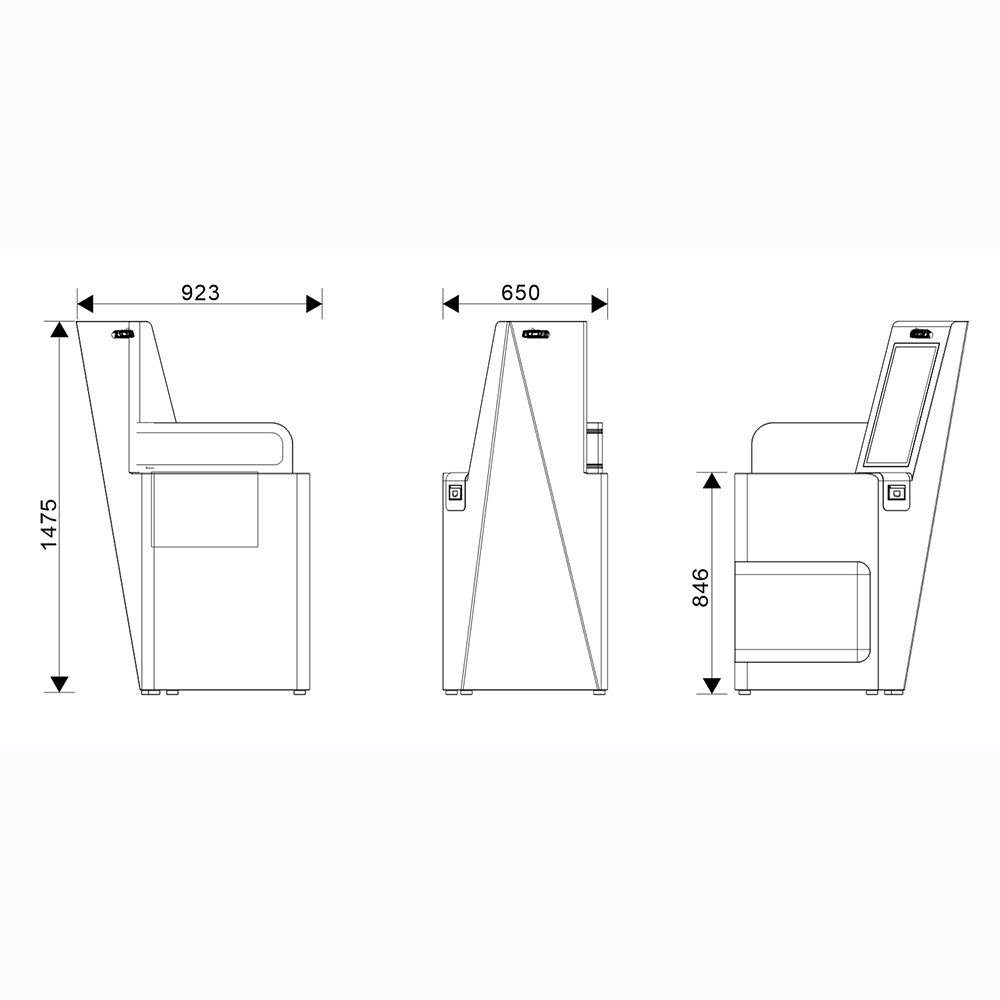

Physical Parameters

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Reading speed≥40
ConnectivityRS232, WiFi
PowerDC12V/50W

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID Self Checkout System FAQS

How Does the CK-DP11E Prevent Theft and Ensure Payment Security During RFID Transactions?

The CK-DP11E RFID Self Checkout System integrates multi-layered security protocols to safeguard transactions in unmanned retail environments:

Encrypted Tag Rewriting: Automatically modifies RFID tags’ security bits post-payment using AES-256 encryption, rendering stolen items detectable by anti-theft gates (e.g., Checkpoint Sensormatic).
Real-Time Surveillance: Built-in 1080p cameras with AI analytics flag suspicious behaviors like item swapping or partial basket scans, triggering instant alerts to staff devices.
Payment Tokenization: Credit card/PayPal transactions are processed via PCI-DSS certified gateways, isolating sensitive data from the main network.
Case Study: A Munich electronics retailer reduced shrinkage by 63% while processing €1.2M monthly sales through 12 CK-DP11E units.

Can This System Support Multi-Language Interfaces for Global Retail Chains?

Designed for international deployment, the CK-DP11E delivers localized retail experiences:

Dynamic Language Switching: Pre-loaded with 12 languages (English, Mandarin, Spanish, etc.), automatically detected via geolocation or manual selection.
Currency Conversion: Displays real-time pricing in 30+ currencies (USD, EUR, JPY) using daily Forex API updates, with rounding rules compliant with EU Payment Services Directive.
Cultural Customization: Adjusts UI layouts for right-to-left languages (Arabic/Hebrew) and regional payment preferences (e.g., Alipay in China, Paytm in India).
Implementation: A Dubai airport duty-free store serves 90 nationalities daily with 99.8% transaction success rates.

How Does the CK-DP11E Optimize Energy Usage for 24/7 Operation?

The CK-DP11E employs smart energy management to reduce operational costs:

Adaptive Power Modes:
- Peak Hours: Full-power RFID scanning (30dBm) during busy periods.
- Off-Peak: Switches to 15dBm low-energy mode, cutting power consumption by 40%.
Solar-Ready Design: Optional 200W solar panel integration sustains operations during grid outages, validated in off-grid Australian mining town stores.
Component Sleep Scheduling: Non-critical modules (receipt printers, cameras) enter standby after 3 minutes of inactivity.
Energy Metrics Dashboard: Tracks kWh usage per transaction, helping retailers meet ESG goals (e.g., 0.02kWh per scan average).

Durability Test: A Tokyo 7-Eleven franchise achieved 30% lower energy bills while maintaining 99.5% uptime over 12 months.
