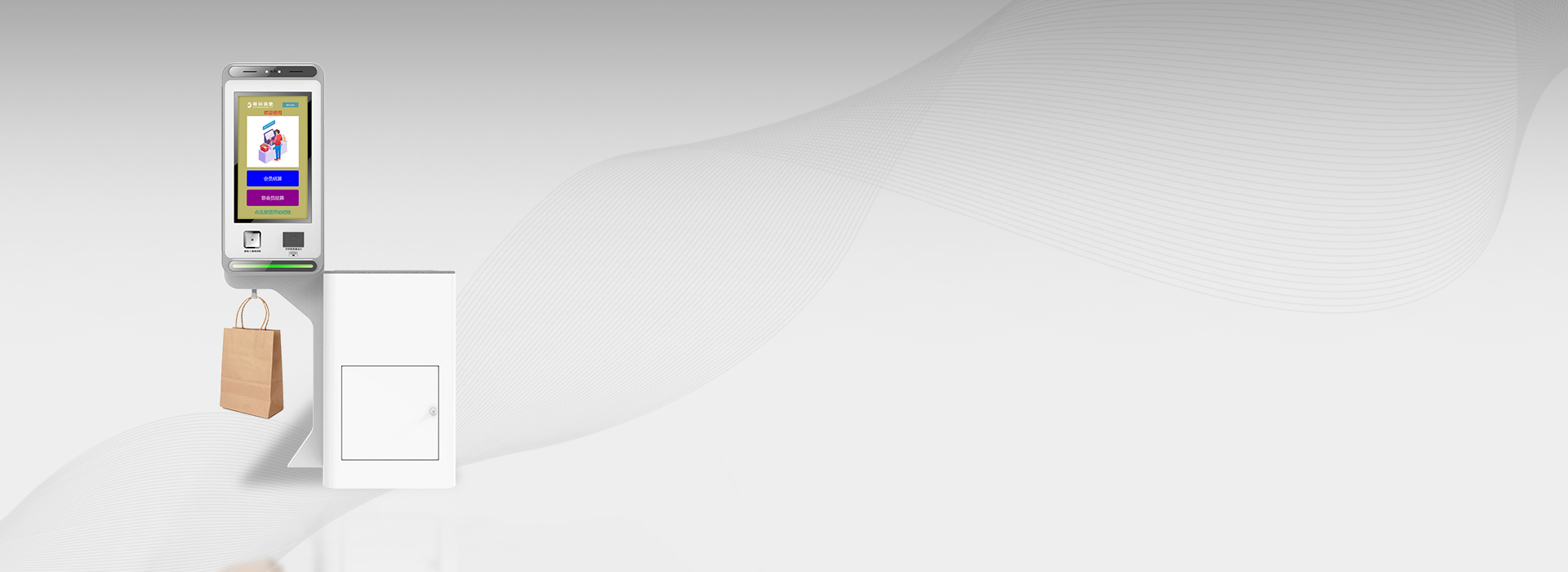

✔️ 10+ Items/Second Bulk RFID Scanning​

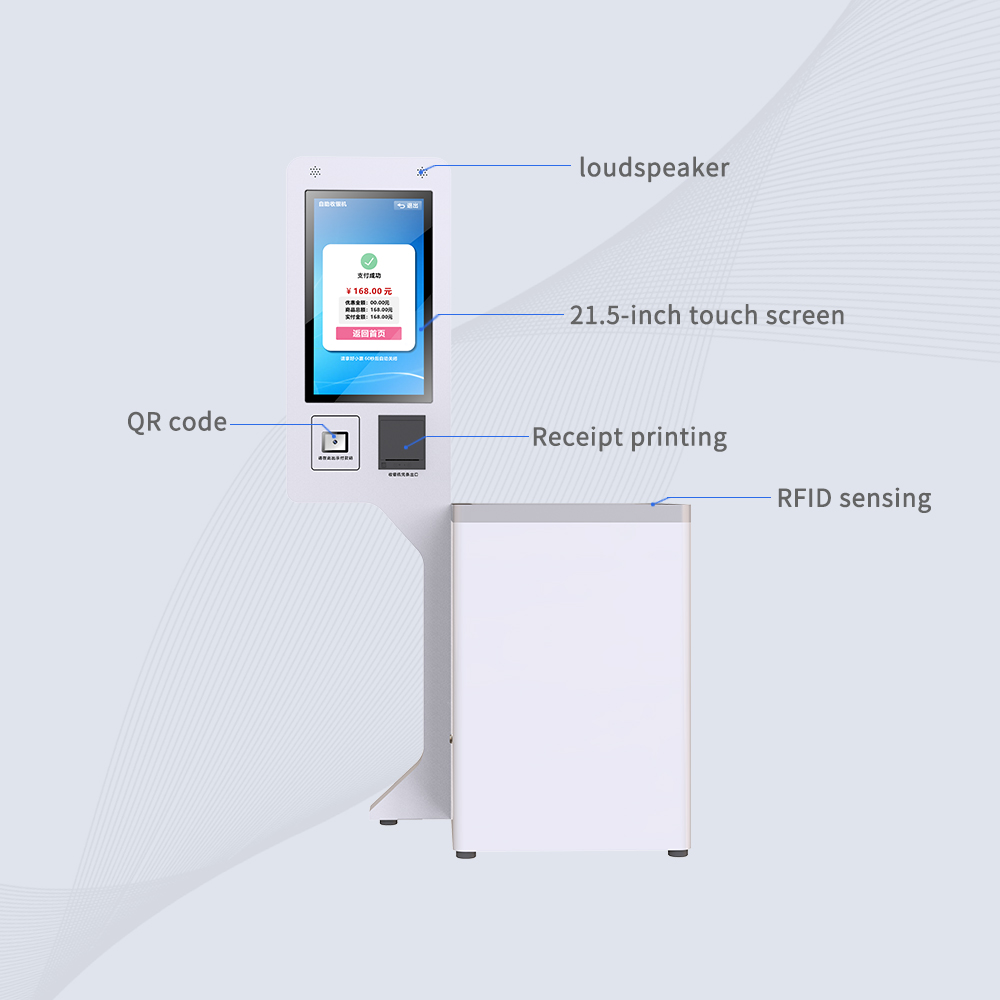

✔️ ​​21.5″ HD Touchscreen with Payment Integration​

✔️ Compact Anti-Theft Design for Space Efficiency​

Email Our Team
GXFBC
RFG 1
RFG 1
RF
ETFG
YFH 1
DYTTH

​Ad Slogan: SCAN FASTER, CHECKOUT SMARTER​

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

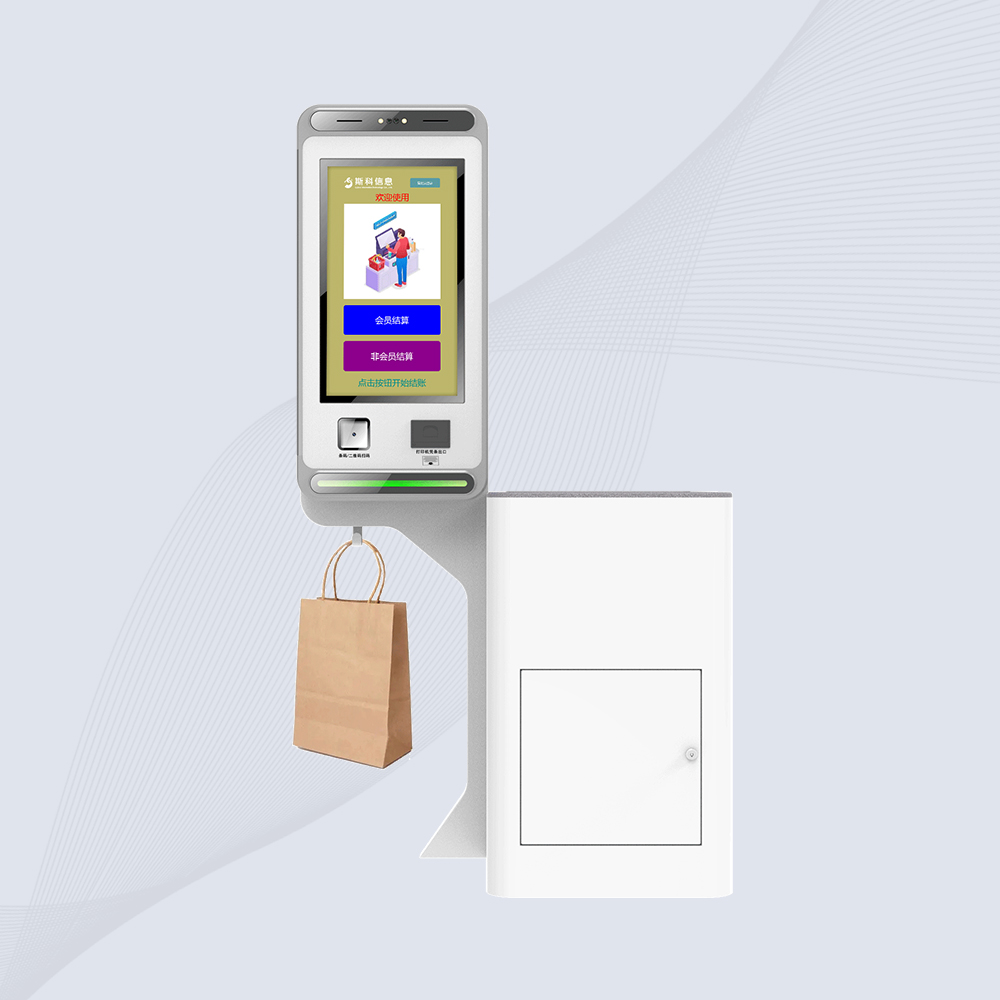

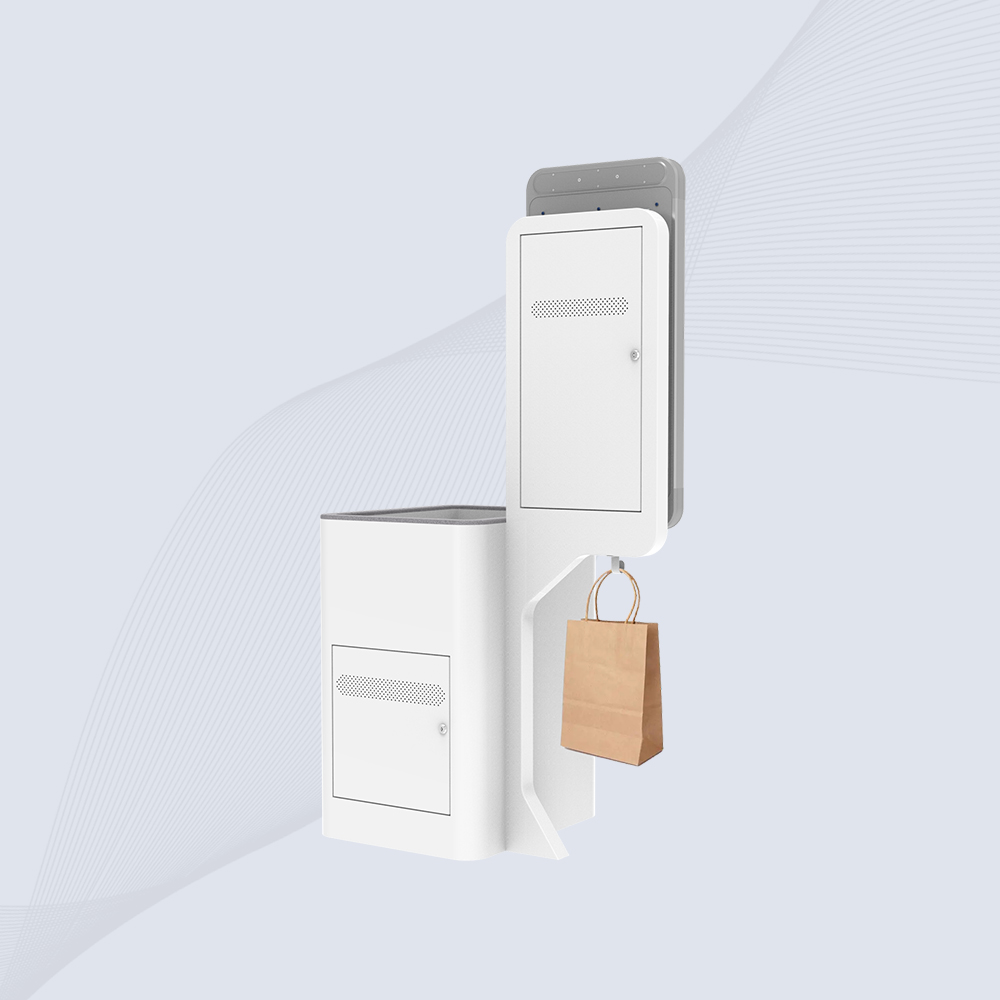

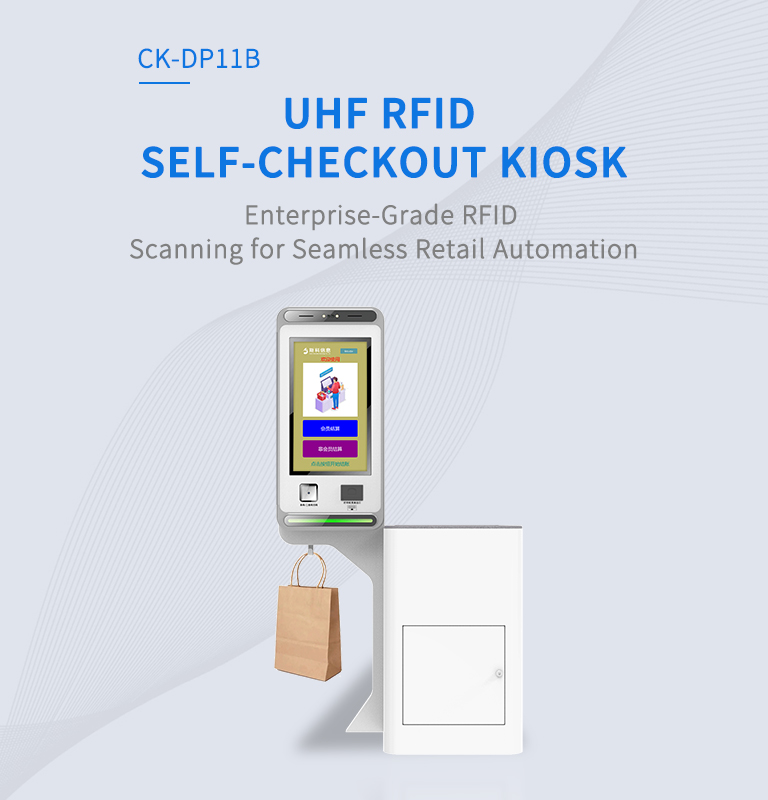

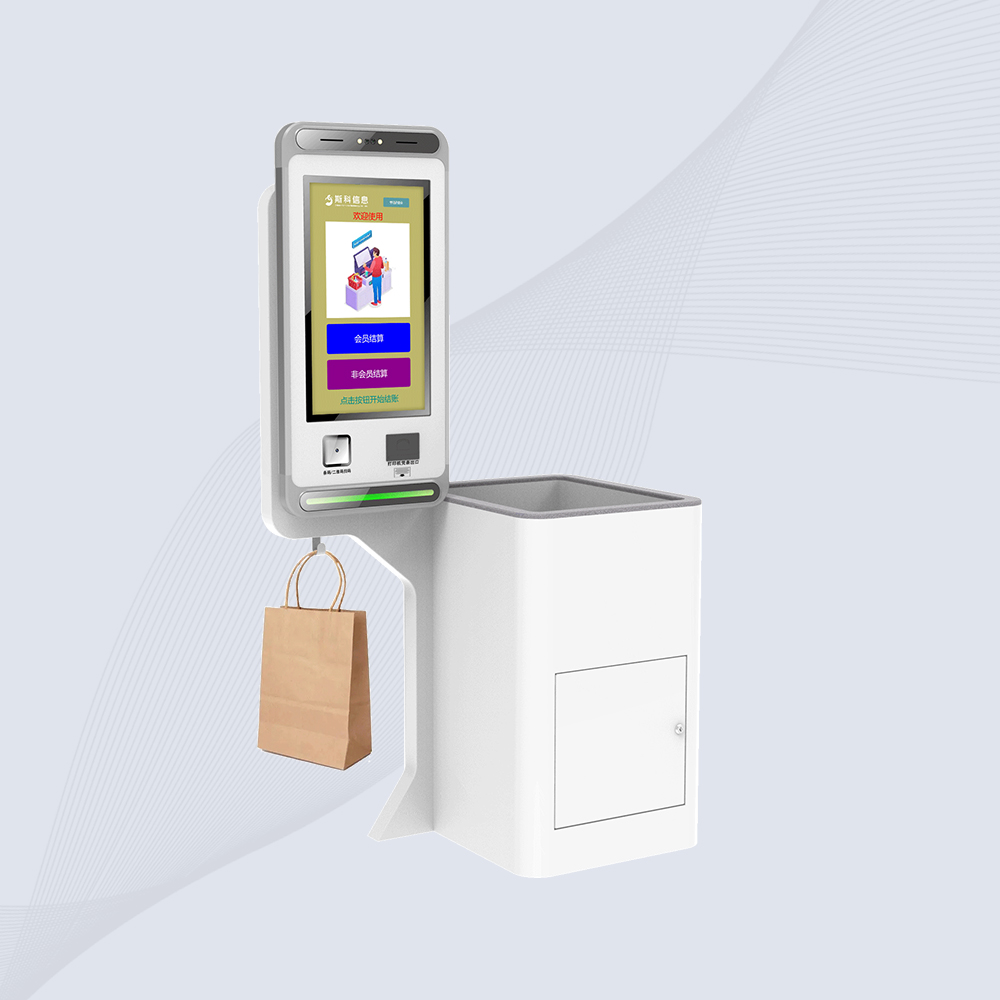

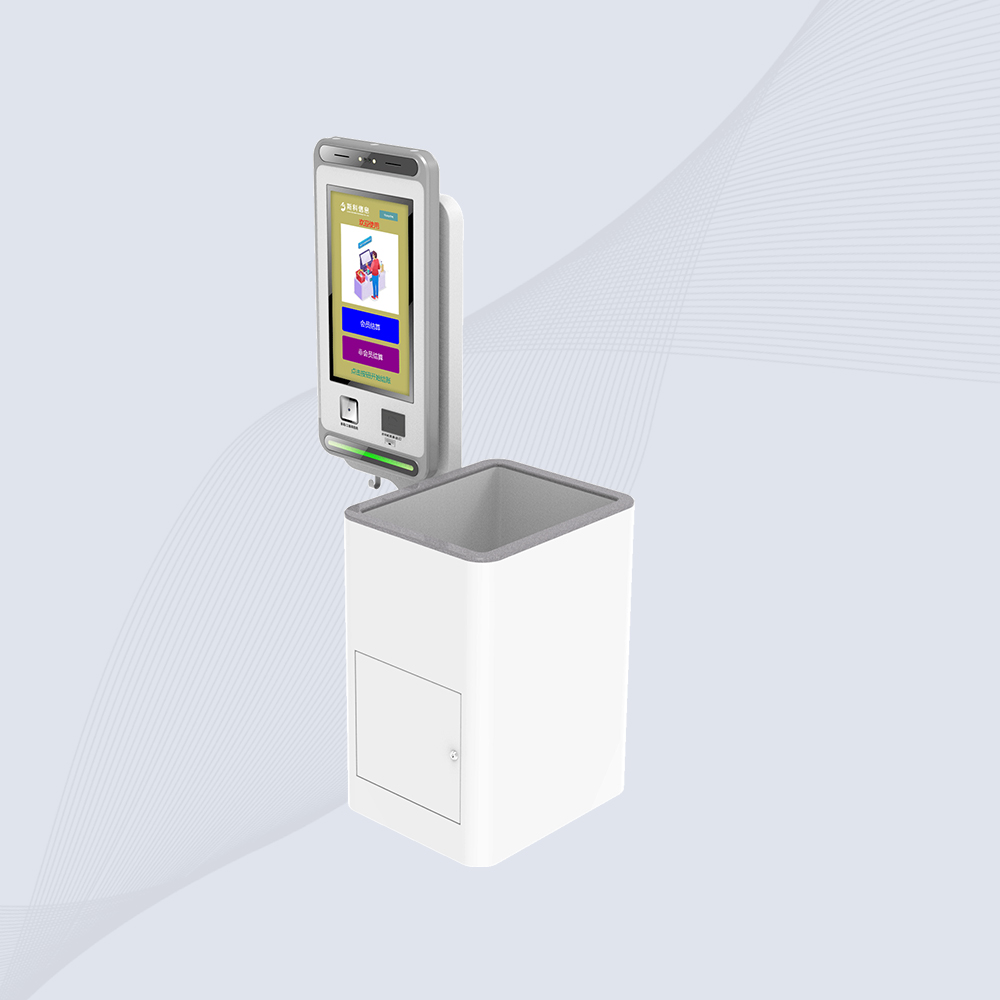

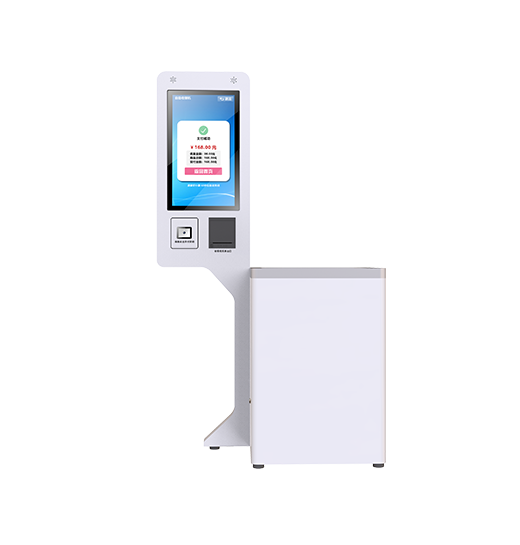

Cykeo CK-DP11B  UHF RFID Self Checkout Kiosk​ Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-DP11B
  • Product NameUHF RFID Self Checkout Kiosk​

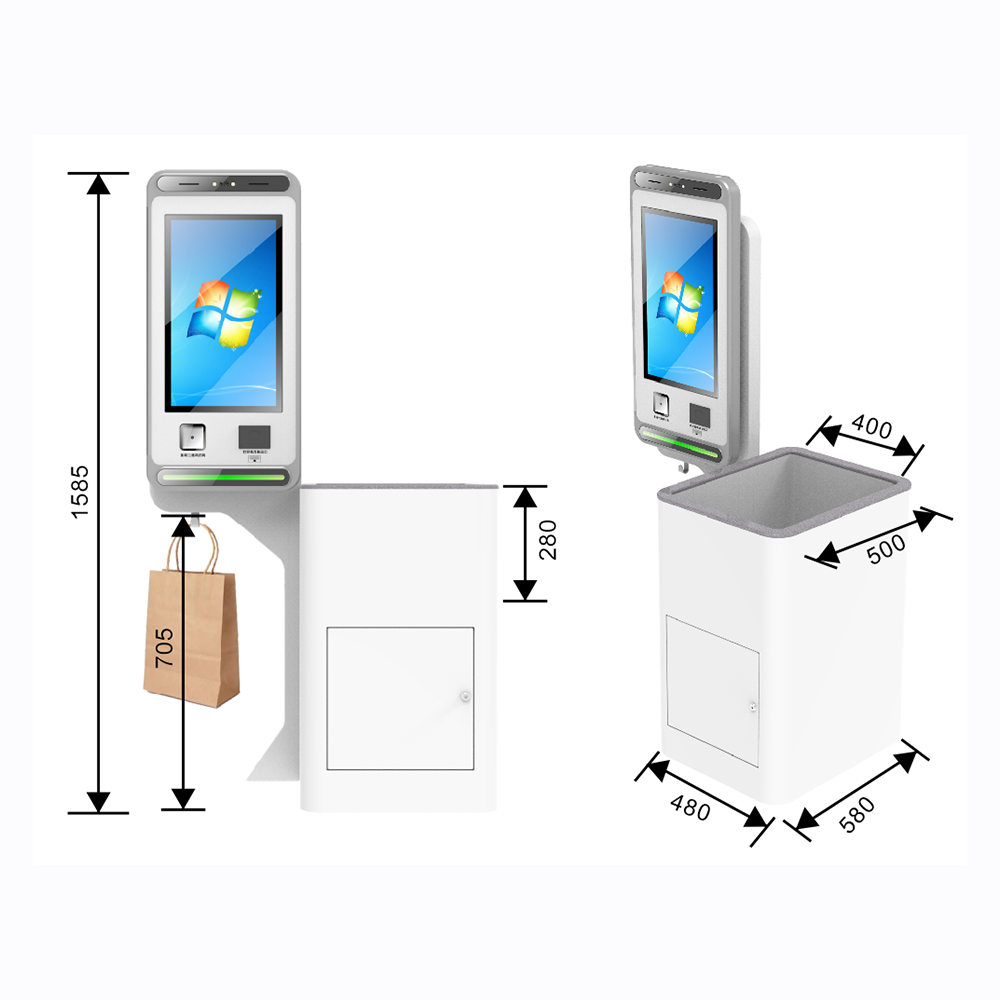

Physical Parameters

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840MHz~960MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c
  • Antenna modeCircular polarization
  • Antenna power0-33db
  • Read distance0-30cm
  • Reading speed≥40
  • ConnectivityRS232, WiFi
  • PowerDC12V/50W

Operating Environment

  • InputAC 220V ±10% 50/60Hz
  • Humidity≤90%
  • Operating Temp-20℃~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

CK-DP11B RFID Kiosk FAQs

How Does the CK-DP11B Handle Bulk Scanning of Irregularly Shaped Items?​

The CK-DP11B UHF RFID Self Checkout Kiosk uses ​​3D polarized antenna technology​​ to ensure accurate reads, even for non-uniform items like folded apparel or curved bottles. Here’s what sets it apart:

  • ​Adaptive Antenna Arrays​​: Six directional antennas adjust signal strength based on item placement, achieving ​​99.6% read accuracy​​ for crumpled tags in jeans pockets or metallic handbags.
  • ​Hybrid Scanning Modes​​: Combines RFID with weight sensors (optional) to validate item counts when tags are obscured – critical for dense retail environments like grocery stores.
  • ​Case Study​​: A Parisian fashion retailer reduced checkout time by 68% while processing 500+ daily transactions involving irregularly hung garments and accessories.
What Cybersecurity Measures Protect Consumer Data During Self Checkout?

The CK-DP11B prioritizes security through ​​end-to-end encryption​​ and compliance with global standards:

  • ​PCI-DSS Certification​​: Secures credit card transactions via tokenized payments, isolating sensitive data from the main transaction network.
  • ​Tamper-Proof Hardware​​: Anti-skimming Faraday cages around RFID antennas block unauthorized tag reads beyond the 15cm transaction zone.
  • ​Firmware Updates​​: Bi-weekly security patches are pushed via Cykeo’s OTAP cloud platform, addressing vulnerabilities like replay attacks or SQL injection.
  • ​Audit-Readiness​​: Automatically generates encrypted logs compliant with ISO 27001 and GDPR for European retailers.

​Implementation​​: A German electronics chain achieved ​​Zero data breaches​​ over 18 months using these safeguards.

Can the System Operate in Outdoor or Semi-Outdoor Retail Spaces?

Engineered for demanding environments, the CK-DP11B excels in open-air markets, mall atriums, and beachside shops:

  • ​Weather Resilience​​:
    • Functions flawlessly at ​​-15°C to 50°C​​ with an active thermal management system.
    • IP54-rated casing repels rain, sand, and humidity (85% RH tolerance).
  • ​Sunlight Readability​​: The 1000-nit touchscreen remains visible in direct sunlight, enhanced by ​​glove-friendly​​ and ​​wet-finger​​ touch modes.
  • ​Anti-Vandal Features​​:
    • 8mm tempered glass withstands impacts up to 50 joules (ASTM F1233-08 tested).
    • Tamper alerts notify staff if components are forcibly accessed.

​Durability Test​​: Deployed at a Dubai outdoor mall, units withstood 45°C heat and seasonal sandstorms without performance degradation.
