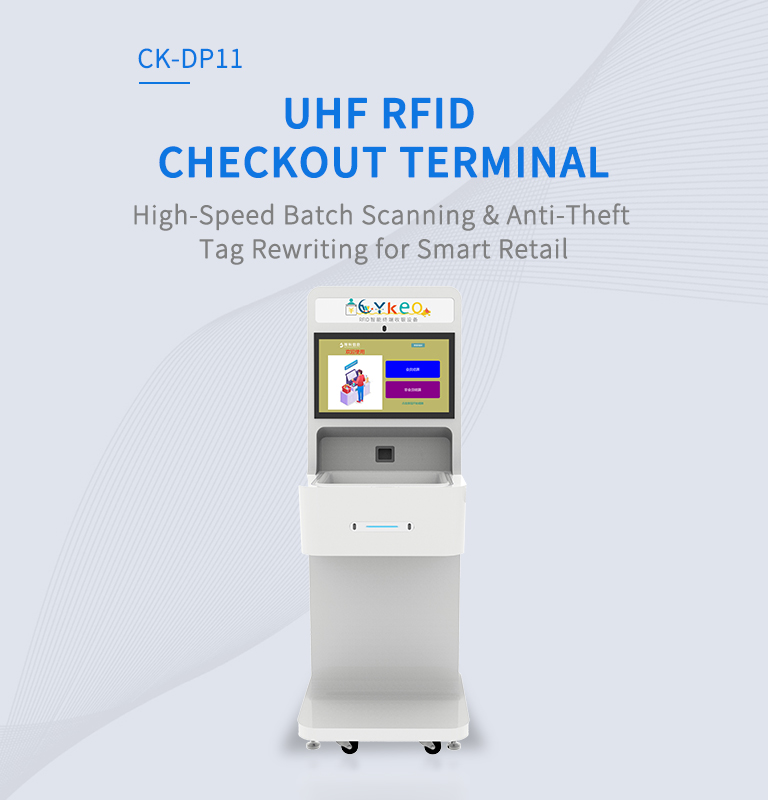

CK-DP11

UHF RFID Checkout Terminal

High-Speed Batch Scanning & Anti-Theft Tag Rewriting for Smart Retail

✔️ 5-Tag/Sec Bulk RFID Scanning

✔️ 21.5″ Dual-OS Payment Interface

✔️ Real-Time Inventory Sync via API

Talk to an Expert

Email Our Team

TOUCH TO CHECKOUT, SCAN TO SECURE

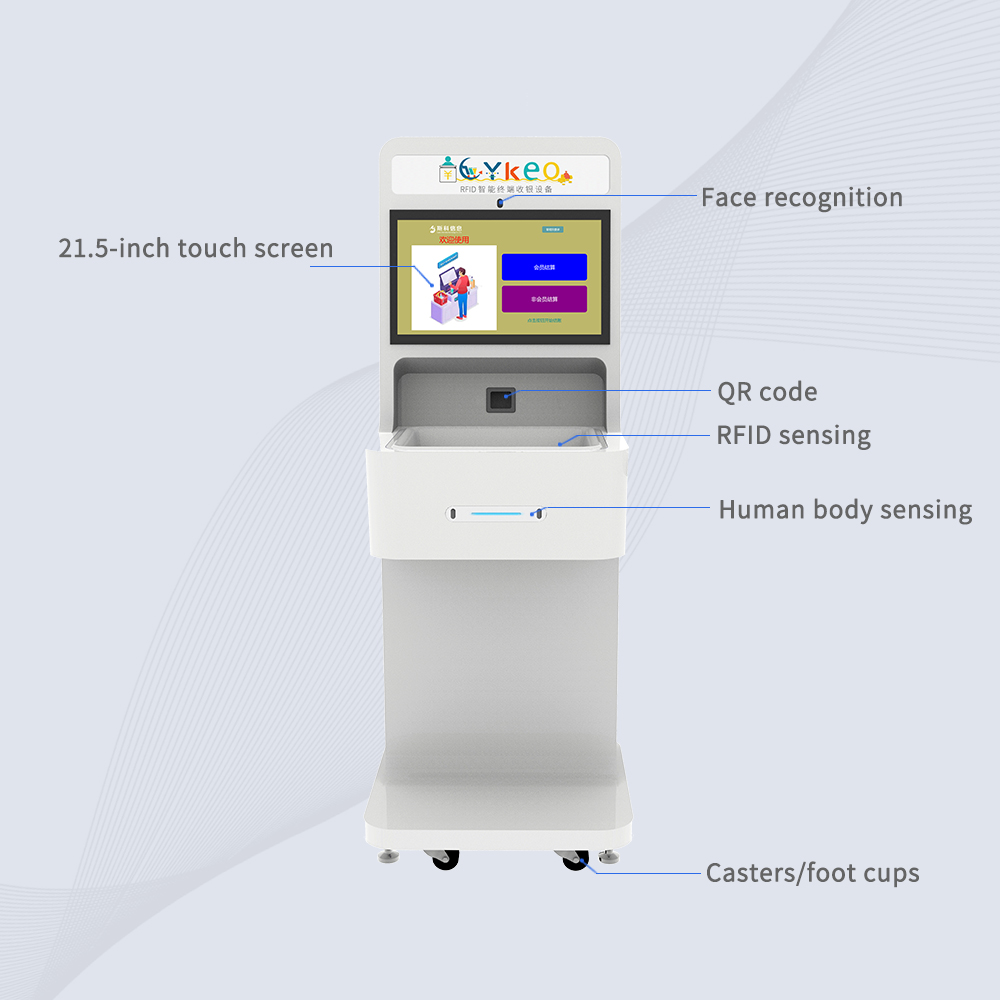

The CK-DP11 UHF RFID Checkout Terminal combines industrial-grade RFID scanning (ISO 18000-6C) with retail-ready payment integration. Its 840-960MHz Impinj R2000 chipset achieves 5-tag/sec bulk scanning, while the 21.5″ HD touchscreen supports dual OS (Windows/Android) for seamless WeChat/Alipay/Smart Card transactions. Designed for 24/7 operation in pharmacies and supermarkets, it automatically rewrites EAS security bits and syncs inventory data to cloud systems via REST API.

Ideal for high-throughput retail environments: Pharmaceutical self-checkouts in hospitals, bulk grocery scanning in supermarkets, and tool inventory management in industrial warehouses.

Parts management

Production line material

Retail of pharmaceuticals

Management of large supermarkets

Medical management

Unmanned supermarket self-service

Cykeo CK-DP11 UHF RFID Checkout Terminal Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-DP11 UHF RFID CHECKOUT TERMINAL

5-Tag/Sec UHF Performance

Impinj R2000 chipset with 840-960MHz frequency

Windows/Android Dual OS

i5 processor or RK3399 ARM configuration

21.5″ Retail-Grade Touchscreen

1920×1080 resolution with anti-smudge coating

Dual Payment Interfaces

Supports WeChat/Alipay SDK integration

Real-Time EAS Rewriting

Theft prevention tag status updates

Industrial-Grade Durability

0-60℃ operating temperature range

Smart Footprint Design

620×629mm compact base for high-traffic areas

Inventory Cloud Sync

REST API for SAP/Oracle WMS integration

Cykeo CK-DP11 UHF RFID Checkout Terminal Specifications

Main Specifications

BrandCykeo
ModelCK-DP11
Product NameUHF RFID Checkout Terminal

Physical Parameters

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Reading speed≥40
ConnectivityRS232, WiFi
PowerDC12V/50W

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID CHECKOUT TERMINAL FAQs

What Industries Benefit Most from the UHF RFID Checkout Terminal?

The UHF RFID Checkout Terminal is designed for high-efficiency, automated operations across diverse sectors. Key industries include:

Healthcare: Streamlines medication and medical supply management in hospital pharmacies and storerooms, ensuring accurate tracking and reducing human error.
Retail & Supermarkets: Enhances customer experience in busy stores by enabling bulk scanning of up to 5+ items in 3–5 seconds, minimizing checkout queues.
Unmanned Stores & Warehouses: Supports 24/7 self-service operations with features like RFID tag security updates (anti-theft) and optional face recognition for seamless authentication.
Tool Libraries/Industrial Storage: Simplifies inventory audits and asset tracking in large facilities, leveraging the terminal’s ISO 18000-6C protocol compatibility for reliable data capture.

How Does the UHF RFID Technology Improve Checkout Efficiency Compared to Traditional Systems?

The terminal integrates Impinj R2000 RFID chips and advanced multi-tag reading algorithms to deliver:

Bulk Scanning: Simultaneously reads 5+ items (e.g., tagged clothes, tools, or pharmaceuticals) without manual alignment, reducing checkout time by 50–70%.
Anti-Theft Integration: Automatically rewrites RFID tag security bits post-payment, eliminating the need for separate deactivation steps.
High Accuracy: Operates across 840–960MHz frequencies to ensure reliable reads even in dense or metallic environments.
Scalability: Optional add-ons like barcode scanners or Wi-Fi connectivity allow customization for hybrid workflows (e.g., RFID + QR code payments).

Can the Terminal Be Customized for Specific Business Needs?

Yes! The UHF RFID Checkout Terminal offers modular flexibility to adapt to unique operational demands:

Software: Runs on Windows or Android OS, supporting integration with existing POS, ERP, or inventory systems via Ethernet.
Hardware Add-Ons:
- Biometric Security: Optional face recognition for secure access control or payment authorization.
- Multi-Sensor Fusion: Pair RFID with barcode scanners for hybrid product identification (e.g., items without RFID tags).
- Mobility: Configure with heavy-duty casters for portable use in warehouses or pop-up stores.
Environmental Resilience: Built to operate in harsh conditions (0–60°C, 10–90% humidity), ideal for cold storage facilities or outdoor retail kiosks.
