The CK-DP1 achieves high-accuracy automated data binding through a sophisticated three-step process designed for warehouse efficiency. First, upon initiation of a scan cycle, the UHF RFID module performs a bulk read, capturing the unique EPC codes of all tags within its field (up to 10 tags under standard conditions) in a near-instantaneous operation. Concurrently, the high-resolution top-mounted image scanner captures a wide-area view of the items, utilizing advanced algorithms to identify and decode all visible barcodes.

Second, our proprietary binding engine takes over. It doesn’t just randomly pair data; it employs a context-aware matching logic. The system analyzes factors such as the spatial proximity of decoded barcodes to the RFID read zone and the sequence of scan events. For instance, if a single item with both an RFID tag and a barcode is presented, the system will correlate the two data points based on the timing and location of their discovery. For mixed pallets, the software can be configured to validate against a pre-loaded shipping list, flagging any discrepancies where an RFID code has no corresponding barcode in the list, or vice versa.

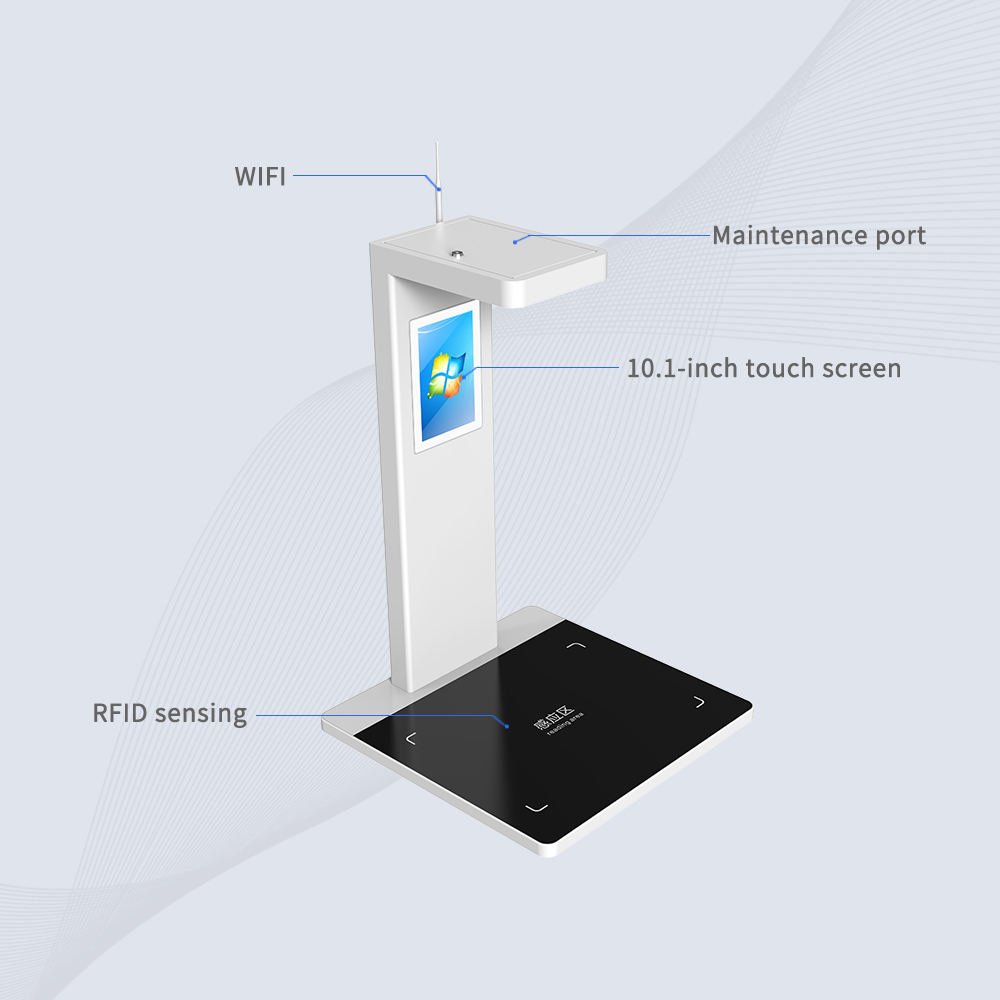

Finally, all binding relationships are instantly logged into the local database with a timestamp and user ID. This creates an immutable audit trail. The integrated 10.1-inch touchscreen provides immediate visual feedback, displaying a list of successfully bound pairs and any unmatched codes for operator review before finalizing the shipment. This multi-layered approach ensures that the physical shipment perfectly matches the digital data, drastically reducing mis-ships and inventory errors.

The CK-DP1 is built as an integration-ready platform, not just a standalone device. Its core strength lies in its flexible connectivity and comprehensive Software Development Kit (SDK).For direct system integration, the device offers multiple pathways. It features standard RJ45 Gigabit Ethernet for stable, high-speed connection to a local network, allowing it to communicate directly with your Warehouse Management System (WMS) or Enterprise Resource Planning (ERP) server—such as SAP, Oracle, or custom solutions—in real-time. For environments where wiring is impractical, the optional Wi-Fi or 4G modules provide reliable wireless connectivity, ensuring the station can be deployed anywhere in the warehouse without compromising data flow.The provided SDK is the key to unlocking custom workflows. It is not a simple command list but a robust set of tools that gives developers granular control over the hardware. The SDK includes libraries for both Windows and Android environments, allowing our partners to:

• Control Scanning Sessions:Programmatically start and stop RFID and barcode scanning cycles.
• Manage Data Flow:Capture the raw data from both readers, access the automatically bound pairs, and handle the unmatched codes separately for custom logic.
• Interface with Peripherals:Interact with the optional HF card reader or ID card module for operator authentication, tying specific actions to user credentials.
• Customize the UI:While the device has a default interface, the SDK allows developers to build a completely bespoke application tailored to their unique operational workflow, ensuring a seamless user experience.

This means a logistics company can develop a workflow that first authenticates the user via an ID card, then scans a shipment palette, automatically compares the results against a database, and finally prints a shipping label only upon 100% verification—all within a single, fluid application running directly on the CK-DP1.

The CK-DP1 is engineered from the ground up for the rigors of 24/7 industrial and logistics settings, focusing on three key areas: physical robustness, stable performance, and environmental resilience.

Physical Robustness:The chassis is constructed from 1.0mm thick carbon steel, providing superior impact resistance compared to plastic enclosures. It can withstand accidental bumps from carts or knocks from packages. The critical scanning window is made of hardened, scratch-resistant glass to maintain optical clarity for barcode scanning even after prolonged use. The industrial-grade connectors are firmly anchored to prevent loosening from constant vibration or cable strain.

Stable Performance & Thermal Management:We understand that downtime is not an option. The internal industrial-grade motherboard and power supply are selected for reliability and longevity. The device is designed with efficient thermal management, even at its maximum power consumption of 150W, ensuring stable operation across its entire working temperature range of -20°C to +60°C. This prevents overheating and performance throttling during extended peak usage, which is common during end-of-day shipping rushes.

Environmental Resilience:The design accounts for the dusty and variable conditions of a warehouse. While not fully submersible, the enclosure is sealed to protect against dust ingress that could damage internal components. The consistent performance across a wide temperature and storage humidity range (25%-50%) means the CK-DP1 will boot up and function reliably whether it’s a cold morning in an unheated dock or a hot afternoon, ensuring uninterrupted workflow from the first to the last shipment of the day.
