CK-D2L

RFID Reader USB

High-Speed Desktop Tag Encoder with Mini USB

✔️ Batch Encoding for 500+ Tags/Hour

✔️ USB-Powered Plug-and-Play Operation

✔️ 10cm Precision Writing via IMPINJ R500 Chip

✔️ SDK Support (C#/Java) for Custom Integration

Talk to an Expert

Email Our Team

USB CONNECTED, RFID PERFECTED

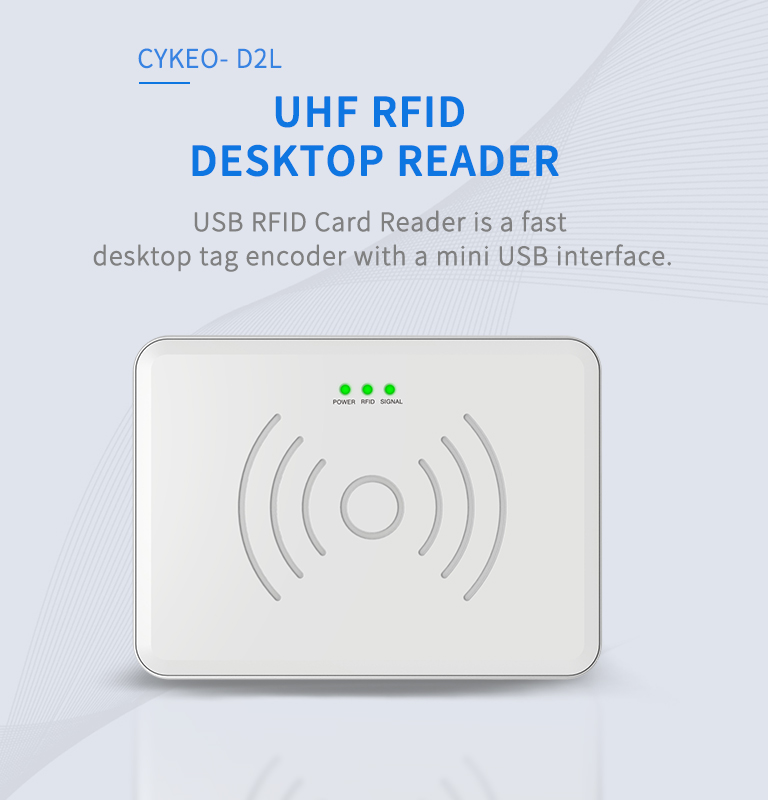

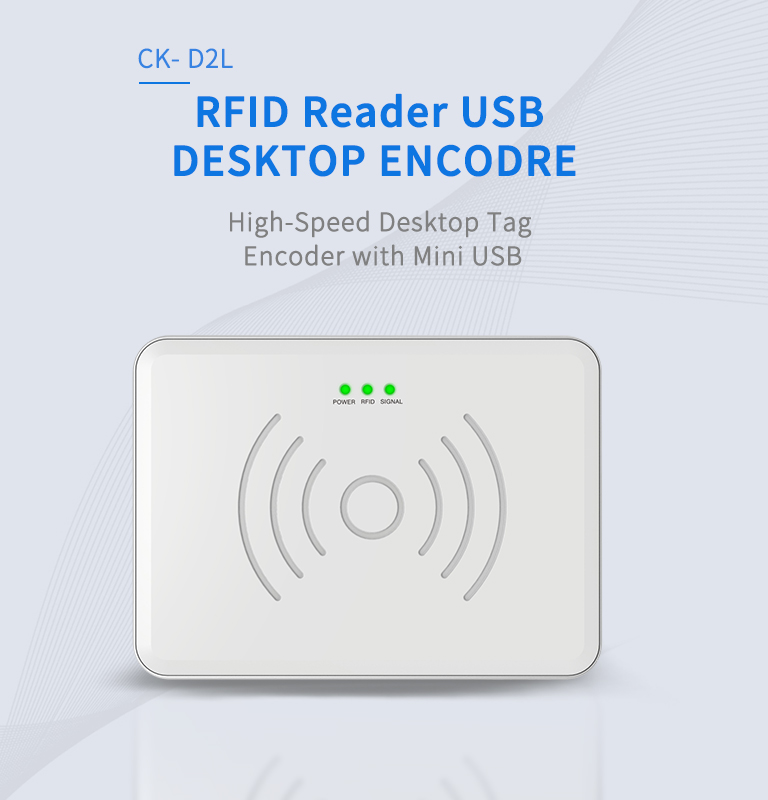

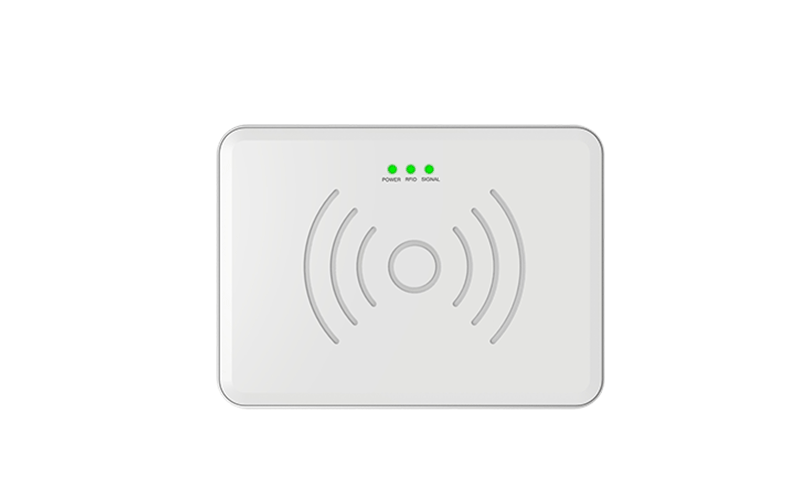

The CK-D2L RFID Reader USB is a compact desktop device designed for rapid UHF tag encoding. Equipped with the Impinj R500 chipset and near-field antenna, it delivers 99.9% write accuracy within 10cm. Perfect for office badge issuance, retail label programming, and logistics tagging, its USB 2.0 interface ensures seamless compatibility with Windows/Linux systems. Includes batch encoding software and developer tools for effortless integration.

Ideal for secure employee badge encoding, retail RFID label initialization, library asset management, and small-scale logistics where USB connectivity and precise tag writing are essential.

Library Book Labeling

Energy Facility Management

Warehouse Logistics

Retail Item Registration

Health Care

Hotel facility management

Cykeo CK-D2L RFID Reader USB Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-D2L RFID READER USB

30cm Near-Field Antenna

for Precision Control

33dBm Output

for 99% Encoding Success Rate

ETSI/JP/TW/RUS

Multi-Country Frequency Presets

USB-C Plug

Play with Auto-Excel Export

Anti-Interference Housing

Aluminum Alloy

Integrated Design

Auto-Tag Filtering & Error Alerts via Buzzer

C#/Python SDK

for Custom Software Integration

-20℃ to +70℃

Extreme Temperature Operation

CK-D2L RFID Reader USB Specifications

Main Specifications

ModelCK-D2L
BrandCykeo
Product NameRFID Reader USB

Physical Parameters

Dimensions150×110×20mm
Power Input USB 5V

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO 18000-6B/6C, EPC C1G2, GB/T29768-2013
Reading Range0-30cm (EPC Reading), 0-10cm (Writing)
RF Power (Port)33dBm±1dBm (Adjustable)
Power Adjustment1 dB step
Interfaces15-Pin Terminal (UART/USB/GPIO)

Operating Environment

Operating Temperature-20°C to +70°C
Humidity10%RH–95%RH (Non-Condensing)
Storage Temperature-40°C to +85°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID READER USB FAQS

Why Choose a USB-Powered RFID Reader Over Traditional Wireless Models?

Technical Advantage: The CK-D2L  RFID Reader USB eliminates complex network configurations with direct plug-and-play functionality via its Mini USB 2.0 port. Unlike battery-dependent handhelds, it draws stable power from your PC/laptop, ensuring uninterrupted operation during high-volume tag encoding (500+ tags/hour). For enterprise environments, its USB interface guarantees zero wireless interference with nearby RFID systems, while SDK-supported protocols (ISO 18000-6C/6B) enable seamless integration into legacy inventory databases.

How to Maximize Write Accuracy with a RFID Reader USB?

Performance Guide: The CK-D2L’s 10cm near-field antenna paired with the Impinj R500 chip ensures 99.9% write success rates. For optimal results:

Position tags flat within 8-10cm range (avoid metal obstructions)
Use the included software to adjust output power (15-33dBm for dense tag clusters)
Enable batch filtering to skip pre-encoded tags during bulk operations

<strong>Can a RFID Reader <strong>USB </strong> Scale for Multi-Station Enterprise Use?</strong>

Enterprise Solution: Yes. Deploy multiple CK-D2L USB RFID Readers across workstations using USB hubs (tested with 8+ simultaneous devices). The C#/Java SDK supports:

Centralized control via REST API for synchronized tag databases
Auto-logging of encoded tags to cloud platforms (AWS/Azure compatible)
Role-based access for secure badge issuance systems
