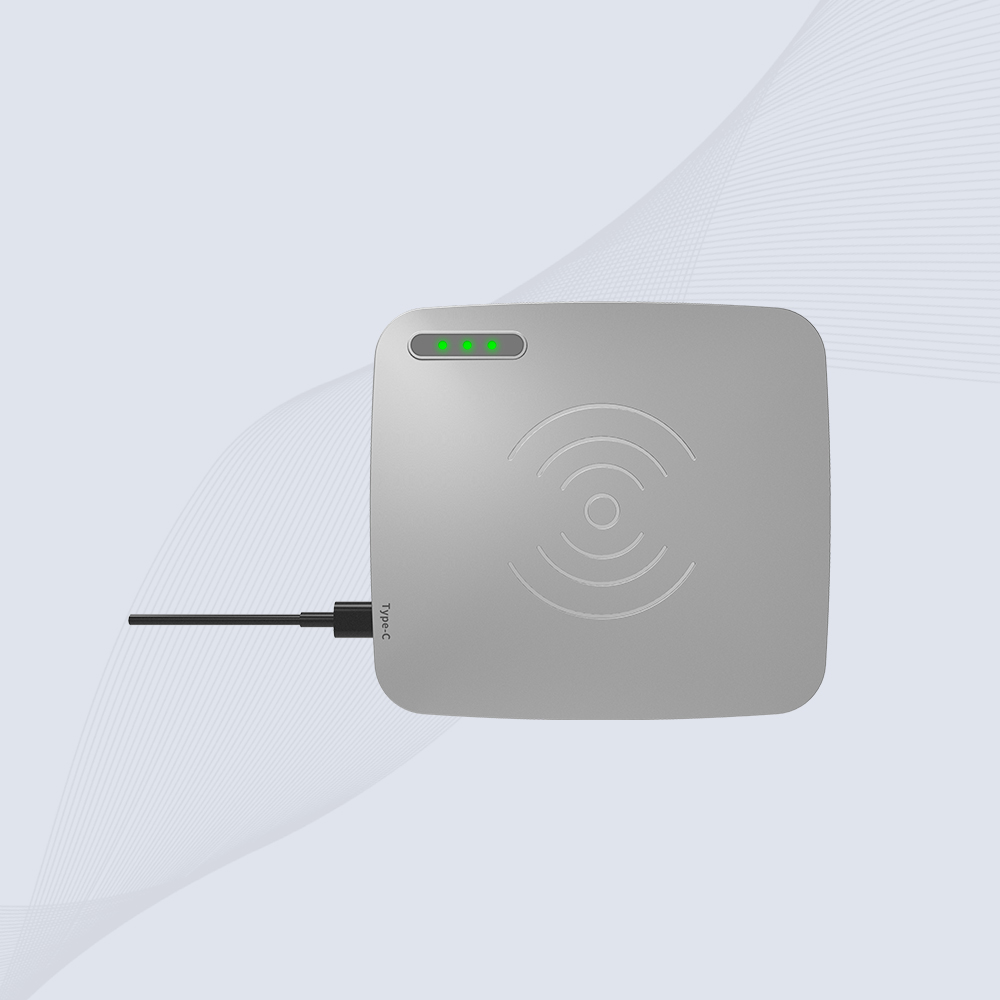

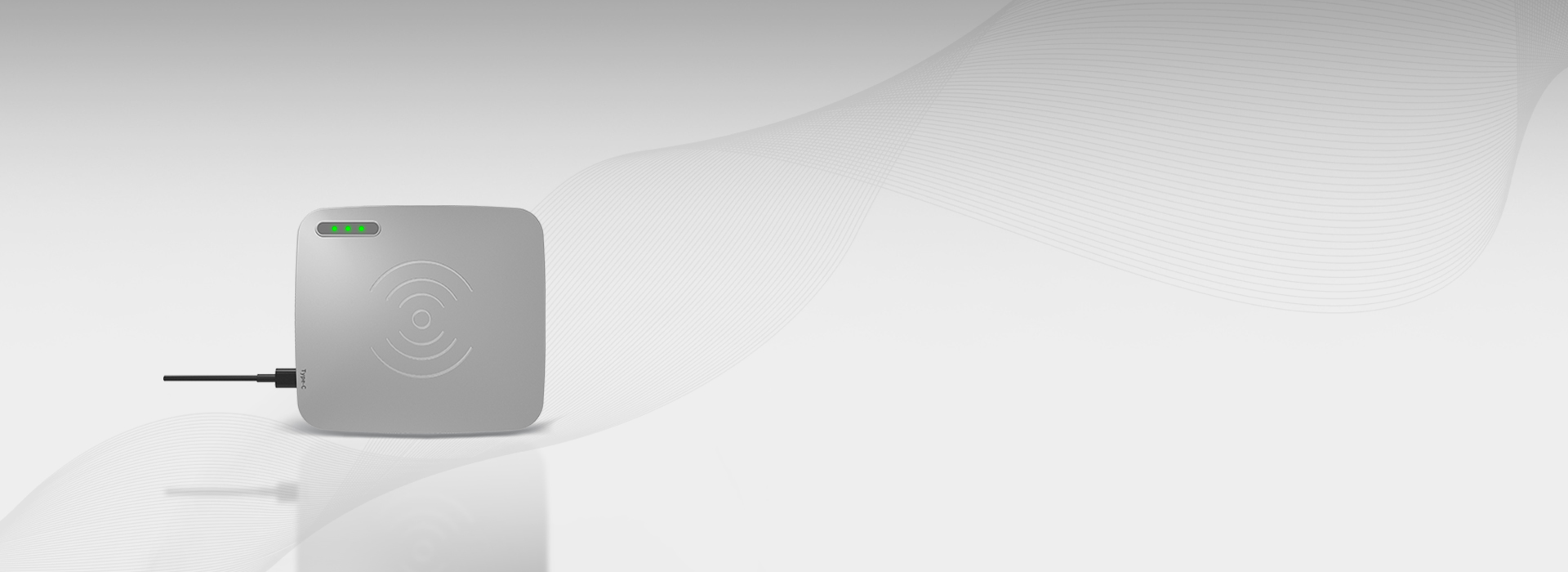

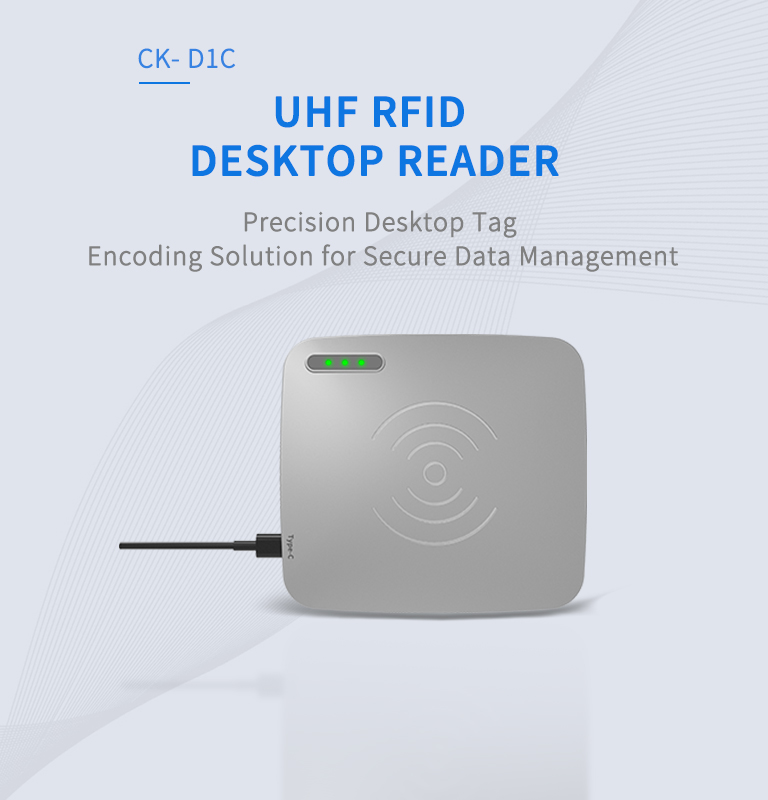

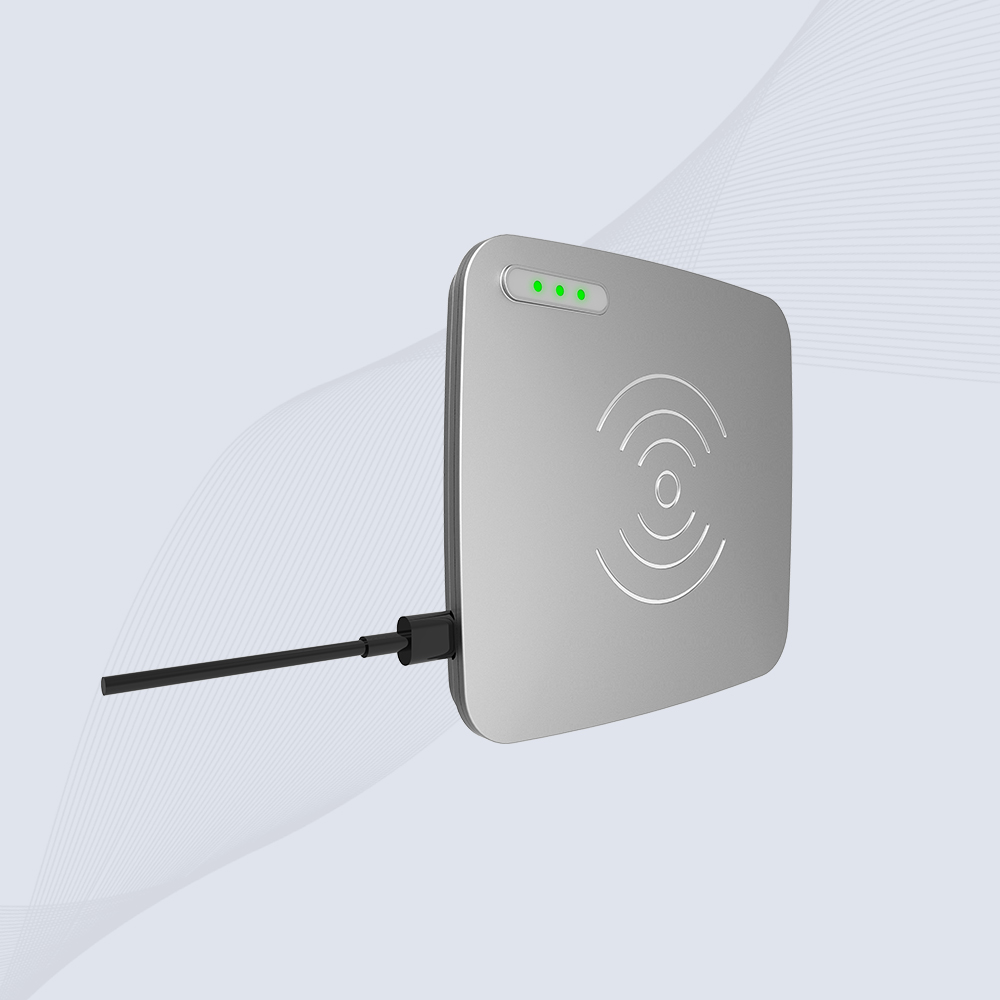

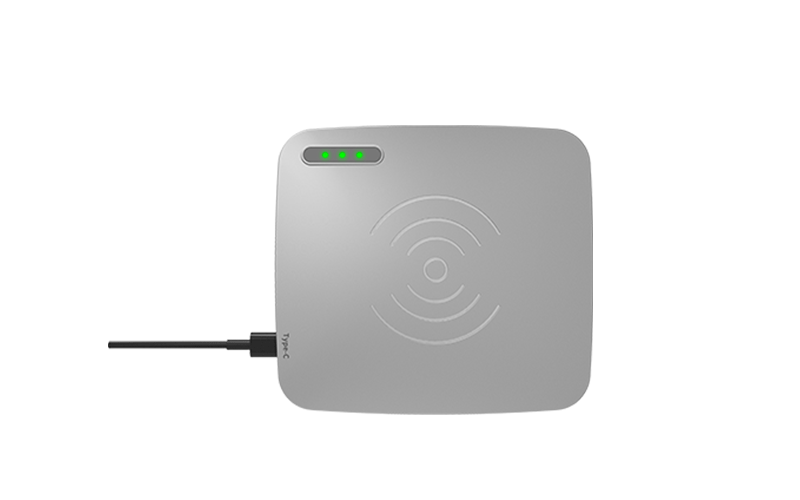

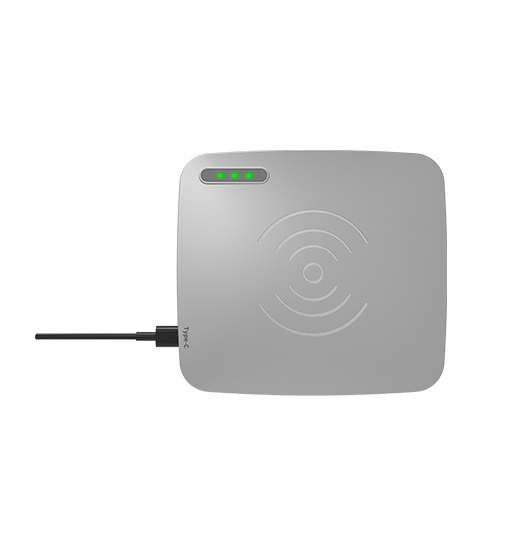

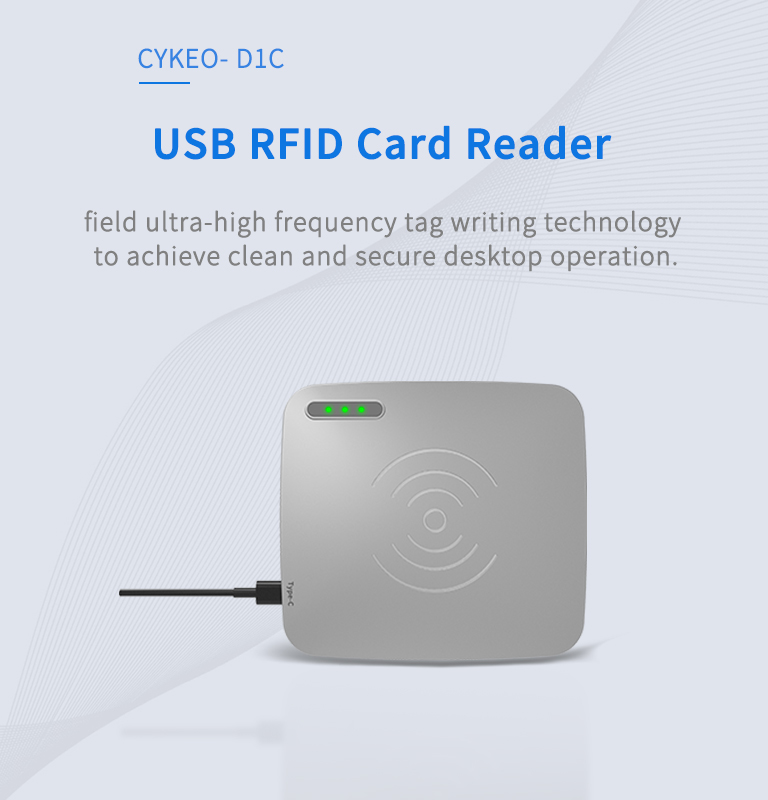

CK-D1C USB RFID Card Reader

✔️ Developer-Friendly C++/Python SDK

✔️ Near-Field Control​​: 10cm Write Range with Circular Polarization Antenna

✔️ 200 Tags/Min High-Speed Encoding via USB 3.0

✔️ High-Speed Encoding​​: 98% Success Rate at 26dBm Output

✔️ Developer-Ready​​: C#/Java SDK & Batch Encoding Software

Email Our Team
sdf
GF
GF
DH 4
RN
GRFBC
RHNGFC

​PLUG. PLAY. ENCODE.​

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

Cykeo CK-D1C USB RFID Card Reader Specifications

Main Specifications

  • ModelCK-D1C
  • BrandCykeo
  • Product NameUSB RFID Card Reader

Physical Parameters

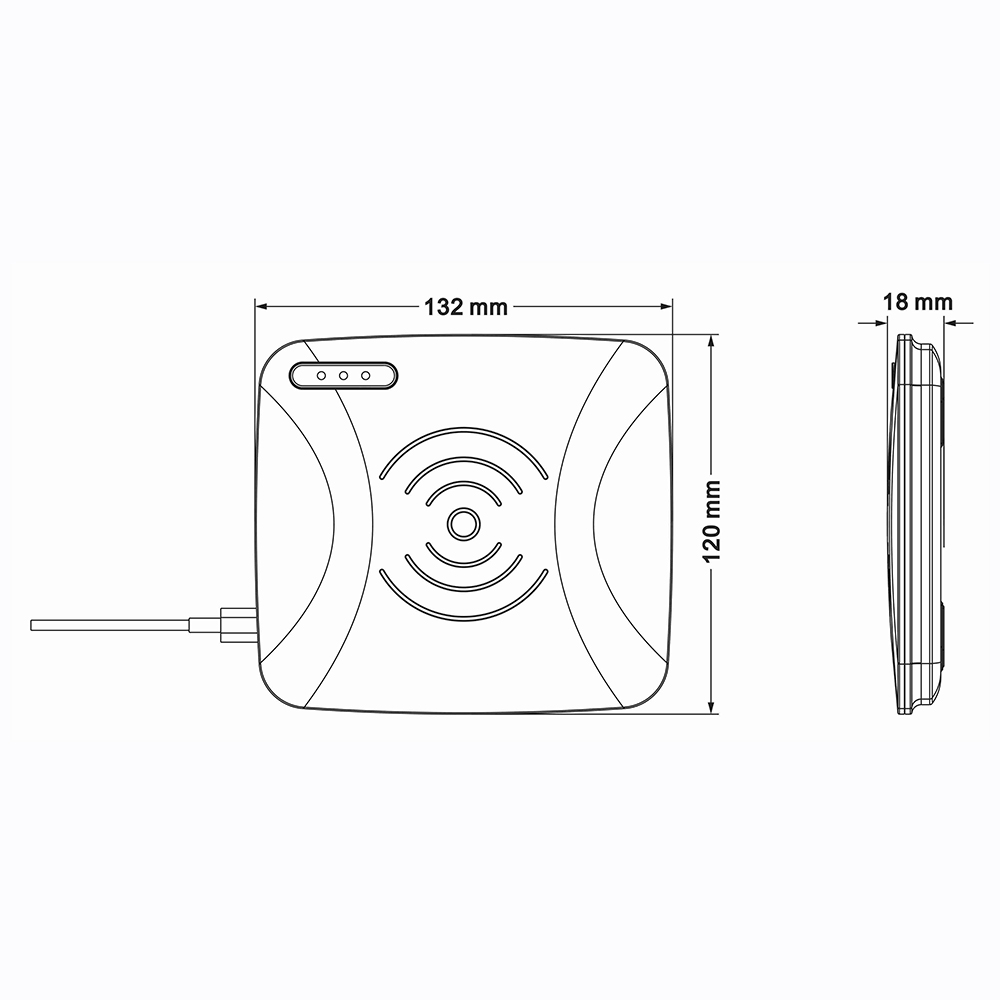

  • Dimensions132mm*120mm*18mm
  • Communication interfaceUSB 3.0 + Type-C
  • Power supply requirement5V/2A
  • Weight0.2kg

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development

Performance Parameters

  • Frequency Range840MHz~960MHz
  • Protocol SupportISO 18000-6B/6C, EPC C1G2
  • Reading Range0-30cm (EPC Reading), 0-10cm (Writing)
  • ​RF Power (Port)33dBm±1dBm (Adjustable)
  • ​Power Adjustment1 dB step
  • Interfaces15-Pin Terminal (UART/USB/GPIO)

Operating Environment

  • Operating Temperature-20°C to +70°C
  • ​Humidity10%RH–95%RH (Non-Condensing)
  • ​Storage Temperature-40°C to +85°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

USB RFID CARD READER FAQS

How to Ensure Secure Encoding of Sensitive Data with the CK-D1C USB RFID Card Reader?​

Answer​​:
The CK-D1C USB RFID Card Reader is designed for high-security data encoding with multiple layers of protection:

  • ​Advanced Encryption Support​​:
    The device integrates AES-128 and RSA-2048 encryption protocols, allowing users to encode RFID tags (including MIFARE DESFire EV3 and UHF EPC Gen2v2) with cryptographic protection. This ensures sensitive data—such as employee access credentials or medical records—remains tamper-proof.
  • ​Controlled Physical Range​​:
    With a near-field antenna operating at ≤10cm, unauthorized interception is virtually impossible. The short-range design minimizes signal leakage, making it ideal for secure environments like government offices or financial institutions.
  • ​Audit-Ready Software​​:
    The included Cykeo Security Suite generates detailed logs of all encoding activities, including timestamps, user IDs, and tag serial numbers. Administrators can export reports in PDF or CSV formats for compliance audits.
  • ​Developer APIs for Custom Security​​:
    For enterprises requiring custom encryption workflows, the Java/C# SDK allows integration with existing PKI systems. For example, a hospital could automate patient wristband encoding by linking the CK-D1C to its EHR database via REST API.
Can the CK-D1C USB RFID Card Reader Handle Mixed Tag Types in a Single Batch Job?​

Answer​​:
Yes, the CK-D1C excels in environments requiring mixed-tag operations, thanks to its ​​Smart Tag Recognition Technology​​:

  • ​Automatic Protocol Detection​​:
    The device identifies and adapts to ISO 14443A (NFC), ISO 15693 (HF), and ISO 18000-6C (UHF) tags within milliseconds. For example, in a retail setting, you can simultaneously encode NFC loyalty cards and UHF inventory tags placed within the 10cm range.
  • ​Priority Filtering Rules​​:
    Use the desktop software to set priorities (e.g., “Encode UHF tags first, then NFC”) or exclude specific tag types. This is critical for logistics teams managing pallets containing both reusable UHF asset tags and disposable NFC shipping labels.
  • ​Error Handling & Recovery​​:
    If a tag fails to encode due to low signal strength or misalignment, the system pauses the batch job, triggers a buzzer alert, and highlights the problematic tag’s position in the interface. Users can manually reposition the tag and resume the process without restarting.
  • ​Cross-Platform Compatibility​​:
    Mixed-tag workflows are supported across Windows, macOS, and Linux. A manufacturing facility could use a Linux terminal to encode UHF tool tracking tags and NFC maintenance logs on the same workstation.
What Makes the CK-D1C USB RFID Card Reader Suitable for Mobile Field Operations?​

Answer​​:
The CK-D1C combines portability with industrial durability for on-site encoding tasks:

  • ​Compact & Lightweight Design​​:
    At 200g and 18mm thick, the device fits into laptop bags or toolkits. Field technicians can easily carry it to encode RFID tags at remote sites—e.g., tagging wind turbine components during inspections or updating utility meter data in underground facilities.
  • ​Offline Operation Capability​​:
    Unlike cloud-dependent devices, the CK-D1C works fully offline. Preload encoding templates via USB-C, and use the built-in 8GB storage to save up to 10,000 tag records. Data syncs automatically when reconnected to a network.
  • ​Ruggedized Construction​​:
    The IP54-rated housing protects against dust and water splashes, while the anti-slip base ensures stability on uneven surfaces. In a field test, the device successfully encoded tags in heavy rain at a construction site.
  • ​Extended Power Flexibility​​:
    While primarily USB-powered, the CK-D1C supports external 5V battery packs (via USB-C PD). A logistics team could operate it for 8+ hours using a portable charger during warehouse audits.
