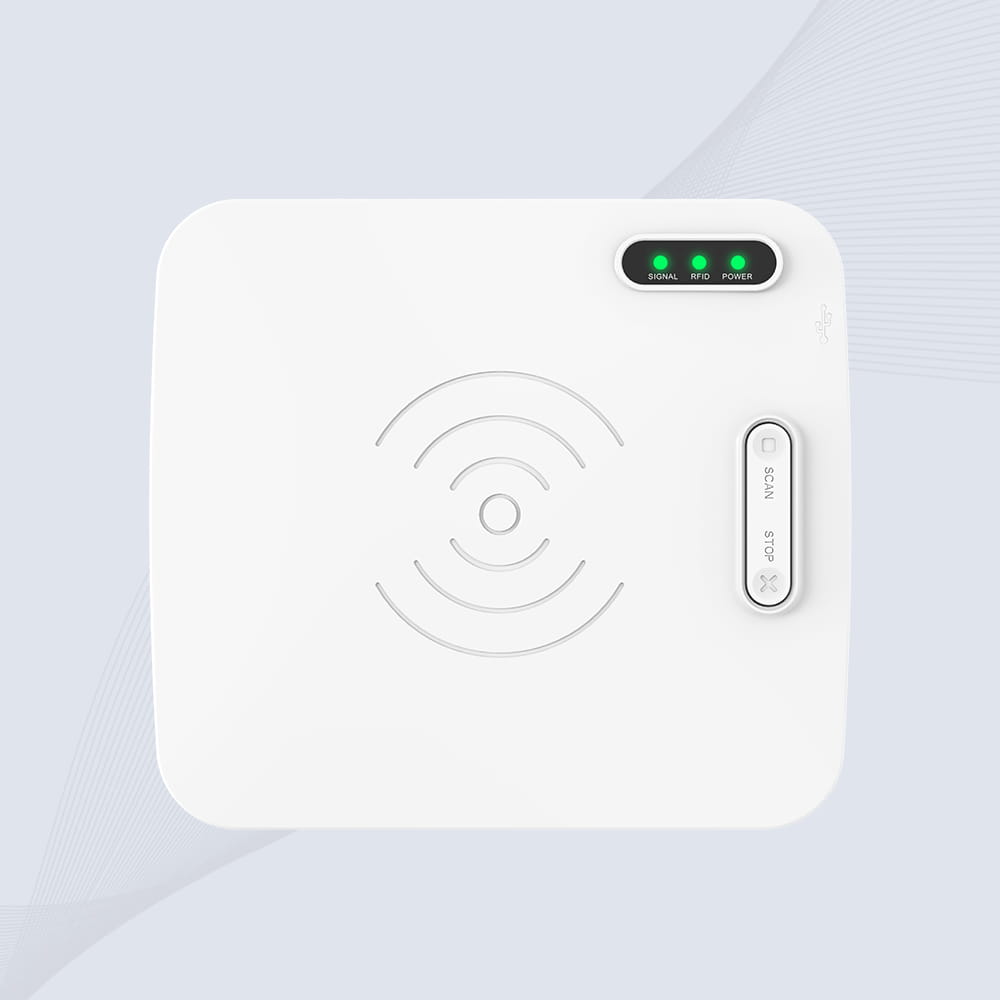

CK-D1A

Pro RFID USB Reader

Plug-and-Play Desktop Solution for Instant Tag Encoding & Verification

✔️ Developer-Friendly C++/Python SDK

✔️ Military-Grade Anti-Interference Circuitry

✔️ 200 Tags/Min High-Speed Encoding via USB 3.0

✔️ Cross-Platform Compatibility (Windows/Linux/Android)

✔️ Compact USB-Powered Design for Desktop Workstations

Talk to an Expert

Email Our Team

TINY PORT, INDUSTRIAL POWER

The CK-D1A Pro RFID USB Reader revolutionizes desktop tag management with its USB 3.0-powered UHF RFID operations. Engineered for precision encoding/verification tasks, this device supports ISO 18000-6C/EPC C1G2 protocols with adjustable 5-15cm near-field control. Its aluminum-alloy housing ensures stable performance in 24/7 industrial environments while providing plug-and-play functionality across operating systems.

Ideal for desktop-based RFID operations: Retail tag printing stations, logistics document verification points, and manufacturing line quality control terminals.

Library Book Labeling

Energy Facility Management

Warehouse Logistics

Retail Item Registration

Health Care

Hotel facility management

Cykeo CK-D1A Pro RFID USB Reader Specification

Download

Online Procurement

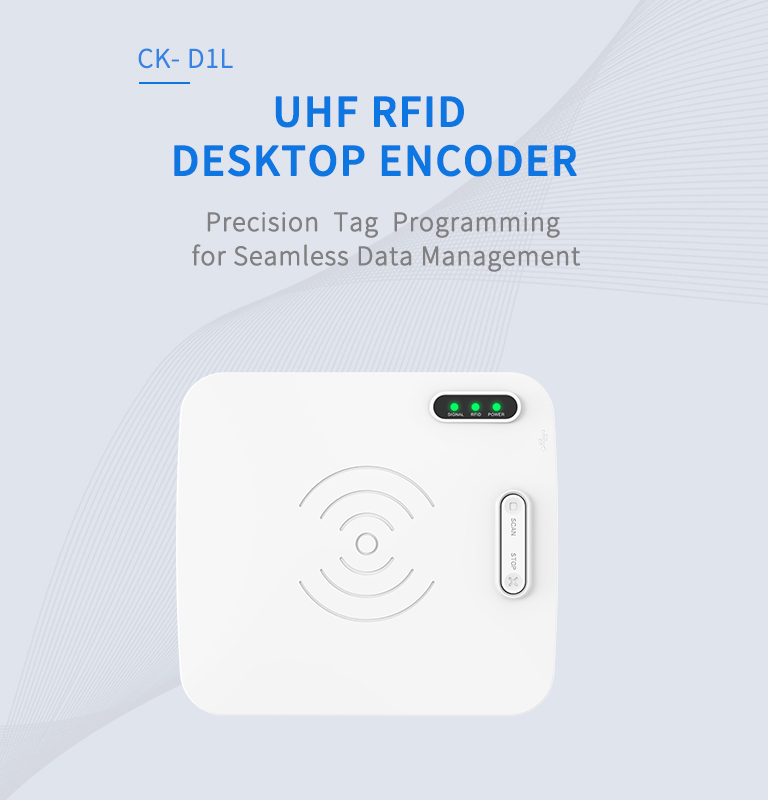

KEY FEATURES OF CYKEO CK-D1L PRO RFID USB READER

30cm Smart Range Control

Near-field antenna limits read/write range to prevent cross-tag interference

Dual-Protocol Support

Simultaneous ISO 18000-6B & 6C tag processing

Enterprise-Grade Interface

Type-C + USB 3.0 with 120MB/s data transfer

Multi-OS SDK

C#/Java APIs compatible with Windows/Linux

High-Power RF Module

1-33dBm adjustable output CE/FCC certified

Ruggedized Industrial Design

ABS housing with IP54 dust/water resistance

Advanced Anti-Collision

Processes 50 tags/sec via adaptive Q algorithm

Batch Encoding Automation

Configurable workflows for 500+ tags/hour

CK-D1A Pro RFID USB Reader Specifications

Main Specifications

ModelCK-D1A
BrandCykeo
Product NamePro RFID USB Reader

Physical Parameters

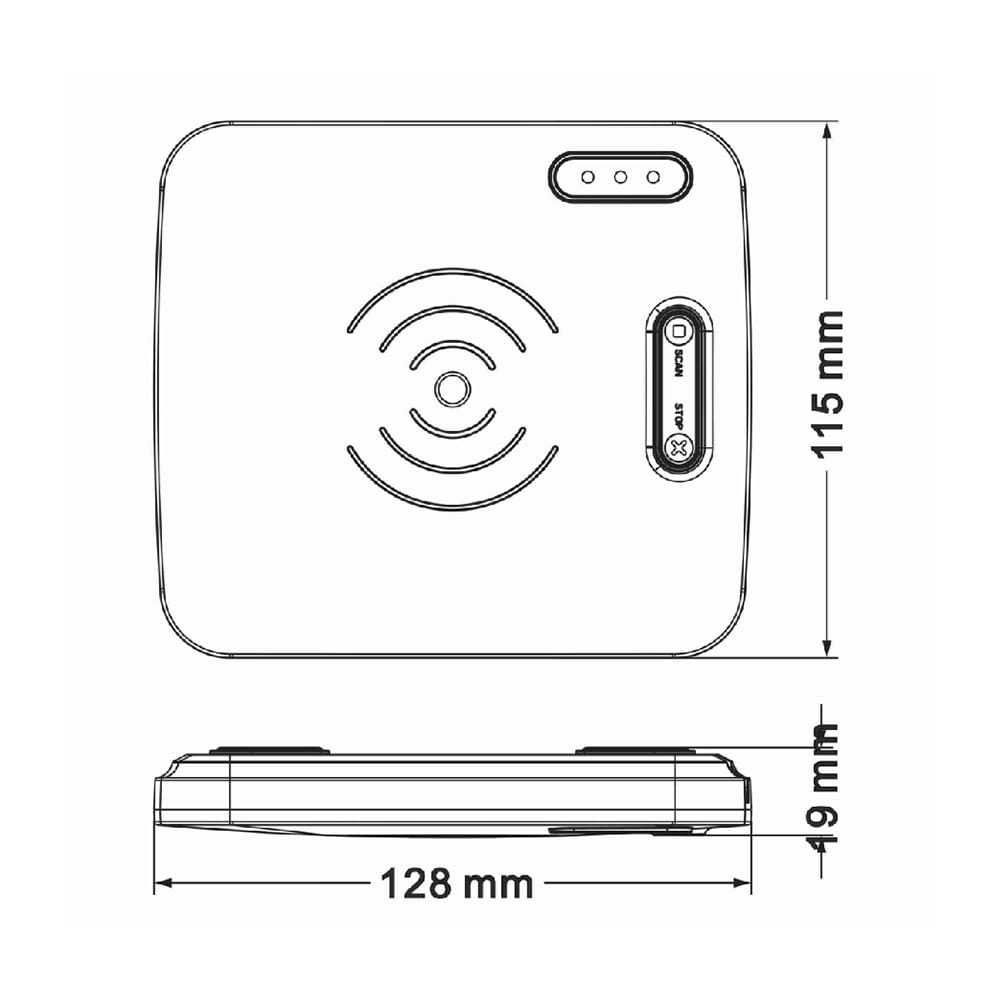

Dimensions128×115×20mm
Communication interfaceUSB 3.0 + Type-C
Power supply requirement5V/2A
Weight0.2kg

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO 18000-6B/6C, EPC C1G2
Reading Range0-30cm (EPC Reading), 0-10cm (Writing)
RF Power (Port)33dBm±1dBm (Adjustable)
Power Adjustment1 dB step
Interfaces15-Pin Terminal (UART/USB/GPIO)

Operating Environment

Operating Temperature-20°C to +70°C
Humidity10%RH–95%RH (Non-Condensing)
Storage Temperature-40°C to +85°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

Pro RFID USB READER FAQS

Why is the CK-D1A Pro RFID USB Reader ideal for desktop RFID operations?

The CK-D1A Pro RFID USB Reader stands out for its precision and versatility in UHF RFID applications. Here’s why it’s a top choice:

Near-Field Antenna Technology: Ensures controlled read/write ranges (≤30cm for reading, ≤10cm for writing), minimizing interference and enhancing accuracy during tag encoding or small-scale inventory checks.
High Stability & Power Output: With a maximum output of 33dBm, it guarantees reliable tag writing even in high-density environments.
Compact & Portable Design: Measuring only 128mm×115mm×20mm and weighing 200g, it’s perfect for desktop use or mobile setups.
Type-C Connectivity: Ensures fast data transfer and broad compatibility with modern devices.
User-Friendly Software: Includes auto-write, batch encoding, and tag-filtering features to streamline workflows.

How to perform batch tag encoding with the CK-D1A Pro RFID USB Reader?

Follow these steps for efficient bulk operations:
Step 1: Prepare Tags
Place UHF RFID tags within the 10cm writing range to ensure optimal signal strength.
Step 2: Launch Demo Software
Use the included software to set encoding parameters (e.g., EPC, TID) and enable Batch Mode.
Step 3: Adjust Power Settings
Maximize success rates by tuning output power (up to 26dBm) based on tag placement and environmental factors.
Step 4: Initiate Encoding
Click “Start” to automate the process—the reader will sequentially write data and filter out invalid tags via Fast Tag Filtering.
Step 5: Verify Results
Review the software log for successful writes and errors. Use the buzzer alert for real-time feedback.

What development resources are available for integrating the CK-D1A into custom systems?

The CK-D1A supports seamless integration for developers:

SDK & Documentation: Access comprehensive C# and Java SDKs, including sample codes for core functions like:
- Tag reading/writing
- Power configuration
- Anti-collision algorithms
Type-C Communication: Leverage standardized USB protocols for plug-and-play compatibility with PCs, POS systems, or IoT platforms.
API Customization:
- Step 1: Initialize the reader via USB connection.
- Step 2: Use provided APIs to control antenna power, read/write cycles, and data encryption.
- Step 3: Test performance using the ISO 18000-6C/6B protocol simulator in the SDK.
Technical Support: Contact contact@cykeo.com or visit www.cykeorfid.com for firmware updates and troubleshooting.
