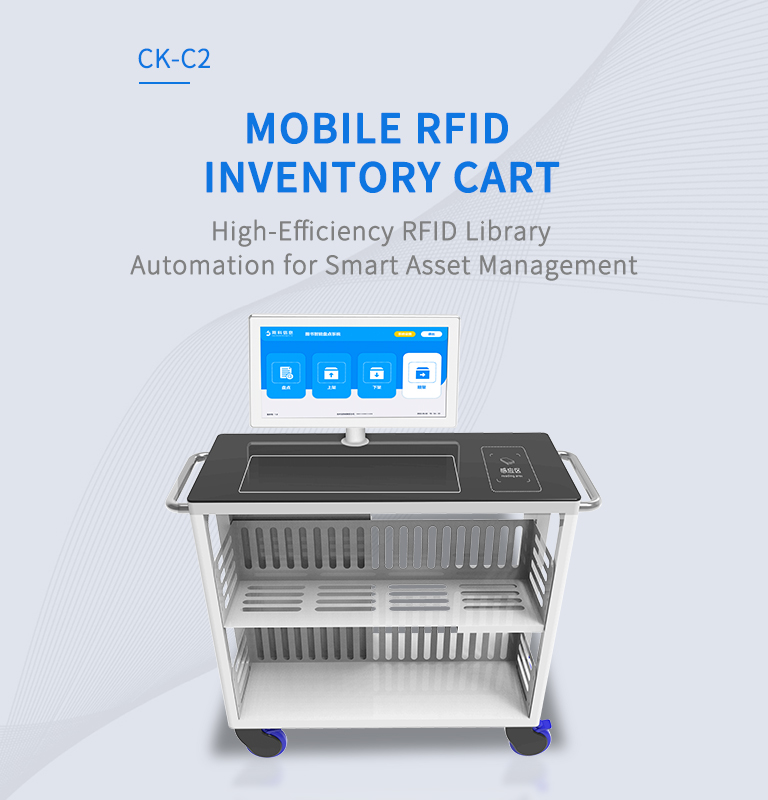

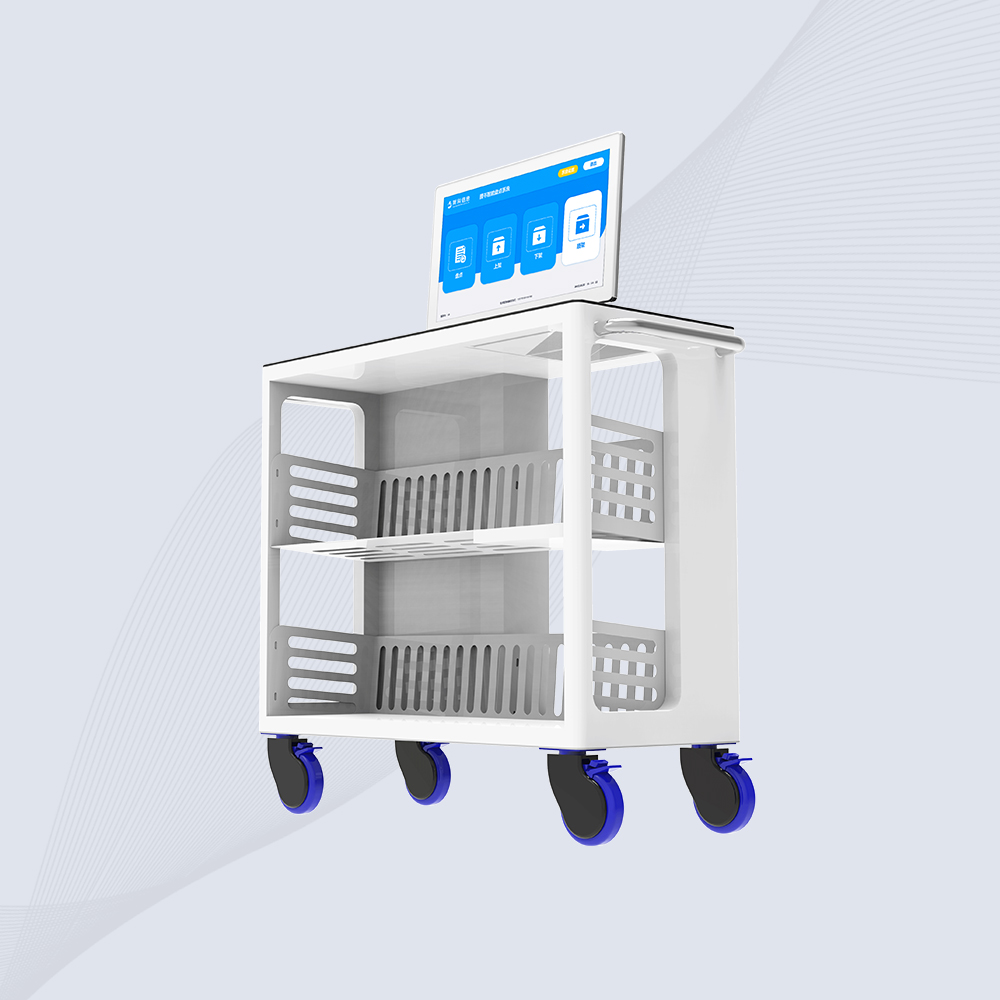

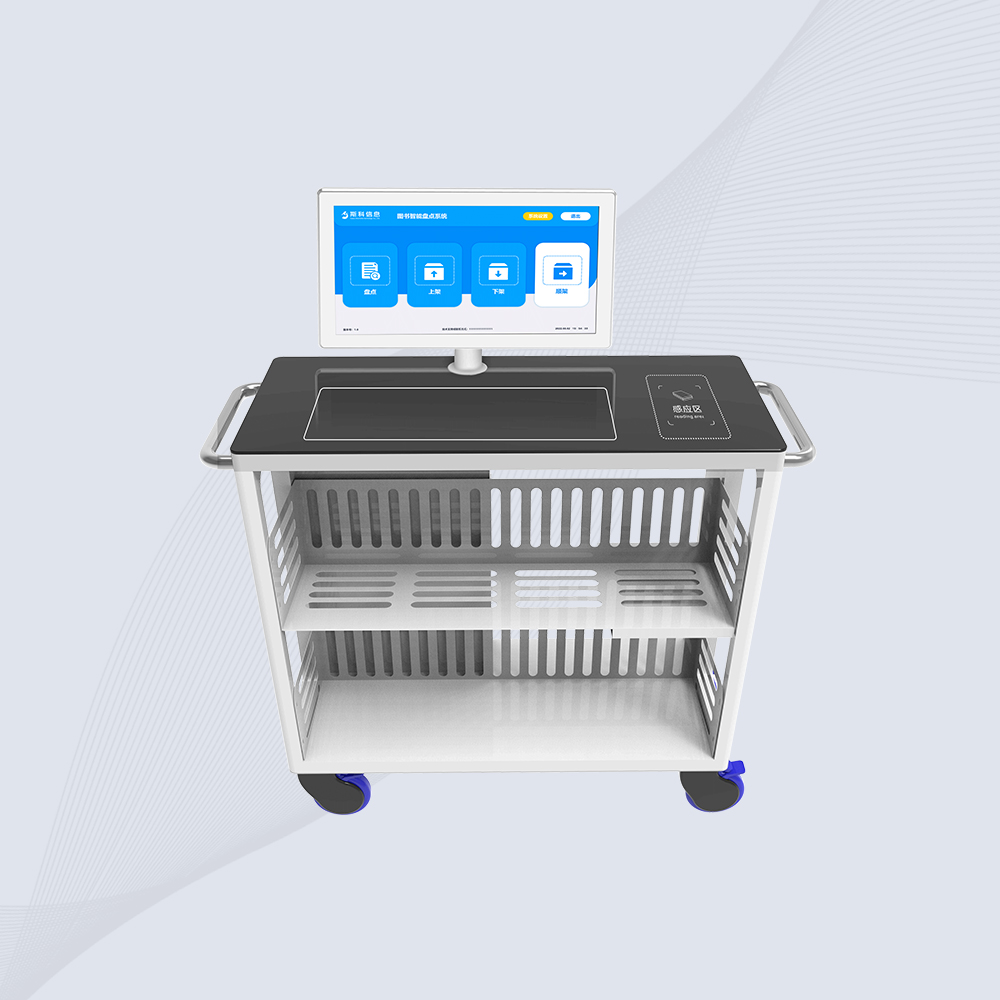

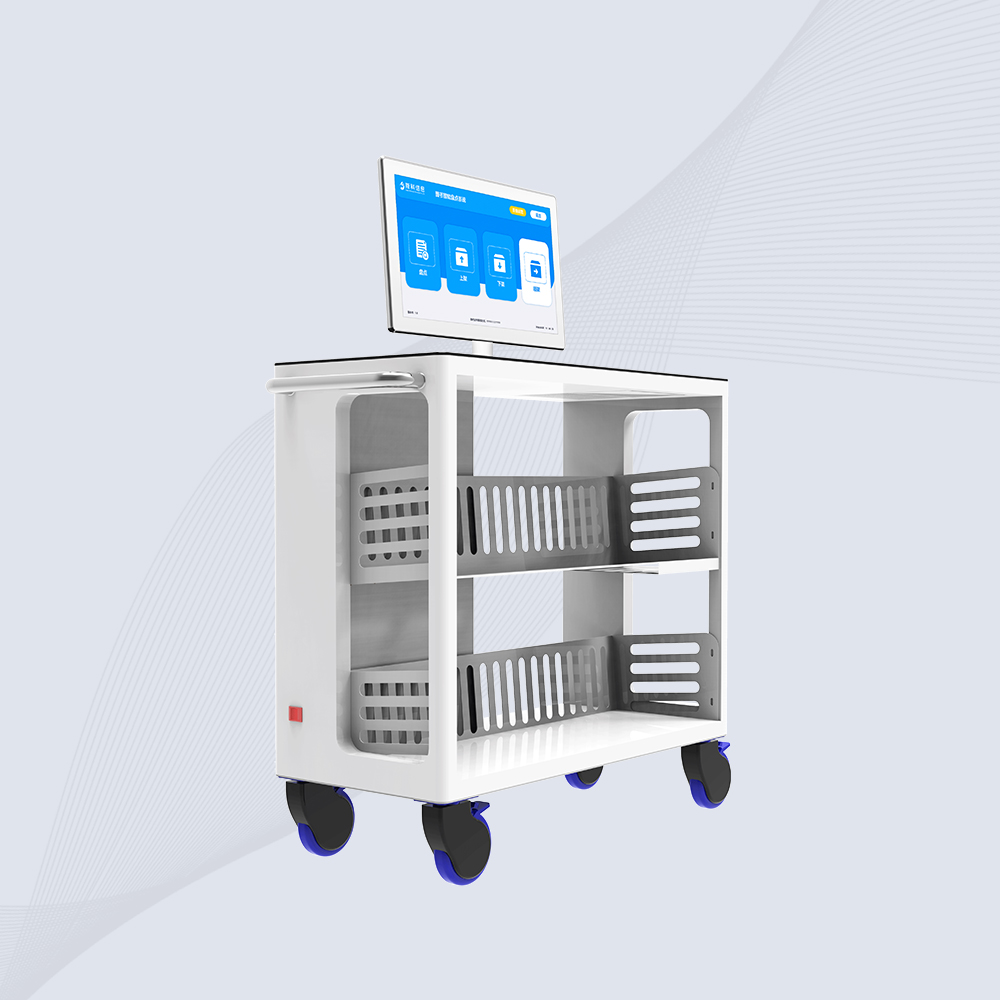

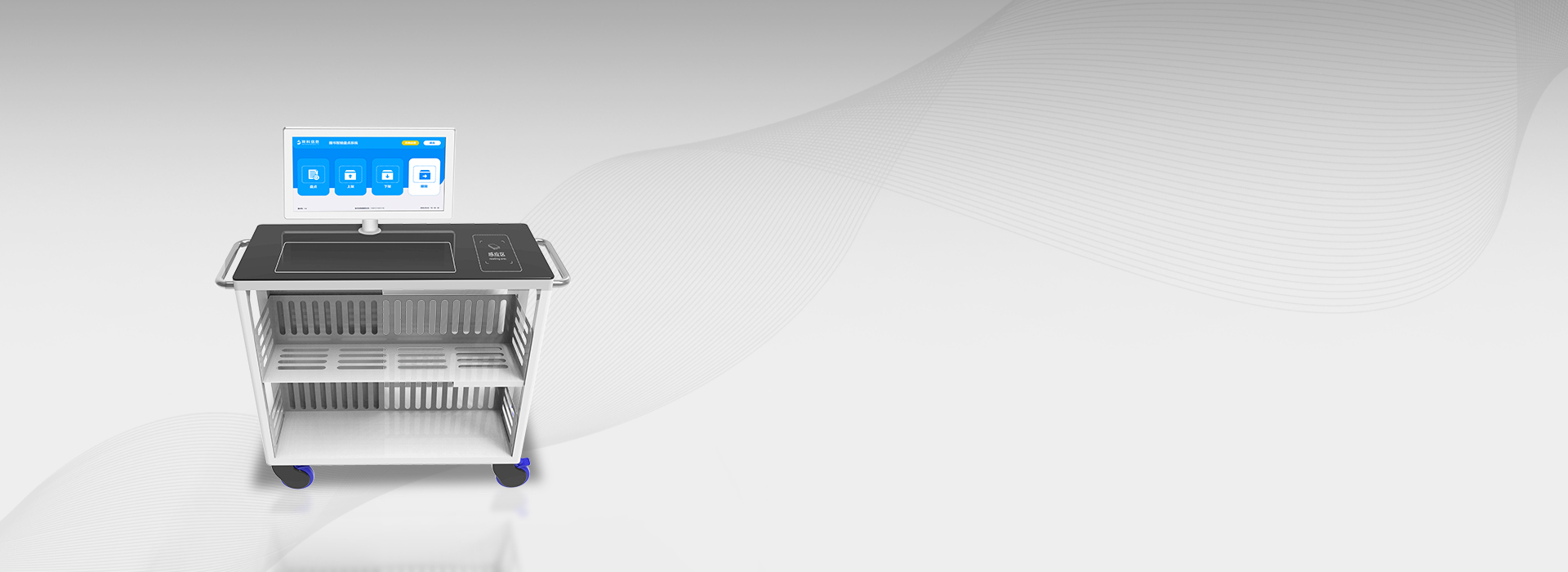

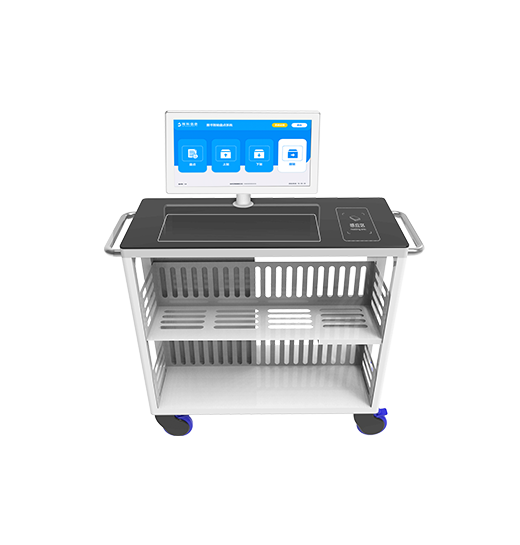

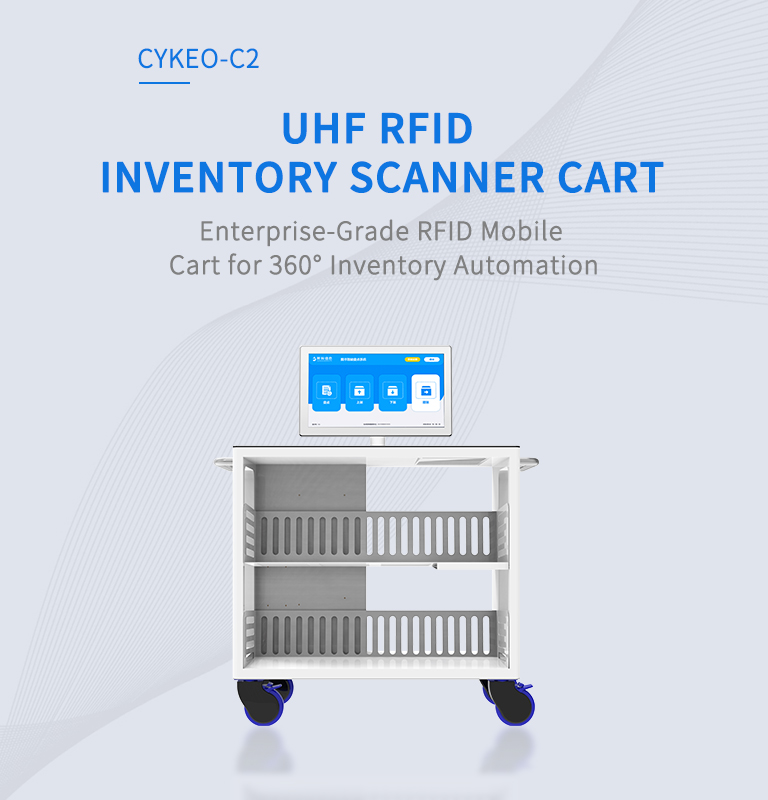

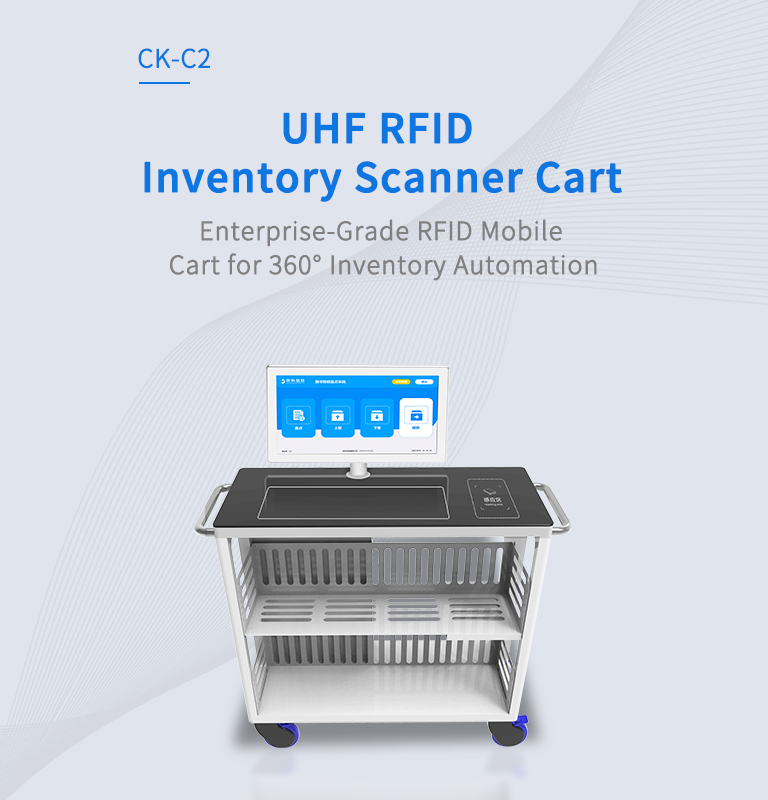

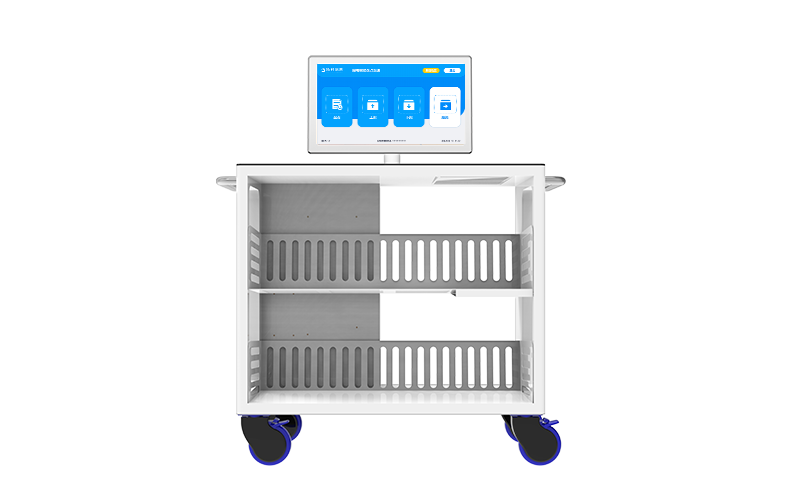

CK-C2

UHF RFID Inventory Scanner Cart

Enterprise-Grade RFID Mobile Cart for 360° Inventory Automation

✔️ 10 RFID Readers for Simultaneous Scanning

✔️ Customizable Workflows for Warehousing/Retail

✔️ 21.5″ Touchscreen with Multi-Tag Visualization

Talk to an Expert

Email Our Team

SMART CART, SCAN EVERYWHERE

The CK-C2 UHF RFID Inventory Scanner Cart revolutionizes asset tracking with 10 embedded RFID readers and a 21.5″ HD touchscreen. Supporting dual OS (Windows/Android), multi-frequency protocols (840-960MHz), and real-time data sync via 4G/WiFi, it enables bulk tag processing (500+ tags/sec) for warehouses, libraries, and smart retail. Customizable hardware/software meets ISO 18000-6C standards.

Ideal for large-scale inventory audits: From warehouse tool management and library book circulation to retail shelf replenishment and hospital asset tracking.

Parts management

Production line material

File management

Retail accessories

Medical management

Factory Automation

Cykeo CK-C2 UHF RFID Inventory Scanner Cart Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-C2C RFID INVENTORY SCANNER

Impinj R2000 Industrial Chipset

Advanced UHF RFID engine supports 800+ tags/min scanning with 99.9% anti-collision accuracy.

33dB Adaptive Power Control

Real-time RF power adjustment 0-33dB for optimal shelf penetration in metal-dense environments.

Dual OS Flexibility

Switch between Windows 10 IoT & Android 11 for ILS compatibility or custom app development.

IR-Triggered Scanning

5cm precision detection for shelf-level accuracy

21.5″ HD Shelf Mapping Interface

1920×1080 touchscreen displays real-time book locations with misshelf alert overlays.

4-Hour Continuous Scanning

High-capacity battery supports full-shift inventory audits without charging interruptions.

SIP2/NCIP Auto-Sync

Direct integration with library systems like Koha, Alma, and Symphony for live data updates.

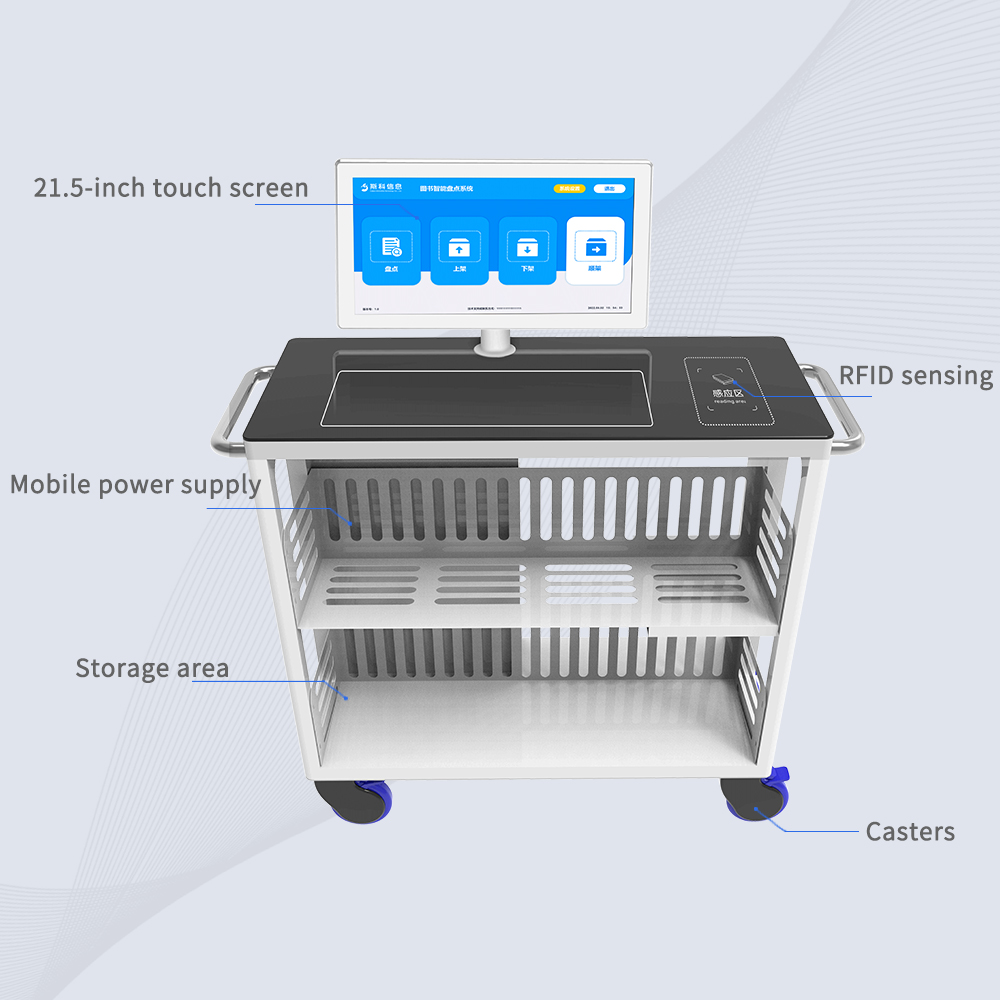

Rugged Mobility

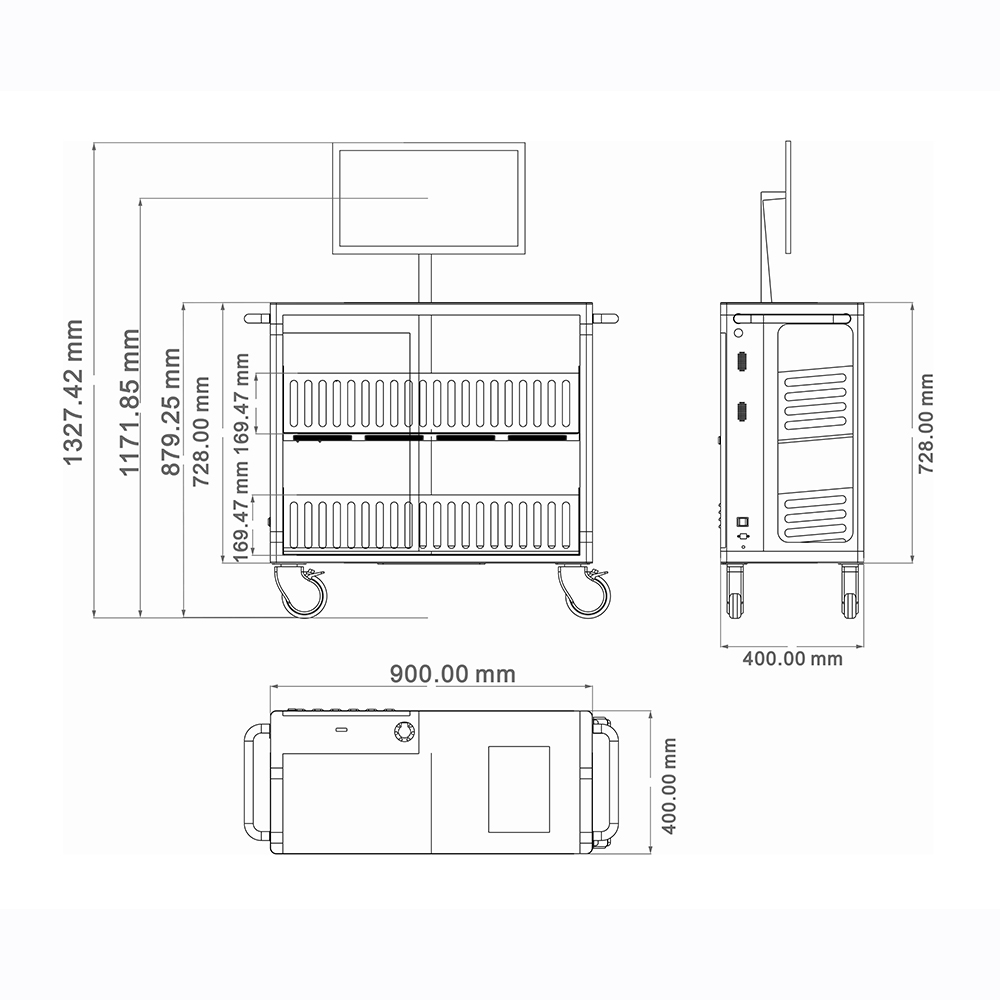

Heavy-duty wheels & 1327mm ergonomic height

Cykeo CK-C2 UHF RFID Inventory Scanner Cart Specifications

Main Specifications

BrandCykeo
ModelCK-C2
Product NameUHF RFID Inventory Scanner Cart

Physical Parameters

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Reading speed≥40
ConnectivityRS232, WiFi
Handheld antenna powerAdjustable from 0 to 33db
Handheld antenna reading methodInfrared trigger reading
Handheld antenna trigger distance5CM
PowerDC12V/50W

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID Inventory Scanner Cart FAQs

How to Achieve Real-Time Inventory Updates in Multi-Zone Warehouses?

Answer:
The CK-C2 UHF RFID Inventory Scanner Cart solves multi-zone tracking challenges through modular hardware design and smart synchronization technology:

Dual-Axis RF Array: 10 embedded UHF RFID readers (860-960MHz) detect items across shelves up to 6m high and 3m horizontal range, covering both floor-level storage and vertical racks.
Zone Mapping Software: Pre-configure warehouse layouts in the 21.5″ Windows/Android interface, assigning priority areas (e.g., high-value items in Zone A, bulk goods in Zone B). The cart auto-marks scanned zones to avoid repeats.
Instant Sync: Scanned data transmits via 4G/WiFi/RJ45 every 3 seconds to platforms like SAP EWM or Oracle SCM. For offline sites, batch uploads resume connectivity automatically.

Industrial Application: A European auto parts warehouse cut cycle counts from 18 hours to 2.5 hours using this system, achieving 99.4% inventory accuracy with RFID tags on 50,000+ SKUs.

Can the Scanner Cart Handle Extreme Temperatures or Dusty Environments?

Answer:
Engineered for harsh industrial settings, the UHF RFID Inventory Scanner Cart features:

Industrial-Grade Components:
- -20°C~60°C Operation: Heated/cooled battery compartment maintains performance in frozen storage (-20°C) or sun-exposed yards (60°C).
- IP55 Certification: Sealed bearings and dust filters protect RFID readers in cement plants or textile mills with airborne particulates.
Maintenance Protocols:
- Daily self-check routines (antenna diagnostics, memory optimization).
- Quick-release panels for RFID module replacement (under 10 minutes).

Case Study: A Middle Eastern oil tool facility reduced equipment loss by 67% using the cart in 55°C desert heat, withstanding daily sandstorms through nano-coated sensor protection.

How to Train Staff with No RFID Experience?

Answer:
The UHF RFID Inventory Scanner Cart simplifies adoption via intuitive workflows and custom training tools:

Guided UI Modes:
- Beginner: Voice prompts and visual arrows direct users through scan paths.
- Advanced: Custom scripts automate complex audits (e.g., cross-checking batches in pharma warehouses).
On-Demand Resources:
- QR-Coded Quick Start – Scan printed guides on the cart to access video tutorials.
- Virtual Assist – Connect via Teams/Zoom for live RFID tagging demos.
Error Prevention: Real-time alerts flag mismatched tags or missed zones during scanning.

Retail Use Case: A U.S. grocery chain trained 120+ employees in 3 days using these tools, cutting RFID deployment time by 40% compared to traditional methods.
