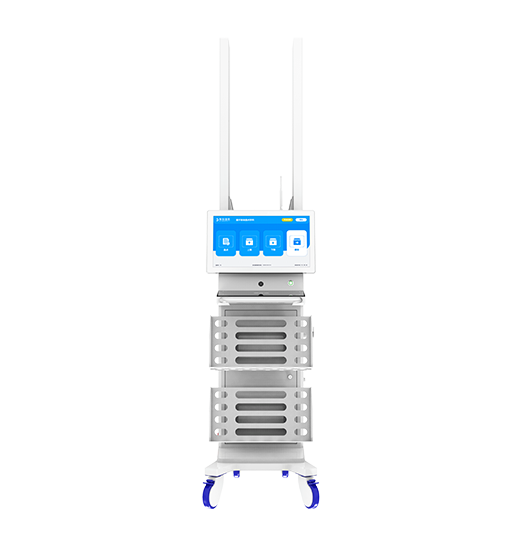

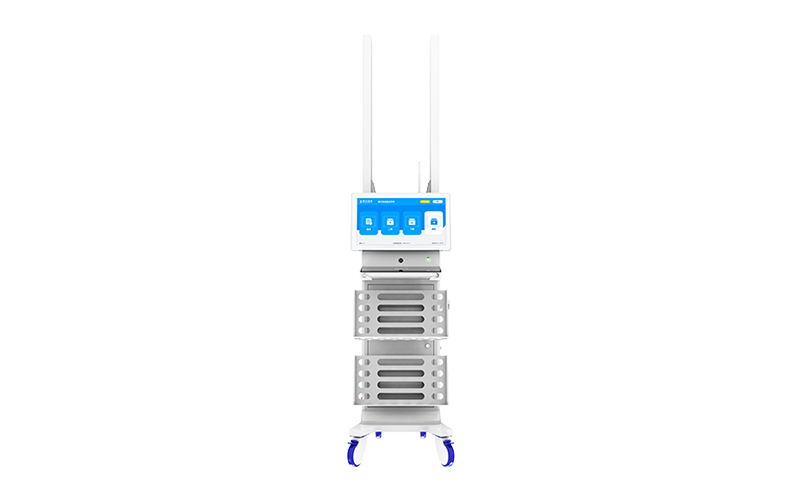

CK-C1A

RFID Tag Inventory System

Vertical Asset Intelligence with 2.2m Manual Lift & 98% First-Pass Accuracy

✔️ Windows/Android OS with ERP Integration

✔️ 2.2m Height-Adjustable Scanning Platform

✔️ Dual Polarized Antennas for 360° Tag Coverage

Talk to an Expert

Email Our Team

LIFT, SCAN, VERIFY

The CK-C1A RFID Tag Inventory System redefines vertical asset management with its manual lift mechanism reaching 2.2m height. Equipped with dual polarized antennas and a desktop RFID platform, it achieves 98% first-pass accuracy in warehouse inventory, library archives, and retail stockrooms. Powered by Intel i5/RK3399 CPU and 21.5″ FHD touchscreen, it delivers real-time data sync to SAP/Oracle via WiFi/4G.

Ideal for high-shelf inventory in warehouses, archival material management in libraries, and backroom stock checks in retail stores requiring vertical access.

Parts management

Production line material

File management

Retail accessories

Medical management

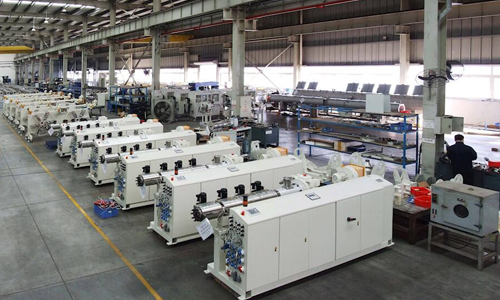

Factory Automation

Cykeo CK-C1A RFID Tag Inventory System Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-C1A RFID TAG INVENTORY SYSTEM

Dual-Height Scanning

1m vertical adjustment range 1.4-2.4m working height

Hybrid OS

Windows 10 Pro or Android 11 with RK3399 chipset

Desktop RFID

33dBm UHF reading platform for batch processing

Collision Control

800+ tags/min dense mode with EPC filtering

Industrial Power

4hr continuous operation at -10°C~50°C

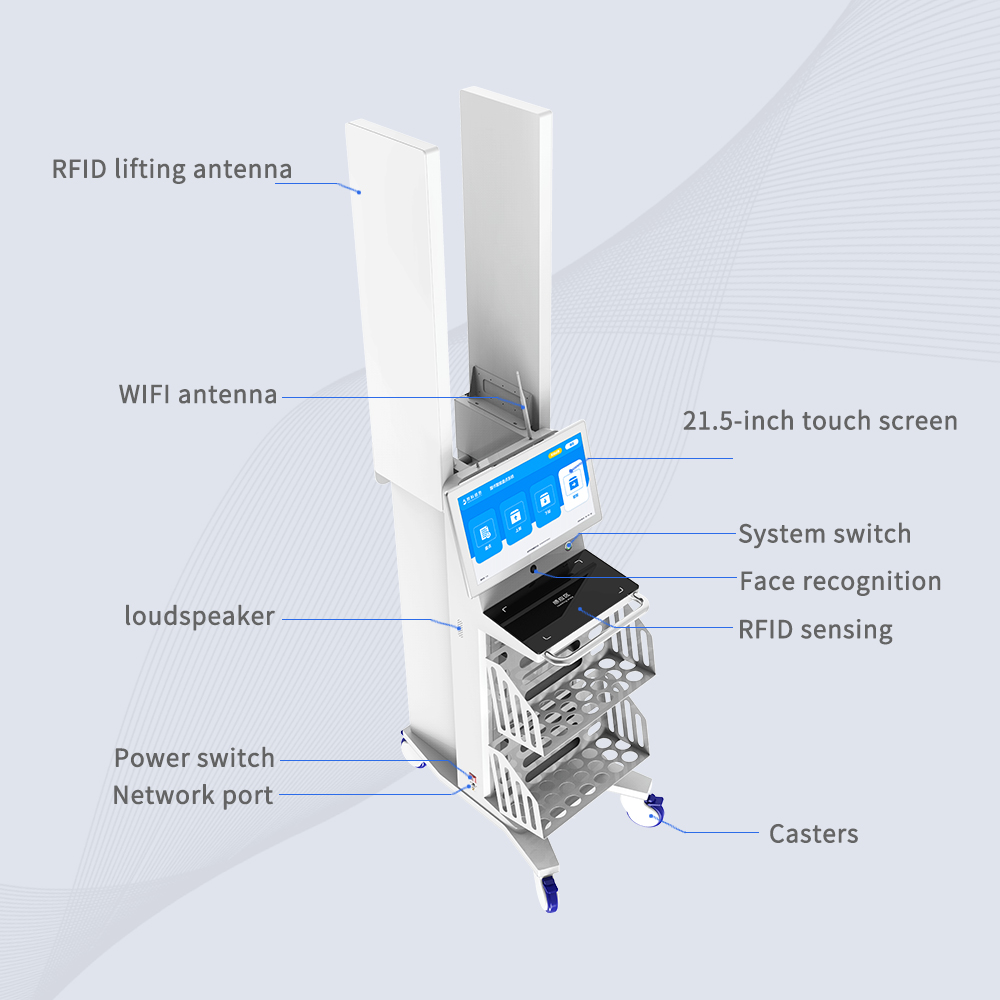

Dual Antenna Design

120° horizontal coverage per antenna

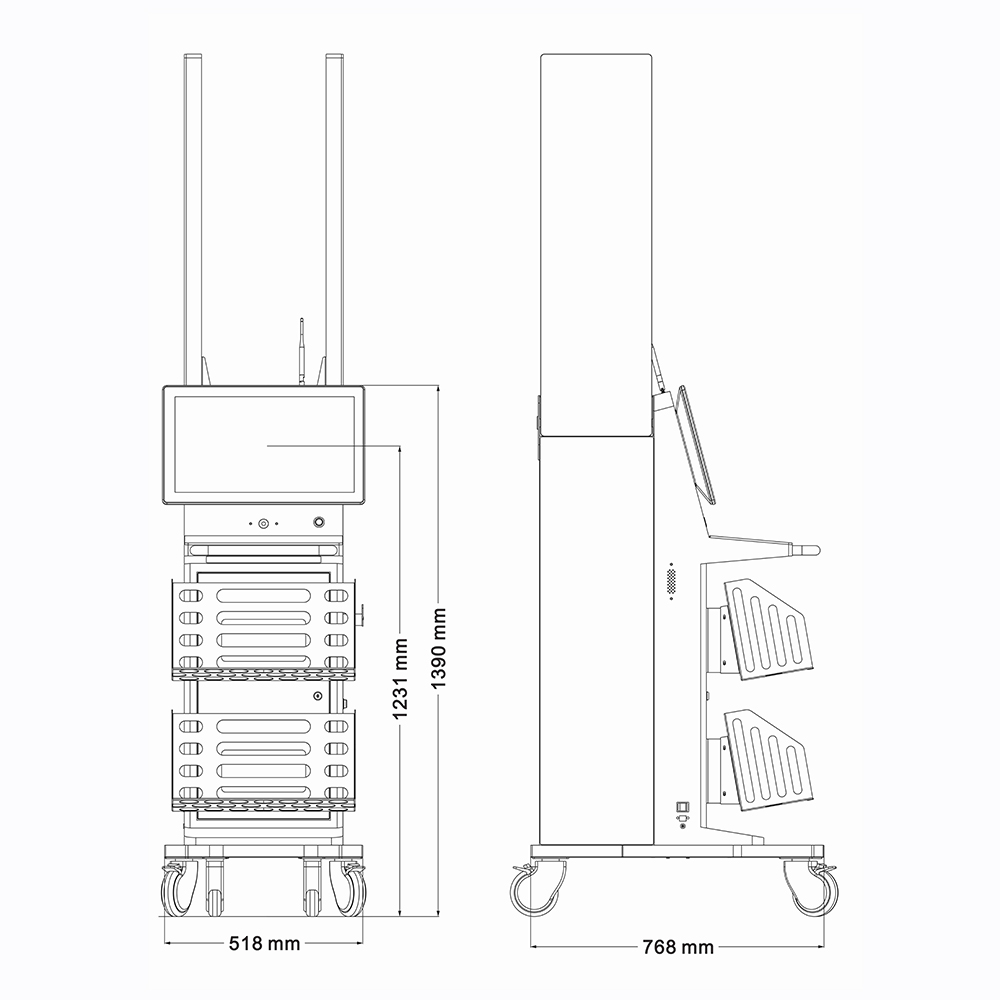

Ergonomic Mobility

518mm width for narrow aisle navigation

Legacy Integration

USB/RS232/Ethernet WMS connectivity

Cykeo CK-C1A RFID Tag Inventory System Specifications

Main Specifications

BrandCykeo
ModelCK-C1A
Product NameRFID Tag Inventory System

Physical Parameters

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Reading speed≥40
ConnectivityRS232, WiFi
Handheld antenna powerAdjustable from 0 to 33db
Handheld antenna reading methodInfrared trigger reading
Handheld antenna trigger distance5CM
PowerDC19V/9.47A

Operating Environment

Input200±10W
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID TAG INVENTORY SYSTEM FAQS

How Does the 2.2m Lift Improve Warehouse Inventory Efficiency?

Answer:
The CK-C1A RFID tag inventory system eliminates ladder climbing with its manual lift mechanism:

Infrared-triggered scanning at each height level captures tags within 5cm precision.
Dual antennas read 200+ items/minute on high shelves vs. 80 items with handheld scanners.
Real-time sync via Android SDK updates SAP inventory counts during operation.
Case Study: A logistics center reduced high-shelf inventory time by 70% while achieving 99.1% accuracy for 30,000+ SKUs.

Can It Manage Mixed Inventory with Barcodes and RFID Tags?

Answer:
Yes. The modular design supports:

Simultaneous RFID/barcode scanning via optional add-ons (scan rate: 120 barcodes/sec).
Auto-EPC conversion linking barcode data to RFID tags in database.
Hybrid mode prioritizing RFID for bulk items and barcodes for non-tagged goods.
Tip: Use the 21.5″ touchscreen to toggle between RFID-only and hybrid modes instantly.

How Secure Is the System for Library Archival Management?

Answer:
Enhanced security via multi-layer controls:

Role-based permissions restrict data access (e.g., interns can scan but not delete records).
Offline EAS alarms trigger if unauthorized materials pass checkpoint.
Encrypted local storage protects 100,000+ asset records during network outages.
Performance Data: Blocked 41 theft attempts in 6 months at a national archive.
