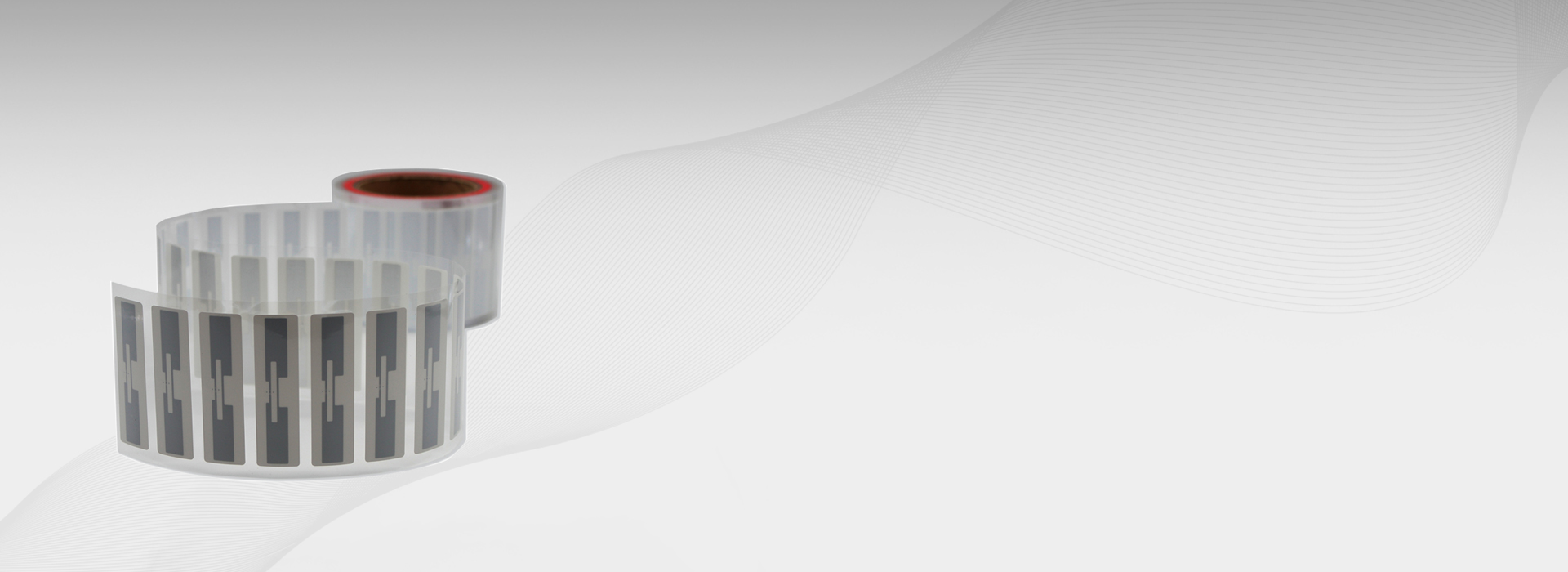

RSTHD

✔️ 10-Year Data Retention with 100K Write Cycles

✔️ -40°C to +85°C Chemical & Abrasion Resistance

✔️ 8m Read Range in High-Liquid Content Settings

Talk to an Expert
RHTFD

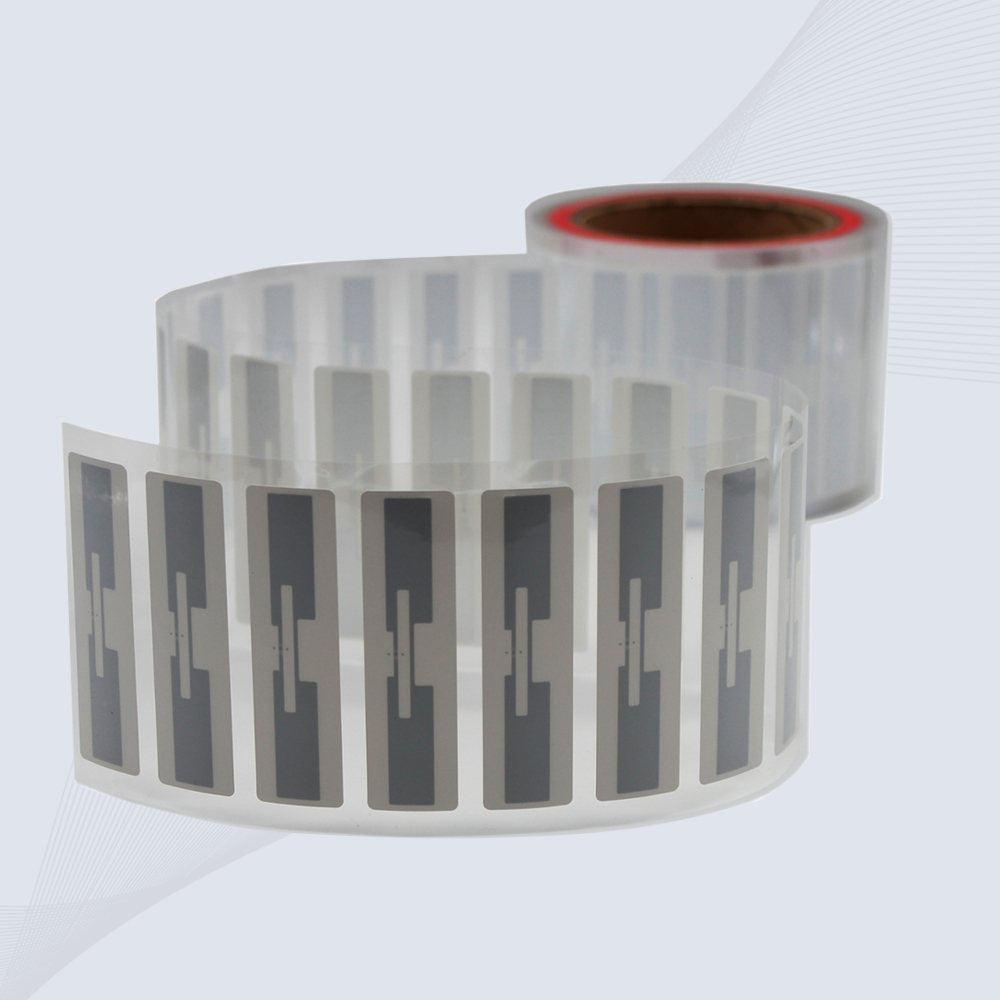

FYUKH
FYUKH

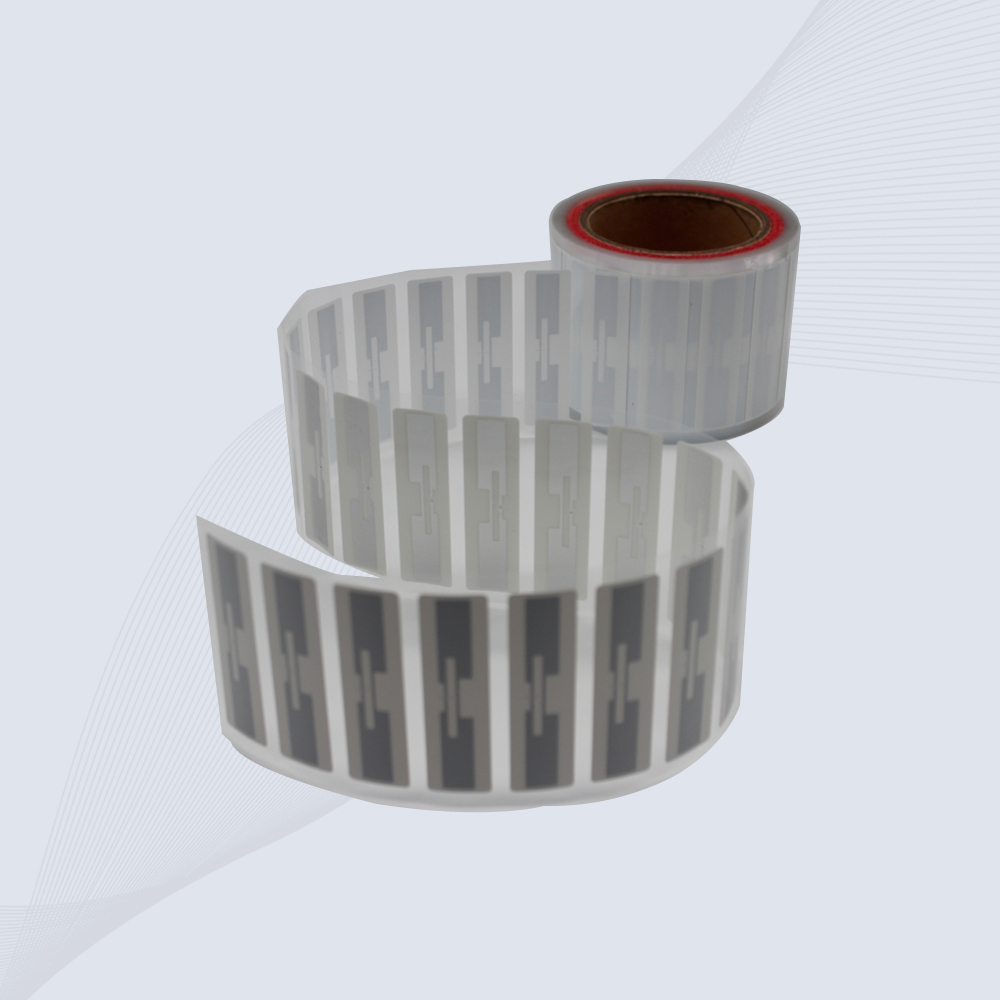

SDZRH

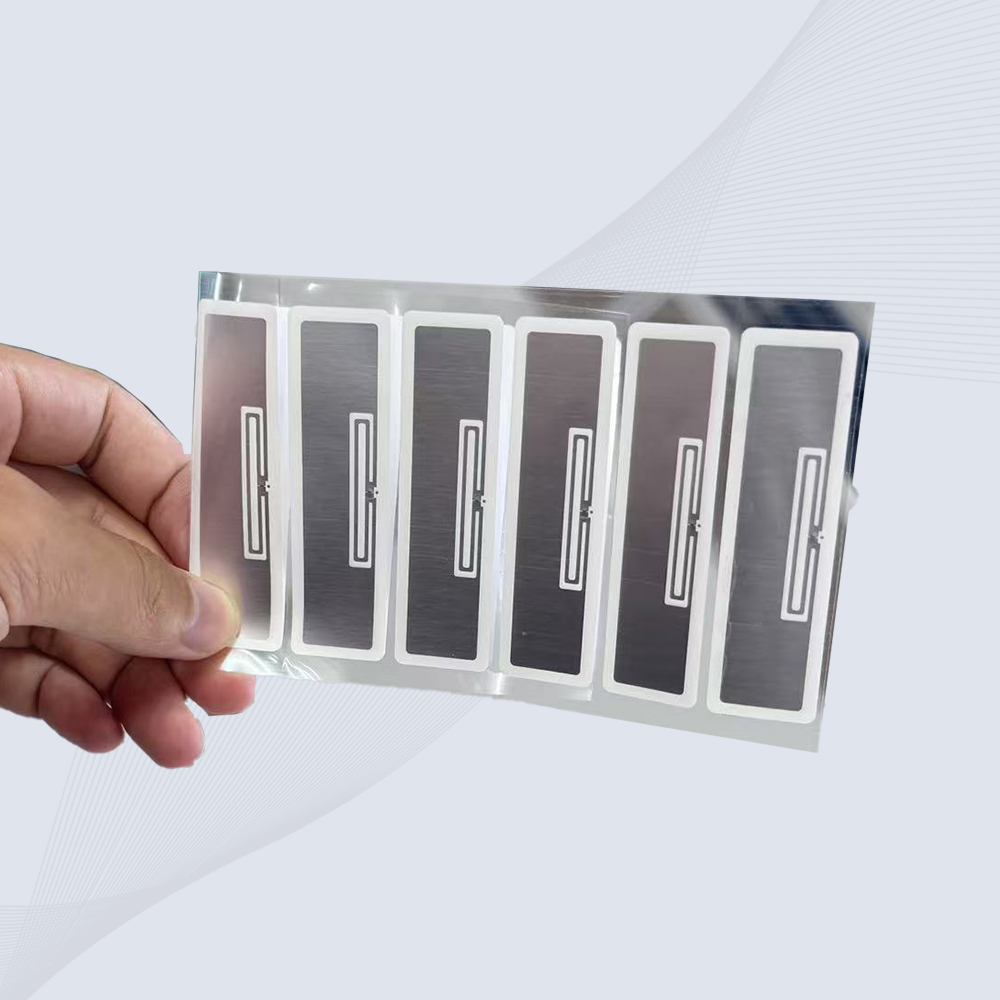

AEDRH

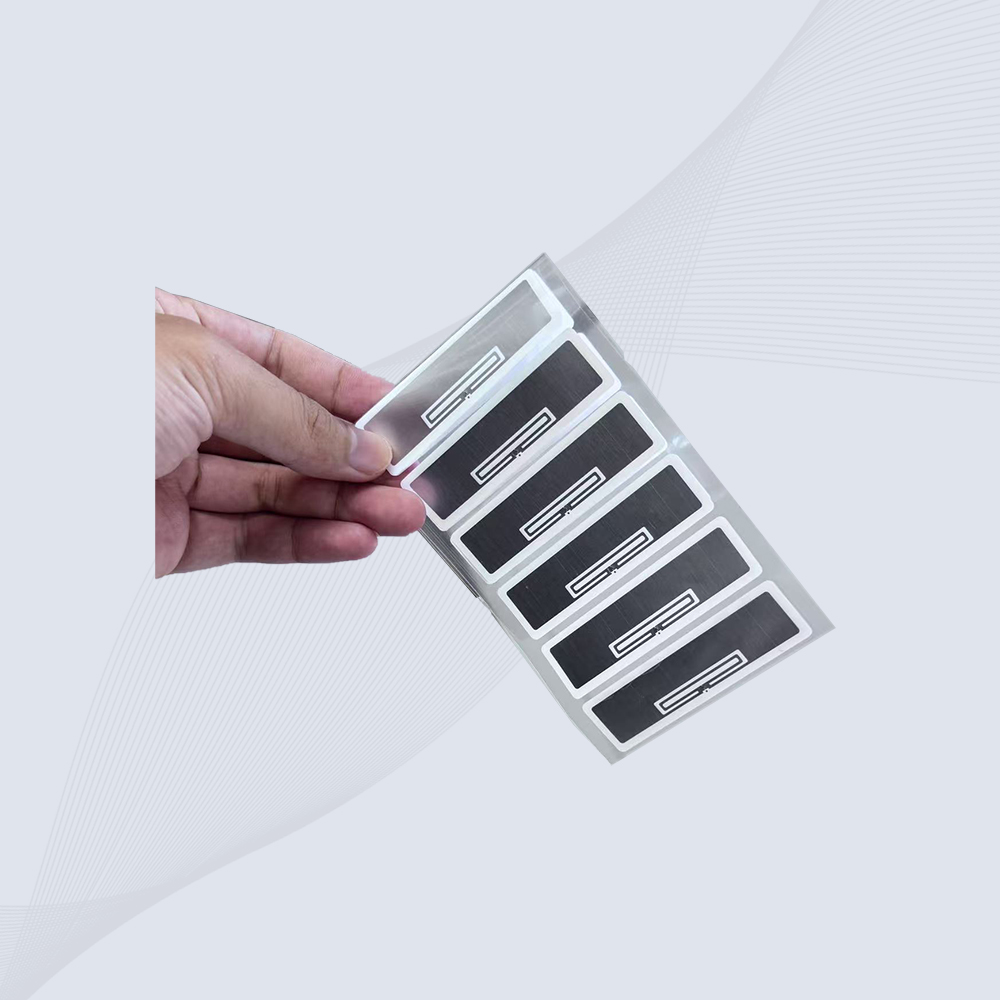

RSHD
RTH

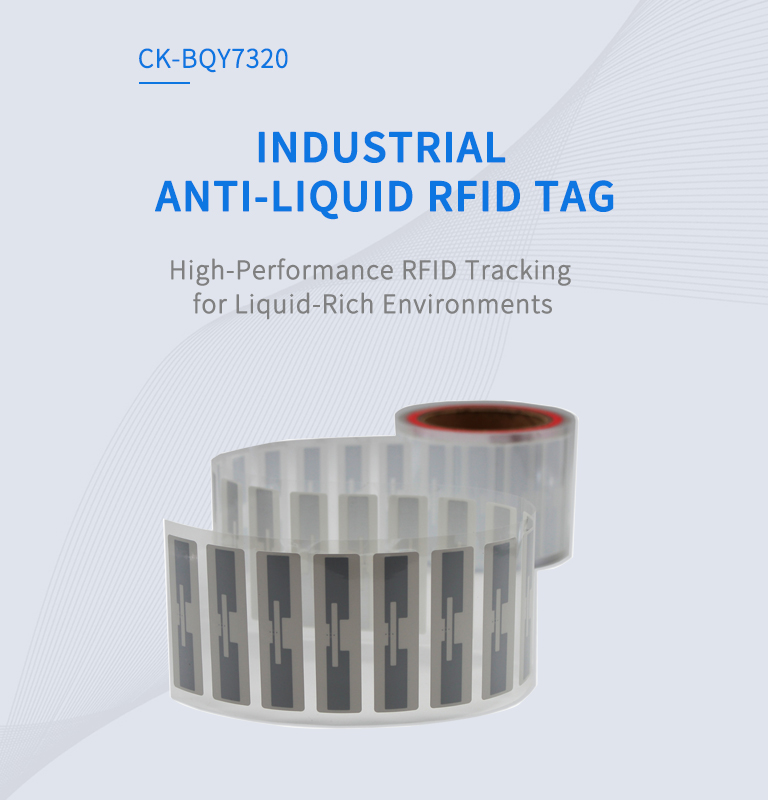

LIQUID-PROOF. RELIABILITY BUILT IN.

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

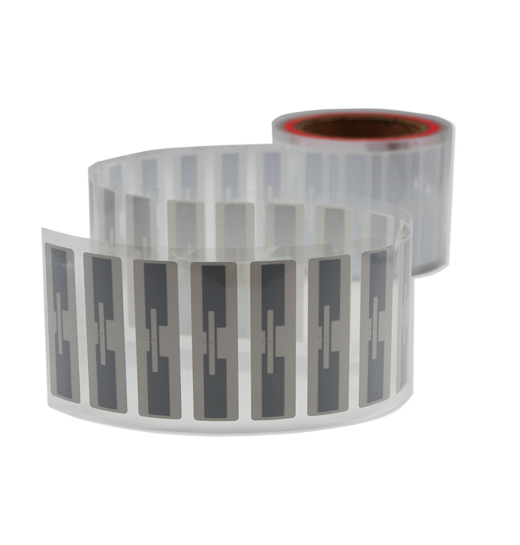

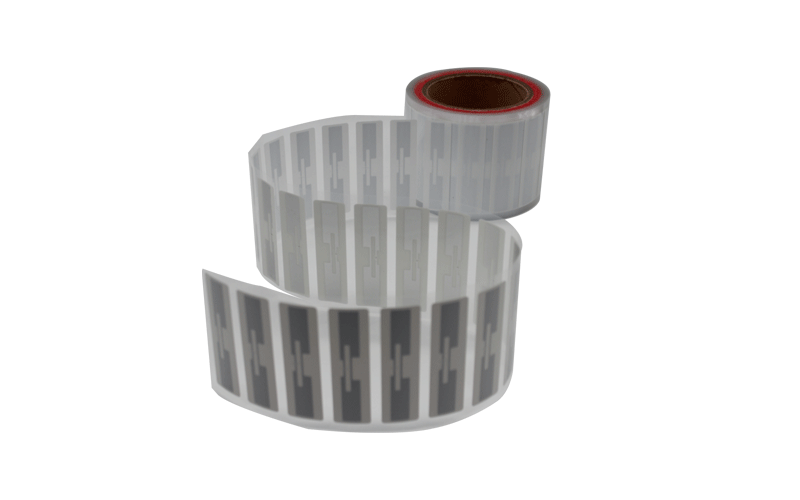

Cykeo CK-BQY7020 Anti-Liquid Passive RFID Tags Specifications

Main Specifications

  • ModelCK-BQY7020
  • BrandCykeo
  • Product NameAnti-Liquid Passive RFID Tags

Physical Parameters

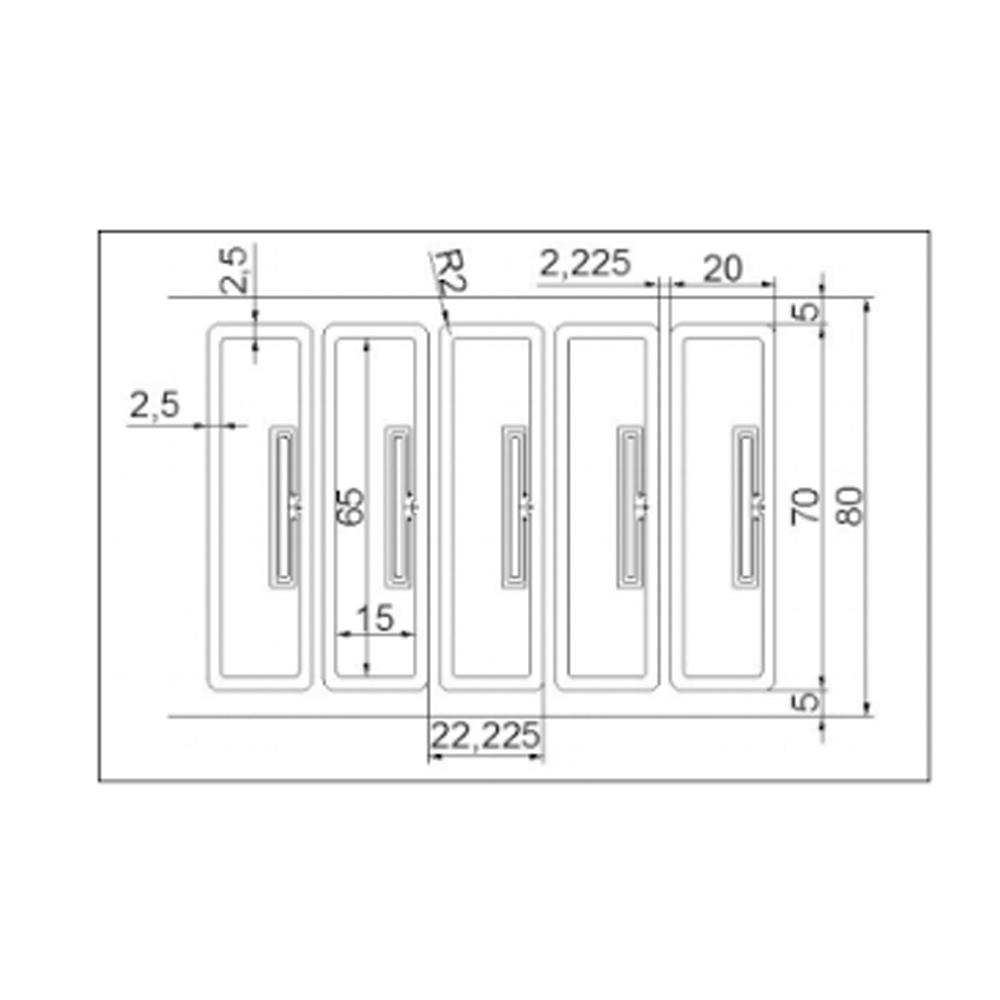

  • Dimensions70*20mm
  • ​​MaterialPET(50um)
  • ​​ChipImpinj Monza R6-P
  • Antenna manufacturing methodEtched Aluminum
  • Weight0.1g

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development

Performance Parameters

  • Frequency Range840MHz~960MHz
  • Protocol SupportISO/IEC 18000-6C, EPC Class1 Gen2
  • ​​Read Range​8m on metal (2W ERP)
  • Memory Capacity​EPC:128bit, TID:96bit
  • ​​Wash Durability​200 Cycles @ 70°C
  • ​​Heat Resistance​180°C for 10 Sec (4bar Pressure)
  • ​​Lifespan​100K writes, 10-year data retention

Operating Environment

  • Operating Temperature-25°C to +70°C
  • Humidity8%–100% RH
  • Storage-25°C to +50°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

ANTI-LIQUID PASSIVE RFID TAGS FAQS

How Does the Anti-Liquid Passive RFID Tags Achieve 8m Read Range in Wet Conditions?

Answer:
The CK-BQY7020 uses an aluminum-etched antenna and Impinj Monza R6-P chip to overcome liquid interference:

  • Dielectric Tuning: Antenna design compensates for water’s RF-absorbing properties, boosting signal penetration by 40% vs. copper antennas.
  • Moisture-Immune Encapsulation: 50μm PET substrate creates a hermetic barrier preventing liquid infiltration into chip contacts.
  • Real-World Validation: In seafood processing tests, tags attached to wet packaging achieved 98.2% read accuracy at 7.5m distance.
Can Anti-Liquid Passive RFID Tags Survive Chemical Exposure?

Answer:
Yes. The PET encapsulation provides:

  • Acid/Alkali Resistance: Withstands pH 2–12 solutions (e.g., dairy sanitizers).
  • Abrasion Protection: 50μm thickness endures 10,000+ scrubbing cycles (tested per ASTM D4060).
  • Application Tip: For oil-rich environments (e.g., lubricant drums), combine with Cykeo’s Oil-Resistant Adhesive (Model AD-O7).
How to Deploy Anti-Liquid Tags in Freezer-to-Oven Workflows?

Answer:
The tag’s -40°C to 85°C range enables seamless transitions:

  • Thermal Shock Resistance: MIL-STD-202H certified for rapid 125°C temperature swings.
  • Condensation Defense: PET layer prevents micro-cracking during thawing cycles.
  • Case Study: A vaccine manufacturer reduced tagging failures by 73% when moving vials between -30°C storage and +80°C sterilization chambers.
