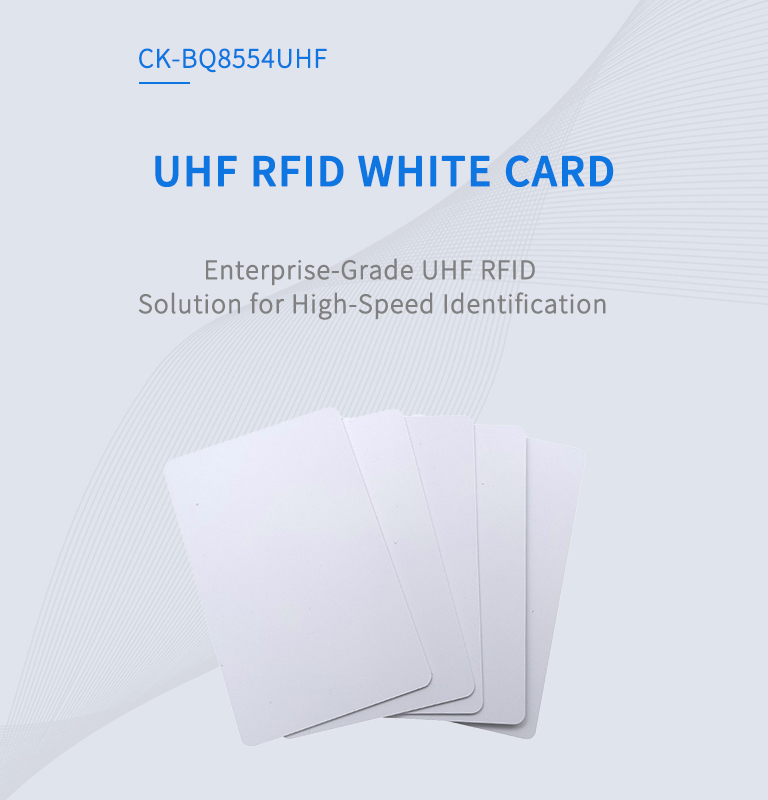

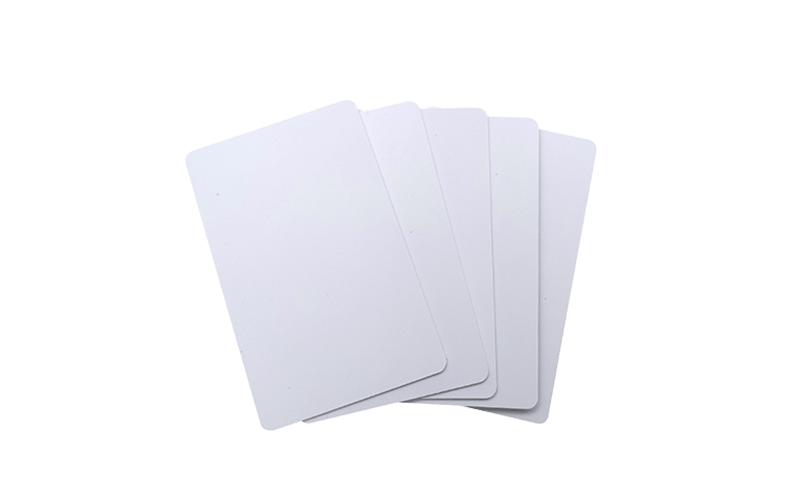

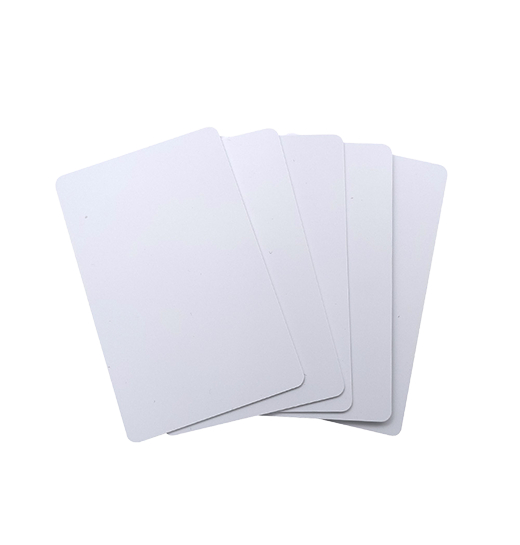

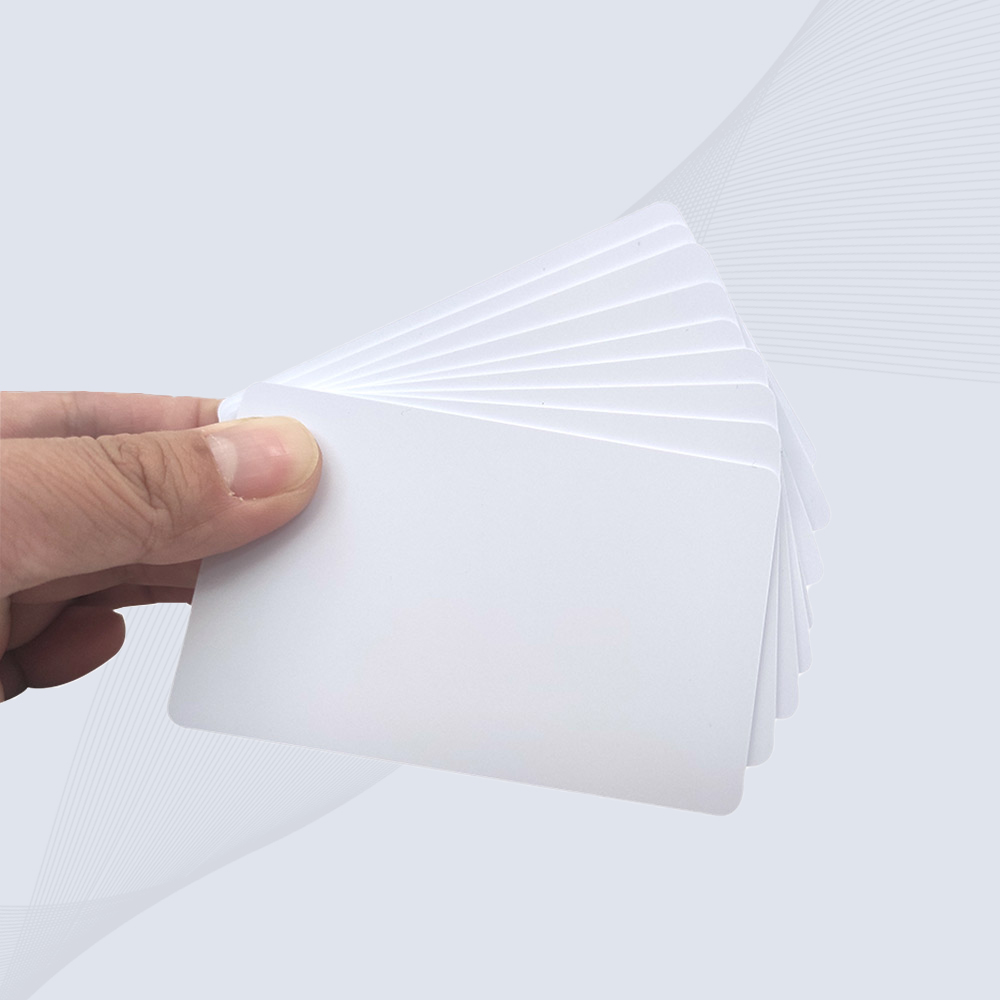

CK-BQ8554UHF

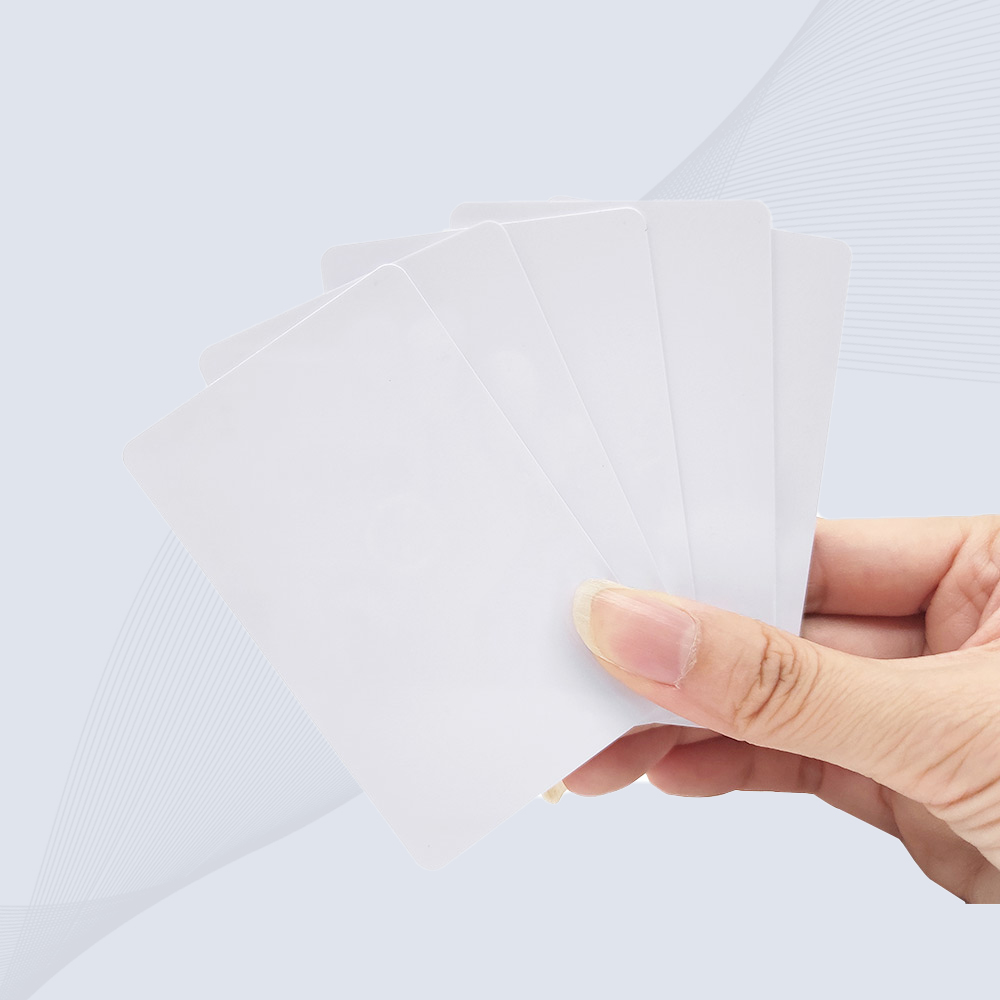

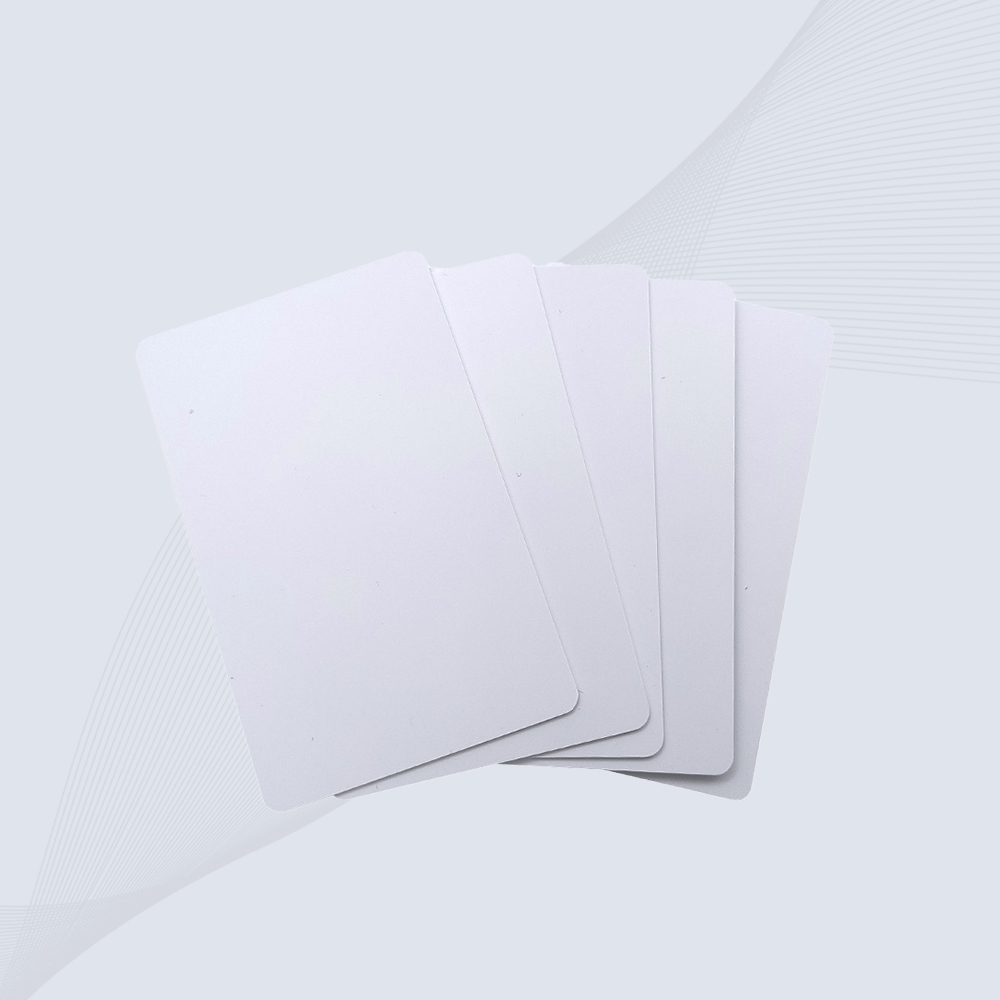

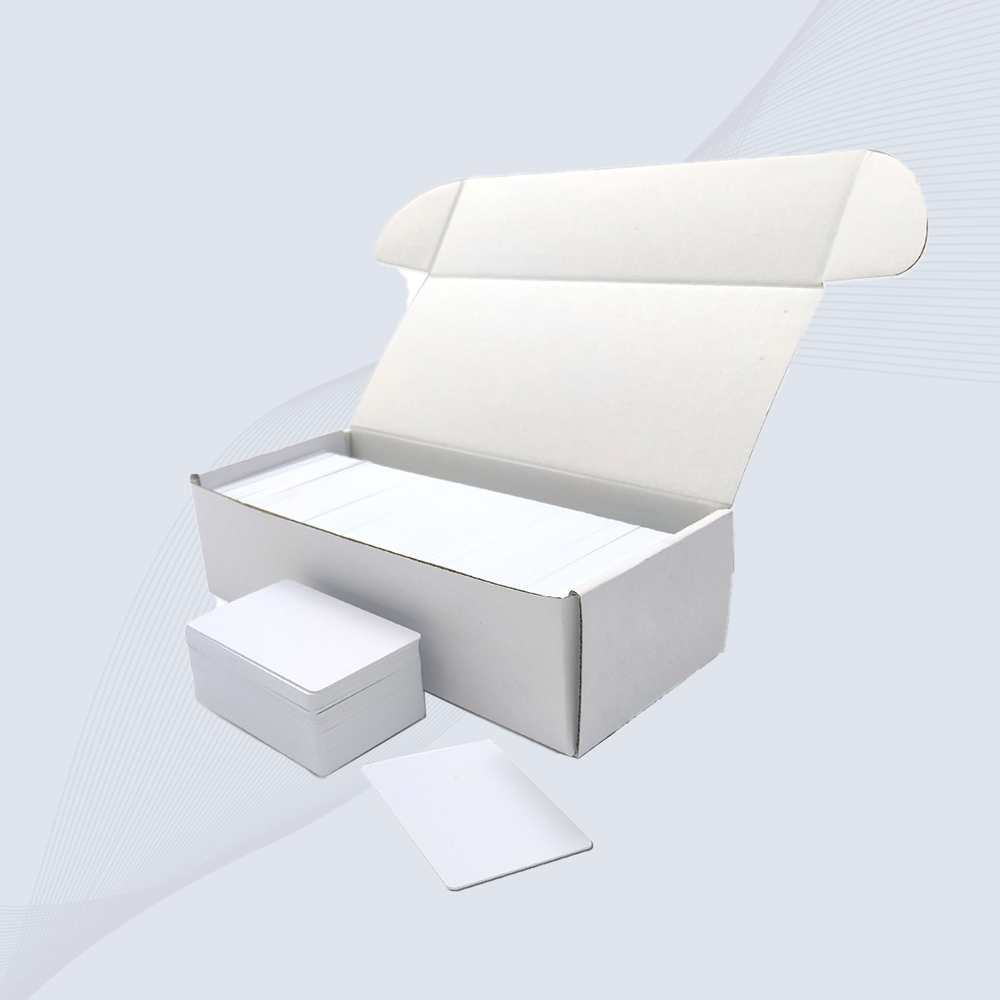

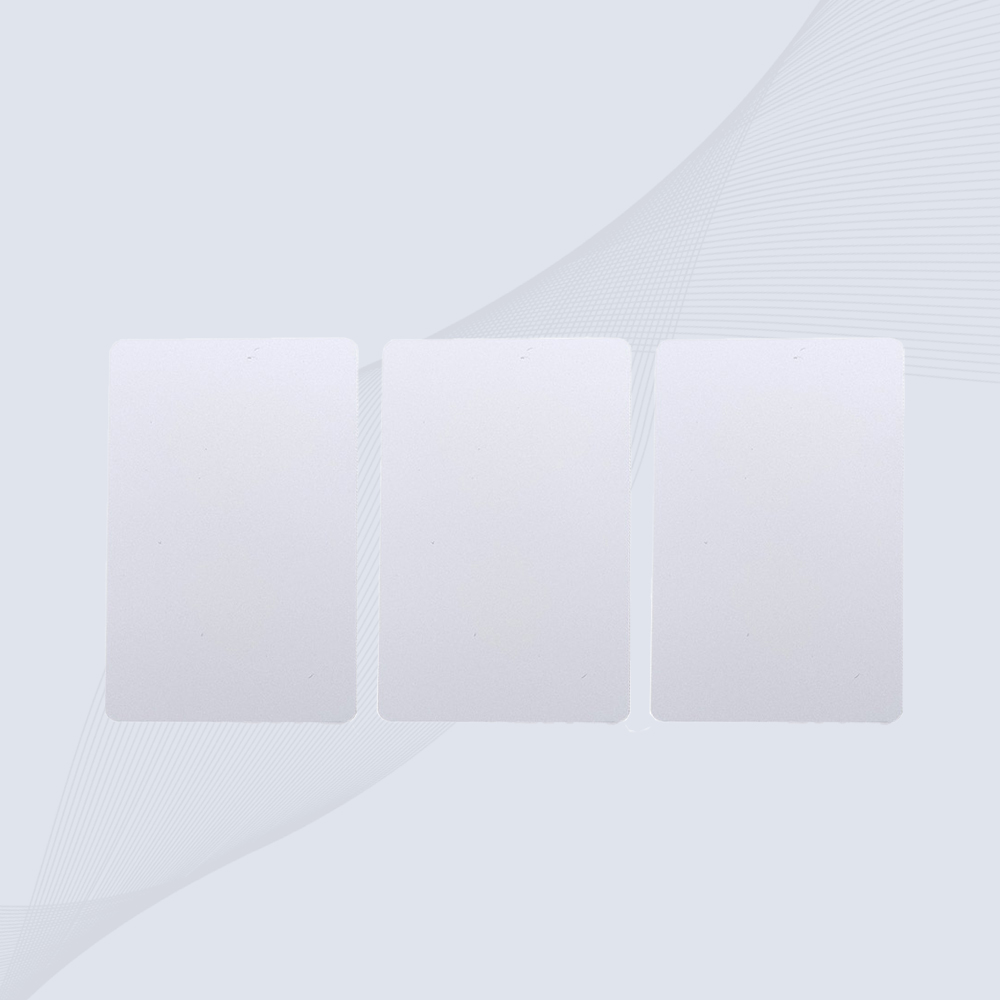

UHF RFID Card

Industrial-Grade White Card for High-Speed Asset Tracking

✔️ ISO 18000-6C Certified U9 Chip

✔️ 100,000 Write Cycles & 10-Year Retention

✔️ Standard CR80 Size Universal Compatibility

Talk to an Expert

Email Our Team

PRECISION TRACKING, ENDURING PERFORMANCE

The Cykeo CK-BQ8554UHF UHF RFID Card features industrial-grade U9 chipset technology with 96-bit EPC memory for high-speed asset identification. Engineered with durable PVC/PET construction and 0.85mm thickness, this ISO 18000-6C certified rfid card delivers reliable performance across 860-960MHz frequency range. With 100,000 write cycles and 10-year data retention, it’s the ideal solution for access control, event management, and inventory tracking in commercial environments.

Ideal for employee access systems, warehouse inventory tagging, and event attendance tracking – providing seamless identification through robust rfid card technology.

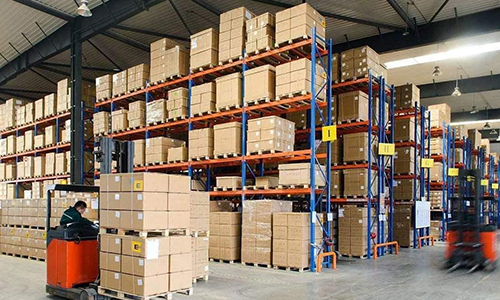

Warehouse management

Meeting check-in

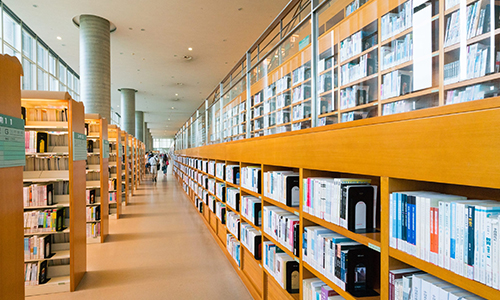

Library management

Pharmaceutical Management

Warehouse pallet tracking

Three-dimensional warehouse

Cykeo CK-BQ8554UHF UHF RFID Card 0Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-BQ8554UHF UHF RFID CARD

ISO 18000-6C Certified

Globally recognized UHF RFID standard

U9 Chipset

High-performance IC with 96-bit EPC memory

100,000 Write Cycles

Supports frequent data updates for long-term use

10-Year Data Retention

Ensures information integrity over a decade

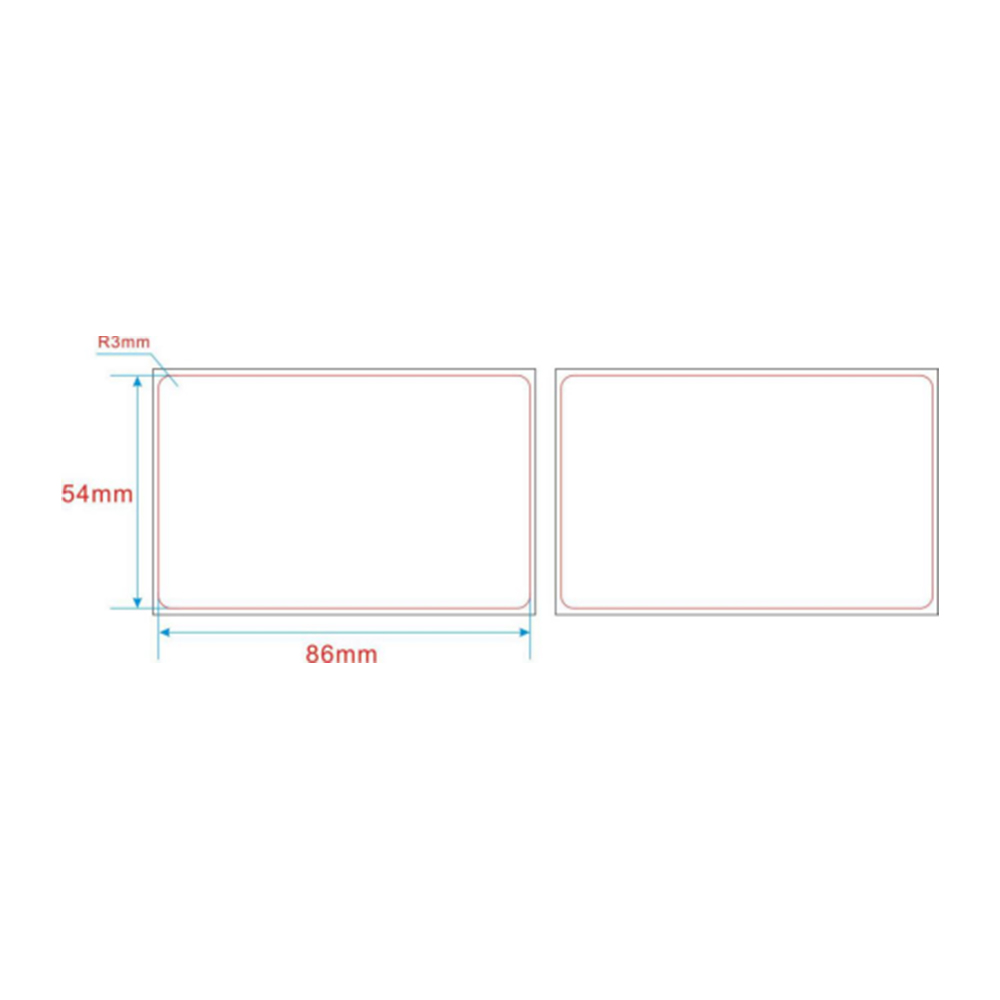

Standard CR80 Size (86x54mm)

Compatible with most card readers and printers

Durable PVC/PET Construction

Resistant to daily wear and tear

Blank White Surface

Ready for full-color printing and encoding

ESD Protection

Prevents damage during handling and encoding

Cykeo CK-BQ8554UHF UHF RFID Cardl Specifications

Main Specifications

ModelCK-BQ8554
BrandCykeo
Product NameUHF RFID Card

Physical Parameters

Dimensions86×54×0.8mm
MaterialPVC、PET
ChipU9
Antenna manufacturing methodEtched Aluminum
Weight0.1g

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency RangeISO18000-6c
Protocol Support860MHz—960MHz
Read Range8m on metal (2W ERP)
EPC96bits
TID96bits
Heat Resistance180°C for 10 Sec (4bar Pressure)
Lifespan100K writes, 10-year data retention

Operating Environment

Operating Temperature0 ~ 35℃
Humidity8%–100% RH
Storage20% ~ 60% RH

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID CARD FAQS

How Does the U9 Chip Enhance RFID Card Performance in High-Traffic Areas?

Answer:
The U9 chipset optimizes rfid card functionality through:

Anti-Collision Algorithm: Processes 50+ simultaneous reads in access control turnstiles
Signal Sensitivity: Maintains 30cm read range despite metal interference
Memory Integrity: 96-bit EPC ensures unique ID encoding without duplication
Use Case: A Tokyo concert venue managed 12,000+ attendee entries/hour using CK-BQ8554UHF rfid cards with 99.8% scan accuracy during peak entry times.

Can This RFID Card Withstand Daily Industrial Use?

Answer:
Yes. The PVC/PET composite construction provides:

Flexural Endurance: Survives 200+ bends without cracking
Chemical Resistance: Withstands cleaning solvents and mild acids
Temperature Resilience: Operates in 0-35°C warehouse environments
Durability Test: Cards retained functionality after 3 years of daily use in a manufacturing plant’s tool checkout system.

How to Encode Custom Data for Asset Tracking Applications?

Answer:
The 96-bit EPC memory supports customized encoding via:

Cykeo UHF Writers: Batch program 500+ cards/minute
EPC Encoding Standards: GS1-compliant data structures
Integration Tip: Use TID (96-bit unique factory ID) for counterfeit prevention in high-security applications
Encoding Example: A logistics company encoded shipment IDs into 20,000 cards for real-time pallet tracking.
