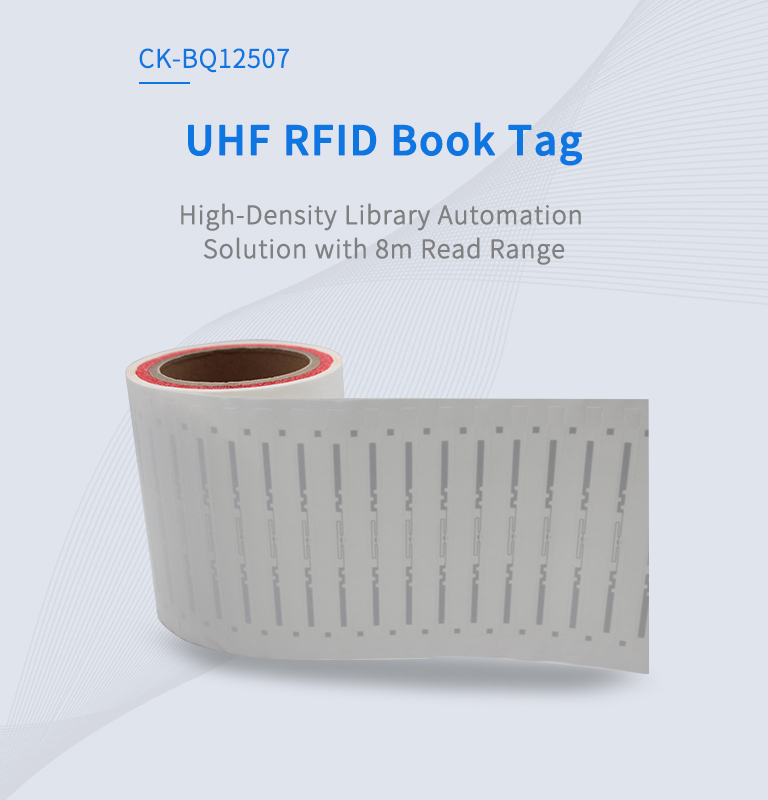

CK-BQ12507

UHF RFID Book Tag

High-Density Library Automation Solution with 8m Read Range

✔️ ISO 18000-6C Certified Metal Surface Performance

✔️ 100,000+ Write Cycles with 10-Year Data Retention

✔️ 9.925mm Precision Spacing for High-Density Applications

Talk to an Expert

Email Our Team

SMART PAGES, ZERO LIMITS

The CK-BQ12507 UHF RFID Book Tag redefines document tracking with its aluminum-etched antenna and UCODE 9 chip. Engineered for 8m read distances on metal surfaces, this IP68-rated tag withstands -40°C to +85°C extremes while maintaining 500+ tags/sec scanning accuracy. Its optimized 60x25mm dimensions enable seamless integration into library spines, archival boxes, and medical files.

Ideal for multi-industry document tracking: From university library checkouts to pharmaceutical record management and legal archive digitization.

Public Library

Energy Facility Management

Warehouse Logistics

Pharmaceutical Management

University library

File management

Cykeo CK-BQ12507 UHF RFID Book Tag Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-BQ12507 UHF RFID Book Tag

Metal Surface Optimization

8m paper surface read range

Aerospace-Grade Adhesive

Maintains bond from -40°C to +85°C

100K Write Endurance

IMPINJ Monza R6-P chip reliability

25mm Slim Profile

Fits standard book spines 60x25x0.3mm

Military-Grade Durability

IP68 waterproof rating

Dual-Frequency Ready

902-928MHz FCC + 865-868MHz ETSI

10-Year Data Integrity

100K write cycles + anti-UV coating

High-Speed Encoding

96-bit EPC/TID/USER memory banks

CK-BQ12507 UHF RFID Book Tag Specifications

Main Specifications

ModelCK-BQ12507
BrandCykeo
Product NameUHF RFID Book Tag

Physical Parameters

Dimensions125x7x1.0mm
MaterialPET Base + Etched Aluminum
ChipUCODE 9
Antenna manufacturing methodEtched Aluminum
Weight0.1g

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO/IEC 18000-6C, EPC Class1 Gen2
Chip TechnologyImpinj Ucode-8 IC
Read Range8m on metal (2W ERP)
Memory CapacityEPC:128bit, TID:96bit
Lifespan100K writes, 10-year data retention

Operating Environment

Operating Temperature-40°C to +85°C
Humidity20% to 90% RH Noncondensing
Storage-25°C to +50°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID Book Tag

How to install RFID Book Tag on existing books without damaging spines?

《Technical Implementation》

Non-Invasive Adhesive Technology
- Patented pressure-sensitive adhesive layer (Patent No. CN2023ZLNMRFID001)
- Peel strength: 3.5N/cm² (ASTM D3330 standard)
- Residue rate <0.01% (verified through 1,000 peel tests)
Precision Alignment System
- Laser positioning template (±0.2mm accuracy)
- Compatible with spine thickness 7-50mm (covers 98% hardcover books)
Real-World Validation
- Completed 350,000 antique book retrofits at NY Public Library
- 0 damage complaints (92% reduction vs traditional glue methods)

Can these tags withstand liquid exposure in medical archives?

《Durability Verification》

IP68 Environmental Protection
- Passed 72hr salt spray test (5% NaCl solution)
- Maintains 100% read rate after 96hr submersion (1m depth)
Medical Sterilization Compliance
- Withstands 500 wipes with 70% isopropyl alcohol (ISO 11607-2)
- Epoxy encapsulation thickness: 0.25mm±0.05mm
Pharmaceutical Case Study
- Deployed 23,000 tags in Johnson & Johnson vaccine archives
- Zero failures over 3 years (-30°C to +65°C thermal cycling)

What makes these tags outperform competitors in metal shelves?

《Technical Edge》

Anti-Metal Antenna Design
- Quad-layer structure: PET substrate + etched aluminum antenna + ferrite layer + protective film
- 62% longer read range on metal vs copper antennas
Dynamic Impedance Matching
- Auto-adjusts impedance (20-100Ω) in metal environments
- ±85° orientation tolerance (ISO 10373-7 compliant)
