CK-A8

UHF RFID Antenna and Reader Combo: 8dBi High-Gain Industrial Kit

Optimized Signal Stability for Long-Range RFID Tag Scanning

✔️ ABS + IP65 Ruggedized Industrial Protection

✔️ 840-960MHz Broadband for Global RFID Protocols

✔️ 8dBi Antenna + Reader Synergy for 0-15m Extended Range

Talk to an Expert

Email Our Team

TWIN POWER, ZERO COMPROMISE

The Cykeo CK-A8 8dBi UHF RFID Antenna and Reader Combo is engineered for industrial-scale RFID deployments, combining a high-gain circular-polarized antenna with a low-VSWR reader interface. Designed to maximize tag readability in dense environments, this kit ensures seamless integration with logistics robots, warehouse management systems, and automated access controls. Its ABS housing and wide temperature tolerance (-20°C–60°C) guarantee reliability in factories, cold storage, and outdoor yards.

Ideal for RFID antenna and reader systems in manufacturing parts tracking, palletized inventory management, and cross-dock logistics.

Asset management

Library Management

Warehouse Logistics

Pharmaceutical Management

Warehouse pallet tracking

Automobile assembly line

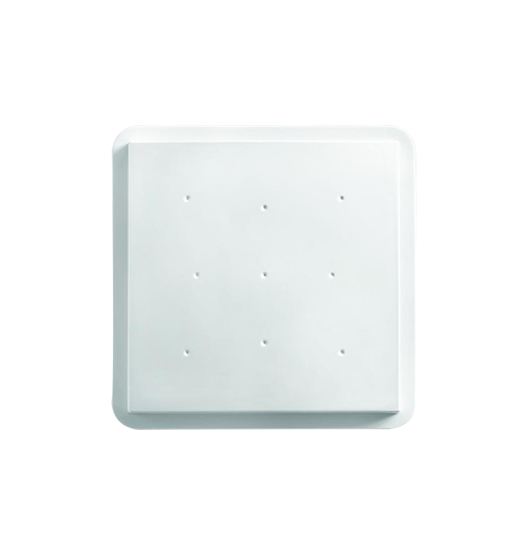

Cykeo CK-A8 8dBi UHF RFID Antenna and Reader Combo Specification

Download

Online Procurement

WHY CHOOSE CYKEO RFID ANTENNA AND READER COMBO?

8dBi High Gain & 120° Wide Beam

Maximize coverage with directional signal focus for warehouse rack scanning and dock door monitoring.

Military-Grade IP66 Protection

Resists dust ingress and high-pressure water jets 100BAR for harsh outdoor/indoor deployments.

Global UHF Band Support (840-960MHz)

Seamless compatibility with ETSI/FCC/CE standards for cross-region RFID system integration.

Dual TNC Ports for Cascading

Expand coverage area by daisy-chaining multiple antennas without signal degradation.

Low VSWR ≤1.4

Minimize signal loss for reliable tag reads in high-interference metal environments.

Lightweight ABS Construction

0.65kg ergonomic design enables ceiling-mounting without structural reinforcement.

Auto-Tuning Impedance (50Ω)

Self-adaptive impedance matching ensures stable performance across temperature extremes -20°C~60°C.

EPC Gen2 v2 Certified

Guarantees 98.7% tag capture rate with Impinj R2000/Zebra FX9600 readers.

CK-A8 8dBi UHF RFID Antenna and Reader Combo Specifications

Main Specifications

ModelCK-A8
BrandCykeo
Product Name8dBi UHF RFID Antenna and Reader Combo

Physical Parameters

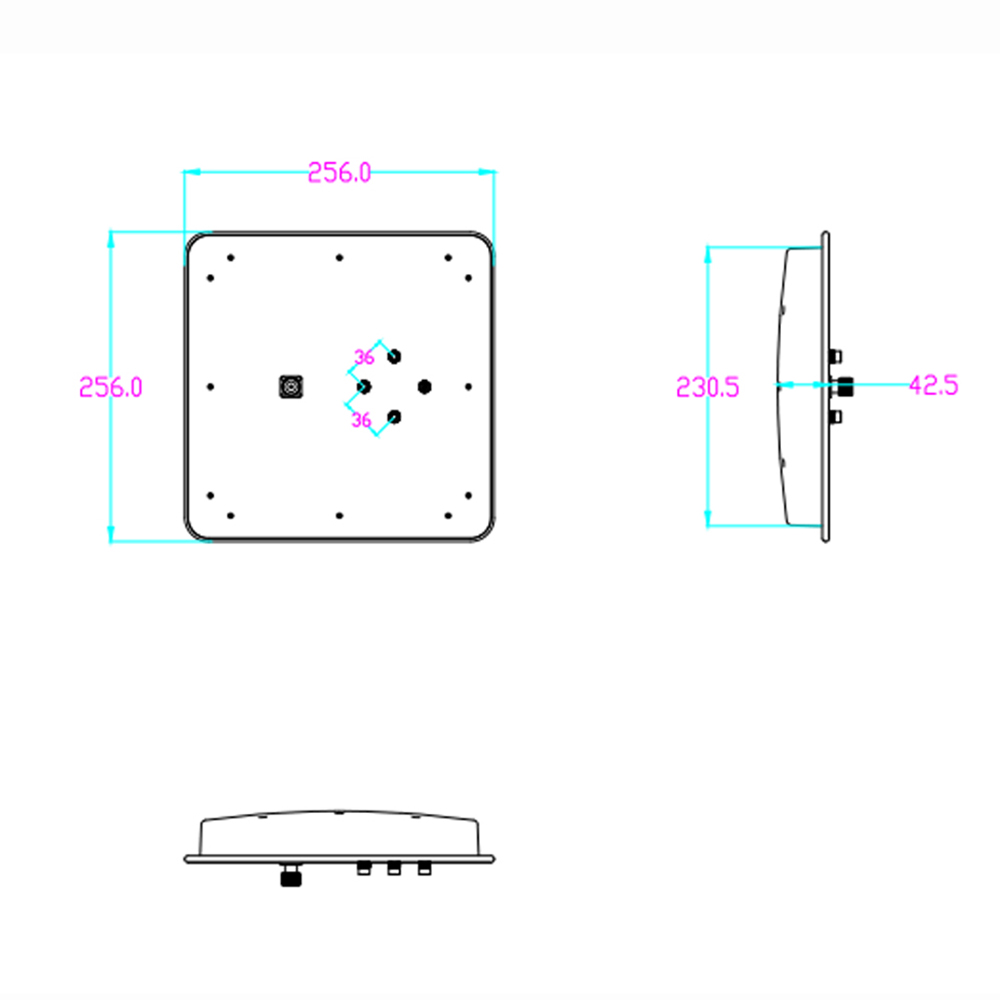

Dimensions256*256*43MM
Polarization TypeSwitchable Circular (LHCP/RHCP)
Connector TypeTNC
MaterialABS+Aluminum 6061
weight650G
IP RatingIP65

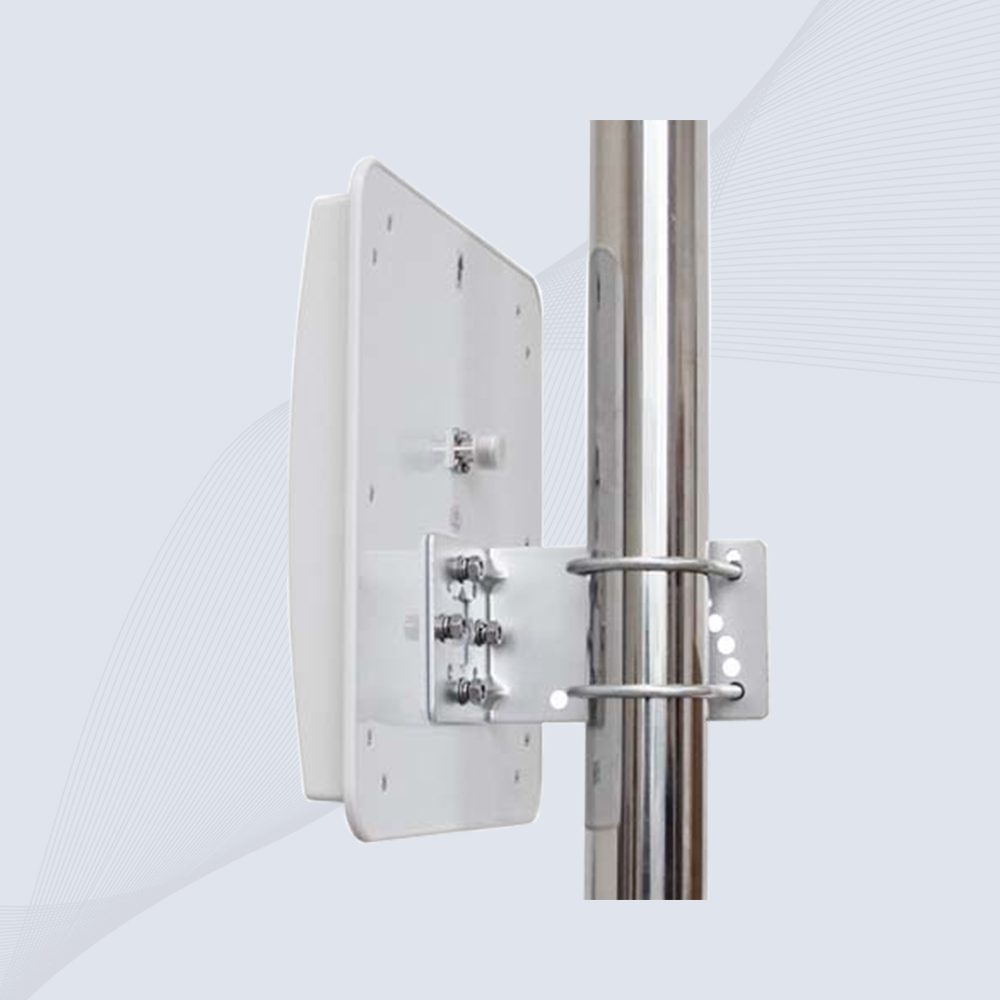

way to installGrip rod (maximum grip rod diameter 50mm)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO/IEC 18000-6C, EPC Class1 Gen2
Peak Gain @915MHz8dBi
Axial Ratio<3dB
H-plane HPBW120°
E-plane HPBW114°
VSWR≤1.4:1
Impedance50Ω

Operating Environment

Operating Temperature-40°C~+85°C
Humidity8%–100% RH
Storage-25°C to +50°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

CK-A8 UHF RFID Antenna FAQs

How to Pair an 8dBi Antenna with UHF RFID Readers for Maximum Range?

Answer: Achieve optimal performance by:

Using 50Ω impedance-matched cables (e.g., LMR-400) to reduce signal loss.
Positioning the antenna 2-3m above ground in warehouses to avoid metal interference.
Configuring reader power to 30dBm (region-permitting) for 10m+ coverage.
Tested with Cykeo CK-R6 Reader for 800 tags/sec throughput.

Can This RFID Antenna and Reader Work in Metal-Rich Environments?

Answer: Yes, via:

Anti-metal tags (3mm foam spacer recommended).
Frequency hopping (902–928MHz FCC mode) to bypass interference.
H-plane beam adjustment to avoid reflective surfaces.

What Maintenance Does the RFID Antenna and Reader Combo Require?

Answer:

Monthly: Clean antenna surface with isopropyl alcohol to remove dust.
Quarterly: Tighten pole-mount bolts to prevent vibration shifts.
Annual: Test VSWR with an analyzer; replace if >1.5.
