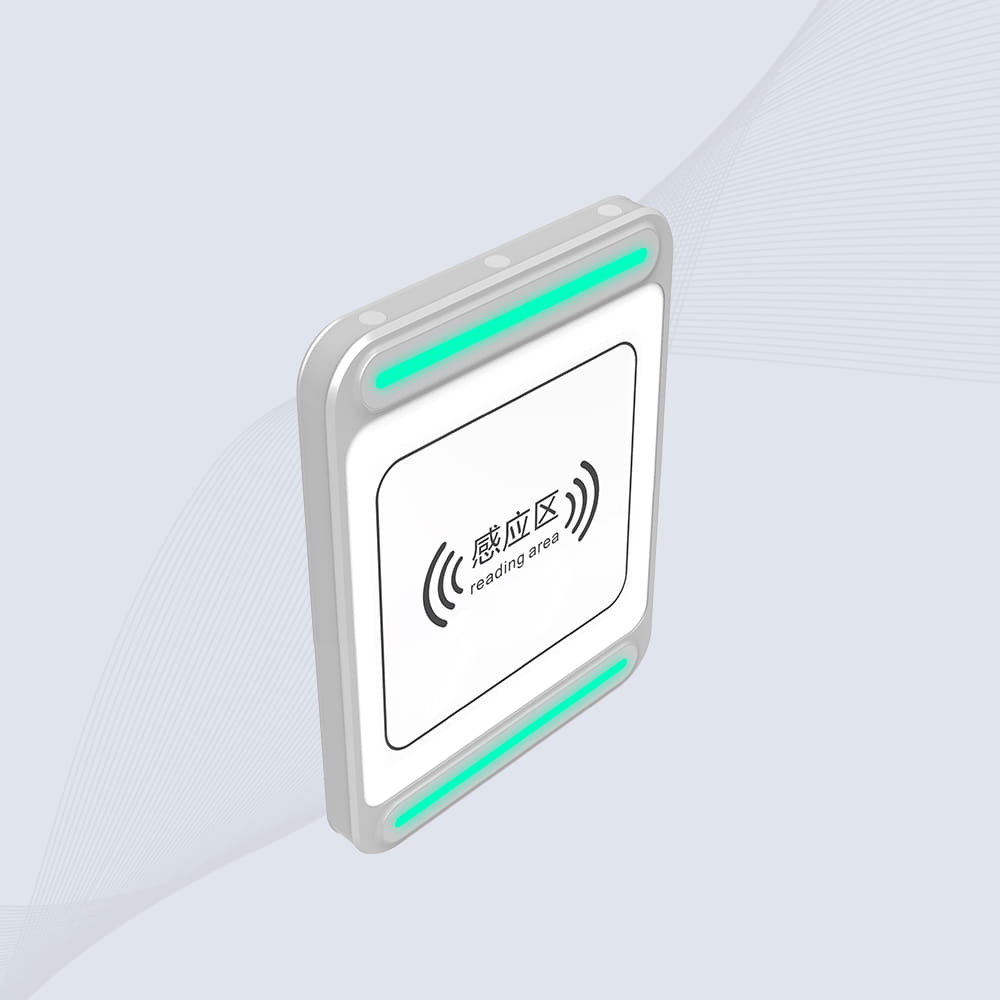

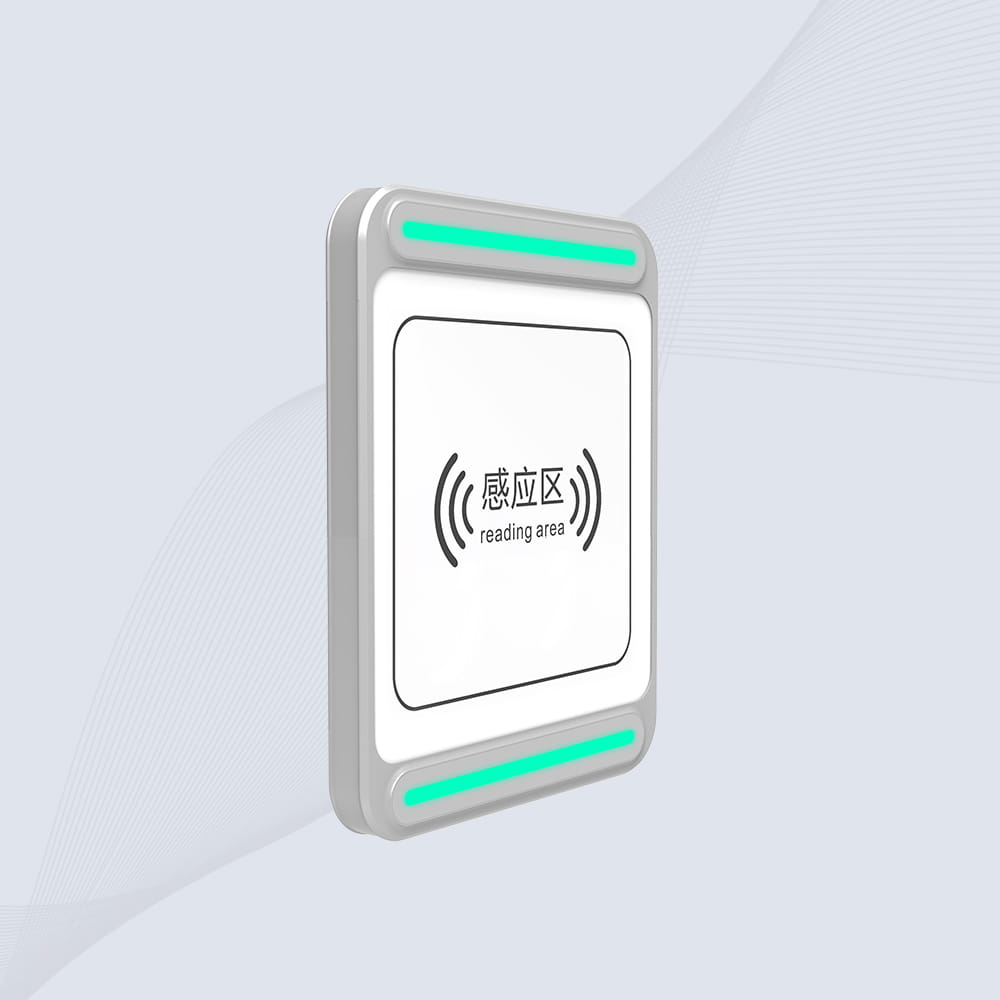

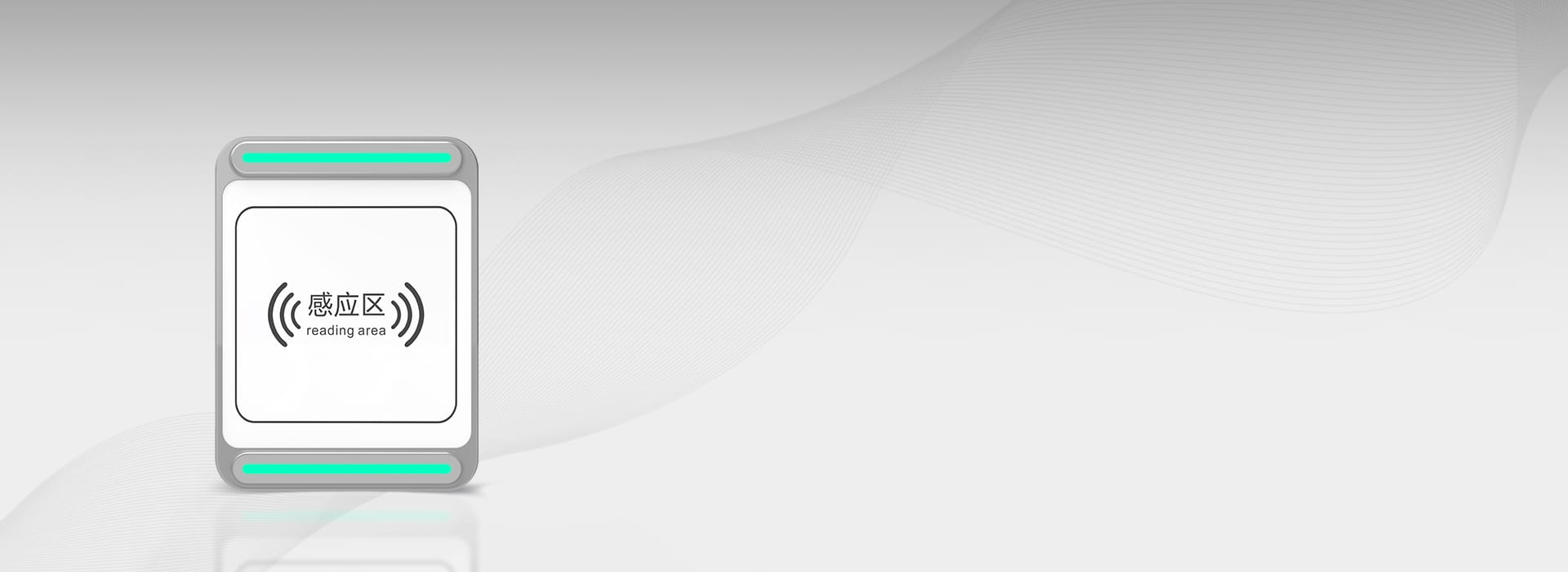

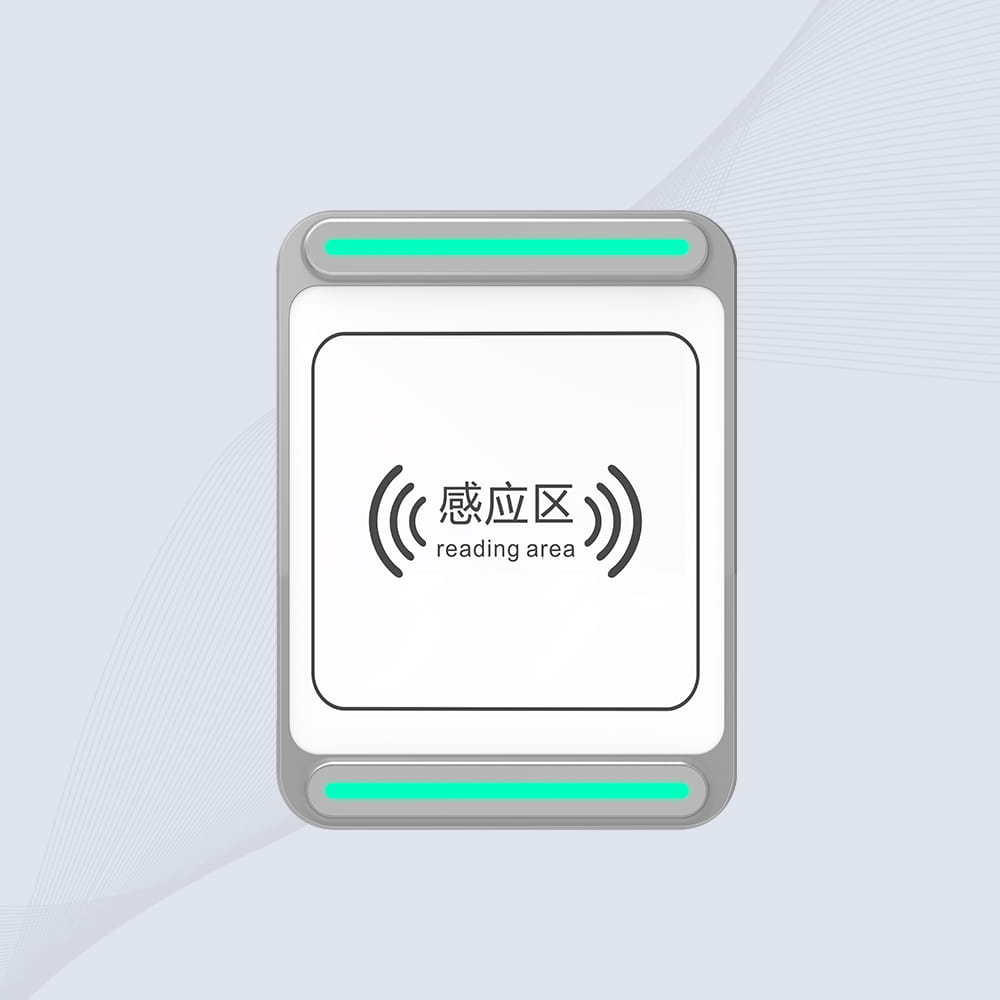

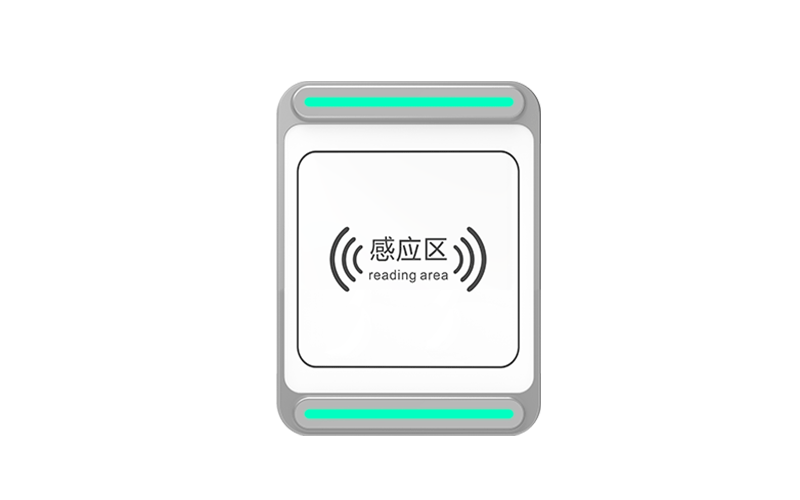

CK-T1B

UHF RFID Ceiling Integrated Reader System

Intelligent Overhead RFID Tracking for Automated Inventory Management

✔️ 10m UHF Range – Impinj R2000 Chipset with Anti-Collision

✔️ Space-Saving Design – Integrated Antenna & Alarm System

✔️ Zero Manual Errors – Fully Automated Data Capture

Talk to an Expert

Email Our Team

CEILING EYES, WAREHOUSE WISDOM

The CK-T1B UHF RFID Ceiling Integrated Reader revolutionizes inventory control with its 10-meter reading range and industrial-grade Impinj R2000 chipset. This ceiling-mounted system combines RFID reading, data processing, and security alerts in one compact unit, supporting EPC C1G2/ISO 18000-6B/C protocols. Featuring automatic entry/exit logging and TCP/IP connectivity, it eliminates manual scanning errors in warehouse/storage applications.

Perfect for automated inventory tracking: Enables hands-free monitoring in warehouse portals, library archives, retail stockrooms, and production line material flows.

Logistics management

Apparel Inventory

Luxury goods management

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo CK-T1B Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-T1B RFID CEILING SYSTEM

10m UHF Range

Impinj R2000 Chipset with Adjustable Power 840-960MHz

Dual Communication

TCP/IP & RS232 for Seamless Integration

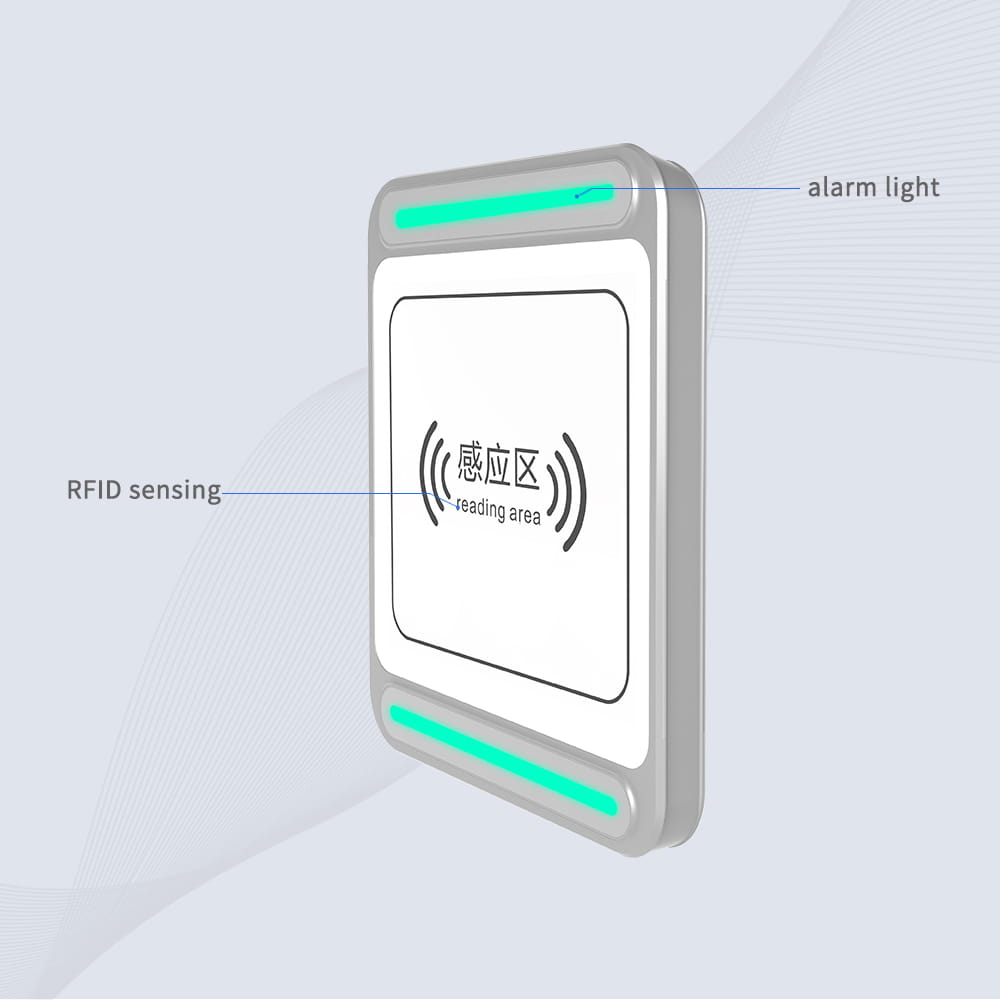

Smart Alarms

Real-Time Sound/Light Alerts for Unauthorized Tags

Industrial Durability

Aluminum Frame, -20°C to 60°C Operation

Multi-Protocol Support

EPC C1G2, ISO 18000-6B/C, GB/T29768-2013

Low Power Consumption

<20W with DC12V/5A Input

Auto-Filtering

RSSI Signal Strength Analysis & Tag Data Filtering

Future-Ready

Firmware Upgradable via Android 4.4 OS

CK-T1B CEILING-MOUNTED RFID INTEGRATED READER SPECIFICATIONS

Main Specifications

BrandCykeo
ModelCK-T1B
Product NameUHF RFID Ceiling Integrated Reader System

Physical Parameters

Communication ProtocolTCP/IP/ RS232
Power Consumption20W (Max 33dBm Output)
Built-in Antenna PolarizationCircular Polarization

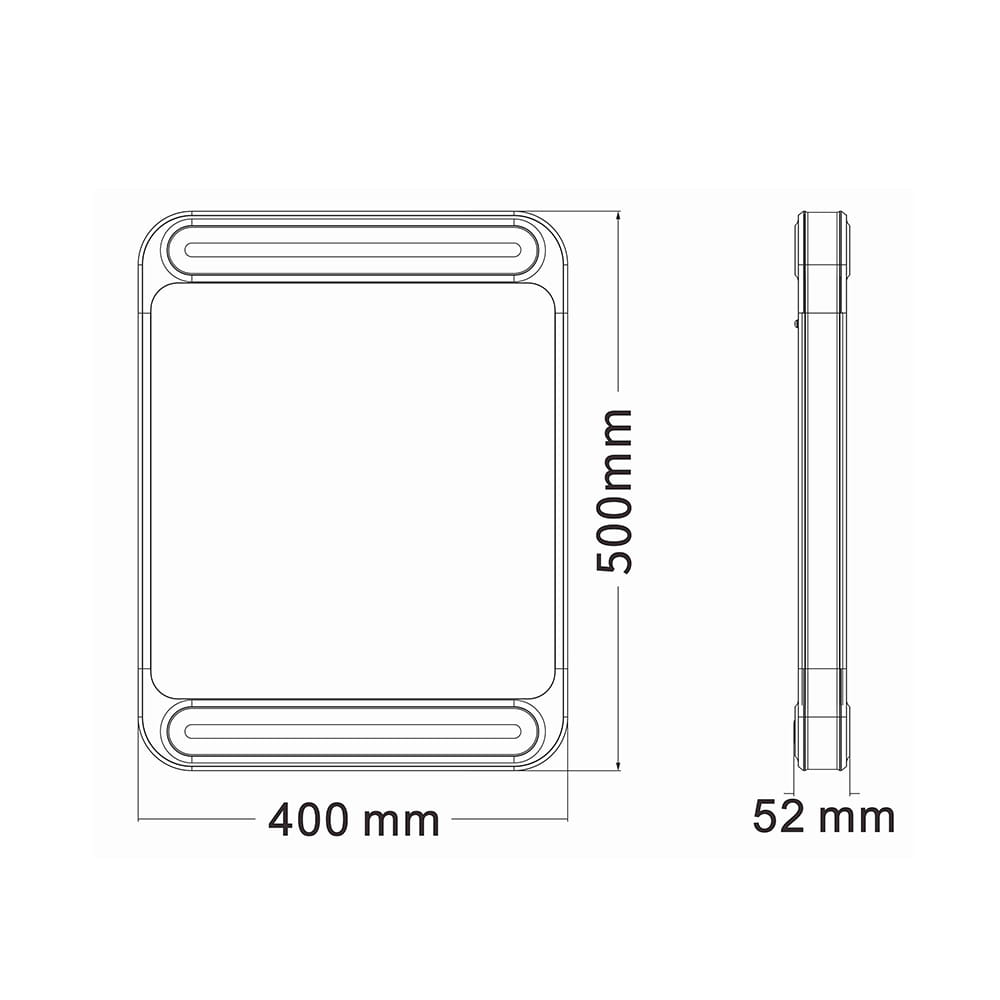

Dimensions500mm ×400mm×52mm
Bracket Dimensions110mm*120mm*110mm
RF Output Power33dBm±1dBm (MAX)
Housing MaterialAluminum Frame + Acrylic Panel
Occupied Bandwidth<200kHz
Communication Interface Ethernet Port*1
InstallationBracket Mounting

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)
Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
Reading Distance0-10m (Adjustable)
Operating ModeFixed Frequency/Frequency Hopping (Selectable)
FeaturesSupports dense reading, antenna VSWR detection, firmware OTA, tag data filtering, RSSI signal strength perception
RF Output Power (Port)33dBm±1dBm (MAX)
Output Power Adjustment 1dB Step
Tag Identification Speed >500 tags/sec

Operating Environment

Power SupplyDC12V/5A
Operating Temperature-20℃ to 60℃
Operating Humidity5% to 95% (Non-condensing)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

CK-T1B UHF RFID CEILING READER FAQs

How to install in high-ceiling warehouses?

Installation Guide:

Use included mounting brackets for 5-12m ceiling heights
Requires 110×120mm installation surface
Maintain 3m clearance from metal structures
Pair with 4 units for full 800㎡ coverage

Can it differentiate authorized/unauthorized tags?

Alert Functionality:

White-list management through web interface
3-tier alert thresholds configurable via mobile app
Real-time EPC code validation (<50ms latency)
CSV export of unauthorized tag logs

How to integrate with existing WMS?

System Integration:

REST API/SDK supports SAP, Oracle, and custom systems
Auto-sync via TCP/IP every 15min (configurable)
Dual authentication with 256-bit encryption
Batch data export through USB/cloud
