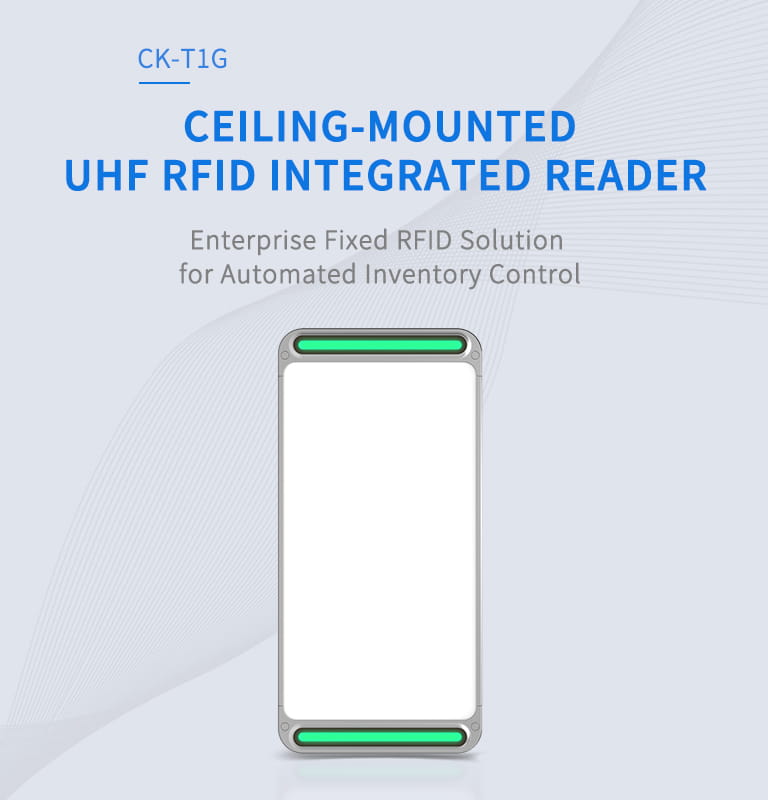

CK-T1G

UHF RFID Ceiling Reader

Enterprise-Grade Fixed RFID Solution for Automated Inventory Control

✔️ 10m Long-Range Scanning with Impinj R2000

✔️ Integrated Visual/Audio Alarm System

✔️ ISpace-Saving Design & Auto Inventory Logging

Talk to an Expert

Email Our Team

CEILING EYES, INSTANT INTELLIGENCE

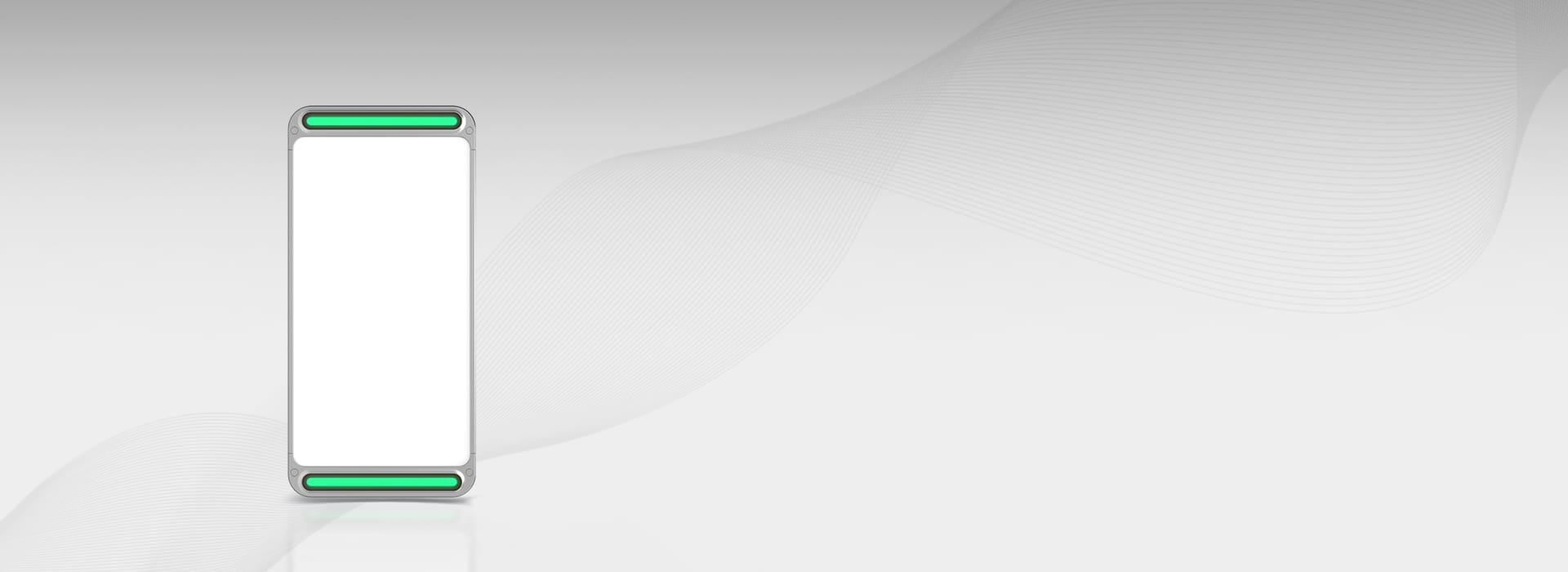

The CK-T1G UHF RFID Ceiling Reader revolutionizes inventory management with its 10-meter reading range and Impinj R2000 chipset. Featuring integrated circular-polarized antenna and TCP/IP communication, it enables automatic asset tracking in warehouses. Its unique ceiling-mount design eliminates floor space occupation while supporting multi-protocol filtering and real-time alarm triggering for unauthorized tags.

Critical for automated facility monitoring: Retail backroom inventory control, manufacturing line material tracking, and logistics hub package verification.

Logistics management

Apparel Inventory

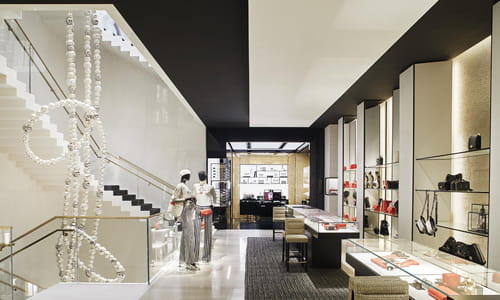

Luxury goods management

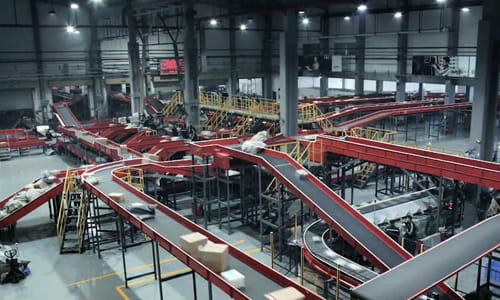

Warehouse Logistics

Jewelry Inventory

Factory Automation

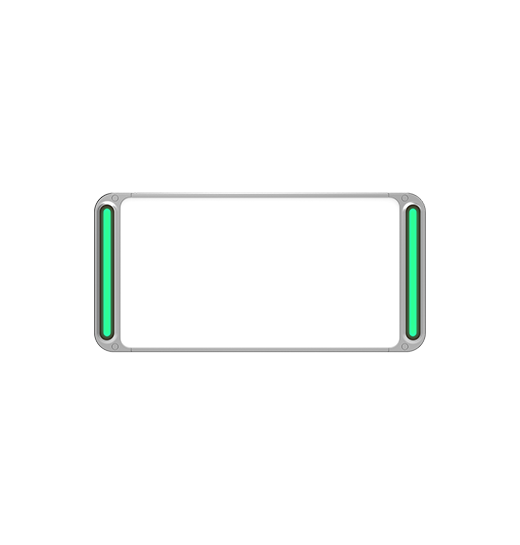

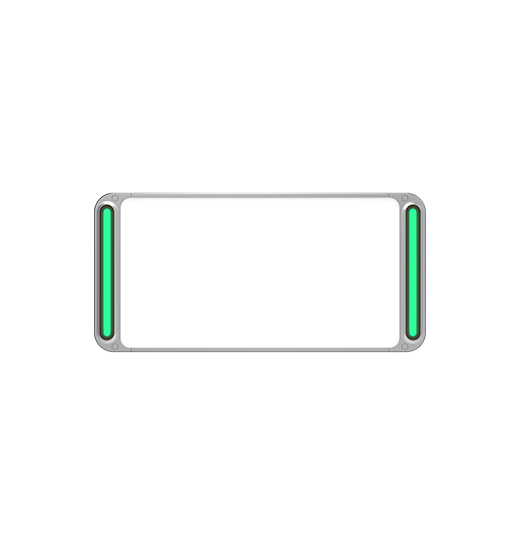

Cykeo CK-T1G Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-T1G CEILING RFID READER

10m UHF Range

Impinj R2000 chipset with dense tag filtering

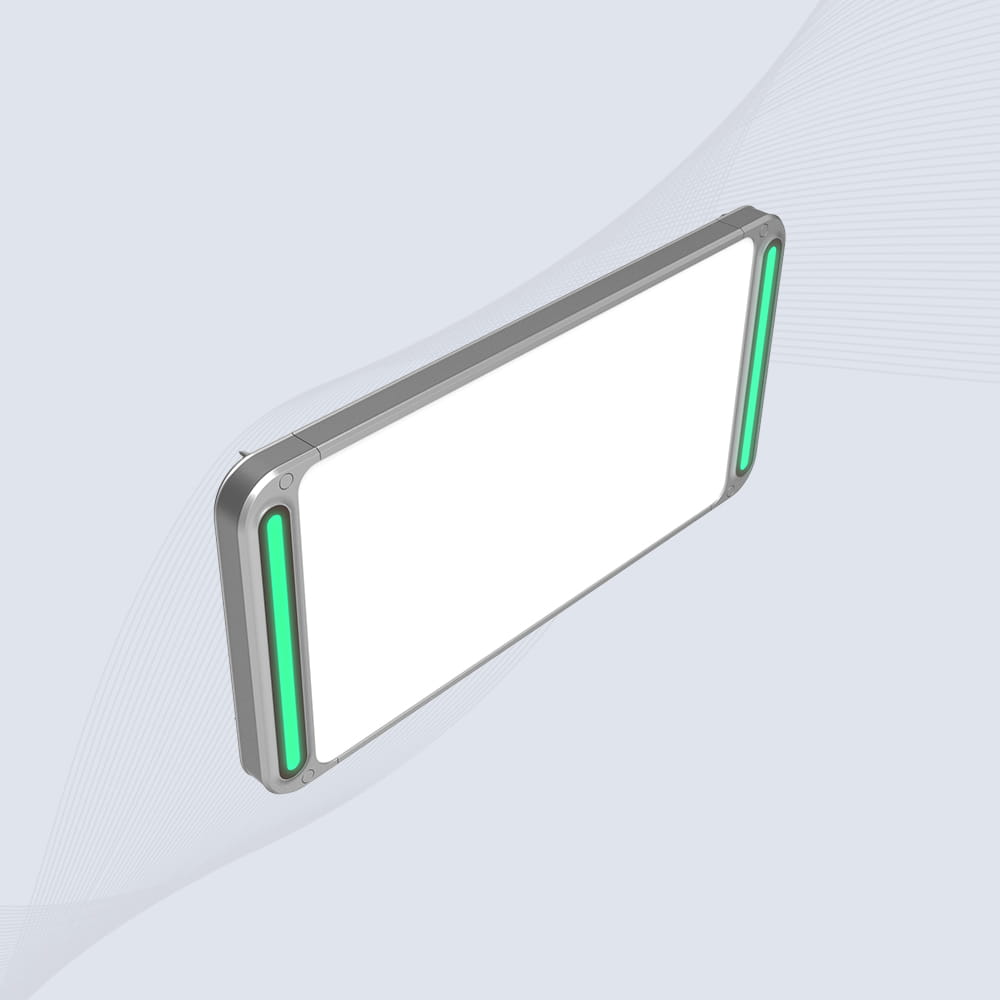

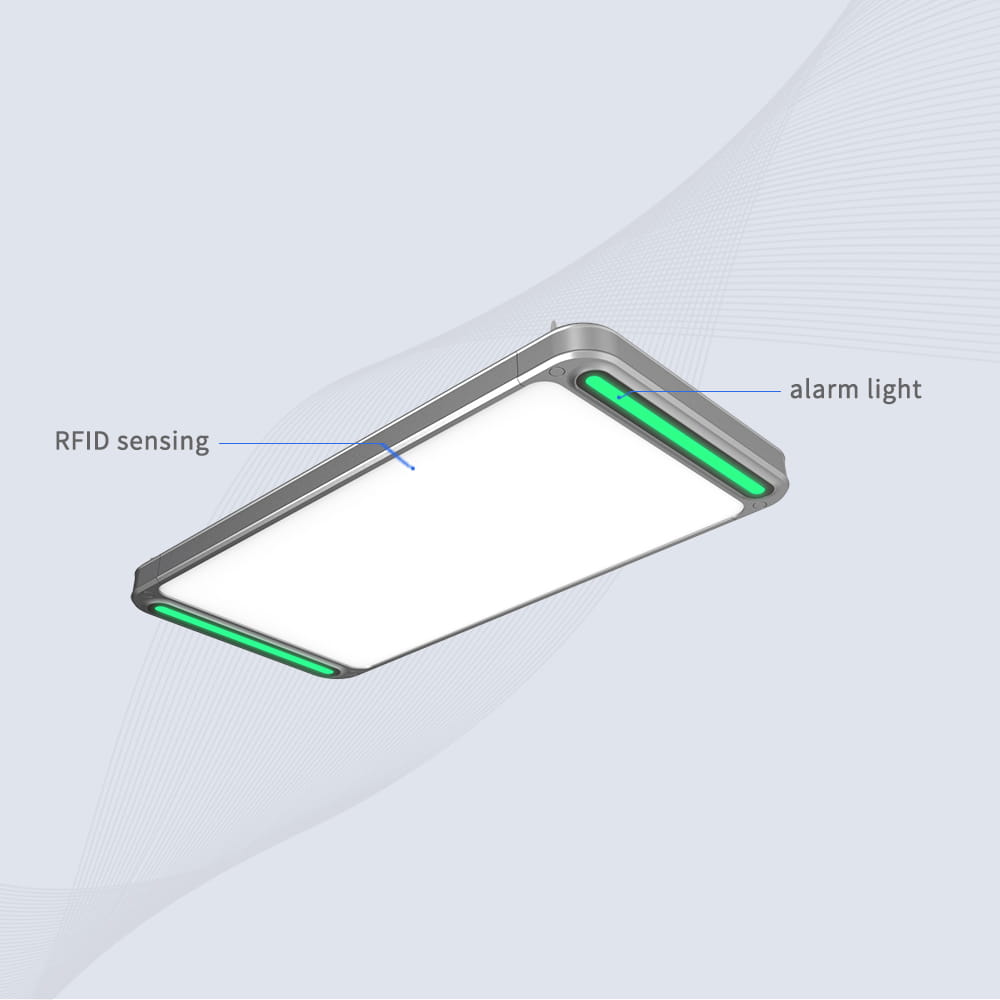

Industrial Alarm

110dB buzzer & RGB LED indicators

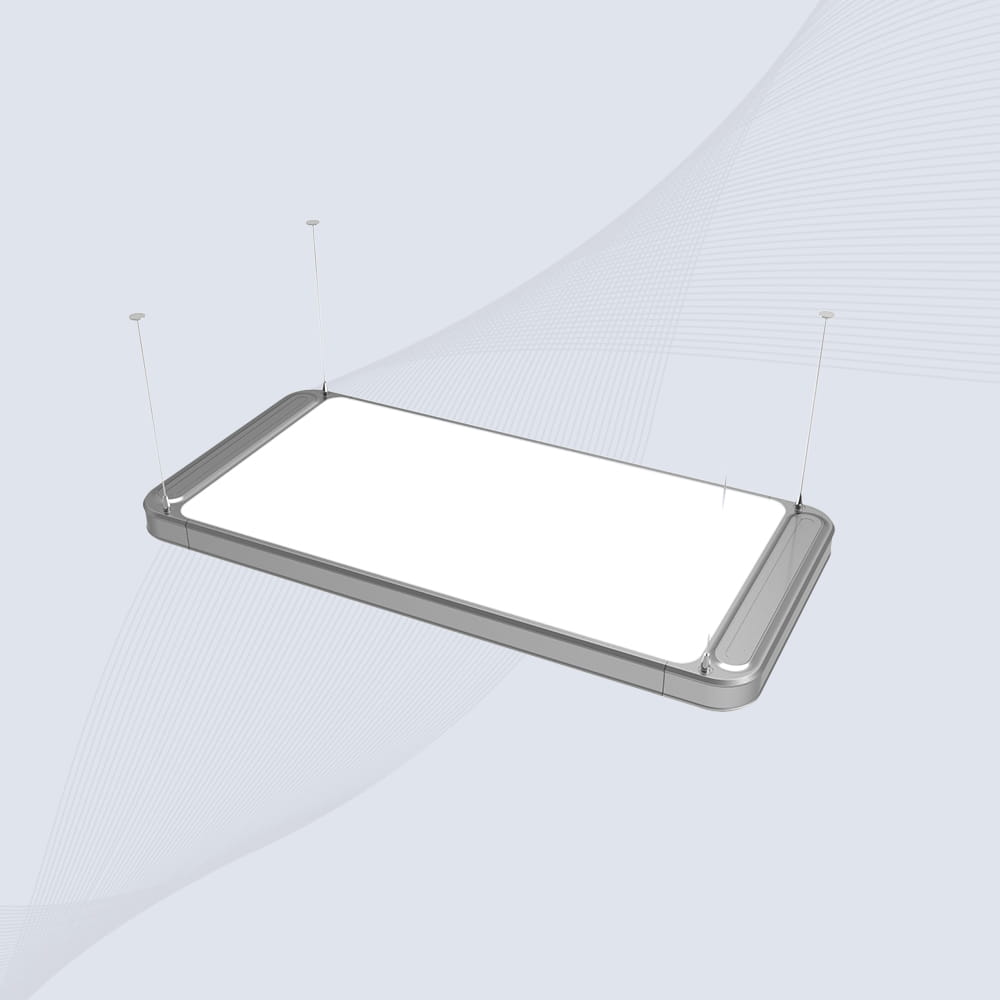

Ceiling-Optimized

400mm compact design with mounting bracket

Multi-Protocol

EPC C1G2/ISO18000-6B/C/GB-T29768

Android 4.4 OS

Seamless WMS integration via TCP/IP/RS232

Dynamic Power Control

1dB-step adjustable 33dBm output

Condensation-Resistant

95% humidity tolerance

Low Maintenance

Firmware upgradable via web portal

CEILING-MOUNTED UHF RFID INTEGRATED READER SPECIFICATIONS

Main Specifications

BrandCykeo
ModelCK-T1G
Product NameUHF RFID Ceiling Reader

Physical Parameters

Communication ProtocolTCP/IP/ RS232
Power Consumption20W (Max 33dBm Output)
Built-in Antenna PolarizationCircular Polarization
Dimensions300mm(L)*58.5mm(W)*600mm(H)

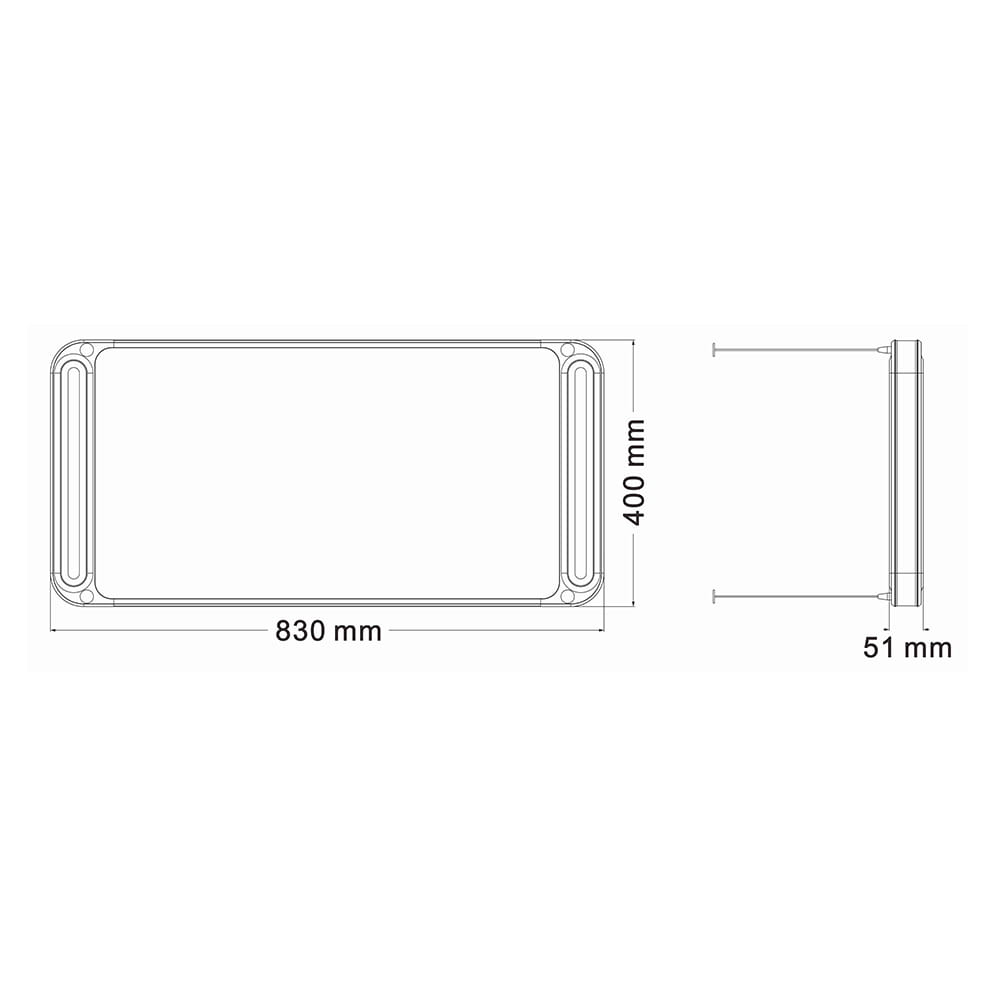

Bracket Dimensions400×51×830mm (With Bracket)
RF Output Power33dBm±1dBm (MAX)
Occupied Bandwidth<200kHz
Housing MaterialAluminum Frame + Acrylic Panel
Communication Interface Ethernet Port*1
InstallationBracket Mounting

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)
Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
Reading Distance0-10m (Adjustable)
Operating ModeFixed Frequency/Frequency Hopping (Selectable)
FeaturesSupports dense reading, antenna VSWR detection, firmware OTA, tag data filtering, RSSI signal strength perception
RF Output Power (Port)33dBm±1dBm (MAX)
Output Power Adjustment 1dB Step
Tag Identification Speed >500 tags/sec

Operating Environment

Power SupplyDC12V/5A
Operating Temperature-20℃ to 60℃
Operating Humidity5% to 95% (Non-condensing)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID CEILING READER FAQS

How Does the CK-T1G Achieve 10m Long-Range Tag Scanning in Warehouses?

Impinj R2000 Ceiling-Mounted RFID Performance
The CK-T1G’s 10m read range is powered by advanced hardware and software optimization:

Impinj R2000 Chipset
- Delivers 33dBm RF output power (adjustable in 1dB steps) for stable coverage in large facilities up to 15,000㎡.
- Supports EPC C1G2/ISO18000-6B/C protocols, enabling compatibility with 98% of industrial UHF tags.
Circular Polarized Antenna
- Minimizes signal loss from metal racks or liquids, achieving 6m effective read range through 2-layer steel shelves .
Dynamic Power Adjustment
- Auto-adjusts output power based on real-time tag density, reducing energy consumption by 22% during low-traffic periods.

How to Configure Alerts for Unauthorized Tags in High-Security Areas?

Industrial RFID Alarm System Integration
The CK-T1G’s 110dB buzzer + RGB LED alarms prevent unauthorized asset removal:

Real-Time Tag Filtering
- Whitelist/Blacklist management via TCP/IP or Android 4.4 app, supporting EPC/TID-based rules with 99.8% accuracy.
Dwell Time Trigger
- Triggers alarms only when unregistered tags linger for **>3 seconds**, reducing false alerts in conveyor belt environments.
Integration with WMS
- Sends instant alerts to SAP/Oracle systems via REST API, logging incidents with timestamps and RSSI data.

Can the CK-T1G Operate in Humid or Extreme Temperature Environments?

Rugged Ceiling-Mounted RFID for Harsh Conditions
Designed for -20°C to 60°C industrial settings:

Condensation Resistance
- Sealed aluminum housing with IP54-rated protection ensures stable operation in 95% humidity (e.g., cold storage warehouses).
Heat Dissipation Design
- Built-in heat sinks maintain chipset temperature **<45°C** even at max 33dBm output during 24/7 operations.
Vibration Tolerance
- Withstands 5-500Hz mechanical vibrations (tested per IEC 60068-2-6) for installation near AGV pathways or assembly lines.
