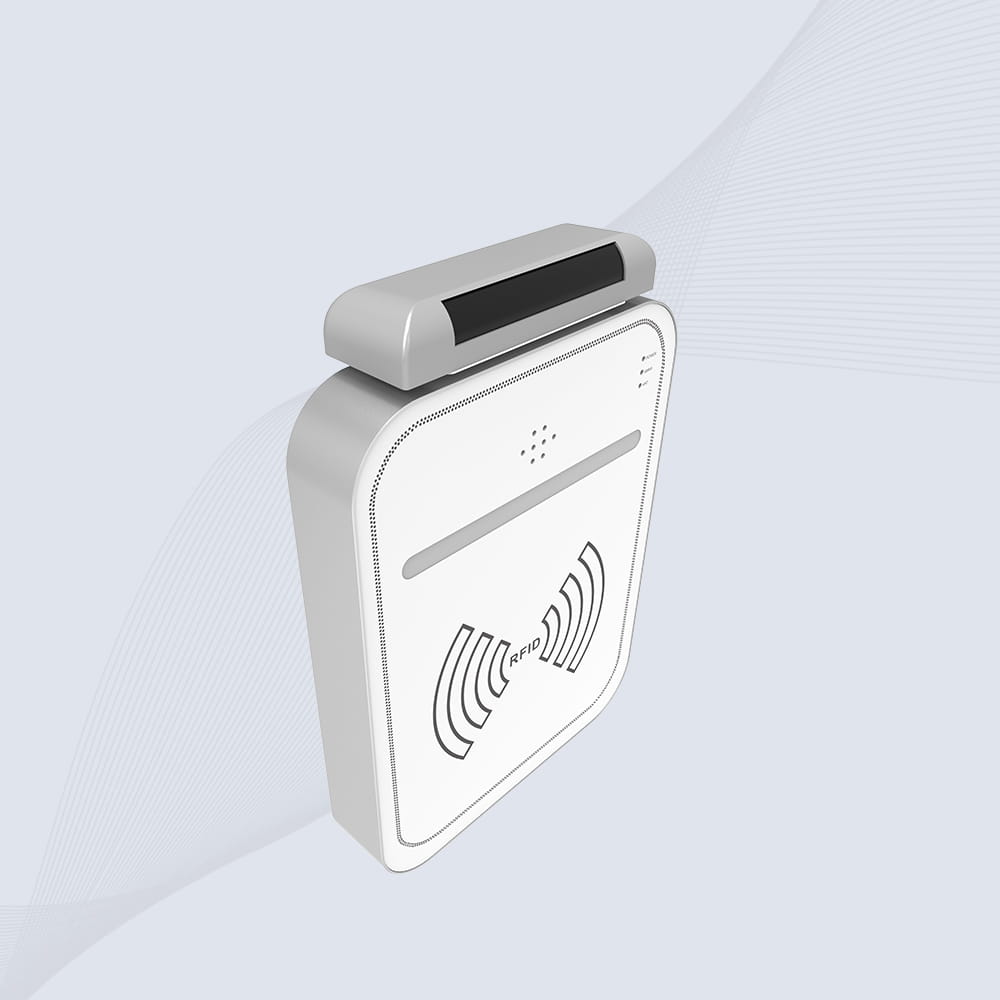

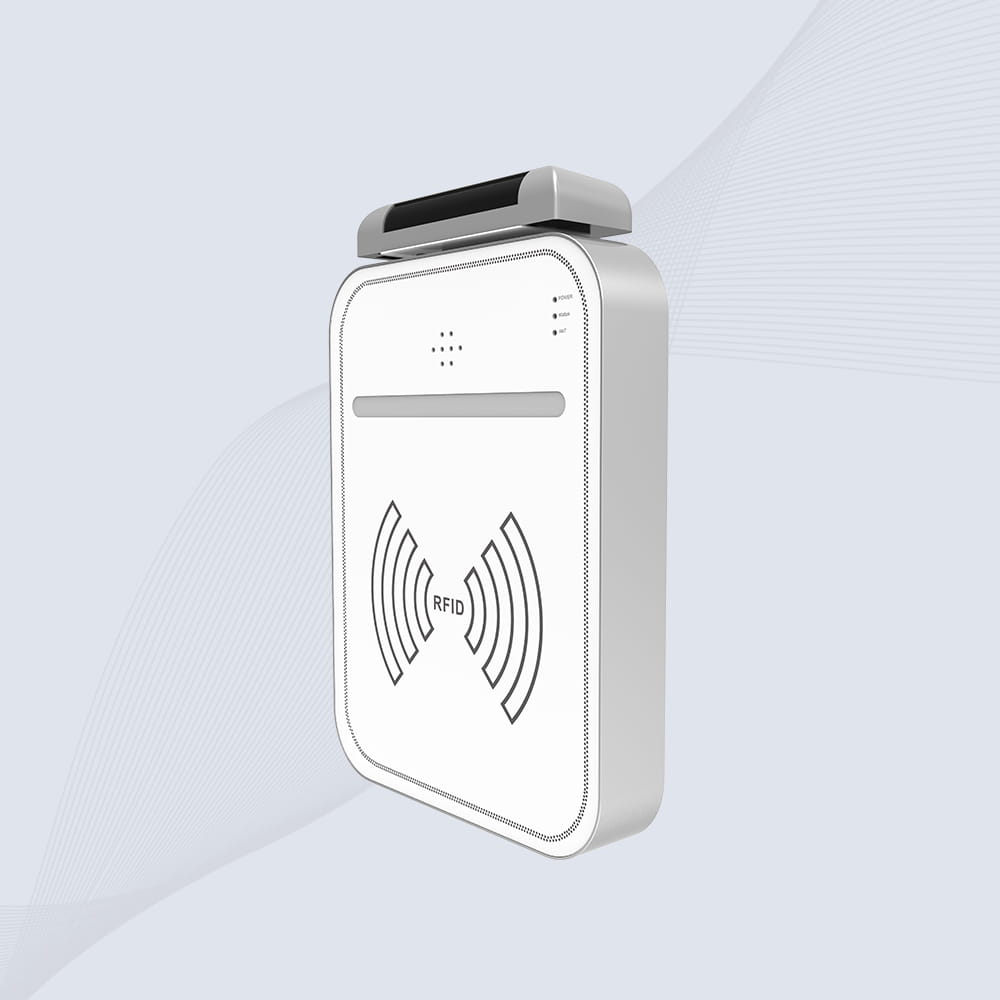

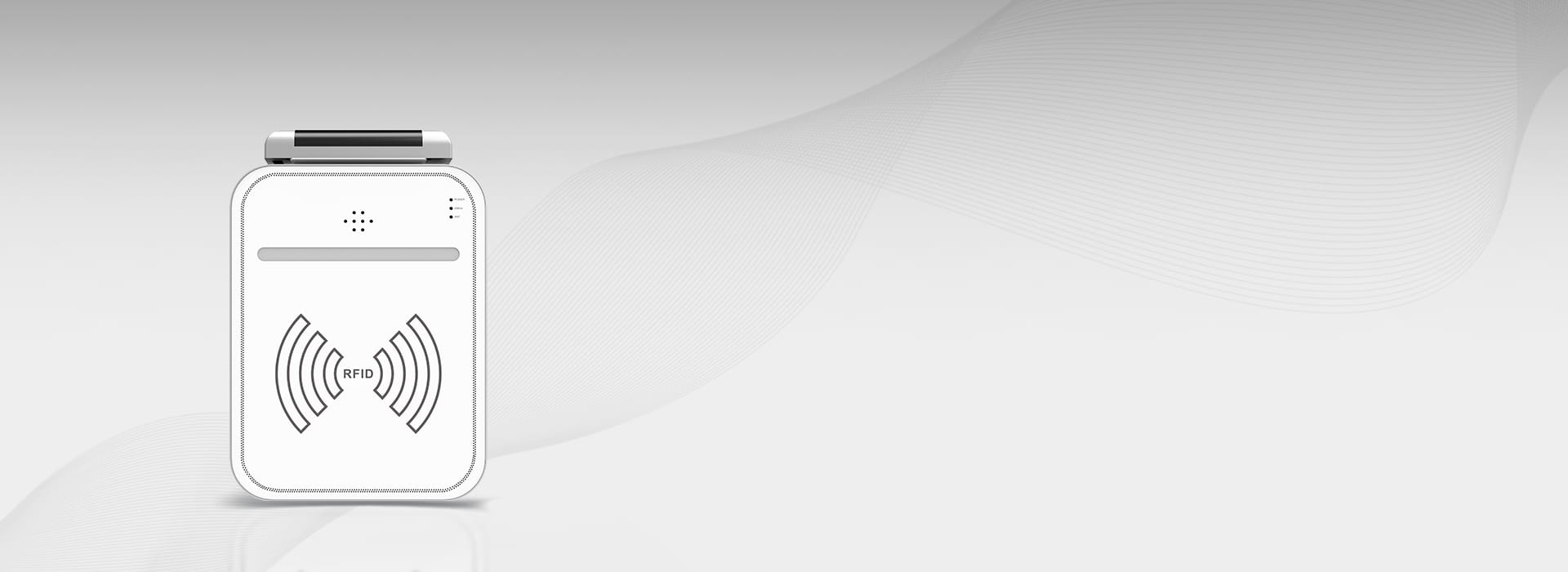

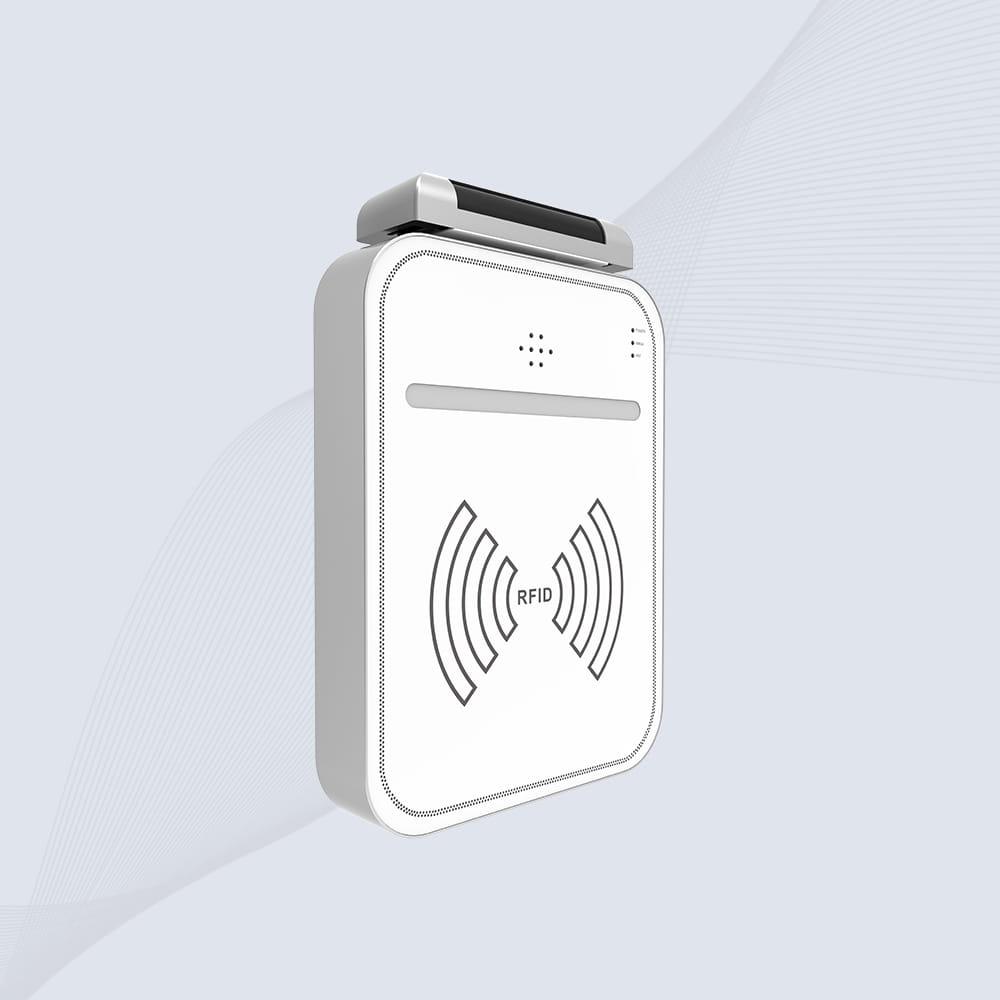

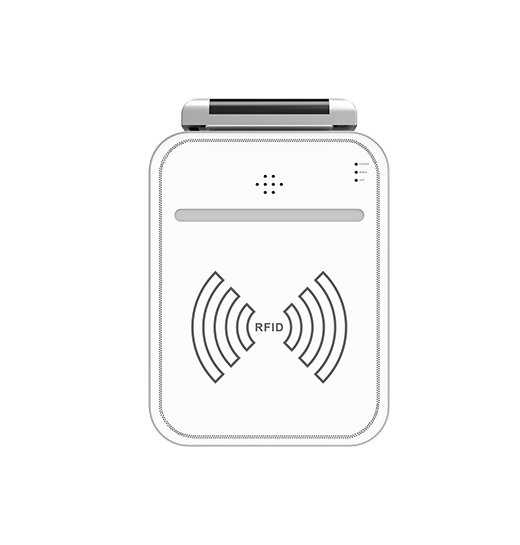

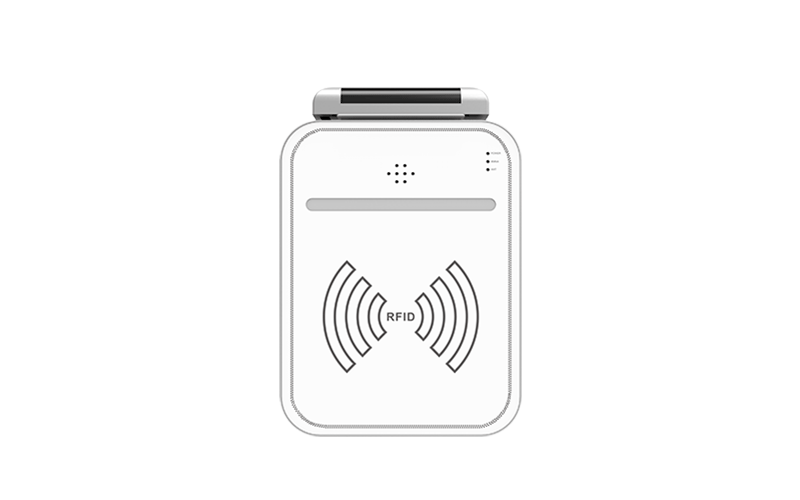

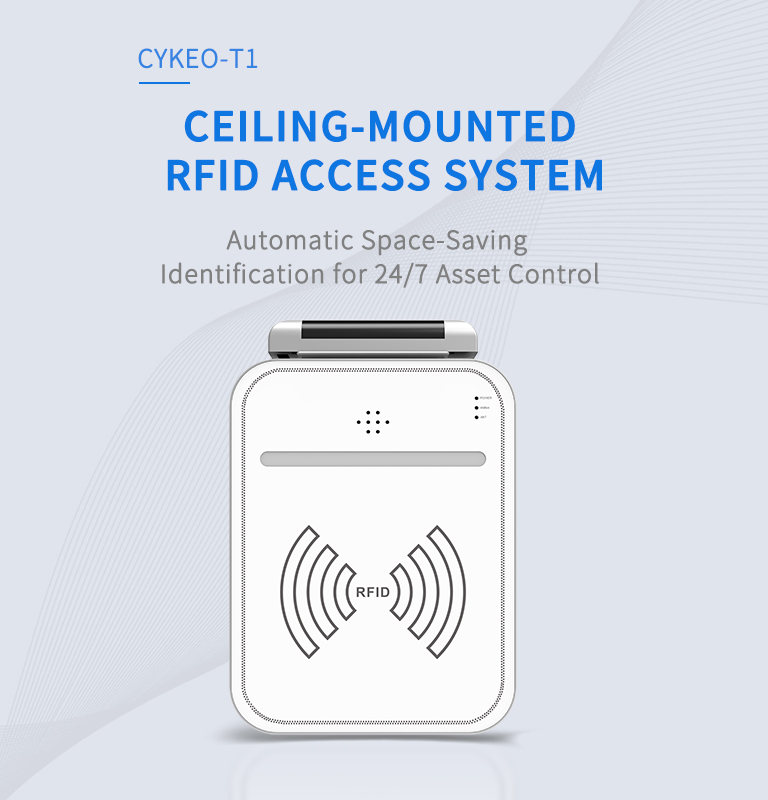

CK-T1H

Ceiling-Mounted RFID Gateway Reader

Enterprise Smart Space Management with 360° Tracking

✔️ Zero-Footprint Overhead Installation

✔️ 10m Auto-Capture Zone with 500+ tags/sec

✔️ Cloud-Ready with REST API Integration

Talk to an Expert

Email Our Team

INVISIBLE EYE, REAL-TIME DATA

The CK-T1H RFID Wall Mounted Integrated Reader revolutionizes spatial asset management through ceiling-mounted UHF RFID technology. Engineered with 840-960MHz adjustable frequency and 33dBm max output power, it achieves 10m automatic identification zones for books, retail goods, medical supplies, and tools without floor space occupation. Its Android 4.4 OS enables real-time data streaming to ERP/WMS via TCP/IP while supporting ISO18000-6B/C protocols.

Optimized for automated inventory flow monitoring: From library check-out corridors to smart fitting rooms, unmanned retail exits, and industrial tool cabinets.

Library management

Apparel Inventory

Luxury goods management

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo CK-T1H Specification

Download

Online Procurement

TECHNICAL EXCELLENCE OF CYKEO CK-T1H OVERHEAD SYSTEM

20m Adjustable UHF Coverage

Impinj R2000 Chipset with Adjustable Power 840-960MHz

500 Tags/Sec Processing

Dual-buffer anti-collision algorithm for 98.6% read accuracy

IP54 Environmental Resistance

Aluminum alloy housing withstands -20°C~60°C operations

Real-Time Cloud Reporting

RESTful API supports AWS IoT Core/Azure Hub integration

Smart Power Management

<20W consumption with surge protection IEC 61000-4-5

Multi-Protocol Compatibility

Concurrent EPC C1G2/ISO 18000-6B/C protocol support

Overhead Mounting

Tool-free installation under 15 minutes

C#/Java SDK Pro

C#/Java SDK for WMS Integration

CK-T1H CEILING-MOUNTED RFID ACCESS SYSTEM SPECIFICATIONS

Main Specifications

BrandCykeo
ModelCK-T1H
Product NameCeiling-Mounted RFID Gateway Reader

Physical Parameters

Communication ProtocolTCP/IP/ RS232
Power Consumption20W (Max 33dBm Output)
Built-in Antenna PolarizationCircular Polarization

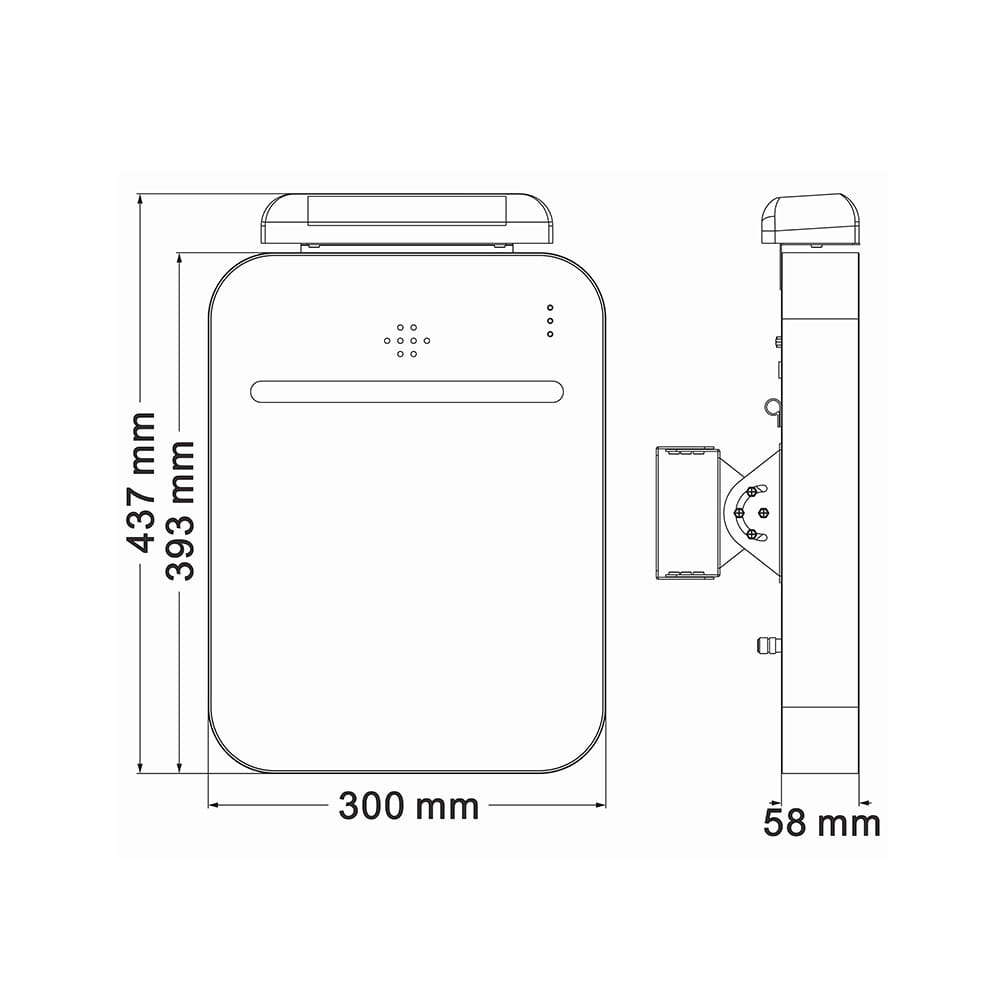

Dimensions300mm×58mm×437mm
Bracket Dimensions110mm*120mm*110mm
RF Output Power33dBm±1dBm (MAX)
Occupied Bandwidth<200kHz
Housing MaterialAluminum Frame + Acrylic Panel
Communication Interface Ethernet Port*1
InstallationBracket Mounting

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)
Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
Reading Distance0-10m (Adjustable)
Operating ModeFixed Frequency/Frequency Hopping (Selectable)
FeaturesSupports dense reading, antenna VSWR detection, firmware OTA, tag data filtering, RSSI signal strength perception
RF Output Power (Port)33dBm±1dBm (MAX)
Output Power Adjustment 1dB Step
Tag Identification Speed >500 tags/sec
Network Interface10M/100M Adaptive

Operating Environment

Power SupplyDC12V/5A
Operating Temperature-20℃ to 60℃
Operating Humidity5% to 95% (Non-condensing)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

WALL-MOUNTED RFID GATEWAY FAQS

How does CK-T1H prevent interference in multi-reader environments?

RF Spectrum Management:

Frequency Hopping: 50-channel DFS automatically avoids crowded ISM bands
LBT (Listen-Before-Talk): Reduces cross-reader collisions by 72% in 8+ device deployments
Directional Antenna: 65° azimuth polarization minimizes adjacent zone overlap

Can it detect vertically stacked tags in medical carts?

3D Detection Capability:

Elevation Scanning: 45° tilt antenna design resolves tags within 1.2m stacked trays
RSSI Filtering: -70dBm~-30dBm threshold eliminates false reads from adjacent shelves
Metal-Adaptive Tuning: Auto-impedance matching for 95% detection rate on metallic surfaces

What cloud platforms does it support for real-time data?

IoT Integration:

Prebuilt Connectors: AWS IoT Core, Azure Hub, Alibaba Cloud IoT
MQTT 3.1.1 Protocol: SSL/TLS 1.2 encrypted data streaming
Custom API: JSON-formatted payloads compatible with SAP Ariba/Oracle IoT
