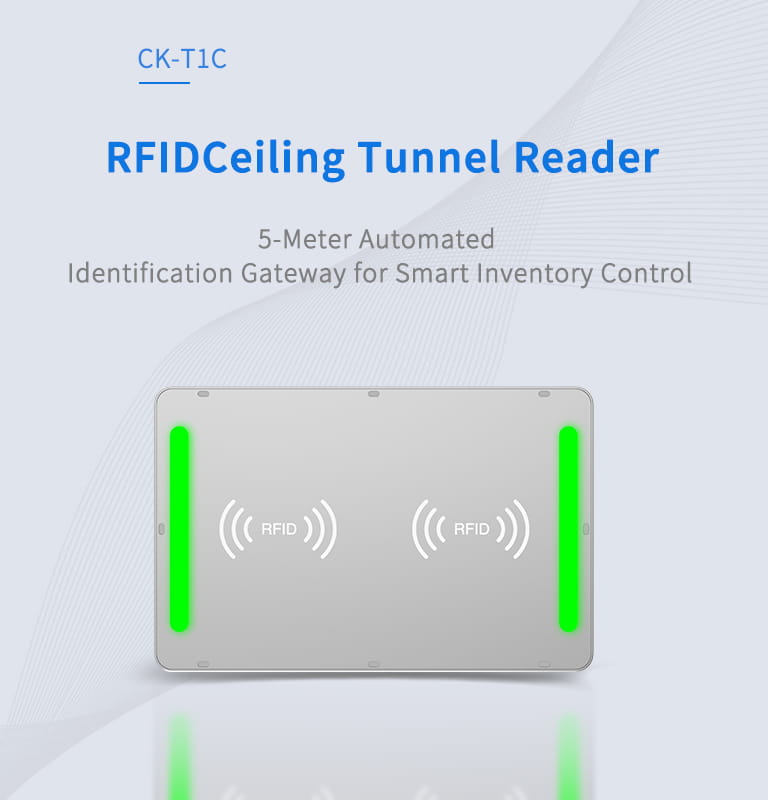

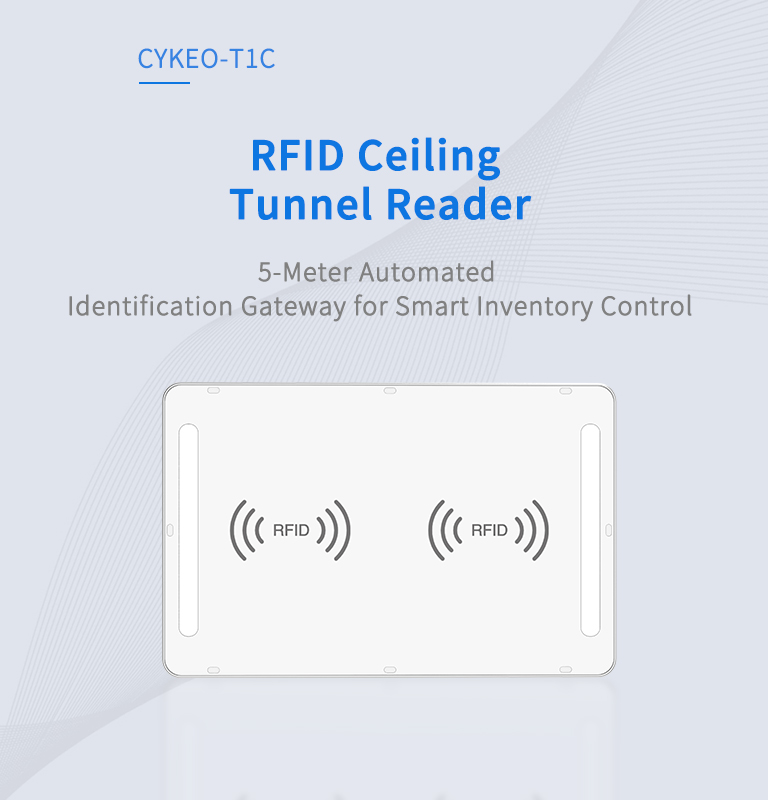

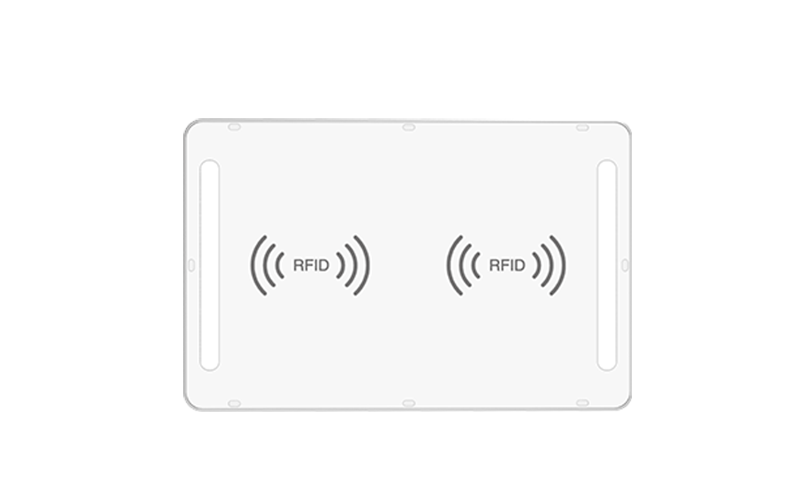

CK-T1C

RFID Ceiling Tunnel Reader

5-Meter Automated Identification Gateway for Smart Inventory Control

✔️ 5-Meter Hands-Free Identification

✔️ 500+ Tags/Min Group Scanning

✔️ Integrated Light & Siren Alerts

✔️ SAP/ERP Ready API Integration

Talk to an Expert

Email Our Team

INVISIBLE GUARDIAN, VISIBLE CONTROL

The RFIDCeiling Tunnel Reader revolutionizes warehouse security with ceiling-mounted dual induction technology. Operating at 860-960MHz, it achieves 5m read range while automatically logging 500+ tagged items/minute. Its integrated alert system triggers visual/audio alarms for unauthorized entries, compatible with major WMS platforms through TCP/IP protocols.

Ideal for automated warehouse portals: From palletized goods verification at distribution centers to production line material tracking in manufacturing facilities.

Logistics management

Apparel Inventory

Luxury goods management

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo CK-T1C Specification

Download

Online Procurement

KEY FEATURES OF CYKEO RFIDCEILING TUNNEL READER

5m Industrial-Grade UHF Array

Dual-layer antenna design with 33dBm power output

Real-Time Tag Density Analysis

Adaptive Q algorithm reduces collision rate by 58%

Multi-Protocol Compatibility

Supports EPC/ISO/GB-T 29768 standards

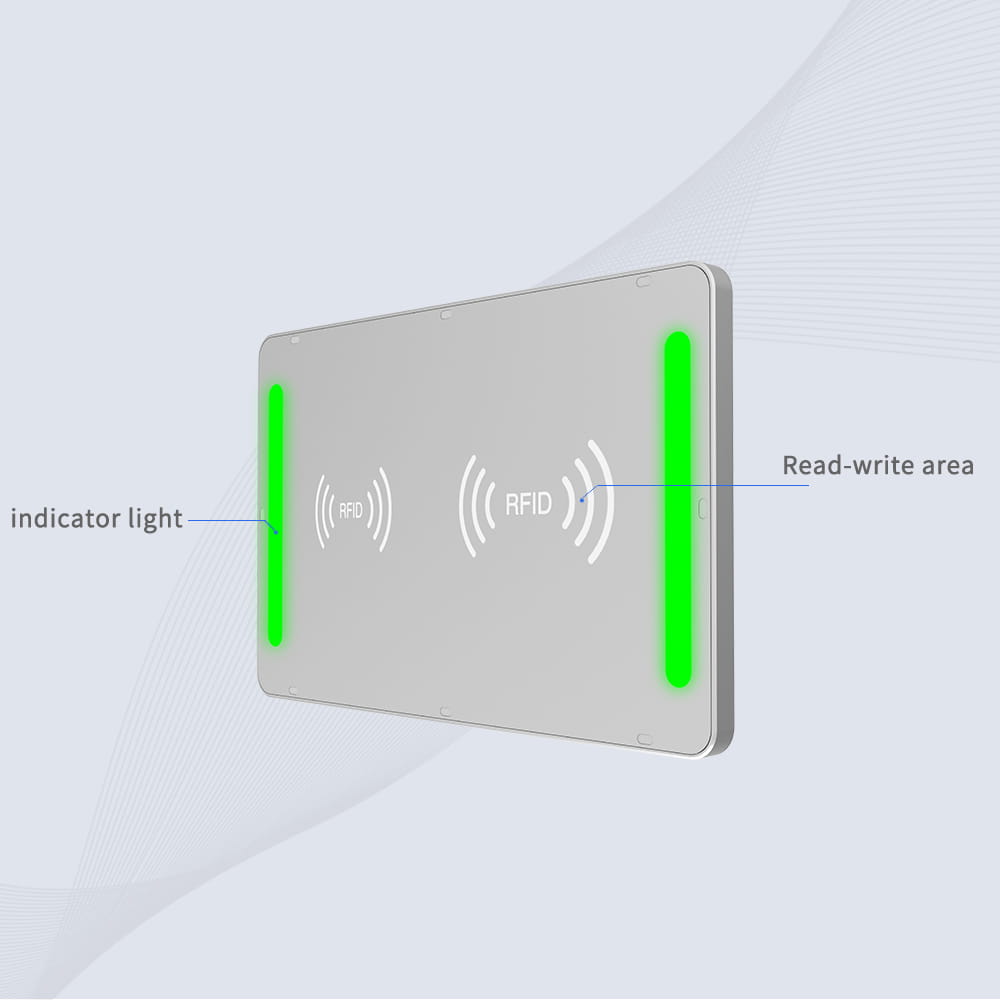

Real-Time Alarm System

Dual LED-buzzer alerts for unauthorized tags with <0.1s response

Industrial TCP/IP Connectivity

Plug-and-play 10M/100M Ethernet for seamless ERP/WMS integration

Space-Saving Ceiling Design

Ultra-thin 27mm profile with IP54-rated aluminum housing

Firmware Auto-Update

Over-the-air upgrades via web interface for future-proof operation

Cold Chain Resilience

Operates at -20℃ to 60℃ with 95% humidity tolerance

CK-T1B CEILING-MOUNTED RFID INTEGRATED READER SPECIFICATIONS

Main Specifications

BrandCykeo
ModelCK-T1C
Product NameRFID Ceiling Tunnel Reader

Physical Parameters

Communication ProtocolTCP/IP/ RS232
Power Consumption20W (Max 33dBm Output)
Built-in Antenna PolarizationCircular Polarization
Dimensions300mm(L)*58.5mm(W)*600mm(H)
Bracket Dimensions110mm*120mm*110mm
RF Output Power33dBm±1dBm (MAX)
Occupied Bandwidth<200kHz

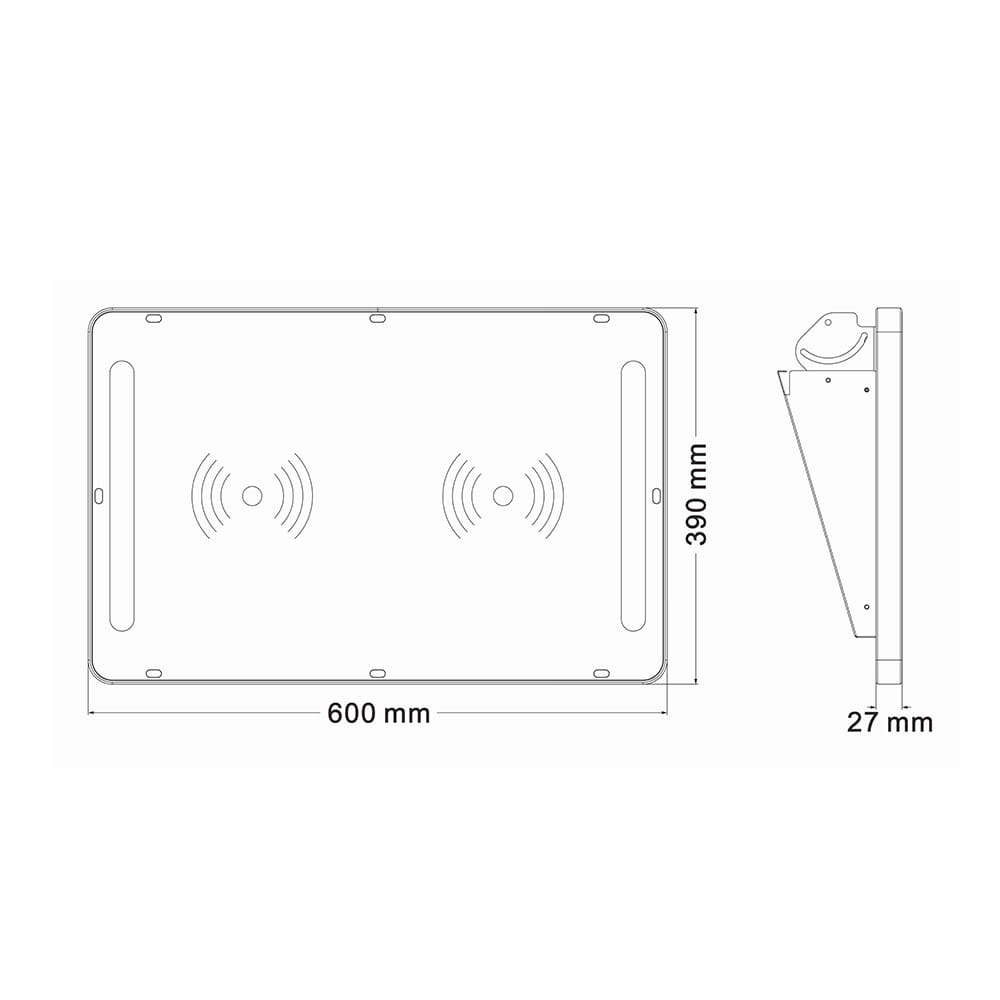

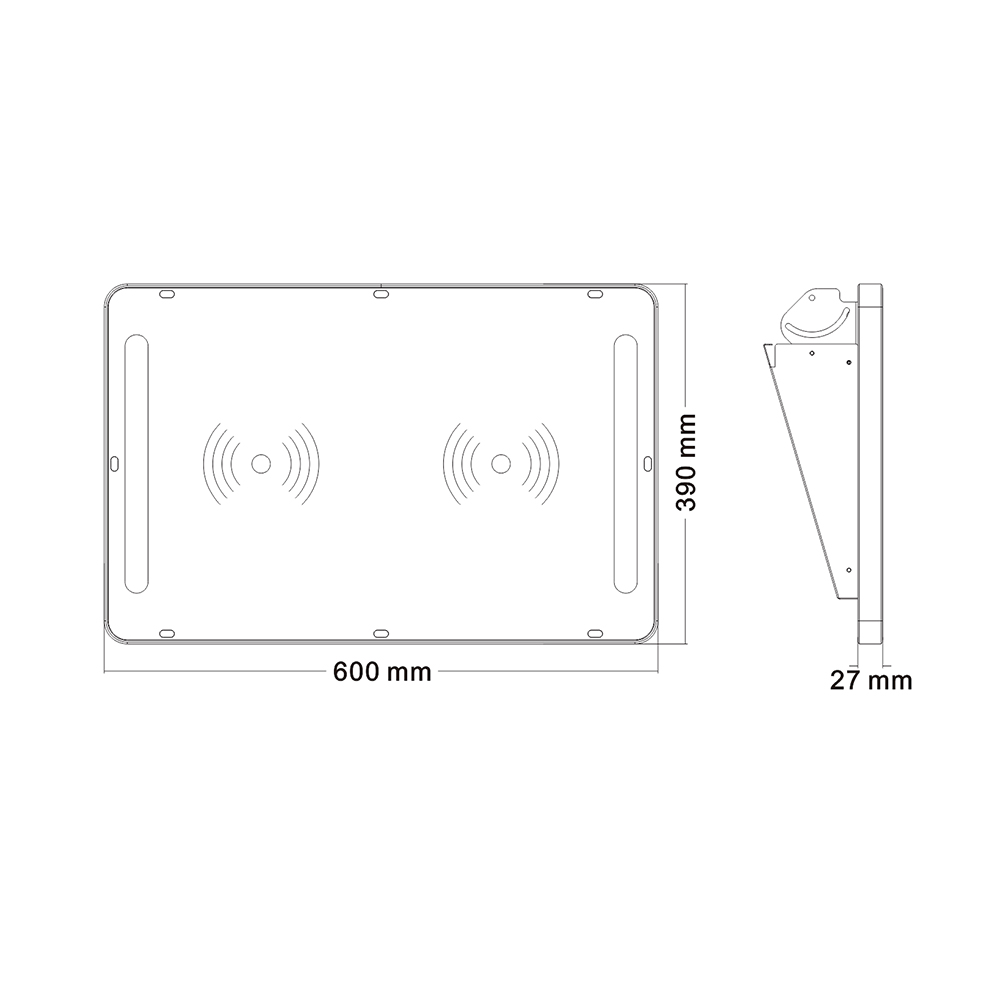

Dimensions27mm（H）×600mm（W）×390mm（D）
Housing MaterialAluminum Frame + Acrylic Panel
Communication Interface Ethernet Port*1

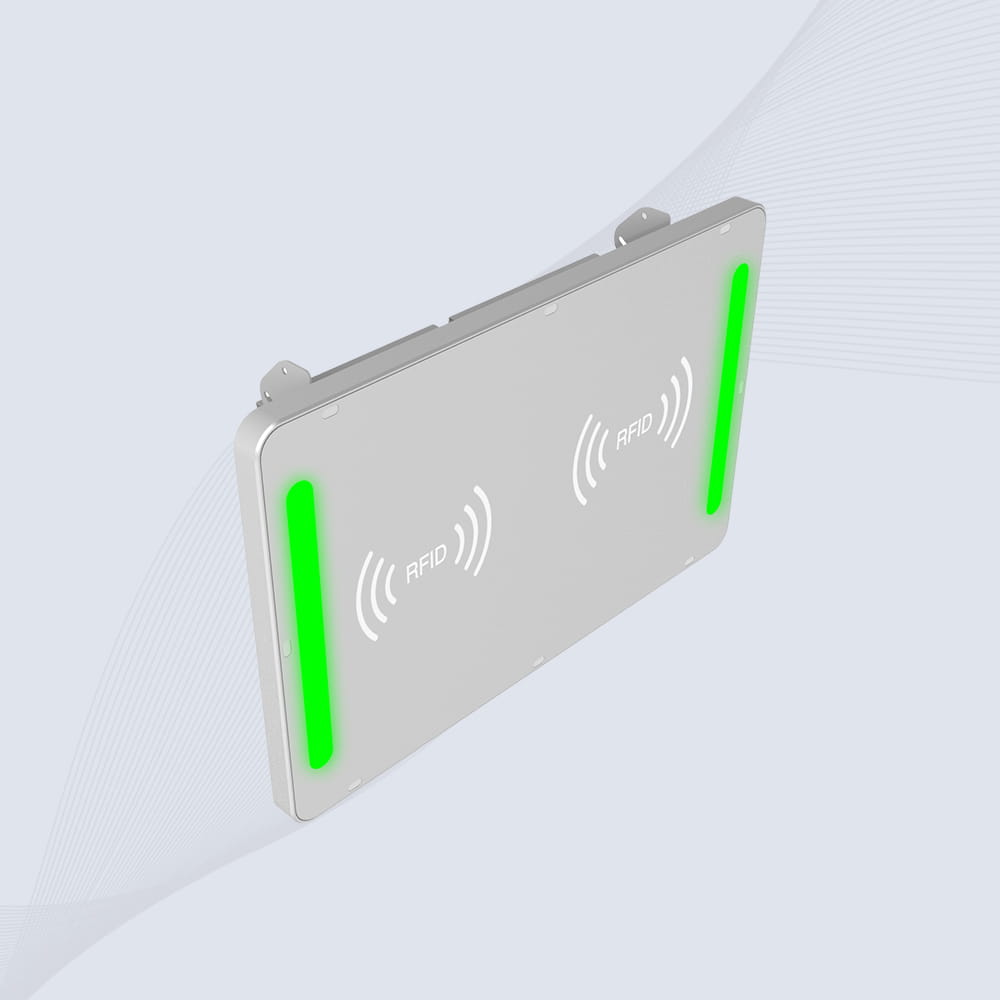

InstallationBracket Mounting

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)
Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
Reading Distance0-20m (Environment Dependent)
Operating ModeFixed Frequency/Frequency Hopping (Selectable)
Write Distance0-10m
FeaturesSupports dense reading, antenna VSWR detection, firmware OTA, tag data filtering, RSSI signal strength perception
RF Output Power (Port)33dBm±1dBm (MAX)
Output Power Adjustment 1dB Step
Tag Identification Speed >500 tags/sec

Operating Environment

Power SupplyDC12V/5A
Operating Temperature-20℃ to 60℃
Operating Humidity5% to 95% (Non-condensing)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID CEILING TERMINAL READER FAQs

How to prevent interference in multi-device warehouse layouts?

Solution:

Channel Hopping Technology: Automatically switches across 50 frequency channels
Density-Based Power Adjustment: Reduces overlap in areas with >8 terminals
Sector Partitioning: Isolate zones via 15° antenna angle control

Can it integrate with existing WMS platforms?

Integration:

API Compatibility: RESTful API supports SAP EWM and Oracle WMS
Data Format Conversion: Auto-converts EPC codes to GS1-128 standards
Edge Computing: Local SQLite database buffers 100,000+ records

How to maintain performance in metal-intensive environments?

Optimization:

Metal-Adaptive Tuning: Auto-adjusts impedance matching for racks/containers
Shielded Cable Kits: Optional 3M Faraday cage cables reduce EM noise
Floor Mapping: 3D signal heatmaps via web interface
