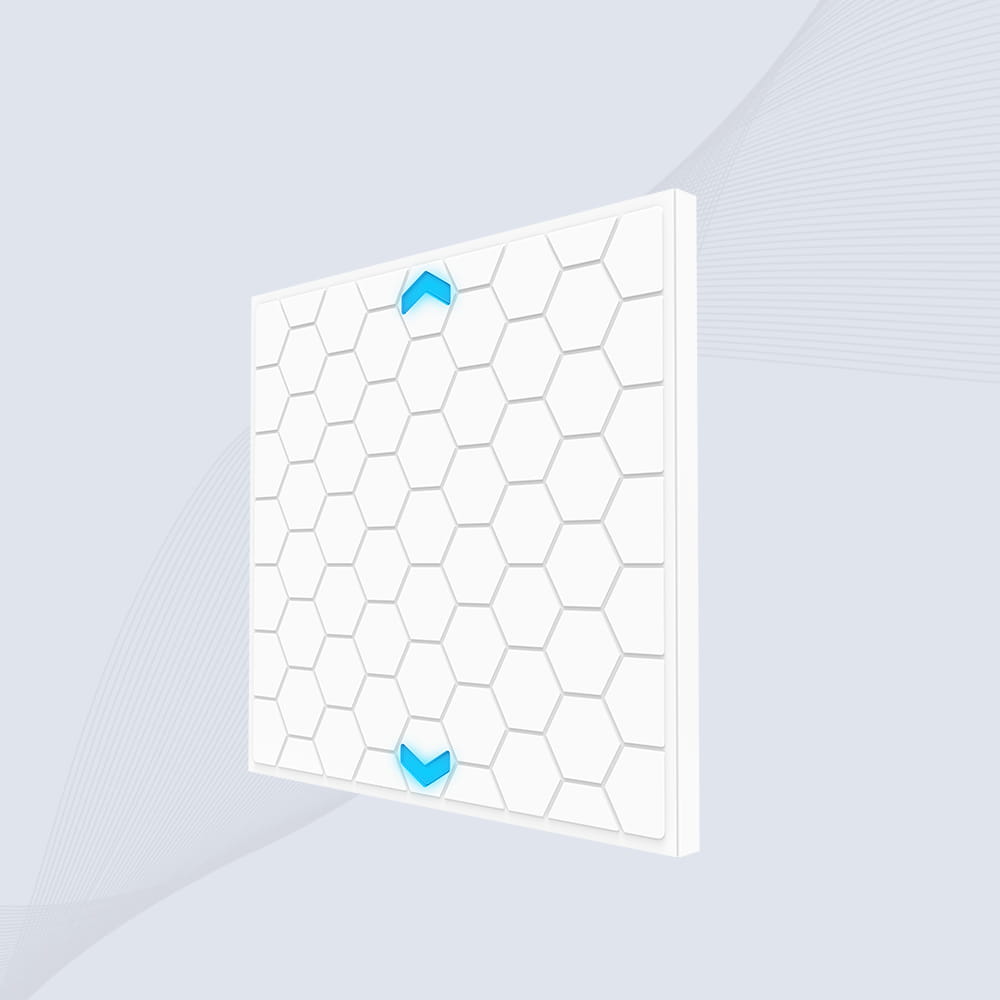

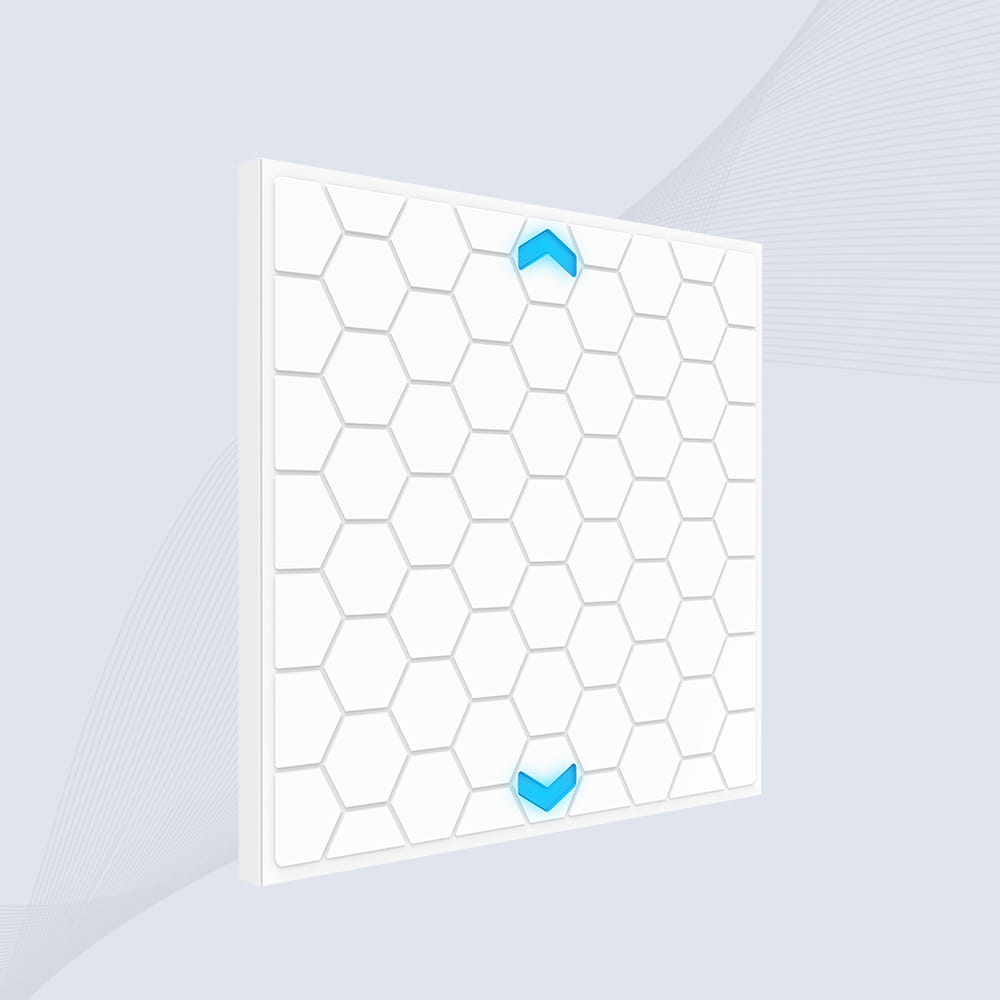

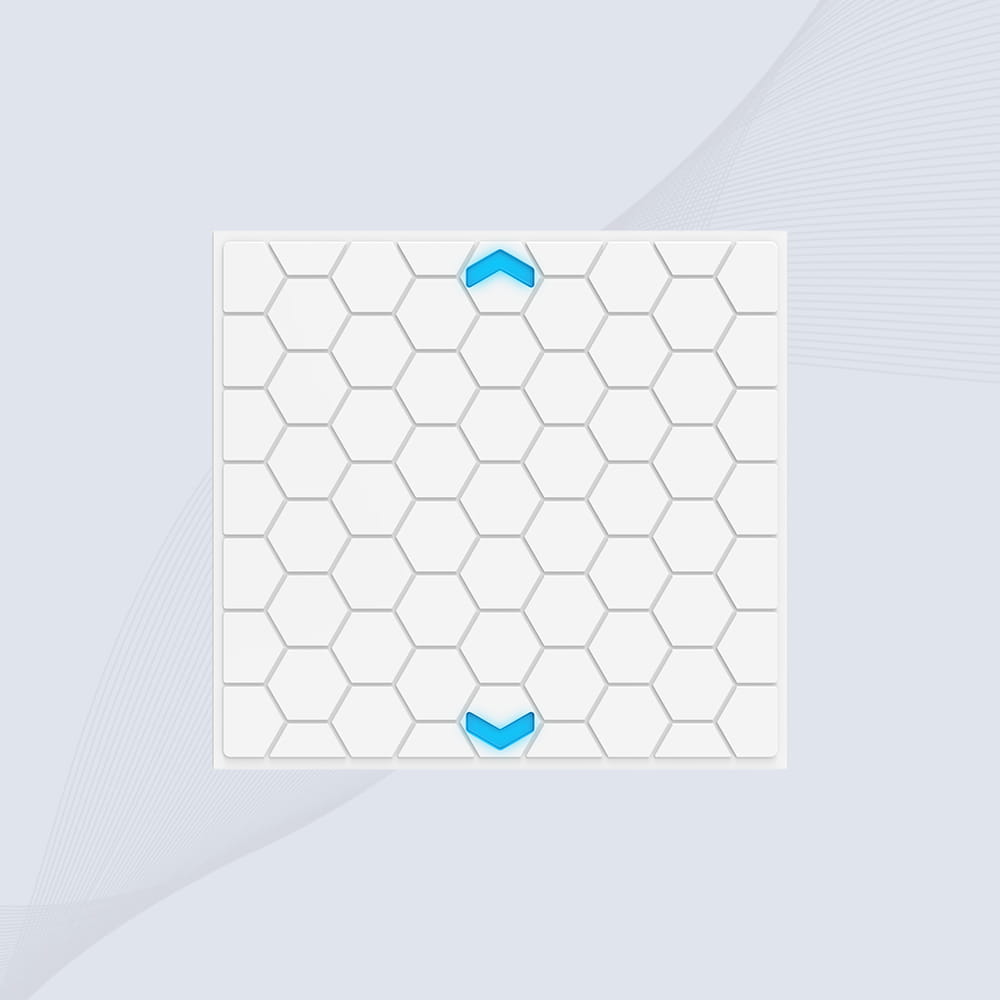

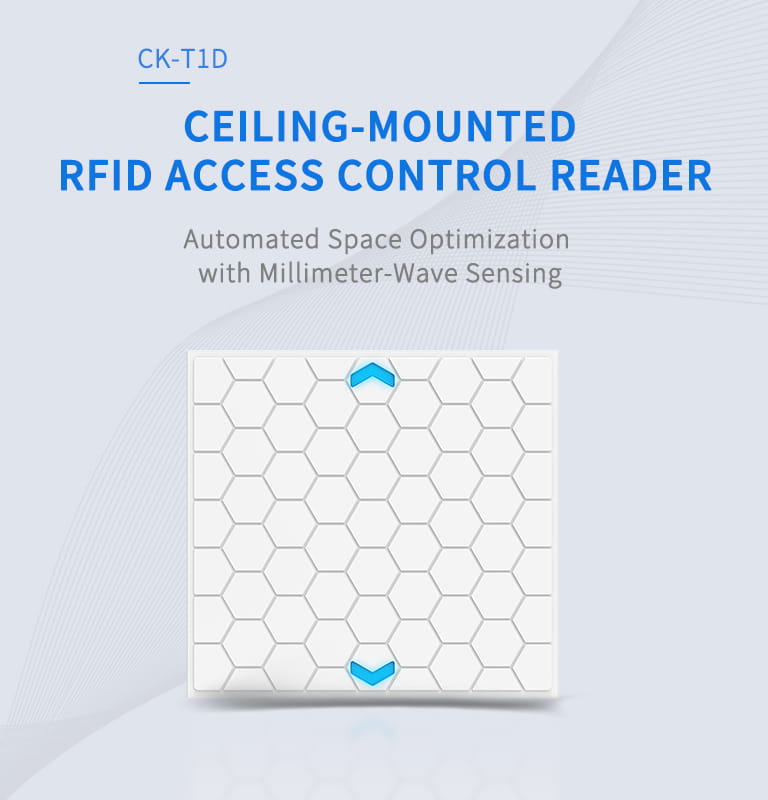

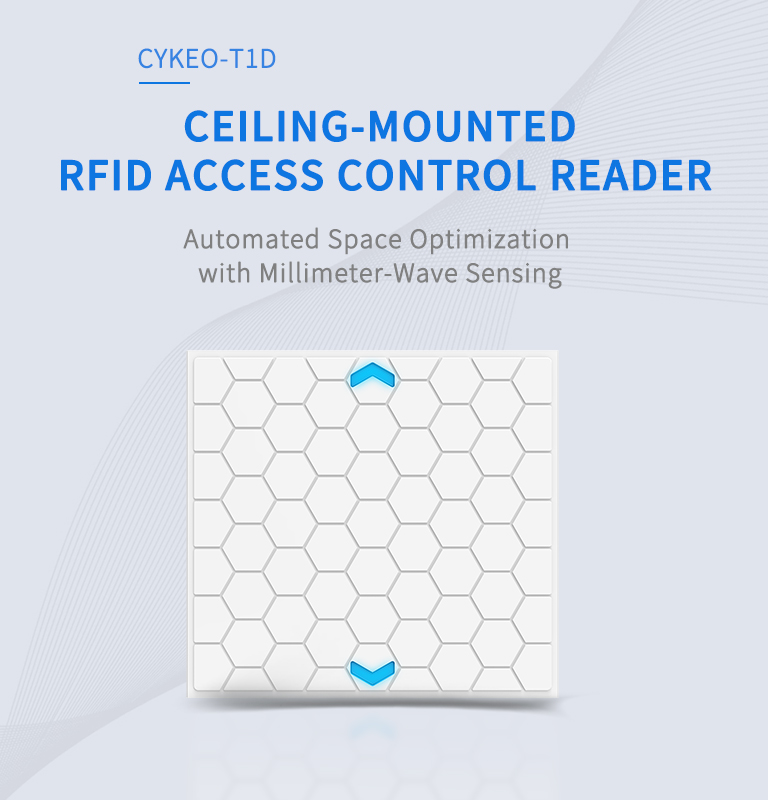

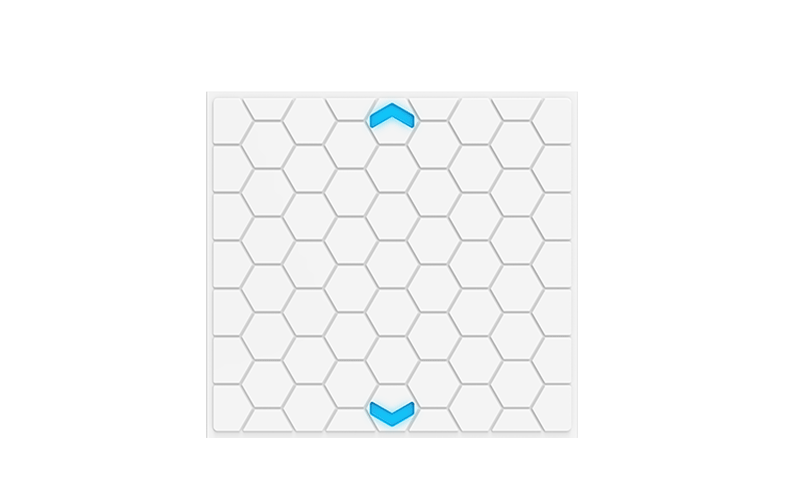

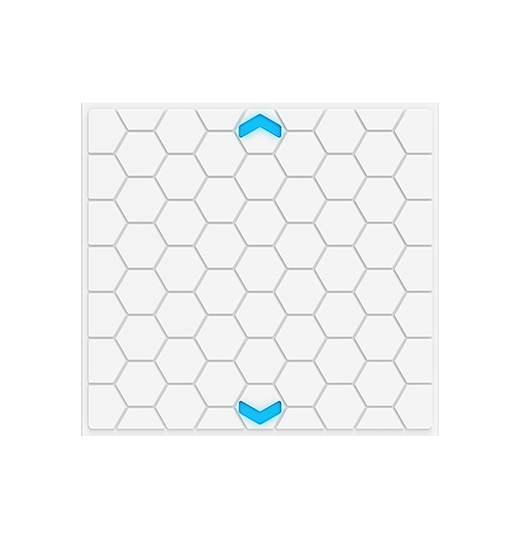

CK-T1D

Ceiling-Mounted RFID access control reader

Smart Space Management Solution with Dual Sensing Technology

✔️ 5M Long-Range Dual Sensing Detection

✔️ Integrated Light & Sound Alarm System

✔️ Slim 24mm Profile for Discreet Installation

✔️ Multi-Protocol Support (EPC C1G2/ISO18000-6B/C/GB-T29768)

Talk to an Expert

Email Our Team

INVISIBLE SECURITY, INTELLIGENT CONTROL

The CK-T1D Ceiling-Mounted RFID Access Control Reader revolutionizes space management through advanced 860-960MHz UHF RFID technology. Designed for seamless integration into clothing fitting rooms, secured warehouses, and smart offices, this disk-shaped device enables touchless identification of tagged items/personnel within 0-20m range. Its 33dBm adjustable power output ensures reliable performance across metal-rich or high-interference environments.

Ideal for automated access logging: Retail fitting room management, luxury boutique inventory protection, corporate document archive monitoring, and high-security zone personnel tracking.

Electronic shop

Apparel Inventory

Luxury management

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo CK-T1D Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-T1D RFID GATE READER

5m 3D Spatial Sensing

Advanced phase array antenna enables vertical 0-5m height detection

Dynamic Power Adjustment

33dBm±1dBm output with 1dB step tuning for interference avoidance

24/7 Continuous Operation

-20℃~60℃ industrial-grade endurance with IP68 environmental sealing

Real-Time Data Streaming

TCP/IP protocol supports 100Mbps synchronous data transmission

Multi-Layer Security

EPC+TID dual authentication prevents tag cloning risks

Instant Alarm Triggers

Sound-light alarms activate within 0.3s for unauthorized access

Smart Space Mapping

RSSI-based positioning accuracy ≤±0.5m

Future-Proof Design

Firmware supports OTA upgrades for new RFID protocols

CK-T1D CEILING-MOUNTED RFID ACCESS CONTROL READER SPECIFICATIONS

Main Specifications

BrandCykeo
ModelCK-T1D
Product NameCeiling-Mounted RFID access control reader

Physical Parameters

Communication ProtocolTCP/IP
Operating ModeFixed Frequency/Frequency Hopping
Beam Scanning Interval5°
Coverage Angle90° (Horizontal) / 120° (Vertical)
Beamforming Time5μs
Power Output33dBm±1dBm (MAX)
Occupied Bandwidth<200kHz

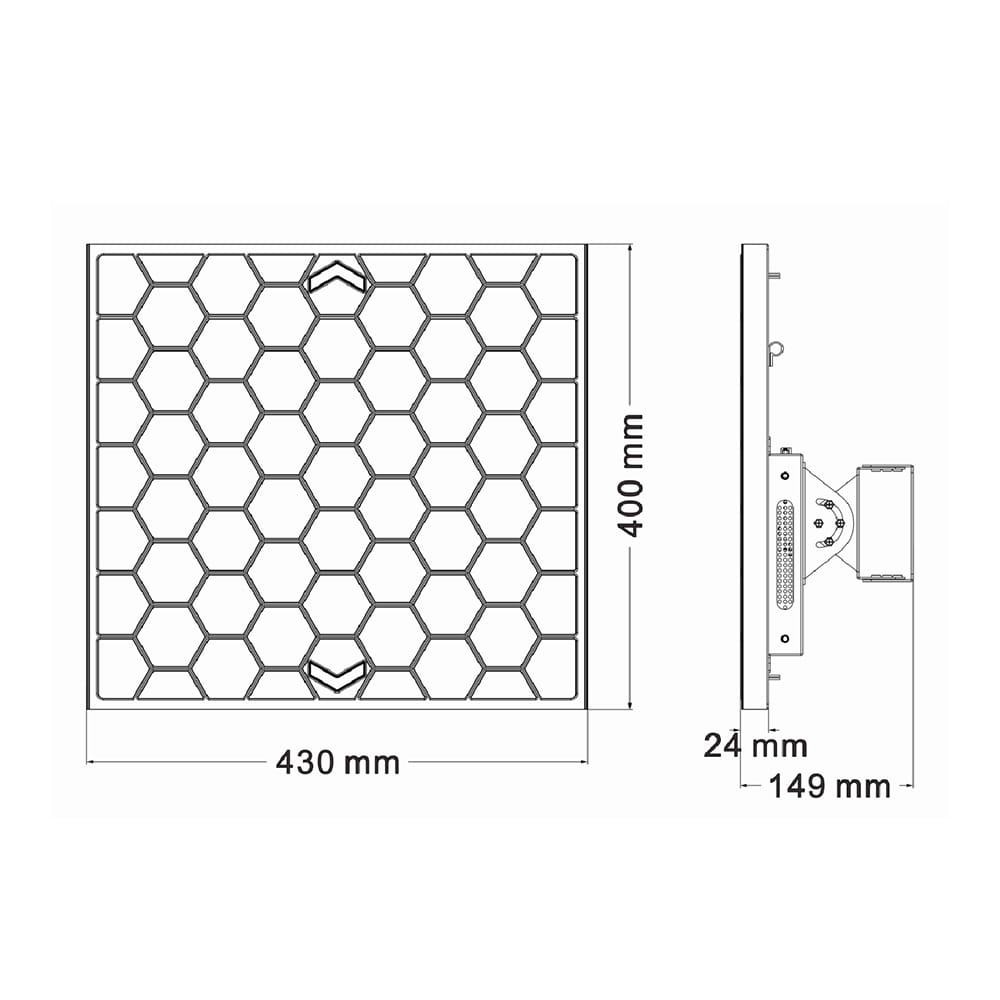

Dimensions400×430×24mm
Housing MaterialAluminum Frame + Acrylic Panel
Installation Height2.2-3.5m
Weight≤5kg
Communication InterfaceRJ45 Port ×1

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Air ProtocolISO 18000-6C/6B、EPC C1G2、GB/T 29768-2013（Optional）、GJB 7377.1-2011/72018A
AntennaCircularly Polarized Antenna (33dBm)
Reading Range0~5m (EPC), 0~5m (Write)
Optimal Coverage Width2.5m
Bulk Read Speed>500 tags/sec(circular polarization)

Operating Environment

Operating Temperature-20℃ to 60℃ (Industrial-Grade Range)
Storage Temperature-40℃ to 85℃ (Extreme Condition Resilience)
Humidity5%~95% (Non-Condensing)
Temperature-20℃~60℃
IP RatingIP54 (Dustproof & Water-Jet Resistant)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID Access Control System FAQs

ow to prevent false alarms when multiple tags enter simultaneously?

Solution Architecture:

Spatial Filter Algorithm
Deploys 3D zone partitioning (0.5m³ granularity) to distinguish 40+ concurrent tag movements in fitting room scenarios.
Dual-Frequency Verification
840MHz/920MHz dual-band cross-checking reduces misreads by 72% in high-traffic areas.
Dwell Time Threshold
Configurable 5-60s stay detection prevents transient triggers from passing personnel.

What maintenance required for ceiling installation?

Maintenance Protocol:

Self-Diagnostic System
Weekly antenna VSWR auto-test ensures <1.5:1 standing wave ratio
Dust-Resistant Design
Fanless structure with nano-coating allows 3-year operation in PM2.5>200 environments
Tool-Free Service
Modular design enables antenna/power module replacement within 5 minutes

How to integrate with existing security cameras?

Integration Framework:

ONVIF Compatibility
Converts RFID events into PTZ camera control signals via TCP/IP
Metadata Overlay
Embeds tag EPC codes into video streams as digital watermark
Incident Playback
Synchronizes RFID logs with surveillance footage with ±100ms accuracy
