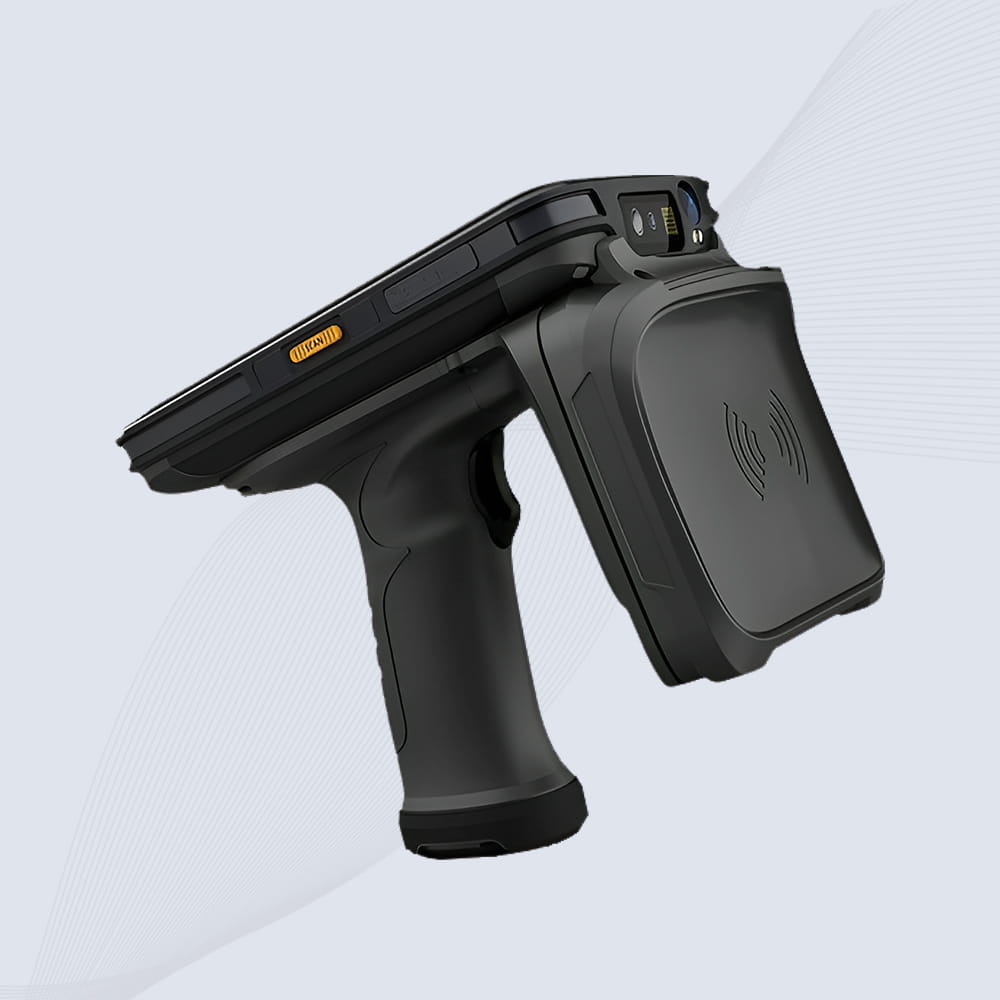

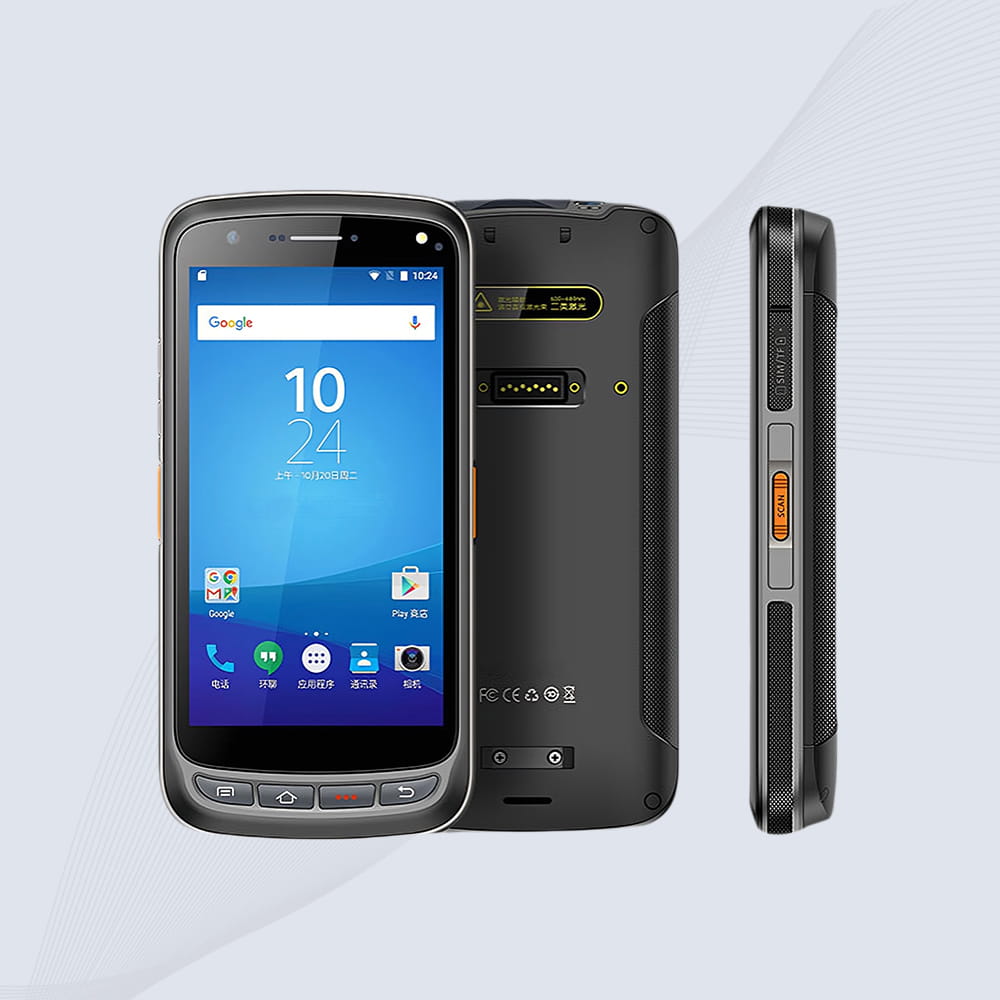

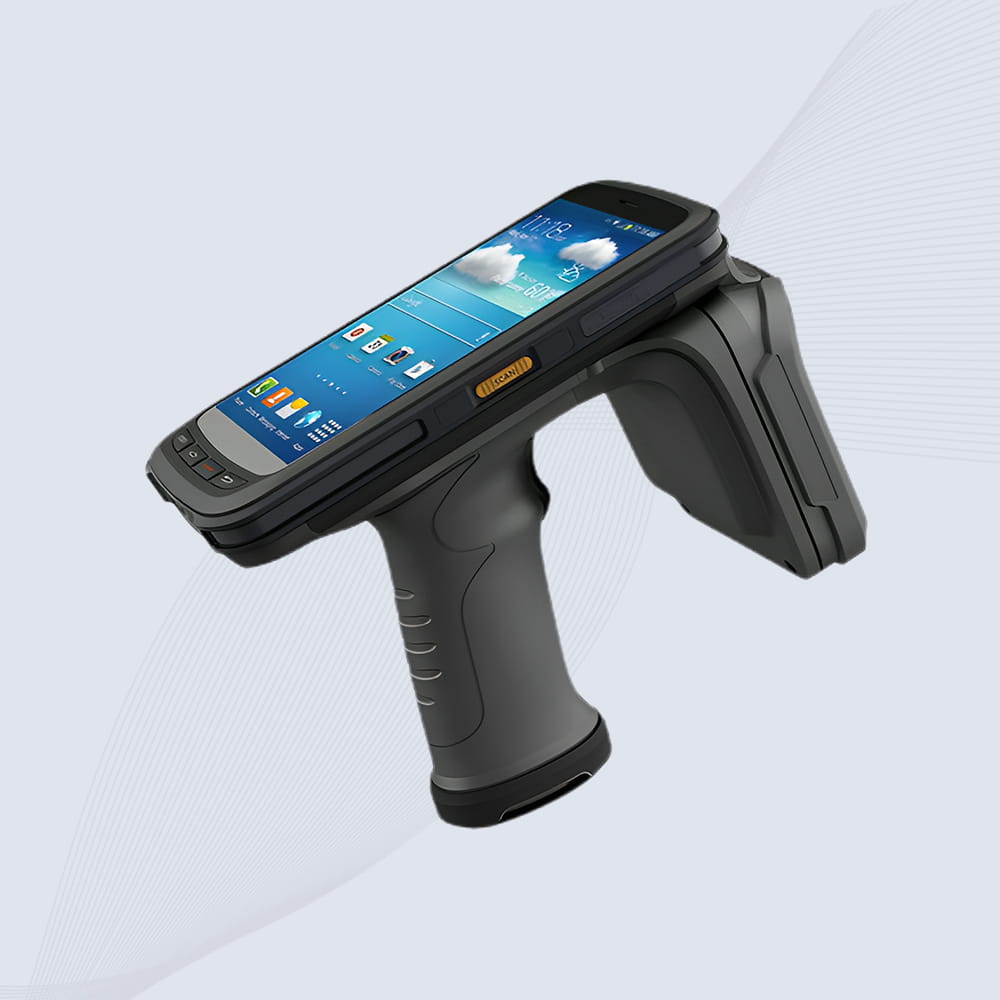

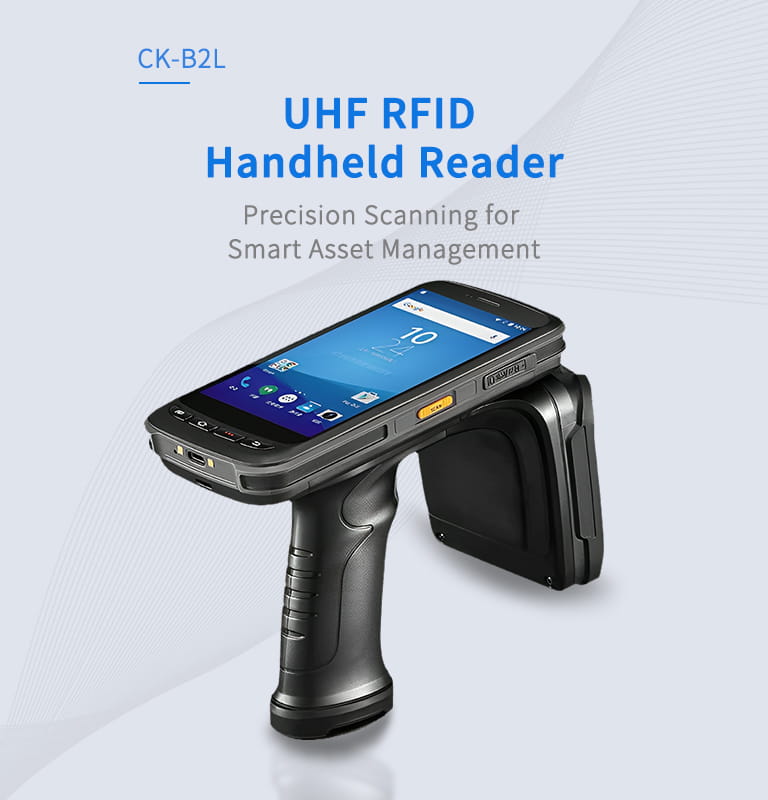

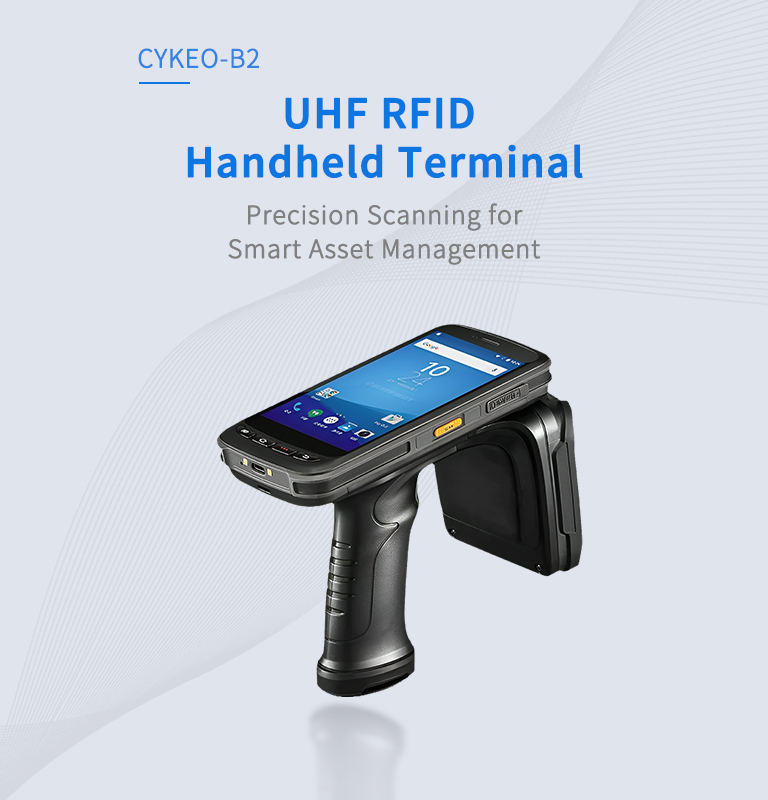

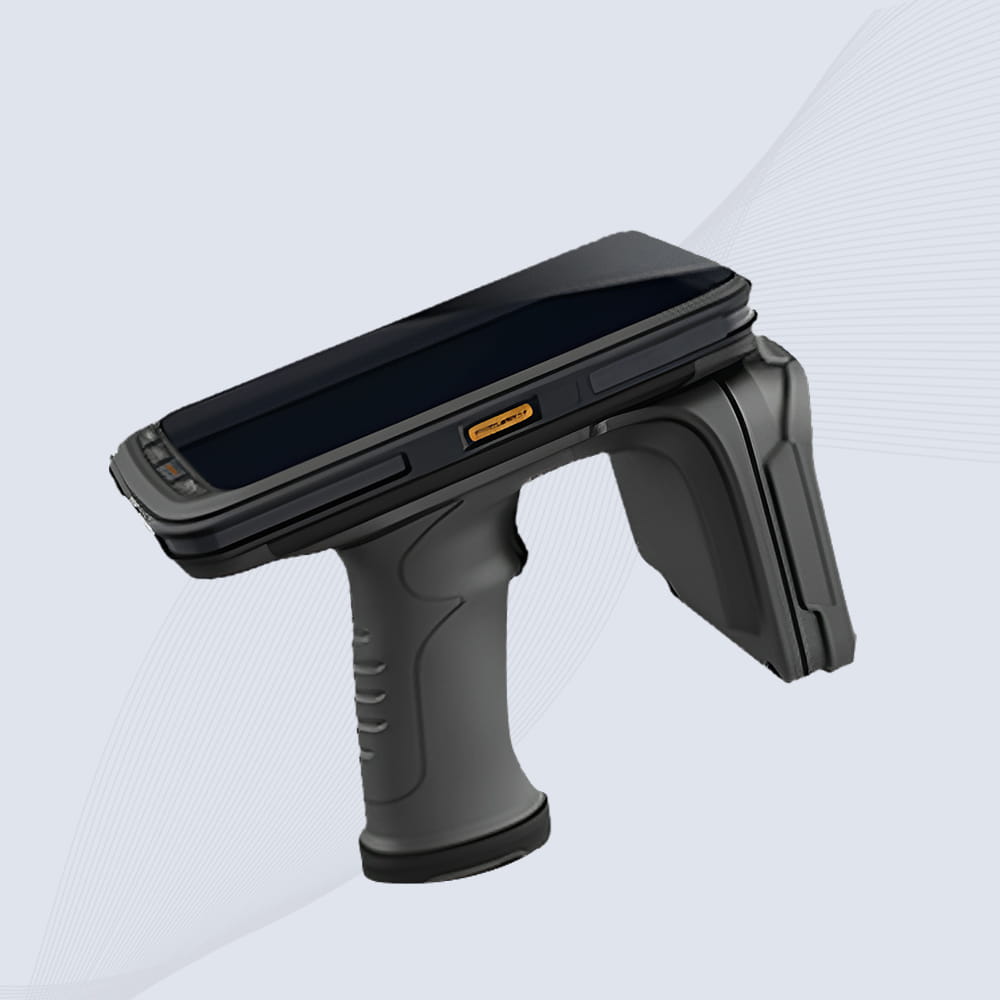

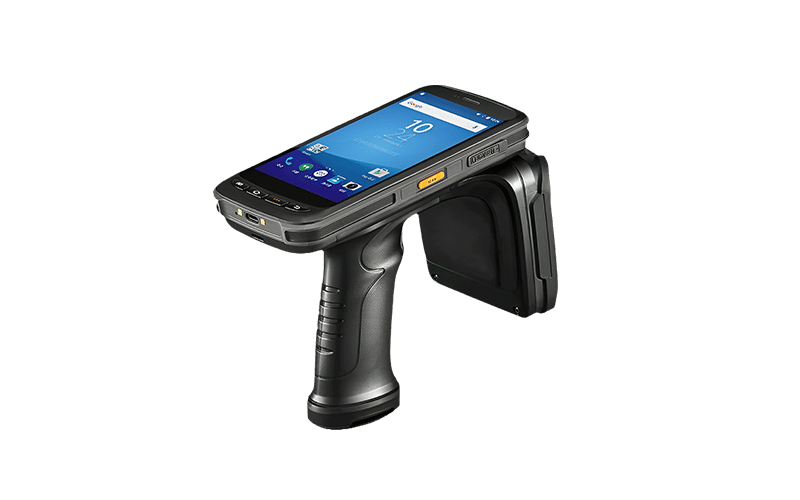

CK-B2L

UHF RFID Handheld Terminal with Android 11

✔️ IP65 Ruggedized Build – Dustproof and Water-Resistant

✔️ 10m+ RFID Range – Optimized for Fast Inventory Checks

✔️ Seamless ERP Integration – SAP, Oracle, and Custom APIs

Talk to an Expert

Email Our Team

POWER BEYOND LIMITS, ANDROID DRIVEN

The CK-B2L UHF RFID Handheld Terminal delivers high-speed data capture with its advanced UHF RFID, barcode, and NFC capabilities. Built for demanding workflows, it features an Android 11 OS, 3GB RAM, and an 8000mAh battery for 12+ hours of continuous operation. Ideal for retail, logistics, and manufacturing, it ensures real-time visibility of assets and inventory.

Perfect for retail shelf audits, warehouse stocktaking, and production line WIP tracking across industries.

Asset Management

Apparel Inventory

Hotel Linen Control

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo-CK-B2L UHF RFID Handheld Terminal Specification

Download

Online Procurement

8 KEY FEATURES OF CYKEO CK-B2L UHF RFID HANDHELD READER

10m Extended RFID Range

Adjustable 840-960MHz Frequency

Multi-Protocol Support

RFID/Barcode/NFC/ID

Android 11 OS

2.3GHz Octa-Core Processing

8000mAh Battery

12H Non-Stop Operation

5.2″ Glove-Friendly Touchscreen

1920×1080 IPS Display

Global 4G Connectivity

7-Band Network Compatibility

Military-Grade Durability

3ft Drop Resistance

C#/Java SDK

Rapid System Integration

CK-B2L UHF RFID Handheld Terminal Specifications

Main Specifications

BrandCykeo
ModelCK-B2L
Product NameUHF RFID Handheld Terminal with Android 11

Physical Parameters

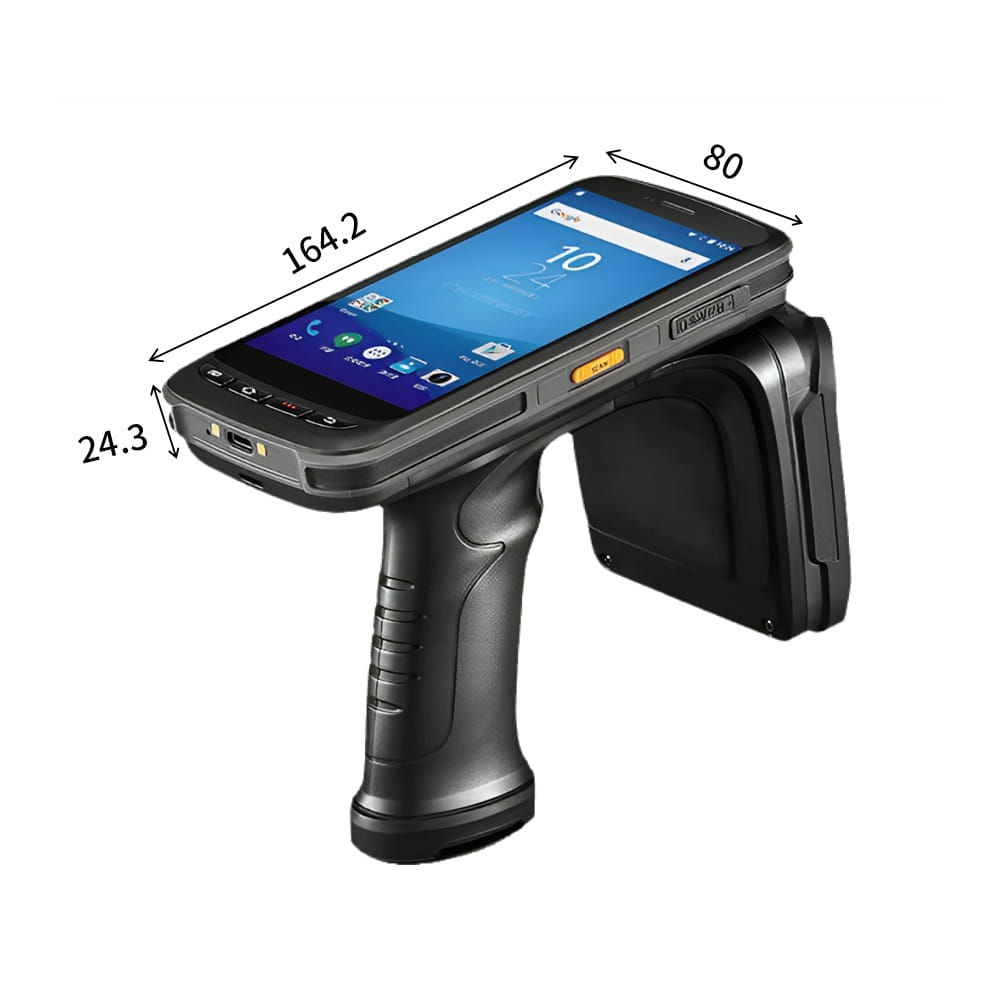

Dimensions164.2×80.0×24.3mm
Weight<660g

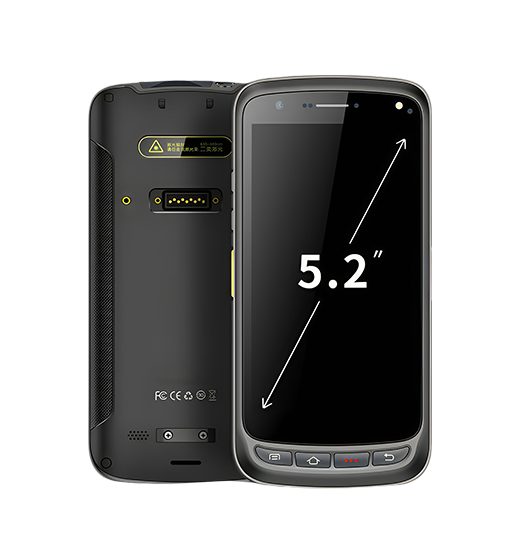

Display5.2″ IPS 1920×1080
Battery8000mAh Li-Polymer
SlotsNano SIM×1, TF×1 (optional PSAM×2), POGO Pin×1
StandbyTime >500 hours

Audio

ComponentsMono speaker, microphone, earpiece

Controls

Main KeysHome/Delete/Back/Confirm
Side KeysPower, Volume+/-, Scan×2

Sensors

FeaturesGravity/Light/Proximity sensors, vibration motor

Language/Input

Input MethodsEnglish/Pinyin/Wubi/Handwriting, soft keyboard
Languages30+ including Chinese/English/Korean/Japanese/Malaysian/Singaporean

Optional Barcode

2D ScannerHoneywell N6603
1D ScannerZebra SE965

NFC (Optional)

NFC Read/Write Range1-5 cm (typical for contactless payment & data transfer)
ProtocolISO 14443A/B、ISO 15693
Frequency13.56MHz

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840~960 MHz
Air ProtocolEPC C1G2, ISO18000-6C
Reading Range0-20m adjustable
Reading Distance0-10 meters, adjustable
CPUCortex-A53 Octa-core 2.3GHz
RAM+ROM3+32GB (upgradable to 4+64GB)
Expandable StorageStorage MicroSD up to 128GB
OSAndroid 11

Data Communication

WLANDual-band 2.4GHz/5GHz, 802.11 a/b/g/n/ac
WWAN2G/3G/4G full-band support
Bluetooth5.0, 5-10m transmission
GNSSPS/BeiDou/Glonass/Galileo

Camera

13MP Auto-Focus Camera13MP AF with flash & macro
Front2MP

Operating Environment

Operating Temperature-20℃ to 50℃ (Industrial-Grade Range)
Storage Temperature-40℃ to 70℃ (Extreme Condition Resilience)
Humidity5%RH–95%RH (Non-Condensing)
Drop specificationsWithin the operating temperature range, all 6 surfaces can withstand the impact of 30 drops to the concrete floor at a height of 1.5 meters
Rolling TestRolling 1000 times 0.5m, 6 surfaces contact surface rolling still stable operation, meet the IEC rolling specifications
Class of protectionHost IP67, meet the IEC sealing standard

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID Handheld Terminal FAQs

How to Choose the Best UHF RFID Handheld Reader for Warehouse Management?

Solution: The CK-B2G excels in industrial warehouse environments with:

600+ tags/sec scanning speed: Achieve full pallet verification in ≤3 seconds using EPC Gen2v2 protocol.
Smart collision avoidance: Automatically filters duplicate tags with 99.9% accuracy during bulk reading.
ERP-ready data formats: Preloaded SAP EWM and Oracle WMS templates enable instant inventory sync.
Pro Tip: Pair with Cykeo’s UHF tunnel gateways for end-to-end supply chain visibility.

Can Android-Based UHF RFID Handhelds Replace Traditional Barcode Scanners?

Technical Edge: The CK-B2G’s multi-mode capabilities revolutionize data capture:

Dual scanning: Simultaneously read RFID tags (up to 20m) and scan barcodes with Zebra SE4710 engine.
Batch processing: Convert 500+ paper-based SKU checks into 1-tap RFID audits.
Cost analysis: Reduce device count by 60% compared to maintaining separate RFID/barcode systems.
Case Study: A European retail chain cut inventory time by 75% after adopting CK-B2G.

What Makes an Industrial UHF RFID Handheld Suitable for 24/7 Logistics Operations?

Durability Metrics:

Battery performance: 12-hour continuous scanning + 30-min quick charge (QC 3.0 compatible).
Thermal resilience: Operates at -30°C to 60°C with heated touchscreen for freezer-to-yard transitions.
Drop survival: MIL-STD-810G certified with corner armor protects against 5ft concrete drops.
Operational Tip: Use hot-swappable batteries for non-stop shift rotations in parcel hubs.
